FZJ80L-GCMRUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )1FZ#

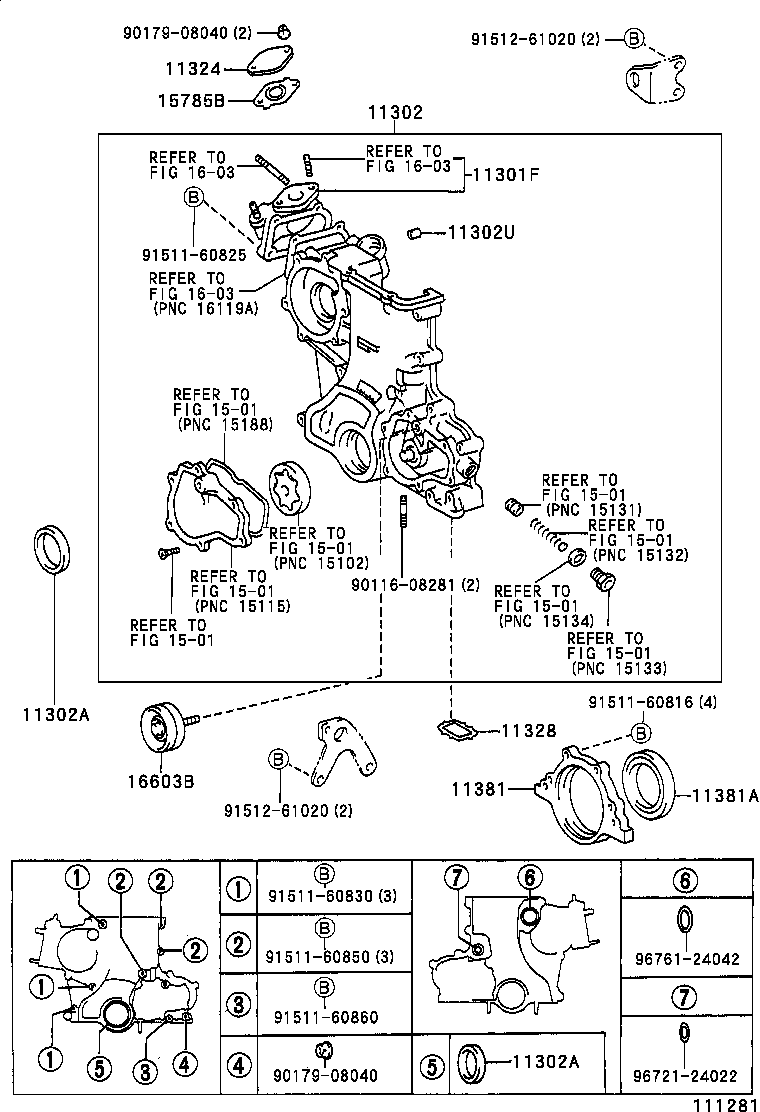

Click highlighted areas on diagram

diagram 11301F 11302 11302A 11302A 11302U 11324 11328 11381 11381A 1501 1501 1501 1501 1501 1501 1501 1501 15785B 1603 1603 1603 16603B 9011608281 9017908040 9017908040 91511B0816 91511B0825 91511B0830 91511B0850 91511B0860 91512B1020 91512B1020 9672124022 9676124042
Part # Description Qty Price
Common parts
90116-08281
90179-08040
91511-B0816
91511-B0825
91511-B0830
91511-B0850
91511-B0860
91512-B1020
96721-24022
96761-24042
Linked diagrams
1501
1603

(9201- )1FZ#

Click highlighted areas on diagram

diagram 11301F 11302 11302A 11302A 11302U 11324 11328 11381 11381A 1501 1501 1501 1501 1501 1501 1501 1501 15785B 1603 1603 1603 16603B 9011608281 9017908040 9017908040 9151160816 9151160825 9151160830 9151160850 9151160860 9151261020 9151261020 9672124022 9676124042
Part # Description Qty Price
11301F - PLATE, WATER PUMP THERMOSTAT GUIDE
16127-66020

1FZ#..FZJ80

 1
16127-66020

1FZF..FZJ80

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-66020

1FZF..FZJ80

 1
11310-66020

1FZ#..FZJ80

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-52022

1FZF..FZJ80

 1
90311-52022

1FZ#..FZJ80

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-52022

1FZF..FZJ80

 1
90311-52022

1FZ#..FZJ80

 1
11302U - PIN, RING
90253-11021

1FZF..FZJ80

 2
90253-11021

1FZ#..FZJ80

 2
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-66020

1FZF..FZJ80

 1
11328-66020

1FZ#..FZJ80

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-66020

1FZF..FZJ80

 1
11381A - SEAL, ENGINE REAR OIL
90311-99006

1FZ#..FZJ80

 1
90311-99009

1FZ#..FZJ80

 1
90311-99006

1FZF..FZJ80

 1
16603B - PULLEY SUB-ASSY, IDLER
16603-66010

1FZ#..FZJ80

 1
16603-66010

1FZF..FZJ80

 1
Common parts
90116-08281
90179-08040
91511-60816
91511-60825
91511-60830
91511-60850
91511-60860
91512-61020
96721-24022
96761-24042
Linked diagrams
1501
1603
