3102 - CLUTCH PEDAL & FLEXIBLE HOSE

FZJ80L-GCMNUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998

Engine 1FZF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

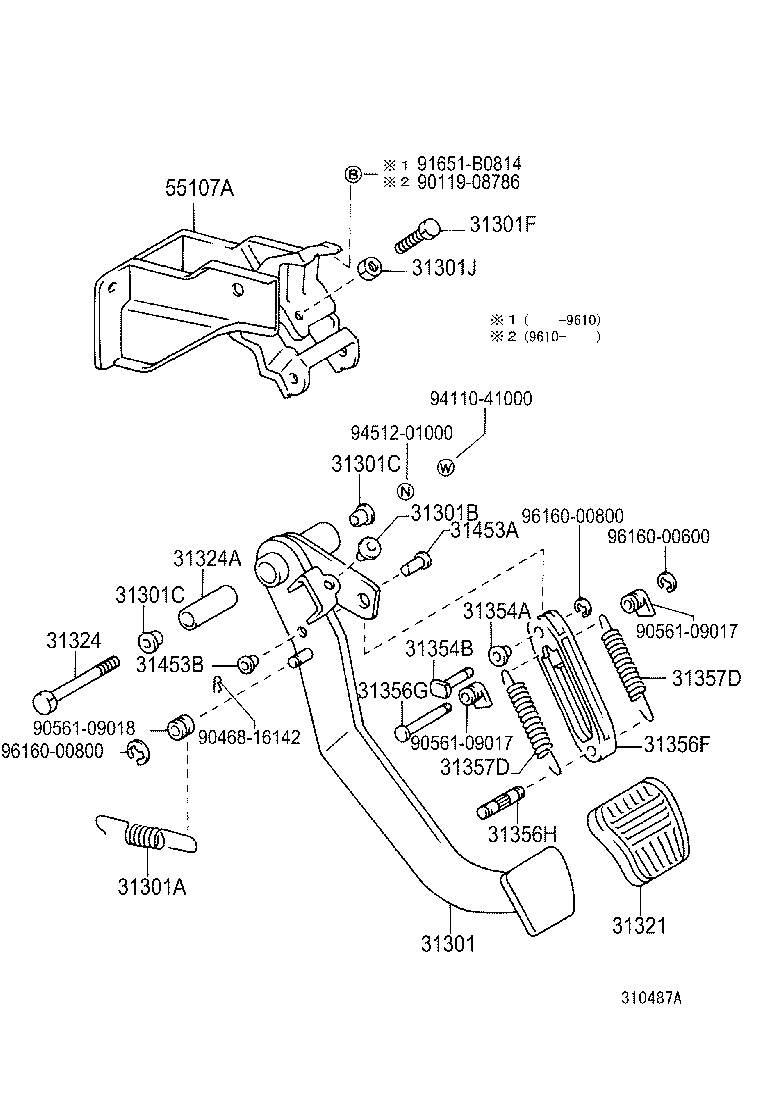

ILLUST NO. 1 OF 2(9001-9501)MTM..GX,STD ; (9501-9608)5F ; (9608-)HDJ80,HZJ80..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31310-60020	FJ80,FZJ80..LHD..MTM..(GX,STD)	01/1990 - 08/1992	1
31310-60021	FZJ80..LHD..5F	01/1995 - 08/1996	1
31310-60020	FZJ80..LHD..(GX,STD)..CBR	08/1992 - 01/1995	1
31310-60041	FZJ80..LHD..CBR;FZJ80..5F..GCC..EFI	08/1996 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-26008	FZJ80..(GX,STD)..CBR;FZJ80..5F..(GX,VX)..EFI	08/1992 - 08/1996	1
90507-26008	FZJ80..RHD..VX;FJ80,FZJ80,HDJ80..MTM..(GX,STD)	01/1990 - 08/1992	1
90507-14015	FZJ80..CBR;FZJ80..5F..(ARL,GCC)..EFI	08/1996 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06032	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
90541-06036	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13020	FJ80,FZJ80,HDJ80,HZJ80..5F	05/1992 - 08/1992	2
90386-13020	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	2
90386-13015	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 05/1992	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13020	FJ80,FZJ80,HDJ80,HZJ80..5F	05/1992 - 08/1992	2
90386-13020	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	2
90386-13015	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 05/1992	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
90101-08052	FZJ80,HDJ80,HZJ80..5F	08/1992 - 01/1995	1
90101-10369	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-40800	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
94120-40800	FZJ80,HDJ80,HZJ80..5F	08/1992 - 01/1995	1
94130-61000	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
31321-14020	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31324 - SHAFT, CLUTCH PEDAL
90101-10177	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
91121-51080	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10116	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
90387-10116	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-10019	FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)	01/1990 - 08/1992	1
90386-10019	FZJ80..(GX,STD)..CBR;FZJ80..5F..(GX,VX)..EFI	08/1992 - 08/1996	1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-10127	FZJ80..(GX,STD)..CBR;FZJ80..5F..(GX,VX)..EFI	08/1992 - 08/1996	1
90249-10127	FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)	01/1990 - 08/1992	1
31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1
31356-60010	FZJ80..(GX,STD)..CBR;FZJ80..5F..(GX,VX)..EFI	08/1992 - 08/1996	1
31356-60010	FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)	01/1990 - 08/1992	1
31356G - PIN(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE)
90249-09019	FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)	01/1990 - 08/1992	1
90249-09019	FZJ80..(GX,STD)..CBR;FZJ80..5F..(GX,VX)..EFI	08/1992 - 08/1996	1
31356H - PIN, NO.2(FOR CLUTCH PEDAL SUPPORT OVER CENTER PLATE)
90245-12005	FJ80,FZJ80,HDJ80,HZJ80..MTM..(GX,STD)	01/1990 - 08/1992	1
90245-12005	FZJ80..(GX,STD)..CBR;FZJ80..5F..(GX,VX)..EFI	08/1992 - 08/1996	1
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90507-32005	FJ80,FZJ80..MTM..(GX,STD)	01/1990 - 08/1992	2
90507-32005	FZJ80..5F..(GX,STD)	08/1992 - 01/1995	2
90507-32004	FZJ80..CBR;FZJ80..5F..ARL	01/1995 - 08/1996	2
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90507-32005	FJ80,FZJ80..MTM..(GX,STD)	01/1990 - 08/1992	2
90507-32005	FZJ80..5F..(GX,STD)	08/1992 - 01/1995	2
90507-32004	FZJ80..CBR;FZJ80..5F..ARL	01/1995 - 08/1996	2
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018	FZJ80,HDJ80,HZJ80..5F L=29.5	08/1992 - 12/2999	1
90249-08018	FJ80,FZJ80,HDJ80,HZJ80..MTM L=29.5	01/1990 - 08/1992	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
90386-08033	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55180-60020	FZJ80,HZJ80..LHD..5F..(GX,STD)	08/1992 - 01/1995	1
55180-60020	FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD)	01/1990 - 08/1992	1
Common parts
90119-08786
90468-16142
90561-09017
90561-09018
91651-B0814
94110-41000
94512-01000
96160-00600
96160-00800

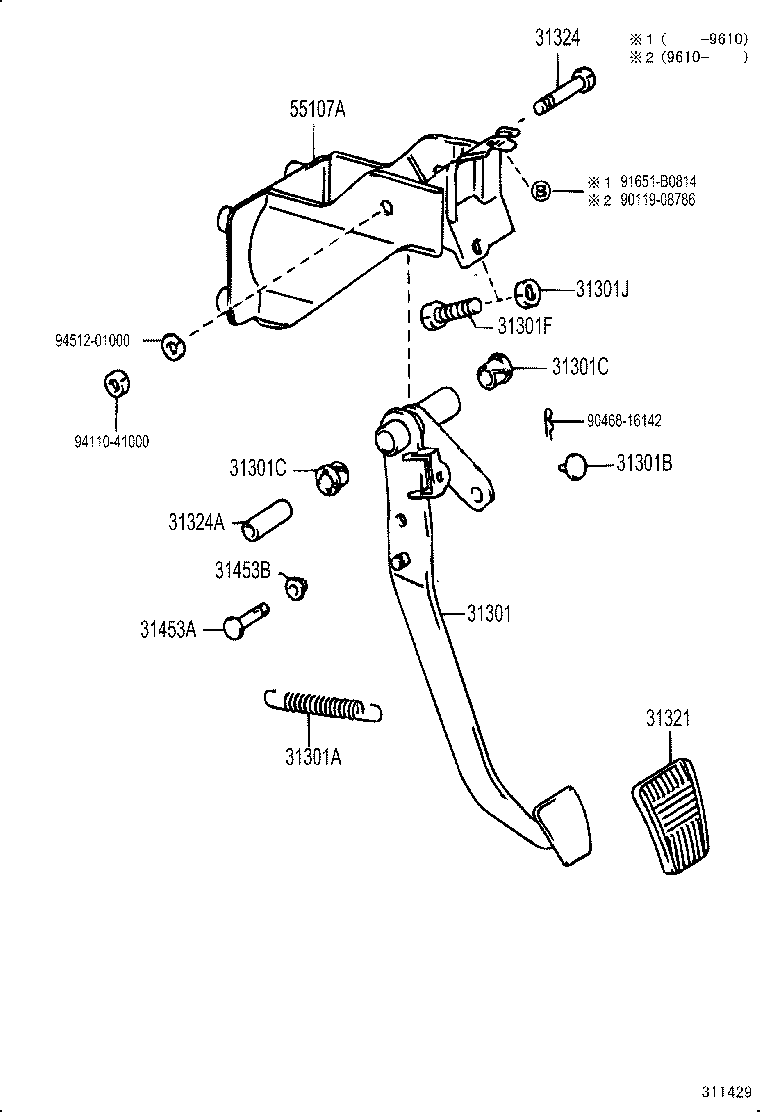

ILLUST NO. 1 OF 2(9001-9501)5F..VX ; (9608- )FZJ80..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31310-60020	FJ80,FZJ80..LHD..MTM..(GX,STD)	01/1990 - 08/1992	1
31310-60021	FZJ80..LHD..5F	01/1995 - 08/1996	1
31310-60020	FZJ80..LHD..(GX,STD)..CBR	08/1992 - 01/1995	1
31310-60041	FZJ80..LHD..CBR;FZJ80..5F..GCC..EFI	08/1996 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-26008	FZJ80..(GX,STD)..CBR;FZJ80..5F..(GX,VX)..EFI	08/1992 - 08/1996	1
90507-26008	FZJ80..RHD..VX;FJ80,FZJ80,HDJ80..MTM..(GX,STD)	01/1990 - 08/1992	1
90507-14015	FZJ80..CBR;FZJ80..5F..(ARL,GCC)..EFI	08/1996 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06032	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
90541-06036	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13020	FJ80,FZJ80,HDJ80,HZJ80..5F	05/1992 - 08/1992	2
90386-13020	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	2
90386-13015	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 05/1992	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13020	FJ80,FZJ80,HDJ80,HZJ80..5F	05/1992 - 08/1992	2
90386-13020	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	2
90386-13015	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 05/1992	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
90101-08052	FZJ80,HDJ80,HZJ80..5F	08/1992 - 01/1995	1
90101-10369	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-40800	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
94120-40800	FZJ80,HDJ80,HZJ80..5F	08/1992 - 01/1995	1
94130-61000	FZJ80,HDJ80,HZJ80..5F	01/1995 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
31321-14020	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31324 - SHAFT, CLUTCH PEDAL
90101-10177	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
91121-51080	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10116	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
90387-10116	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018	FZJ80,HDJ80,HZJ80..5F L=29.5	08/1992 - 12/2999	1
90249-08018	FJ80,FZJ80,HDJ80,HZJ80..MTM L=29.5	01/1990 - 08/1992	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	FJ80,FZJ80,HDJ80,HZJ80..MTM	01/1990 - 08/1992	1
90386-08033	FZJ80,HDJ80,HZJ80..5F	08/1992 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55180-60020	FZJ80,HZJ80..LHD..5F..(GX,STD)	08/1992 - 01/1995	1
55180-60020	FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD)	01/1990 - 08/1992	1
Common parts
90119-08786
90468-16142
91651-B0814
94110-41000
94512-01000
