FZJ78R-RJMRKQ (1999)
Toyota Land Cruiser
Production
Aug 1999
-
May 2006
Engine
1FZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(9001- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

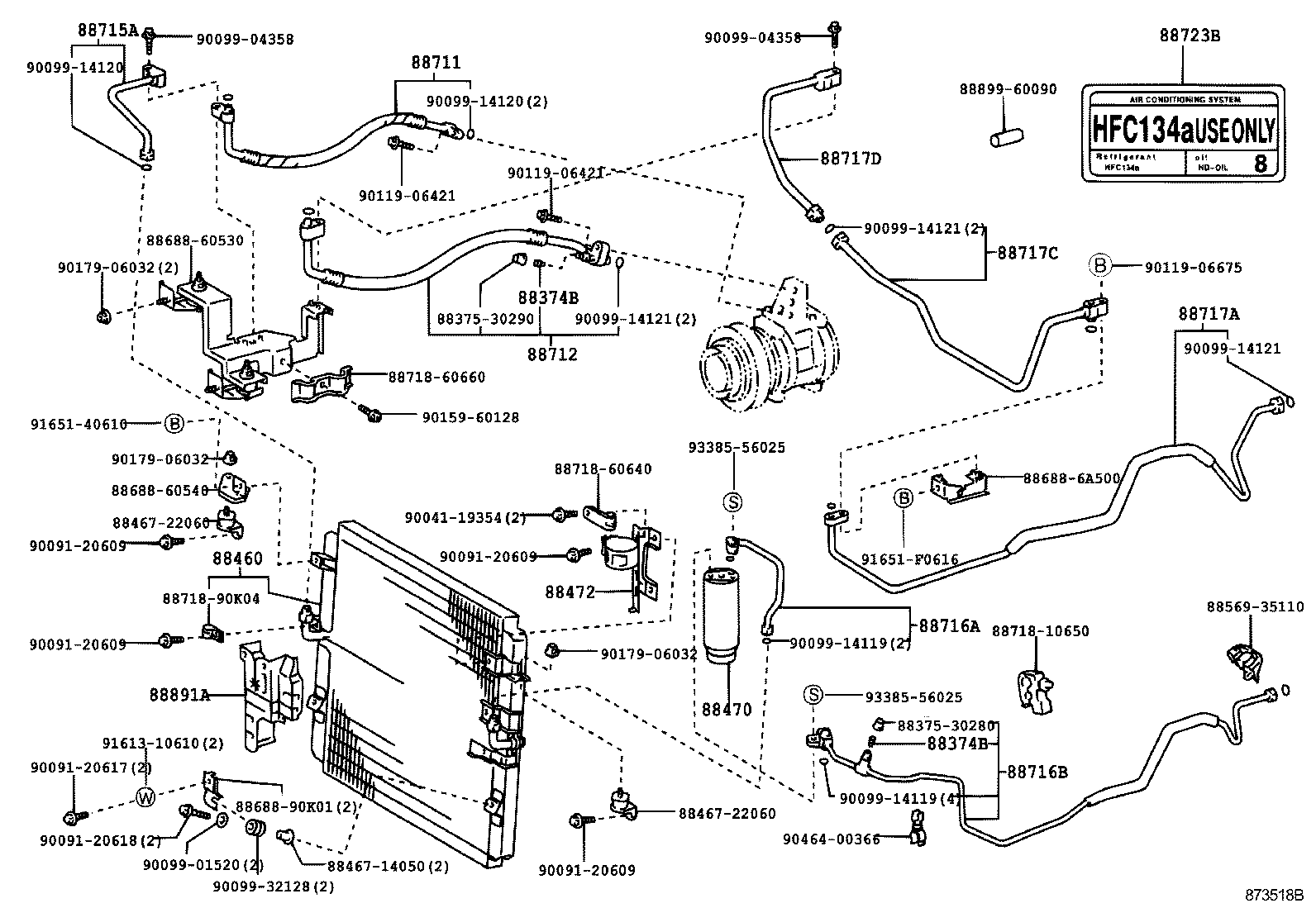

ILLUST NO. 1 OF 3(9908- )FZJ78,79..ARL
Click highlighted areas on diagram
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
FZJ78,79..ARL |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
FZJ78,79..ARL |
2 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60180 |
FZJ78..ARL |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-34010 |
HZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79 |
1 | ||
| 88471-34010 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 88471-34010 |
FZJ78,79..ARL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60090 |
FZJ78,79..ARL |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60380 |
FZJ78,79..ARL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-6A030 |
FZJ78,79..ARL |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60091 |
FZJ71,74,78,79 |
1 | ||
| 88715-60091 |
FZJ71,74,78,79,HDJ7# |
1 | ||
| 88715-60091 |
FZJ78,79..ARL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A290 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 88716-6A290 |
HZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79 |
1 | ||
| 88716-6A290 |
FZJ78,79..ARL |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-6B230 |
FZJ78,79..ARL |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-6A360 |
FZJ78,79..ARL |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-60591 |
FZJ78,79..ARL |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-60641 |
FZJ78,79..ARL |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 88723-20040 |
HZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79 |
1 | ||
| 88723-20040 |
FZJ78,79..ARL |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53292-60010 |
FZJ78,79..ARL |
1 | ||
| Common parts | ||||
| 88375-30280 | ||||
| 88375-30290 | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88569-35110 | ||||
| 88688-60530 | ||||
| 88688-60540 | ||||
| 88688-6A500 | ||||
| 88688-90K01 | ||||
| 88718-10650 | ||||
| 88718-60640 | ||||
| 88718-60660 | ||||
| 88718-90K04 | ||||
| 88899-60090 | ||||
| 90041-19354 | ||||
| 90091-20609 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-04358 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32128 | ||||
| 90119-06421 | ||||
| 90119-06675 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 90464-00366 | ||||
| 91613-10610 | ||||
| 91651-40610 | ||||
| 91651-F0616 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 2(0701-0907)FZJ71,78,79..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88569-60110 | ||||
| 88569-60120 | ||||
| 88569-60130 | ||||
| 88688-60A10 | ||||
| 88688-60A20 | ||||
| 88688-60A30 | ||||
| 88688-60A40 | ||||
| 88688-60A50 | ||||
| 88688-60A60 | ||||
| 88688-60A70 | ||||
| 88688-60A80 | ||||
| 88688-6A800 | ||||
| 88688-6A810 | ||||
| 88688-6A830 | ||||
| 88718-2F250 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90091-20642 | ||||
| 90092-60602 | ||||
| 90179-06274 | ||||
| 91511-B0616 | ||||
| 91551-80625 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
