8113 - REAR LICENSE PLATE LAMP

FZJ78R-RJMRKQ (1999)

Toyota Land Cruiser

Production Aug 1999 - May 2006

Engine 1FZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9001- )

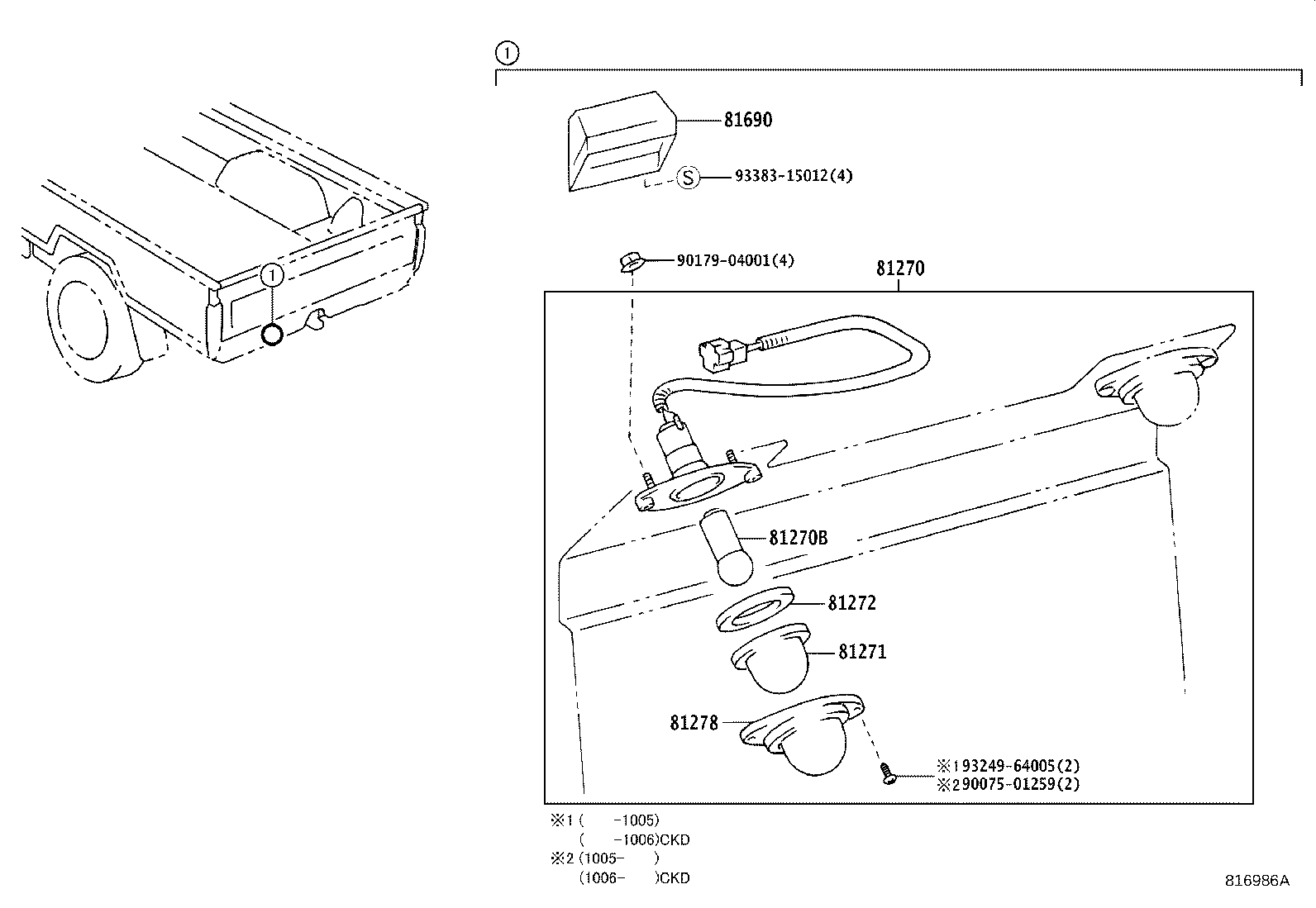

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-90K00	FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 08/1992	1
81270-60200	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	1
81270 - LAMP ASSY, LICENSE PLATE
81270-90K00	FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 08/1992	1
81270-60200	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT 12V 5W	01/1990 - 05/1993	2
99132-11050	FZJ78..ARL 12V 5W	08/1999 - 05/2006	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT 12V 5W	01/1990 - 05/1993	2
99132-11050	FZJ78..ARL 12V 5W	08/1999 - 05/2006	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT 12V 5W	01/1990 - 05/1993	2
99132-11050	FZJ78..ARL 12V 5W	08/1999 - 05/2006	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT 12V 5W	01/1990 - 05/1993	2
99132-11050	FZJ78..ARL 12V 5W	08/1999 - 05/2006	2
81271 - LENS, LICENSE PLATE LAMP
81271-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81271-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81271 - LENS, LICENSE PLATE LAMP
81271-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81271-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81271 - LENS, LICENSE PLATE LAMP
81271-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81271-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81271 - LENS, LICENSE PLATE LAMP
81271-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81271-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81272-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81272-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81272-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81272-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81276B - COVER, LICENSE PLATE LAMP
81276-90K02	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT	01/1990 - 05/1993	1
81276-90K02	FZJ78..ARL	08/1999 - 05/2006	1
81276B - COVER, LICENSE PLATE LAMP
81276-90K02	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT	01/1990 - 05/1993	1
81276-90K02	FZJ78..ARL	08/1999 - 05/2006	1
Common parts
81277-90K02
81278-87005
81279-90K00
81519-14170
90075-02029
90179-06159
90179-06327
94180-40600

(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-90K00	FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 08/1992	1
81270-60200	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT 12V 5W	01/1990 - 05/1993	2
99132-11050	FZJ78..ARL 12V 5W	08/1999 - 05/2006	2
81271 - LENS, LICENSE PLATE LAMP
81271-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81271-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81272-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
Common parts
90075-01006
90463-10521
90467-13030
93219-64014

(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-90K00	FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 08/1992	1
81270-60200	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	1
81270 - LAMP ASSY, LICENSE PLATE
81270-90K00	FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 08/1992	1
81270-60200	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT 12V 5W	01/1990 - 05/1993	2
99132-11050	FZJ78..ARL 12V 5W	08/1999 - 05/2006	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT 12V 5W	01/1990 - 05/1993	2
99132-11050	FZJ78..ARL 12V 5W	08/1999 - 05/2006	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT 12V 5W	01/1990 - 05/1993	2
99132-11050	FZJ78..ARL 12V 5W	08/1999 - 05/2006	2
81271 - LENS, LICENSE PLATE LAMP
81271-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81271-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81271 - LENS, LICENSE PLATE LAMP
81271-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81271-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81271 - LENS, LICENSE PLATE LAMP
81271-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81271-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81272-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81272-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-87004	HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT TYPE A:REFER TO ILLUSTRATION	01/1990 - 05/1993	2
81272-87004	FZJ78..ARL TYPE A:REFER TO ILLUSTRATION	08/1999 - 05/2006	2
Common parts
90075-01259
90179-04001
90463-10521
93249-64005
93383-15012
93385-15012

(0701- )FZJ71,76,78,GRJ71,76,78,HZJ71,76,78,VDJ76,78

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
81278-87005
81279-90K00
90075-02029
90179-06327

(0701-1608)FZJ78,GRJ78,HZJ71,76,78..RHD..HT

Click highlighted areas on diagram

MOZAMBIQUE SPEC

Part #	Description	Period	Qty	Price
Common parts
90075-01259
90179-04001
93249-64005
93383-15012
