FZJ78R-RJMRKQ (1999)
Toyota Land Cruiser

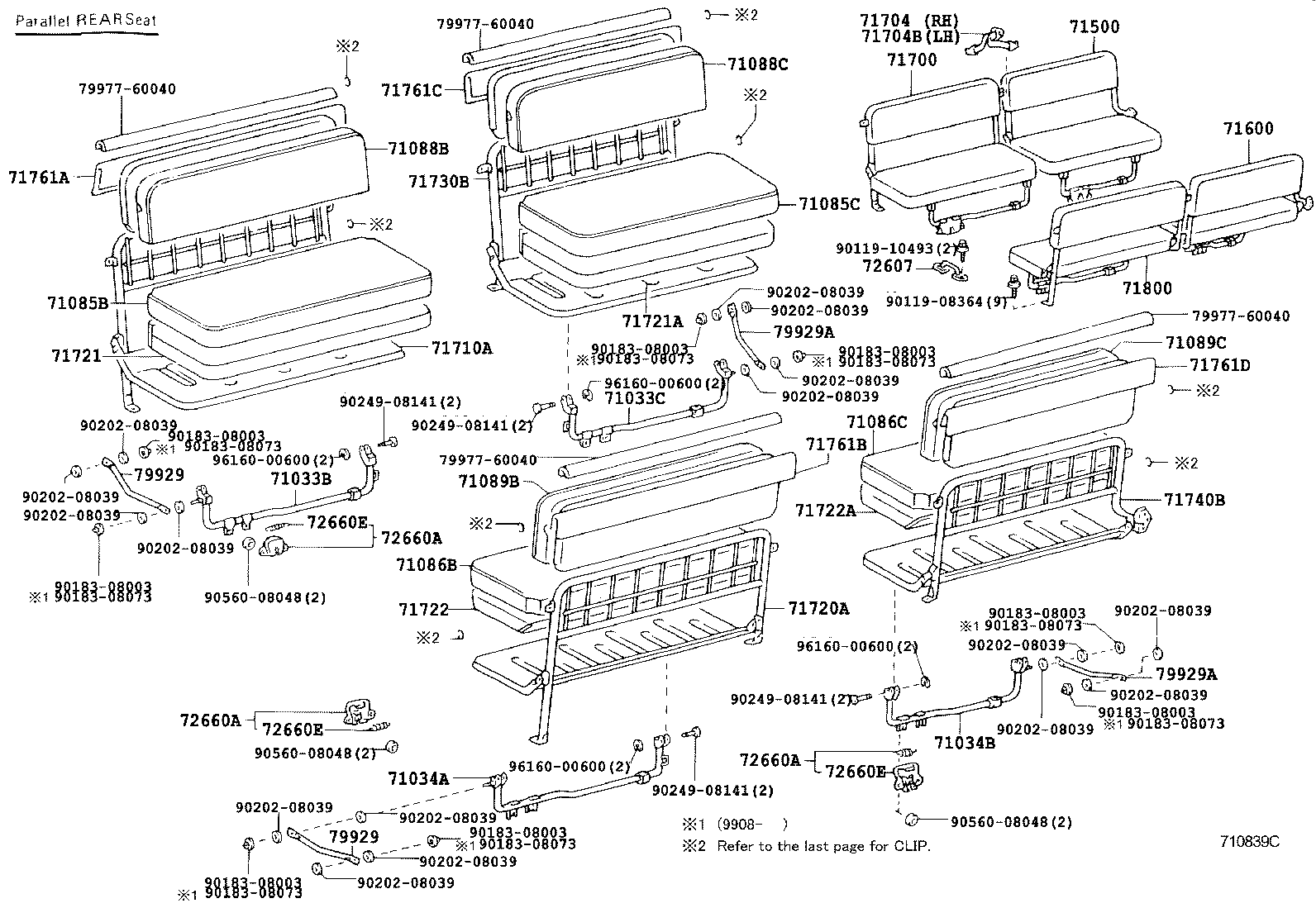

ILLUST NO. 2 OF 3(9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..HT..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH | ||||
| 71033-60240 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71033C - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH | ||||
| 71033-60220 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71034A - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH | ||||
| 71033-60230 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71034B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 LH | ||||
| 71033-60250 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71085B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71091-60061E2 |
FZJ78..ARL SEAT = TYPE B-*104 & W(REAR SEAT BELT),MD.OAK,TRIM4# |
1 | ||
| 71091-60061B1 |
FZJ78..ARL SEAT = TYPE B-*104 & W(REAR SEAT BELT),SLATE GRAY,TRIM1# |
1 | ||
| 71085C - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH | ||||
| 71085-60241E2 |
FZJ78..ARL SEAT = TYPE B-*104,MD.OAK,TRIM40 |
1 | ||
| 71085-60241B1 |
FZJ78..ARL SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71085-60241E3 |
FZJ78..ARL SEAT = TYPE B-*104,OAK,TRIM40 |
1 | ||
| 71086B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71092-60061B1 |
FZJ78..ARL W(REAR SEAT BELT),SLATE GRAY,TRIM1# |
1 | ||
| 71092-60061E2 |
FZJ78..ARL W(REAR SEAT BELT),MD.OAK,TRIM4# |
1 | ||
| 71086C - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71086-60221B1 |
FZJ78..ARL W(REAR SEAT BELT),SLATE GRAY,TRIM1# |
1 | ||
| 71086-60221E2 |
FZJ78..ARL W(REAR SEAT BELT),MD.OKA,TRIM4# |
1 | ||
| 71088B - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71077-60691E2 |
FZJ78..ARL MD.OAK,TRIM4# |
1 | ||
| 71077-60691B0 |
FZJ78..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71088C - COVER SUB-ASSY, REAR SIDE SEAT BACK, NO.2 RH | ||||
| 71088-60271B1 |
FZJ78..ARL SLATE GRAY,TRIM10 |
1 | ||
| 71088-60271B2 |
FZJ78..ARL BLUISH GRAY,TRIM10 |
1 | ||
| 71088-60271E3 |
FZJ78..ARL MD.OAK,TRIM40 |
1 | ||
| 71088-60271E4 |
FZJ78..ARL OAK,TRIM40 |
1 | ||
| 71089B - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71078-60241B1 |
FZJ78..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71078-60241E3 |
FZJ78..ARL MD.OAK,TRIM4# |
1 | ||
| 71089C - COVER SUB-ASSY, REAR SIDE SEAT BACK, NO.2 LH | ||||
| 71089-60182B2 |
FZJ78..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71089-60182E2 |
FZJ78..ARL MD.OAK,TRIM4# |
1 | ||
| 71500 - SEAT ASSY, REAR SIDE, NO.2 RH | ||||
| 71500-60011E2 |
FZJ78,HZJ78..STD..(ARL,GEN) ***,W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71500-60011B1 |
FZJ78,HZJ78..STD..(ARL,GEN) ***,W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71600 - SEAT ASSY, REAR SIDE, NO.2 LH | ||||
| 71600-60011B1 |
FZJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104;W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71600-60011E2 |
FZJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104;W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71700 - SEAT ASSY, REAR SIDE, RH | ||||
| 71700-60431E2 |
FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104;W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71700-60431B1 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE B-*104;W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-90K08E0 |
FZJ78..ARL W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71704-90K08B0 |
FZJ78..ARL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-90K08E0 |
FZJ78..ARL W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71704-90K08B0 |
FZJ78..ARL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-60040 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-60040 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ70,FZJ70,73,75,PZJ70..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL);FJ73,75,FZJ71,74,78,HDJ78,HZJ71,75,LJ72,PZJ73,75,RJ70..(HT,SOT)..STD |
1 | ||
| 71721-90K02 |
FZJ78..ARL |
1 | ||
| 71721A - PAD, REAR SIDE SEAT CUSHION, NO.2 RH | ||||
| 71721-90K02 |
FZJ75..HT..CBR;FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT..STD |
1 | ||
| 71721-90K02 |
FZJ78..ARL |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ70,FZJ70,73,75,PZJ70..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL);FJ73,75,FZJ71,74,78,HDJ78,HZJ71,75,LJ72,PZJ73,75,RJ70..(HT,SOT)..STD |
1 | ||
| 71721-90K02 |
FZJ78..ARL |
1 | ||
| 71722A - PAD, REAR SIDE SEAT CUSHION, NO.2 LH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ75..HT..(GCC,GEN)..CBR;FZJ78,HDJ78,HZJ75,PZJ75..HT..STD |
1 | ||
| 71721-90K02 |
FZJ78..ARL |
1 | ||
| 71730B - FRAME ASSY, REAR SIDE SEAT, NO.2 RH | ||||
| 71730-60020 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71740B - FRAME ASSY, REAR SIDE SEAT, NO.2 LH | ||||
| 71740-60020 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71761A - PAD, REAR SIDE SEAT BACK, RH | ||||
| 71761-90K03 |
HZJ79..RHD..GEN;HZJ75..HT..STD..ARL;HZJ78..STD..(ARL,GEN);HZJ75..(GCC,GEN)..CBU;FZJ78,HDJ78,PZJ75..STD..CBU;FZJ75,79..RHD..STD..CBU..EFI;FJ75,FZJ75..(ARL,GCC,GEN)..CBU..CBR |
1 | ||
| 71761-90K03 |
FZJ78..ARL |
1 | ||
| 71761B - PAD, REAR SIDE SEAT BACK, LH | ||||
| 71761-90K03 |
FZJ78,HDJ78..STD;FJ75,FZJ75..HT..GCC;FZJ79,HZJ79..LHD..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ75,HZJ75,PZJ75..PIC..(GCC,GEN)..CBU |
1 | ||
| 71761-90K03 |
FZJ78..ARL |
1 | ||
| 71761C - PAD, REAR SIDE SEAT BACK, NO.2 RH | ||||
| 71761-90K02 |
FZJ75..HT..CBR;FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ74,78,HDJ78,HZJ75,PZJ75..(HT,SOT)..STD |
1 | ||
| 71761-90K02 |
FZJ78..ARL |
1 | ||
| 71761D - PAD, REAR SIDE SEAT BACK, NO.2 LH | ||||
| 71761-90K02 |
FZJ75..HT..CBR;FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ74,78,HDJ78,HZJ75,PZJ75..(HT,SOT)..STD |
1 | ||
| 71761-90K02 |
FZJ78..ARL |
1 | ||
| 71800 - SEAT ASSY, REAR SIDE, LH | ||||
| 71800-60371E2 |
FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104 & W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71800-60371B1 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE B-*104 & W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-90K01 |
FJ75,FZJ75,HZJ75..HT..STD..ARL;FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72607-90K00 |
FJ70..LX..GCC;FZJ78,HZJ78..ARL,GEN;FZJ71,74,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL W(REAR SEAT BELT) |
2 | ||
| 72607-90K00 |
FZJ78..ARL W(REAR SEAT BELT) |
2 | ||
| 72607-90K01 |
FZJ78..ARL W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
FZJ70..LX..CBR;FZJ78,HZJ78..ARL,GEN;FZJ71,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL;FJ70,73,FZJ73,74,LJ70,72,PZJ70,RJ70..LHD..LX W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FJ75,FZJ75,HZJ75..HT..STD..ARL;FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660-90K00 |
FZJ78..ARL W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FZJ78..ARL W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
FZJ70..LX..CBR;FZJ78,HZJ78..ARL,GEN;FZJ71,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL;FJ70,73,FZJ73,74,LJ70,72,PZJ70,RJ70..LHD..LX W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FJ75,FZJ75,HZJ75..HT..STD..ARL;FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660-90K00 |
FZJ78..ARL W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FZJ78..ARL W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
FZJ70..LX..CBR;FZJ78,HZJ78..ARL,GEN;FZJ71,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL;FJ70,73,FZJ73,74,LJ70,72,PZJ70,RJ70..LHD..LX W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FJ75,FZJ75,HZJ75..HT..STD..ARL;FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660-90K00 |
FZJ78..ARL W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FZJ78..ARL W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 79929 - FRAME, FOLD SEAT LEG STOPPER | ||||
| 79929-90K00 |
FZJ75,HZJ75..LX..ARL;FJ75,FZJ75,HZJ75..HT..GEN..(CBR,DSL);FZJ78,HDJ78,HZJ78,PZJ75..HT..(ARL,GEN) |
1 | ||
| 79929 - FRAME, FOLD SEAT LEG STOPPER | ||||
| 79929-90K00 |
FZJ75,HZJ75..LX..ARL;FJ75,FZJ75,HZJ75..HT..GEN..(CBR,DSL);FZJ78,HDJ78,HZJ78,PZJ75..HT..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90119-10493 | ||||
| 90183-08003 | ||||
| 90183-08073 | ||||
| 90202-08039 | ||||
| 90249-08141 | ||||
| 90560-08048 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ75,FZJ70,71,74,75,78,HDJ78,HZJ70,75,78,PZJ75..HT,SOT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH | ||||
| 71033-60240 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71033C - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH | ||||
| 71033-60220 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71034A - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH | ||||
| 71033-60230 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71034B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 LH | ||||
| 71033-60250 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71085B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71091-60061E2 |
FZJ78..ARL SEAT = TYPE B-*104 & W(REAR SEAT BELT),MD.OAK,TRIM4# |
1 | ||
| 71091-60061B1 |
FZJ78..ARL SEAT = TYPE B-*104 & W(REAR SEAT BELT),SLATE GRAY,TRIM1# |
1 | ||
| 71085C - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, NO.2 RH | ||||
| 71085-60241E2 |
FZJ78..ARL SEAT = TYPE B-*104,MD.OAK,TRIM40 |
1 | ||
| 71085-60241B1 |
FZJ78..ARL SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71085-60241E3 |
FZJ78..ARL SEAT = TYPE B-*104,OAK,TRIM40 |
1 | ||
| 71086B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71092-60061B1 |
FZJ78..ARL W(REAR SEAT BELT),SLATE GRAY,TRIM1# |
1 | ||
| 71092-60061E2 |
FZJ78..ARL W(REAR SEAT BELT),MD.OAK,TRIM4# |
1 | ||
| 71086C - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71086-60221B1 |
FZJ78..ARL W(REAR SEAT BELT),SLATE GRAY,TRIM1# |
1 | ||
| 71086-60221E2 |
FZJ78..ARL W(REAR SEAT BELT),MD.OKA,TRIM4# |
1 | ||
| 71088B - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71077-60691E2 |
FZJ78..ARL MD.OAK,TRIM4# |
1 | ||
| 71077-60691B0 |
FZJ78..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71088C - COVER SUB-ASSY, REAR SIDE SEAT BACK, NO.2 RH | ||||
| 71088-60271B1 |
FZJ78..ARL SLATE GRAY,TRIM10 |
1 | ||
| 71088-60271B2 |
FZJ78..ARL BLUISH GRAY,TRIM10 |
1 | ||
| 71088-60271E3 |
FZJ78..ARL MD.OAK,TRIM40 |
1 | ||
| 71088-60271E4 |
FZJ78..ARL OAK,TRIM40 |
1 | ||
| 71089B - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71078-60241B1 |
FZJ78..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71078-60241E3 |
FZJ78..ARL MD.OAK,TRIM4# |
1 | ||
| 71089C - COVER SUB-ASSY, REAR SIDE SEAT BACK, NO.2 LH | ||||
| 71089-60182B2 |
FZJ78..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71089-60182E2 |
FZJ78..ARL MD.OAK,TRIM4# |
1 | ||
| 71500 - SEAT ASSY, REAR SIDE, NO.2 RH | ||||
| 71500-60011E2 |
FZJ78,HZJ78..STD..(ARL,GEN) ***,W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71500-60011B1 |
FZJ78,HZJ78..STD..(ARL,GEN) ***,W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71600 - SEAT ASSY, REAR SIDE, NO.2 LH | ||||
| 71600-60011B1 |
FZJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104;W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71600-60011E2 |
FZJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104;W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71700 - SEAT ASSY, REAR SIDE, RH | ||||
| 71700-60431E2 |
FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104;W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71700-60431B1 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE B-*104;W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-90K08E0 |
FZJ78..ARL W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71704-90K08B0 |
FZJ78..ARL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-90K08E0 |
FZJ78..ARL W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71704-90K08B0 |
FZJ78..ARL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-60040 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-60040 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ70,FZJ70,73,75,PZJ70..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL);FJ73,75,FZJ71,74,78,HDJ78,HZJ71,75,LJ72,PZJ73,75,RJ70..(HT,SOT)..STD |
1 | ||
| 71721-90K02 |
FZJ78..ARL |
1 | ||
| 71721A - PAD, REAR SIDE SEAT CUSHION, NO.2 RH | ||||
| 71721-90K02 |
FZJ75..HT..CBR;FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT..STD |
1 | ||
| 71721-90K02 |
FZJ78..ARL |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ70,FZJ70,73,75,PZJ70..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL);FJ73,75,FZJ71,74,78,HDJ78,HZJ71,75,LJ72,PZJ73,75,RJ70..(HT,SOT)..STD |
1 | ||
| 71721-90K02 |
FZJ78..ARL |
1 | ||
| 71722A - PAD, REAR SIDE SEAT CUSHION, NO.2 LH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ75..HT..(GCC,GEN)..CBR;FZJ78,HDJ78,HZJ75,PZJ75..HT..STD |
1 | ||
| 71721-90K02 |
FZJ78..ARL |
1 | ||
| 71730B - FRAME ASSY, REAR SIDE SEAT, NO.2 RH | ||||
| 71730-60020 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71740B - FRAME ASSY, REAR SIDE SEAT, NO.2 LH | ||||
| 71740-60020 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71761A - PAD, REAR SIDE SEAT BACK, RH | ||||
| 71761-90K03 |
HZJ79..RHD..GEN;HZJ75..HT..STD..ARL;HZJ78..STD..(ARL,GEN);HZJ75..(GCC,GEN)..CBU;FZJ78,HDJ78,PZJ75..STD..CBU;FZJ75,79..RHD..STD..CBU..EFI;FJ75,FZJ75..(ARL,GCC,GEN)..CBU..CBR |
1 | ||
| 71761-90K03 |
FZJ78..ARL |
1 | ||
| 71761B - PAD, REAR SIDE SEAT BACK, LH | ||||
| 71761-90K03 |
FZJ78,HDJ78..STD;FJ75,FZJ75..HT..GCC;FZJ79,HZJ79..LHD..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ75,HZJ75,PZJ75..PIC..(GCC,GEN)..CBU |
1 | ||
| 71761-90K03 |
FZJ78..ARL |
1 | ||
| 71761C - PAD, REAR SIDE SEAT BACK, NO.2 RH | ||||
| 71761-90K02 |
FZJ75..HT..CBR;FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ74,78,HDJ78,HZJ75,PZJ75..(HT,SOT)..STD |
1 | ||
| 71761-90K02 |
FZJ78..ARL |
1 | ||
| 71761D - PAD, REAR SIDE SEAT BACK, NO.2 LH | ||||
| 71761-90K02 |
FZJ75..HT..CBR;FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ75,FZJ74,78,HDJ78,HZJ75,PZJ75..(HT,SOT)..STD |
1 | ||
| 71761-90K02 |
FZJ78..ARL |
1 | ||
| 71800 - SEAT ASSY, REAR SIDE, LH | ||||
| 71800-60371E2 |
FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104 & W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71800-60371B1 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE B-*104 & W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||

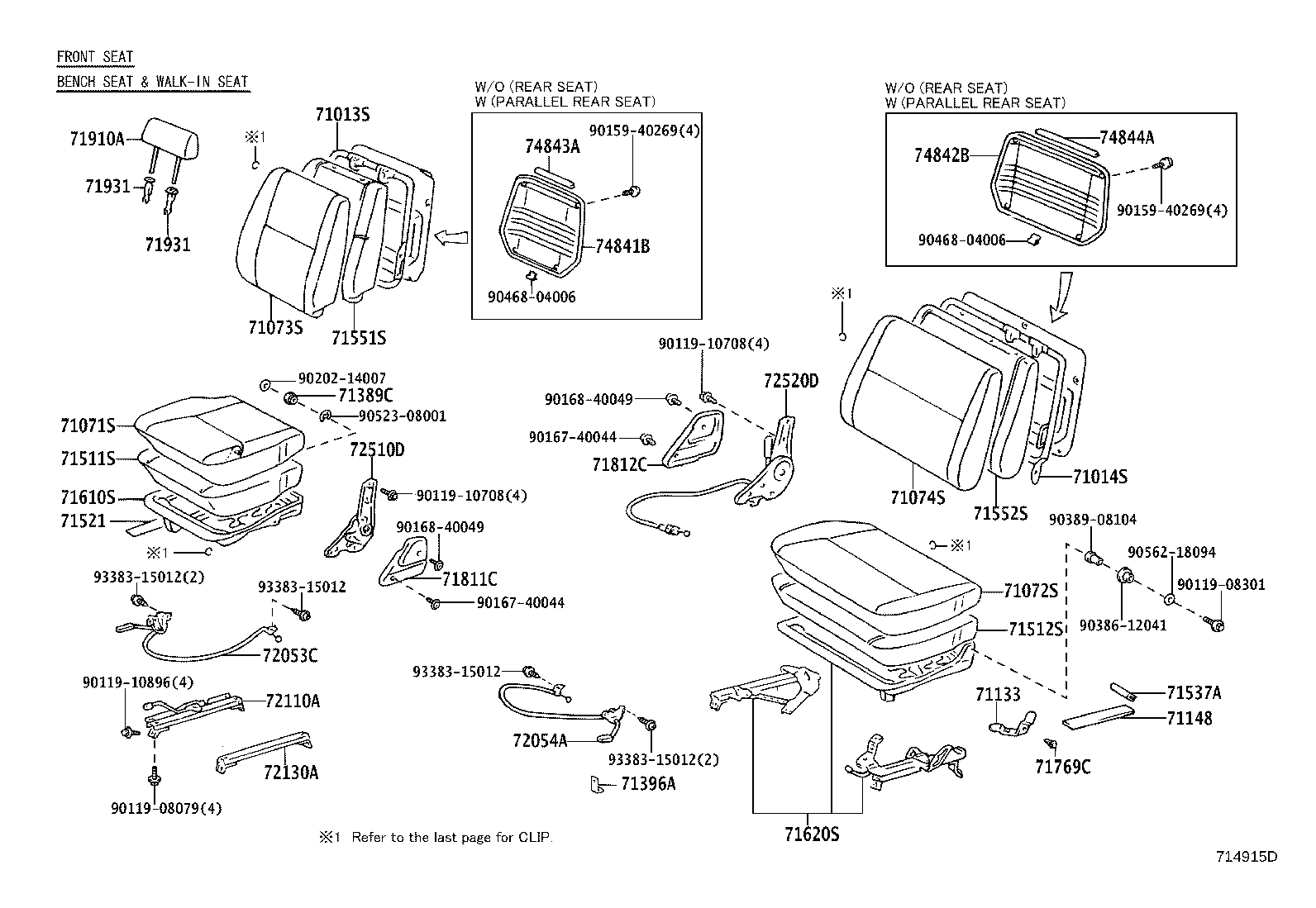

ILLUST NO. 1 OF 3(9001-0701)RHD..HT ; (0111-0701)HDJ79..LX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60122 |
FZJ78..ARL |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60171 |
FZJ78..ARL W(BENCH SEAT) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60312B3 |
FZJ71,74..LX;FZJ79,HZJ79..ARL,GCC;FZJ78,HDJ7#,HZJ78..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ78,79,HZJ78,79..STD..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71071-60312E3 |
FZJ71,74..LX;FZJ79,HZJ79..ARL,GCC;FZJ78,HDJ7#,HZJ78..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71071-60323B1 |
FZJ78,79,HZJ78,79..STD..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71071-60323E1 |
FZJ78,79..ARL MD.OAK,TRIM4# |
1 | ||
| 71071-60323B1 |
FZJ78,79..ARL SLATE GRAY,TRIM1# |
1 | ||
| 71071-60312B3 |
FZJ78,79..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71071-60312E3 |
FZJ78,79..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60252B1 |
FZJ71,78,79,HZJ71,78,79..RHD..STD SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71072-60252E1 |
FZJ71,78,79,HZJ71,78,79..RHD..STD SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71072-60252B1 |
FZJ78,79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71072-60402E2 |
FZJ78,79..ARL OAK,TRIM4# |
1 | ||
| 71072-60252E1 |
FZJ78,79..ARL SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71072-60402B2 |
FZJ78,79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-60481E2 |
HZJ78..ARL;FZJ71,74..LX;FZJ78,HDJ78..STD..ARL SEAT = TYPE A-*104 & W(TRANSVERSE REAR SEAT),OAK,TRIM4# |
1 | ||
| 71073-60481B2 |
HZJ78..ARL;FZJ71,74..LX;FZJ78,HDJ78..STD..ARL SEAT = TYPE A-*104 & W(TRANSVERSE REAR SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60202E1 |
FZJ78..ARL SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71073-60342E3 |
FZJ78..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71073-60481B2 |
FZJ78..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60342B3 |
FZJ78..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-60202B1 |
FZJ78..ARL SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71073-60481E2 |
FZJ78..ARL OAK,TRIM4# |
1 | ||
| 71073-60591B1 |
FZJ78..ARL SEAT = TYPE B-*104 & W(TRANSVERSE REAR SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71073-60591E1 |
FZJ78..ARL SEAT = TYPE B-*104 & W(TRANSVERSE REAR SEAT),MD.OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-60212B1 |
FZJ78..ARL SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71074-60232E2 |
FZJ78..ARL SEAT = TYPE A-*104;WALK-IN TYPE,OAK,TRIM4# |
1 | ||
| 71074-60342B3 |
FZJ78..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-60212E1 |
FZJ78..ARL SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71074-60531B1 |
FZJ78..ARL SEAT = TYPE B-*104;WALK-IN TYPE,SLATE GRAY,TRIM1# |
1 | ||
| 71074-60342E3 |
FZJ78..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71074-60531E1 |
FZJ78..ARL SEAT = TYPE B-*104;WALK-IN TYPE,MD.OAK,TRIM4# |
1 | ||
| 71074-60232B2 |
FZJ78..ARL SEAT = TYPE A-*104;WALK-IN TYPE,BLUISH GRAY,TRIM1# |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K01 |
FZJ71,HZJ71..HT;FZJ78,HZJ78..STD..(ARL,GEN) W(FRONT BENCH SEAT) |
1 | ||
| 71396-90K00 |
FZJ78..ARL |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-60513E1 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71410-60513B1 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60572B1 |
HZJ79..GCC;HZJ79..ARL..IV;FZJ79..ARL,GCC;HZJ78..STD..ARL;FZJ78,HDJ7#..ARL ***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60572E1 |
HZJ79..GCC;HZJ79..ARL..IV;FZJ79..ARL,GCC;HZJ78..STD..ARL;FZJ78,HDJ7#..ARL ***,SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-60432E1 |
FZJ78,HDJ78,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT & WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71420-60432B1 |
FZJ78,HDJ78,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT & WALK-IN SEAT),BLUISH GRAU,TRIM1# |
1 | ||
| 71420-6A580E0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71420-6A580B0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6A570E0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT & FRONT SEAT BELT),OAK,TRIM4# |
1 | ||
| 71420-6A570B0 |
HZJ79..ARL..IV;FZJ78,79,HDJ7#,HZJ78..STD..ARL ***,SEAT = TYPE B-*104 & W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6A560B0 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE B-*104 & W(BENCH SEAT & WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-6A560E0 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE B-*104 & W(BENCH SEAT & WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-60470E0 |
FZJ78,HDJ78,HZJ78..STD..ARL OAK,TRIM4# |
1 | ||
| 71040-60480B0 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71040-60470B0 |
FZJ78,HDJ78,HZJ78..STD..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71040-60480E0 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71430-60282B1 |
FZJ71,HZJ71..HT..STD..GEN;FZJ78,HDJ78,HZJ78..RHD..STD ***,SEAT = TYPE B-*104 & W(WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60282E1 |
FZJ71,HZJ71..HT..STD..GEN;FZJ78,HDJ78,HZJ78..RHD..STD ***,SEAT = TYPE B-*104 & W(WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71430-60312E2 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE A-*104 & W(WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71430-60312B1 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE A-*104 & W(WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-60302B1 |
FZJ71,78,HDJ78,HZJ71,78..RHD..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60292B1 |
FZJ71,78,HDJ78,HZJ71,78..RHD..HT..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT & WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60302E1 |
FZJ71,78,HDJ78,HZJ71,78..RHD..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71440-60352B1 |
FZJ78,HDJ78,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT & WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60292E1 |
FZJ71,78,HDJ78,HZJ71,78..RHD..HT..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT & WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71440-60362B1 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE A-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60352E1 |
FZJ78,HDJ78,HZJ78..STD..ARL ***,SEAT = TYPE A-*104 & W(BENCH SEAT & WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71440-60362E1 |
FZJ78,HDJ78,HZJ78..STD..ARL SEAT = TYPE A-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60021 |
FZJ78,79..ARL W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60120 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60011 |
FZJ74..LX;HZJ79..RHD;HZJ79..GCC;FZJ79..ARL,GCC;FZJ78,79,HZJ78..RHD..CBU;FZJ71,HDJ7#,HZJ71..ARL,GEN |
1 | ||
| 71505-60011 |
FZJ78,79..ARL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60060 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60101 |
HZJ79..GCC;FZJ79..ARL,GCC;FZJ79..RHD..CBU;FZJ78,HDJ7#,HZJ78,79..RHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 79170-60020 |
FZJ78..ARL W(BENCH SEAT & WALK-IN SEAT) |
1 | ||
| 71620-60270 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-60020E1 |
FZJ78,79..ARL SANDAL WOOD,TRIM4# |
1 | ||
| 71811-60020B0 |
FZJ78,79..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-60040B0 |
FZJ78..ARL W(WALK-IN SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71812-60020B0 |
FZJ78,79..ARL SHADOW GRAY,TRIM1# |
1 | ||
| 71812-60020E1 |
FZJ78,79..ARL SANDAL WOOD,TRIM4# |
1 | ||
| 71812-60040E1 |
FZJ78..ARL W(WALK-IN SEAT),SANDAL WOOD,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60500E0 |
FZJ78..ARL OAK,TRIM4# |
2 | ||
| 71910-60500B0 |
FZJ78..ARL BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ78,79..ARL W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ78,79..ARL W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050E1 |
FZJ78,79..ARL W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ78,79..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ78,79..ARL W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ78,79..ARL W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050E1 |
FZJ78,79..ARL W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ78,79..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 72053D - SPRING(FOR RECLINING REMOTE CONTROL LEVER RH) | ||||
| 90508-16079 |
FZJ78,79..ARL |
1 | ||
| 90508-16079 |
RJ70..LHD;FZJ7#,HZJ70,75,LJ77..5F;LJ72,79,PZJ7#,RJ77..GCC,GEN |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K01B0 |
FZJ78,79..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K01E0 |
FZJ78,79..ARL OAK,TRIM4# |
1 | ||
| 72054-90K01E0 |
FZJ78,79..ARL W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 72054-90K01B0 |
FZJ78,79..ARL W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72054B - SPRING(FOR RECLINING REMOTE CONTROL LEVER LH) | ||||
| 90508-16080 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90508-16080 |
FZJ78,79..ARL |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60160 |
FZJ78,79..ARL |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60220 |
FZJ78..ARL W(BENCH SEAT) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-60170 |
HZJ79..RHD;HZJ79..GCC;FZJ79..ARL,GCC;FZJ79..GEN..IV;FZJ78,79,HZJ78..RHD..CBU |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60190 |
FZJ78..ARL W(BENCH SEAT) |
1 | ||
| 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH | ||||
| 72210-90K03 |
FZJ71,78,HZJ71,78,LJ72..RHD..HT;FJ70,FZJ70,PZJ70,RJ70..RHD..HT..GEN W(WALK-IN) |
1 | ||
| 72210-90K03 |
FZJ78..ARL W(WALK-IN) |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-90K00 |
HZJ70..ARL;FJ7#,FZJ70,71,75,78,HDJ78,HZJ71,73,75,78,LJ70,72,PZJ7#,RJ70..RHD..(HT,SOT) |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-60090 |
FZJ78..ARL W(WALK-IN) |
1 | ||
| 72520-90K02 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-90K00 |
FZJ78,79..ARL W(SEPARATE SEAT) |
1 | ||
| 72580A - CABLE ASSY, RECLINING ADJUSTING, LH | ||||
| 72580-90K01 |
FZJ78,79..ARL W(BENCH SEAT) |
1 | ||
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-10560 | ||||
| 90119-10619 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12051 | ||||
| 90464-00156 | ||||
| 90468-18071 | ||||
| 90506-18070 | ||||
| 90523-08001 | ||||
| 93383-15012 | ||||
| 93560-54014 | ||||

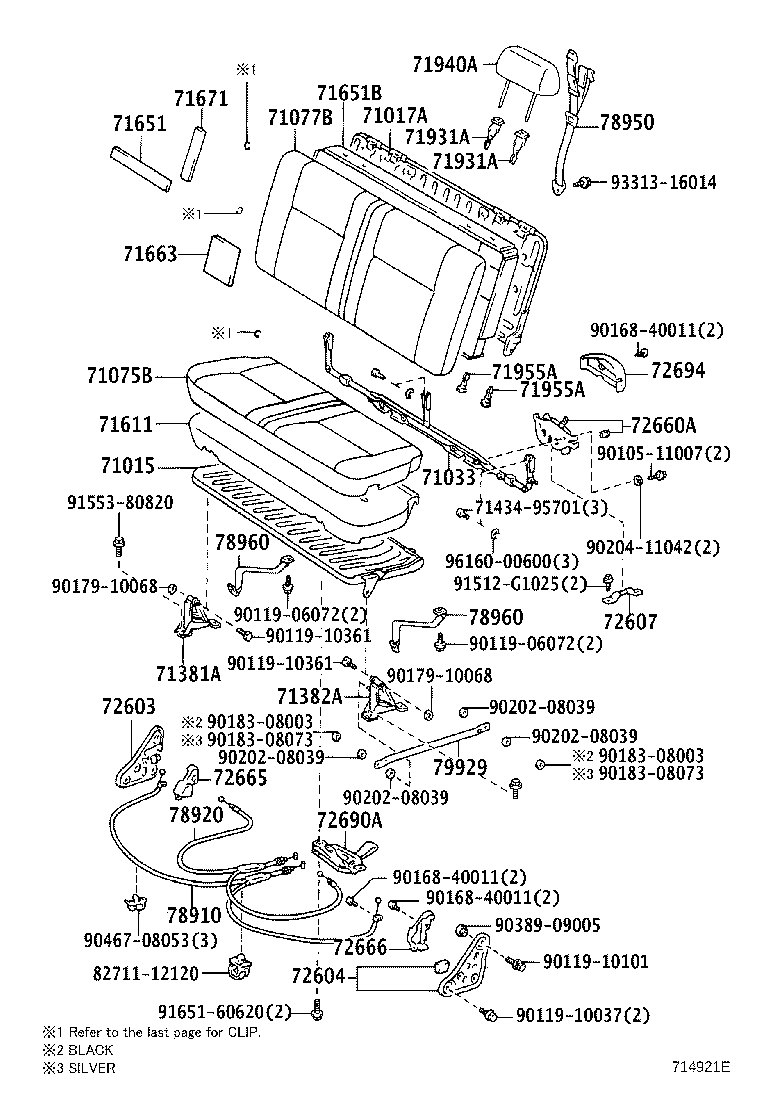

ILLUST NO. 2 OF 3(9001-0701)FJ75,FZJ75,78,HDJ78,HZJ75,78,PZJ75..HT ; (0701-0808)FZJ78
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-90K02 |
PZJ75..RHD..HT;FZJ78,HDJ78,HZJ78..ARL,GEN |
1 | ||
| 71015-90K02 |
FZJ78..ARL |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-60222 |
FZJ78..ARL |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-60130 |
FZJ78..ARL W(REAR SEAT BELT) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-60372B1 |
FZJ78,HZJ78..STD..(ARL,GEN) SEAT = TYPE B-*104,GRAY,TRIM10 |
1 | ||
| 71075-60372E1 |
FZJ78,HZJ78..STD..(ARL,GEN) SEAT = TYPE B-*104,OAK,TRIM40 |
1 | ||
| 71075-60522E1 |
FZJ78,HZJ78..STD..ARL OAK,TRIM40 |
1 | ||
| 71075-60522B1 |
FZJ78,HZJ78..STD..ARL GRAY,TRIM10 |
1 | ||
| 71075-60372B2 |
FZJ78..ARL SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71075-60522B2 |
FZJ78..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71075-60372E2 |
FZJ78..ARL SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71075-60522E2 |
FZJ78..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-60272B1 |
FZJ78,HZJ78..STD..(ARL,GEN) SEAT = TYPE B-*104 & W(REAR HEADREST),GRAY,TRIM10 |
1 | ||
| 71077-60482E1 |
FZJ78,HZJ78..STD..ARL OAK,TRIM40 |
1 | ||
| 71077-60272E1 |
FZJ78,HZJ78..STD..(ARL,GEN) SEAT = TYPE B-*104 & W(REAR HEADREST),OAK,TRIM40 |
1 | ||
| 71077-60482B1 |
FZJ78,HZJ78..STD..ARL GRAY,TRIM10 |
1 | ||
| 71077-60272E2 |
FZJ78..ARL SEAT = TYPE B-*104 & W(REAR HEADREST),MD.OAK,TRIM4# |
1 | ||
| 71077-60272B2 |
FZJ78..ARL SEAT = TYPE B-*104 & W(REAR HEADREST),SLATE GRAY,TRIM1# |
1 | ||
| 71077-60482B2 |
FZJ78..ARL SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-60482E2 |
FZJ78..ARL SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71381A - BRACKET, REAR SEAT CUSHION SET, RH | ||||
| 71307-90K00 |
PZJ75..RHD..HT;FZJ78,HDJ78,HZJ78..ARL,GEN |
1 | ||
| 71307-90K00 |
FZJ78..ARL |
1 | ||
| 71382A - BRACKET, REAR SEAT CUSHION SET, LH | ||||
| 71308-90K01 |
PZJ75..RHD..HT;FZJ78,HDJ78,HZJ78..ARL,GEN |
1 | ||
| 71308-90K01 |
FZJ78..ARL |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-60462B1 |
HZJ78..STD..ARL;FZJ78,HDJ78..ARL ***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71560-60730E0 |
FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104,OAK,TRIM4# |
1 | ||
| 71460-60462E1 |
HZJ78..STD..ARL;FZJ78,HDJ78..ARL ***,SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71560-60730B0 |
FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-6A890E0 |
FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104 & W(REAR SEAT BELT),OAK,TRIM4# |
1 | ||
| 71480-60542E1 |
HZJ78..STD..ARL;FZJ78,HDJ78..ARL ***,SEAT = TYPE A-*104,OAK,TRIM4# |
1 | ||
| 71480-6A890B0 |
FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) ***,SEAT = TYPE B-*104 & W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 71480-60542B1 |
HZJ78..STD..ARL;FZJ78,HDJ78..ARL ***,SEAT = TYPE A-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-90K05 |
PZJ75..RHD..HT;FZJ78,HDJ78,HZJ78..ARL,GEN |
1 | ||
| 71611-90K05 |
FZJ78..ARL |
1 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71651-90K00 |
FZJ78..ARL |
2 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-60021 |
FZJ78..ARL |
1 | ||
| 71663 - PAD, REAR SEAT BACK, LOWER | ||||
| 71663-60060 |
FZJ78..ARL |
2 | ||
| 71671 - PAD, REAR SEAT BACK SILENCER, A | ||||
| 71671-90K00 |
FZJ78..ARL |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28050B0 |
FZJ78..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ78..ARL W(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040B0 |
FZJ78..ARL W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
FZJ78..ARL W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-28050B0 |
FZJ78..ARL W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ78..ARL W(LOCK),OAK,TRIM4# |
2 | ||
| 71930-28040B0 |
FZJ78..ARL W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
FZJ78..ARL W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-60500E0 |
FZJ78..ARL OAK,TRIM4# |
2 | ||
| 71910-60500B0 |
FZJ78..ARL BLUISH GRAY,TRIM1# |
2 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-60030 |
FZJ78..ARL |
4 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-60030 |
FZJ78..ARL |
4 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-60010 |
FZJ78..ARL |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-60010 |
FZJ78..ARL |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-90K01 |
FJ75,FZJ75,HZJ75..HT..STD..ARL;FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72607-90K00 |
FJ70..LX..GCC;FZJ78,HZJ78..ARL,GEN;FZJ71,74,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL W(REAR SEAT BELT) |
2 | ||
| 72607-90K00 |
FZJ78..ARL W(REAR SEAT BELT) |
2 | ||
| 72607-90K01 |
FZJ78..ARL W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
FZJ70..LX..CBR;FZJ78,HZJ78..ARL,GEN;FZJ71,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL;FJ70,73,FZJ73,74,LJ70,72,PZJ70,RJ70..LHD..LX W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FJ75,FZJ75,HZJ75..HT..STD..ARL;FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660-90K00 |
FZJ78..ARL W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FZJ78..ARL W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
FZJ70..LX..CBR;FZJ78,HZJ78..ARL,GEN;FZJ71,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL;FJ70,73,FZJ73,74,LJ70,72,PZJ70,RJ70..LHD..LX W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FJ75,FZJ75,HZJ75..HT..STD..ARL;FZJ78,HDJ78,HZJ78..STD..(ARL,GEN) W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72660-90K00 |
FZJ78..ARL W(REAR SEAT BELT) |
2 | ||
| 72660-90K04 |
FZJ78..ARL W(REAR SEAT BELT & PARALLEL REAR SEAT) |
4 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-90K00 |
FZJ78..ARL |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-90K00 |
FZJ78..ARL |
1 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-60010B0 |
FZJ78..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 72690-60010E0 |
FZJ78..ARL OAK,TRIM4# |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90K01 |
PZJ75..RHD..HT;FZJ78,HDJ78,HZJ78..ARL,GEN |
1 | ||
| 78910-90K01 |
FZJ78..ARL |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90K03 |
FJ75,FZJ75,HZJ75..HT..ARL;FZJ78,HDJ78,HZJ78..ARL,GEN |
1 | ||
| 78920-90K03 |
FZJ78..ARL |
1 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
FZJ78..ARL |
2 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
FZJ78..ARL |
2 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
FZJ78..ARL |
2 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
FZJ78..ARL |
2 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-90K00E1 |
FZJ78,HZJ78..ARL,GEN;FZJ71,74,HDJ78,HZJ71..HT OAK,TRIM4# |
1 | ||
| 78950-90K00B0 |
FZJ78,HZJ78..ARL,GEN;FZJ71,74,HDJ78,HZJ71..HT BLUISH GRAY,TRIM1# |
1 | ||
| 78950-90K00E1 |
FZJ78..ARL OAK,TRIM4# |
1 | ||
| 78950-90K00B0 |
FZJ78..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78960-90K00E0 |
FZJ78,HZJ78..ARL,GEN OAK,TRIM4# |
2 | ||
| 78960-90K00E1 |
FZJ78,HZJ78..STD..(ARL,GEN) OAK,TRIM40 |
2 | ||
| 78960-90K00E0 |
FZJ78..ARL OAK,TRIM4# |
2 | ||
| 78960-90K00B1 |
FZJ78..ARL BLUISH GRAY,TRIM1# |
2 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78960-90K00E0 |
FZJ78,HZJ78..ARL,GEN OAK,TRIM4# |
2 | ||
| 78960-90K00E1 |
FZJ78,HZJ78..STD..(ARL,GEN) OAK,TRIM40 |
2 | ||
| 78960-90K00E0 |
FZJ78..ARL OAK,TRIM4# |
2 | ||
| 78960-90K00B1 |
FZJ78..ARL BLUISH GRAY,TRIM1# |
2 | ||
| 79929 - FRAME, FOLD SEAT LEG STOPPER | ||||
| 79929-90K00 |
FZJ75,HZJ75..LX..ARL;FJ75,FZJ75,HZJ75..HT..GEN..(CBR,DSL);FZJ78,HDJ78,HZJ78,PZJ75..HT..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 90105-11007 | ||||
| 90119-06072 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10361 | ||||
| 90119-10493 | ||||
| 90168-40011 | ||||
| 90179-10068 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90249-08141 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91651-60620 | ||||
| 93313-16014 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
(9001- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-14018 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(0701- )FZJ78,GRJ78,HZJ78,VDJ78..RHD
FRONT BENCH SEAT(WALK-IN TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90389-08104 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||
(0701- )FZJ78,GRJ78,HZJ78,VDJ78..ARL,GEN
TRANSVERSE REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71434-95701 | ||||
| 82711-12120 | ||||
| 90105-11007 | ||||
| 90119-06072 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10361 | ||||
| 90168-40011 | ||||
| 90179-10068 | ||||
| 90183-08003 | ||||
| 90183-08073 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91512-G1025 | ||||
| 91553-80820 | ||||
| 91651-60620 | ||||
| 93313-16014 | ||||
| 96160-00600 | ||||
(0701- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-14018 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(0701-1608)FZJ78,79,GRJ78,79,HZJ78,79,VDJ78,79..RHD..HT,PIC..STD ; (1608- )GRJ79
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10708 | ||||
| 90119-10921 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90389-08104 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
