FZJ78L-RJMRK (1999)
Toyota Land Cruiser

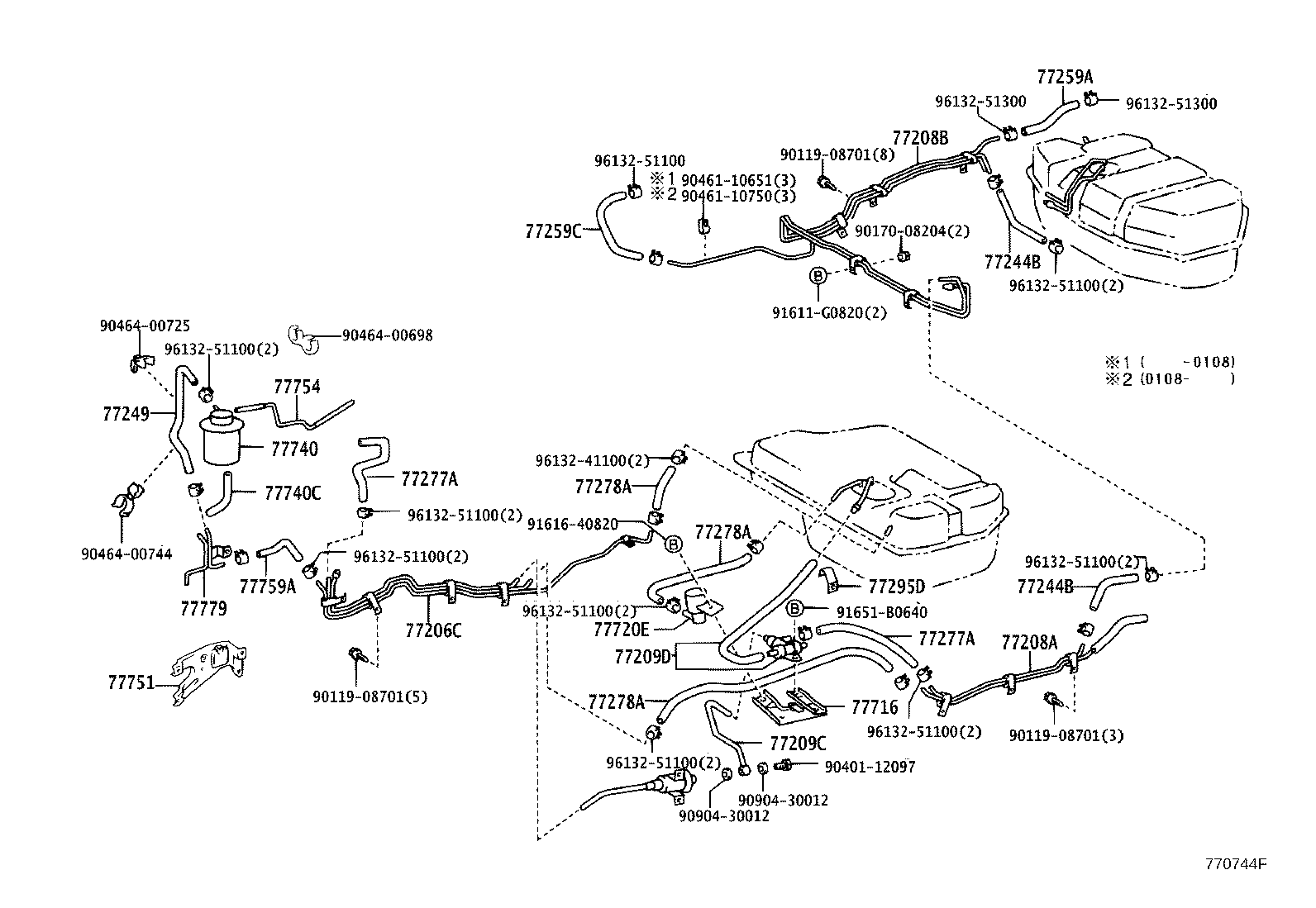

ILLUST NO. 2 OF 3(9908-0808)FZJ78,79
FUEL TUBE W(CHARCOAL CANISTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60140 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60170 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60141 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60170 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60140 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60141 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60260 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77209-60300 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60160 |
FZJ78..LHD..GEN |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95334-06014 |
FZJ78..LHD..GEN *H,L=140 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
FZJ79..GEN..IV;FZJ78..LHD..GEN *H,L=300 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-60200 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60410 |
FZJ78..LHD..GEN |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77795-60040 |
FZJ78..LHD..GEN |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60170 |
FZJ78..LHD..GEN |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60250 |
FZJ78..LHD..GEN |
1 | ||
| 77754-60250 |
FZJ74..GCC;FZJ79..LHD..CBU;FZJ71,78..LHD..STD |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 95333-06020 |
FZJ71..LHD..STD;FZJ74,78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU |
1 | ||
| 95333-06020 |
FZJ78..LHD..GEN |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60040 |
FZJ78..LHD..GEN |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90401-12097 | ||||
| 90464-00554 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91621-B0816 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 2 OF 3(9908-0808)FZJ78,79..ARL,GCC ; (9908-0808)FZJ78,79..LHD..GEN..CBU
W(CHARCOAL CANISTER & SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60140 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60170 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60141 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60170 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60140 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60141 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-60110 |
FZJ78 |
1 | ||
| 77208-60110 |
FZJ78 |
1 | ||
| 77208-60111 |
FZJ78 |
1 | ||
| 77208B - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-60090 |
FZJ78 |
1 | ||
| 77208-60091 |
FZJ78 |
1 | ||
| 77208-60091 |
FZJ78..LHD..GEN |
1 | ||
| 77208-60090 |
FZJ78 |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60260 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77209-60300 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60290 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77244B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.4) | ||||
| 95333-06020 |
FZJ78,79 *H,L=200 |
2 | ||
| 77244B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.4) | ||||
| 95333-06020 |
FZJ78,79 *H,L=200 |
2 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60160 |
FZJ78..LHD..GEN |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 95334-08028 |
FZJ78 L=280 |
1 | ||
| 95334-08028 |
FZJ78 L=280 |
1 | ||
| 95334-08028 |
FZJ78;HZJ78..LX *H,L=180 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60171 |
FZJ78,79 |
1 | ||
| 77259-60171 |
FZJ78,79;HZJ78..LX;HZJ79..ARL..CBU |
1 | ||
| 77259-60171 |
FZJ78,79,HZJ79;HZJ78..ARL,GEN |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95334-06014 |
FZJ71,74..GEN;FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU *H,L=140 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95334-06014 |
FZJ71,74..GEN;FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU *H,L=140 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95334-06014 |
FZJ71,74..GEN;FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU *H,L=140 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-60200 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60150 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77716-60160 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60090 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60410 |
FZJ78..LHD..GEN |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77795-60040 |
FZJ78..LHD..GEN |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60170 |
FZJ78..LHD..GEN |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60250 |
FZJ78..LHD..GEN |
1 | ||
| 77754-60250 |
FZJ74..GCC;FZJ79..LHD..CBU;FZJ71,78..LHD..STD |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 95333-06020 |
FZJ71..LHD..STD;FZJ74,78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU |
1 | ||
| 95333-06020 |
FZJ78..LHD..GEN |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60040 |
FZJ78..LHD..GEN |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90170-08204 | ||||
| 90401-12097 | ||||
| 90461-10651 | ||||
| 90461-10750 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-G0820 | ||||
| 91616-40820 | ||||
| 91651-B0640 | ||||
| 96132-41100 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 2 OF 3(9908-0808)FZJ78,79
FUEL TUBE W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60140 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60170 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60141 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60170 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60140 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60141 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-60110 |
FZJ78 |
1 | ||
| 77208-60110 |
FZJ78 |
1 | ||
| 77208-60111 |
FZJ78 |
1 | ||
| 77208B - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-60090 |
FZJ78 |
1 | ||
| 77208-60091 |
FZJ78 |
1 | ||
| 77208-60091 |
FZJ78..LHD..GEN |
1 | ||
| 77208-60090 |
FZJ78 |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60260 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77209-60300 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60290 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77244B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.4) | ||||
| 95333-06020 |
FZJ78,79 *H,L=200 |
2 | ||
| 77244B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.4) | ||||
| 95333-06020 |
FZJ78,79 *H,L=200 |
2 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 95334-08028 |
FZJ78 L=280 |
1 | ||
| 95334-08028 |
FZJ78 L=280 |
1 | ||
| 95334-08028 |
FZJ78;HZJ78..LX *H,L=180 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60171 |
FZJ78,79 |
1 | ||
| 77259-60171 |
FZJ78,79;HZJ78..LX;HZJ79..ARL..CBU |
1 | ||
| 77259-60171 |
FZJ78,79,HZJ79;HZJ78..ARL,GEN |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 95334-06014 |
FZJ71,74..GEN;FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU *H,L=140 |
1 | ||
| 95333-06030 |
FZJ78,79 *H,L=300,W(FUEL SUB TANK) |
1 | ||
| 77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3) | ||||
| 95334-06055 |
FZJ78,79 *H,L=360 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-60200 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60150 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77716-60160 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60090 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90170-08204 | ||||
| 90401-12097 | ||||
| 90461-10750 | ||||
| 90464-00554 | ||||
| 90904-30012 | ||||
| 91611-60835 | ||||
| 91611-G0820 | ||||
| 91616-40820 | ||||
| 91651-B0640 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 2 OF 3(9908-0808)FZJ78,79..GEN
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60140 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60170 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60141 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN W(CHARCOAL CANISTER) |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60170 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60140 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60230 |
FZJ78,79..GEN |
1 | ||
| 77206-60220 |
FZJ78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60171 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER) |
1 | ||
| 77206-60231 |
FZJ78,79..GEN |
1 | ||
| 77206-60141 |
FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU W(CHARCOAL CANISTER & FUEL SUB TANK) |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60260 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77209-60300 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06030 |
FZJ78,79 *H,L=300 |
1 | ||
| 23273-17060 |
HZJ79;HZJ71,78..ARL,GEN L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-17060 |
HZJ71,78,79 L=360 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
FZJ79..GEN..IV;FZJ78..LHD..GEN *H,L=300 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-60200 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90401-12097 | ||||
| 90904-30012 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 3(9908- )FZJ78,79
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77011-60120 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77011-60120 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK) |
2 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77203-60150 |
FZJ78,79 MAIN TANK |
1 | ||
| 77203-60170 |
FZJ78,79 SUB TANK |
1 | ||
| 77203-60170 |
FZJ78,79 SUB TANK |
1 | ||
| 77203-60150 |
FZJ78,79 MAIN TANK |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77249-60090 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 L=60 |
1 | ||
| 95333-06020 |
HZJ79;FZJ78,79..GEN;HDJ7#,HZJ78..ARL,GEN *H,L=200 |
1 | ||
| 95333-06030 |
HZJ79;FZJ78,79..GEN;HDJ7#,HZJ78..ARL,GEN *H,L=280 |
1 | ||
| 77249-60090 |
FZJ78,79,HDJ7#,HZJ78,79 L=60 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60070 |
FZJ78,79,HZJ78,79 |
1 | ||
| 77026-60070 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77026-60070 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77026-60070 |
FZJ79..IV;FZJ78..LHD |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12150 |
HZJ71,78 MATERIAL=PLASTIC |
1 | ||
| 77310-48010 |
FZJ78 W(FUEL SUB TANK) |
2 | ||
| 77310-48010 |
FZJ71,74,78 |
1 | ||
| 77310-12150 |
HZJ71,78..STD MATERIAL=PLASTIC |
1 | ||
| 77310-48010 |
FZJ71,78..LHD..GEN |
1 | ||
| 77310-48010 |
FZJ78..LHD..GEN W(FUEL SUB TANK) |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
HZJ78..ARL,GEN;FZJ71,74,78,HZJ71 MATERIAL OF PNC77031=PLASTIC |
1 | ||
| 77316-16010 |
FZJ71,78..LHD..GEN MATERIAL OF PNC77031=PLASTIC |
1 | ||
| 77316-16010 |
FZJ78..LHD..GEN W(FUEL SUB TANK) |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60560 |
FZJ78,79 MAIN TANK |
1 | ||
| 77001-60540 |
FZJ78,79 SUB TANK |
1 | ||
| 77001-60560 |
FZJ78,79 |
1 | ||
| 77001-60540 |
FZJ78,79 SUB TANK |
1 | ||
| 77001-60561 |
FZJ79..GEN..IV;FZJ78..LHD..GEN MAIN TANK |
1 | ||
| 77001-60541 |
FZJ79..GEN..IV;FZJ78..LHD..GEN SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 90105-12116 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 90341-20004 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 90430-20007 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 90430-12245 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95311-13015 |
FZJ79..GEN..IV;FZJ78..LHD..GEN L=150 |
1 | ||
| 90445-22024 |
FZJ78..LHD..GEN L=220,W(FUEL SUB TANK) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 W(FUEL SUB TANK) |
2 | ||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79 |
1 | ||
| 77178-20010 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77178-20010 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77178-20010 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK) |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77179-26010 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77179-26010 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60650 |
FZJ78..GCC,GEN;HDJ78,HZJ78..ARL,GEN W(FUEL SUB TANK),MAIN-TANK |
1 | ||
| 77201-60390 |
FZJ78..LHD..GEN CHINA SPEC |
1 | ||
| 77201-60410 |
FZJ78..LHD..GEN CHINA SPEC,MAIN-TANK |
1 | ||
| 77201-60760 |
FZJ78..LHD..GEN CHINA SPEC,SUB-TANK |
1 | ||
| 77201-60390 |
FZJ78..LHD..GEN CHINA SPEC |
1 | ||
| 77201-60760 |
FZJ78..LHD..GEN CHINA SPEC,SUB-TANK |
1 | ||
| 77201-60670 |
HZJ78;FZJ78..GCC,GEN W(FUEL SUB TANK),SUB-TANK |
1 | ||
| 77201-60650 |
HDJ78,HZJ78;FZJ78..GCC,GEN W(FUEL SUB TANK),MAIN-TANK |
1 | ||
| 77201-60410 |
FZJ78..LHD..GEN CHINA SPEC,MAIN-TANK |
1 | ||
| 77201-60370 |
HDJ78,HZJ78;FZJ78..GCC,GEN |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
HDJ7#,HZJ71,78,79 |
1 | ||
| 77169-14010 |
FZJ78,79 SUB TANK |
1 | ||
| 77169-20040 |
FZJ78,79 |
1 | ||
| 77169-20040 |
FZJ78,79 |
1 | ||
| 77169-20040 |
FZJ79..GEN..IV;FZJ78..LHD..GEN MAIN TANK |
1 | ||
| 77169-14010 |
FZJ78,79 SUB TANK |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60190 |
FZJ78..LHD..GEN SUB FUEL TANK |
1 | ||
| 77213-60180 |
FZJ78..LHD..GEN |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95333-06030 |
HDJ7#,HZJ78,79;FZJ71,74,78,79,HZJ71..GEN |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K01 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT |
1 | ||
| 77305-90K00 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT SUB TANK |
1 | ||
| 77305-90K01 |
HDJ78;HZJ78..STD;FZJ78..GCC,GEN NO.2 |
1 | ||
| 77305-90K00 |
HDJ78;HZJ78..STD;FZJ78..GCC,GEN NO.1 |
1 | ||
| 77305-90K01 |
FZJ78..LHD..GEN |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
4 | ||
| 90541-05018 |
HDJ78;HZJ78..STD;FZJ78..GCC,GEN W(FUEL SUB TANK) |
4 | ||
| 90541-05018 |
FZJ71,78..LHD..GEN |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ75..HT..CBR;FZJ75..ARL..CBU;FJ75,FZJ78,HDJ78,HZJ75,PZJ75..HT W(FUEL SUB TANK) |
2 | ||
| 77366-12010 |
FZJ71,78..LHD..GEN |
1 | ||
| 77366-12010 |
HDJ78;HZJ78..STD;FZJ78..GCC,GEN W(FUEL SUB TANK) |
2 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77380-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
HZJ78..ARL,GEN;FZJ78,79,HDJ7#,HZJ79 |
1 | ||
| 77420-26010 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75..(GCC,GEN)..CBR;FZJ75,HZJ75..RHD..(ARL,GEN)..(DSL,EFI);FJ75,FZJ78,79,HZJ79,PZJ75..ARL,GCC,GEN SUB TANK |
1 | ||
| 77606-60130 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
1 | ||
| 77606-60030 |
FZJ79..GEN..IV;FZJ78..LHD..GEN SUB TANK |
1 | ||
| 77606-60130 |
FZJ79..GEN..IV;FZJ78..LHD..GEN W(FUEL SUB TANK),MAIN TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
FZJ79..GEN..IV;FZJ78..LHD..GEN MAIN TANK, RH,RH |
1 | ||
| 77601-60261 |
FZJ79..GEN..IV;FZJ78..LHD..GEN SUB TANK |
2 | ||
| 77602-60100 |
FZJ79..GEN..IV;FZJ78..LHD..GEN MAIN TANK, LH,LH |
1 | ||
| 77601-60260 |
HZJ78..STD;FZJ78,79,HDJ7#;HZJ79..GCC,GEN;HZJ79..ARL..IV W(FUEL SUB TANK),SUB TANK |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
FZJ79..GEN..IV;FZJ78..LHD..GEN MAIN TANK, RH,RH |
1 | ||
| 77601-60261 |
FZJ79..GEN..IV;FZJ78..LHD..GEN SUB TANK |
2 | ||
| 77602-60100 |
FZJ79..GEN..IV;FZJ78..LHD..GEN MAIN TANK, LH,LH |
1 | ||
| 77601-60260 |
HZJ78..STD;FZJ78,79,HDJ7#;HZJ79..GCC,GEN;HZJ79..ARL..IV W(FUEL SUB TANK),SUB TANK |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90249-14002 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 W(FUEL SUB TANK) |
2 | ||
| 90240-10011 |
FZJ75..CBR;HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ75,HZJ75..RHD..(DSL,EFI);FJ75,FZJ78,79,HDJ7#,HJ75,HZJ79,PZJ75 |
2 | ||
| 90240-10011 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
2 | ||
| 90249-14002 |
FZJ79..GEN..IV;FZJ78..LHD..GEN SUB TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77616-60080 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60050 |
FZJ79..GEN..IV;FZJ78..LHD..GEN |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..STD..CBU;FJ75,HDJ7#,HZJ73,79,LJ70,PZJ70,73;FZJ70,73,75,HZJ78..(ARL,GEN,SA)..(CBR,DSL);FJ70,73,FZJ71,74,78,79,HJ75,HZJ71,LJ72,77,79,PZJ75,RJ7#..GEN,SA |
1 | ||
| 90917-10020 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06020 |
FZJ78,79..GEN;HDJ7#,HZJ78,79 *H,L=200 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06020 |
FZJ78,79..GEN;HDJ7#,HZJ78,79 *H,L=200 |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-10153 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90405-06008 | ||||
| 90445-12229 | ||||
| 90460-65002 | ||||
| 90461-12373 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 90480-01303 | ||||
| 90949-01182 | ||||
| 91611-61020 | ||||
| 91611-B0816 | ||||
| 91626-B0818 | ||||
| 93383-15014 | ||||
| 93383-16014 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 96132-30600 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(0701- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||
ILLUST NO. 3 OF 5(0701-0907)FZJ78,79
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90401-12097 | ||||
| 90461-10651 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-60835 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 3 OF 5(0701-0907)FZJ78,79
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08862 | ||||
| 90401-12097 | ||||
| 90461-10651 | ||||
| 90461-10750 | ||||
| 90461-12407 | ||||
| 90464-00554 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-60835 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 1 OF 5(0701-0907)FZJ78,79
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06347 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 5(0701-1608)VDJ78,79..HT,PIC..ARL ; (0701- )DCB..IV ; (0701- )HZJ78,79,VDJ78,7
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-0907)FZJ78,79
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-1608)VDJ78 ; (0701- )VDJ79 ; (0701-)HZJ78,79,VDJ78..HT,PIC..GCC,GEN ;
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
