FZJ76L-RKMRK (2007)

Toyota Land Cruiser

Production Jan 2007 - Jul 2009
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701-1608)VDJ79..PIC..IV ; (0701- )VDJ79..LX..CBU ; (0701- )FZJ71,76,79,GRJ7

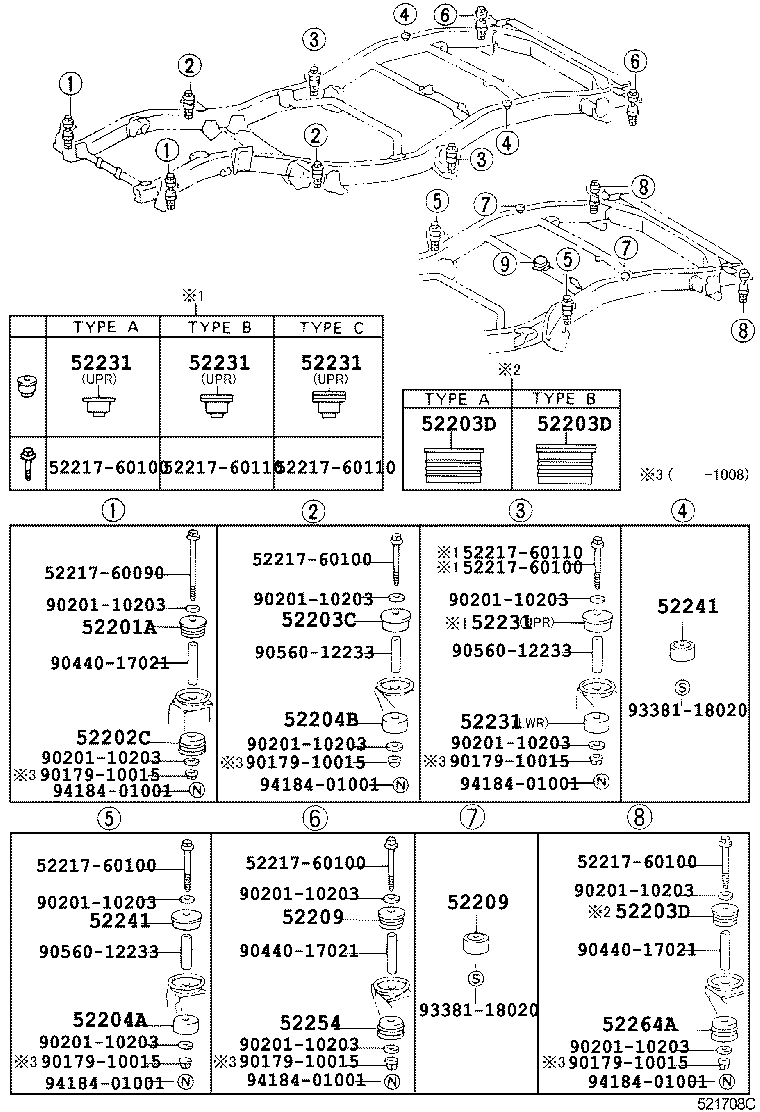

Click highlighted areas on diagram

diagram 52201A 52202C 52203C 52203D 52203D 52203D 52204A 52204B 52209 52209 5221760090 5221760100 5221760100 5221760100 5221760100 5221760100 5221760100 5221760110 5221760110 5221760110 52231 52231 52231 52231 52231 52241 52241 52254 52264A 9017910015 9017910015 9017910015 9017910015 9017910015 9017910015 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9020110203 9044017021 9044017021 9044017021 9056012233 9056012233 9056012233 9338118020 9338118020 9418401001 9418401001 9418401001 9418401001 9418401001 9418401001
Part # Description Qty Price
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-25020

FZJ7#

 2
52201-25020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-60050

FZJ7#

 2
52202-60050

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
52203C - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-60030

FZJ71,76,79

 2
52203-60030

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52201-60030

FZJ76

TYPE A

 2
52201-60040

FZJ76

TYPE B

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52201-60030

FZJ76

TYPE A

 2
52201-60040

FZJ76

TYPE B

 2
52203D - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52201-60030

FZJ76

TYPE A

 2
52201-60040

FZJ76

TYPE B

 2
52204A - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER
52204-60070

FZJ76,78

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-60070

FZJ71,76,79

 2
52204-60070

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79

 2
52209 - CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER
52209-60020

FZJ76

 2
52209 - CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER
52209-60020

FZJ76

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52207-60030

FZJ71,76

UPR,TYPE A

 2
52207-60050

FZJ71,76

UPR,TYPE C

 2
52207-60040

FZJ71,76

UPR,TYPE B

 2
52208-60010

FZJ71,76

LOWER

 2
52207-60030

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE A

 2
52207-60040

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE B

 2
52208-60010

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

LOWER

 2
52207-60050

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE C

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52207-60030

FZJ71,76

UPR,TYPE A

 2
52207-60050

FZJ71,76

UPR,TYPE C

 2
52207-60040

FZJ71,76

UPR,TYPE B

 2
52208-60010

FZJ71,76

LOWER

 2
52207-60030

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE A

 2
52207-60040

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE B

 2
52208-60010

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

LOWER

 2
52207-60050

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE C

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52207-60030

FZJ71,76

UPR,TYPE A

 2
52207-60050

FZJ71,76

UPR,TYPE C

 2
52207-60040

FZJ71,76

UPR,TYPE B

 2
52208-60010

FZJ71,76

LOWER

 2
52207-60030

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE A

 2
52207-60040

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE B

 2
52208-60010

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

LOWER

 2
52207-60050

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE C

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52207-60030

FZJ71,76

UPR,TYPE A

 2
52207-60050

FZJ71,76

UPR,TYPE C

 2
52207-60040

FZJ71,76

UPR,TYPE B

 2
52208-60010

FZJ71,76

LOWER

 2
52207-60030

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE A

 2
52207-60040

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE B

 2
52208-60010

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

LOWER

 2
52207-60050

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE C

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52207-60030

FZJ71,76

UPR,TYPE A

 2
52207-60050

FZJ71,76

UPR,TYPE C

 2
52207-60040

FZJ71,76

UPR,TYPE B

 2
52208-60010

FZJ71,76

LOWER

 2
52207-60030

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE A

 2
52207-60040

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE B

 2
52208-60010

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

LOWER

 2
52207-60050

GRJ71,76..LHD;GRJ79,HZJ71,76,79,VDJ76,79..DCB,HT,SOT

UPR,TYPE C

 2
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52203-60030

FZJ76,78

 2
52241 - CUSHION, BODY MOUNT, NO.4 UPPER
52203-60030

FZJ76,78

 2
52264A - CUSHION, BODY MOUNT, NO.6 LOWER
52202-60020

FZJ76

 2
Common parts
52217-60090
52217-60100
52217-60110
90179-10015
90201-10203
90440-17021
90560-12233
93381-18020
94184-01001
