FZJ75RP-MRUN (1992)
Toyota Land Cruiser

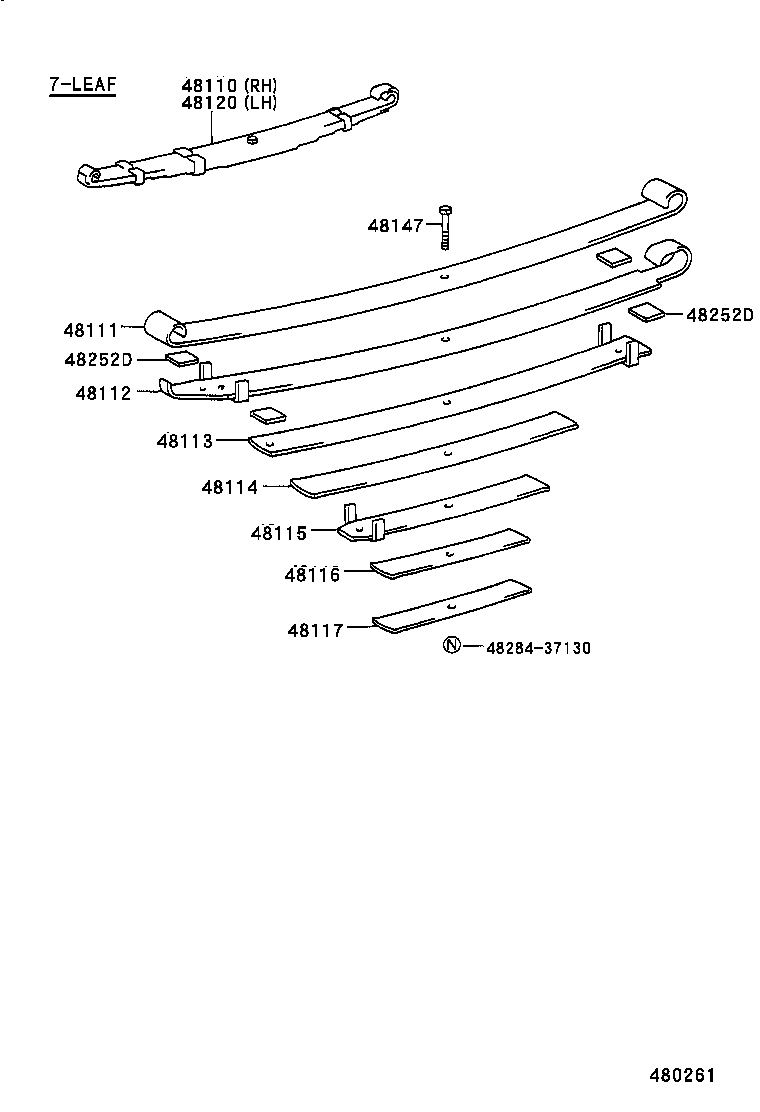

ILLUST NO. 3 OF 3(9608- )FZJ75,HZJ75..PIC..ARL ; (9901- )SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA 6-LEAF |
1 | ||
| 48110-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA 6-LEAF |
1 | ||
| 48110-60660 |
FZJ75,HZJ75..SA 7-LEAF |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA |
2 | ||
| 48111-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48111-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48117-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48112-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48105-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48102-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA |
2 | ||
| 48114-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48114-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48104-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA |
2 | ||
| 48104-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48115-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA |
2 | ||
| 48116-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48103-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA 6-LEAF |
1 | ||
| 48110-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA 6-LEAF |
1 | ||
| 48110-60660 |
FZJ75,HZJ75..SA 7-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48247-27430 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 48247-27430 |
HZJ75;FZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI |
2 | ||
| 48247-27430 |
FZJ75,HZJ75..HT..ARL;FZJ75,HZJ75..GCC,GEN,SA |
2 | ||
| 48247-36450 |
FZJ75,HZJ75..SA |
2 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
FZJ75,HZJ75..SA |
8 | ||
| 48252-26070 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
FZJ75,HZJ75..SA |
8 | ||
| 48252-26070 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 |
8 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 3 OF 3(9001-9901)FJ7#,FZJ70,75,HJ75,HZJ7#,PZJ7# ; (9901- )FZJ70,73,75,HZJ70,75..ARL,GC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA 6-LEAF |
1 | ||
| 48110-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA 6-LEAF |
1 | ||
| 48110-60660 |
FZJ75,HZJ75..SA 7-LEAF |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA |
2 | ||
| 48111-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48111-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48117-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48112-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48105-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48102-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA |
2 | ||
| 48114-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48114-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48104-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA |
2 | ||
| 48104-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48115-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA |
2 | ||
| 48116-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA |
2 | ||
| 48103-60660 |
FZJ75,HZJ75..SA |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-60560 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..GCC,GEN,SA 6-LEAF |
1 | ||
| 48110-60560 |
FZJ75..LHD..IV;FZJ75..CBU..CBR;HZJ75..GCC,GEN,SA 6-LEAF |
1 | ||
| 48110-60660 |
FZJ75,HZJ75..SA 7-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48247-27430 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 |
2 | ||
| 48247-27430 |
HZJ75;FZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI |
2 | ||
| 48247-27430 |
FZJ75,HZJ75..HT..ARL;FZJ75,HZJ75..GCC,GEN,SA |
2 | ||
| 48247-36450 |
FZJ75,HZJ75..SA |
2 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
FZJ75,HZJ75..SA |
8 | ||
| 48252-26070 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 |
8 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
FZJ75,HZJ75..SA |
8 | ||
| 48252-26070 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 |
8 | ||
| Common parts | ||||
| 94110-51000 | ||||
ILLUST NO. 1 OF 3(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04483-60060 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 04483-60060 |
FZJ75,HZJ75..SA |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-60040 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 04482-60040 |
FZJ75,HZJ75..SA |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90389-18002 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
8 | ||
| 90389-18002 |
FZJ75,HZJ75..SA |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90389-18002 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
8 | ||
| 90389-18002 |
FZJ75,HZJ75..SA |
8 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90389-18002 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
4 | ||
| 90389-18002 |
FZJ75,HZJ75..SA |
4 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-60051 |
FZJ75,HZJ75..SA |
1 | ||
| 48304-60051 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48305-60021 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48305-60021 |
FZJ75,HZJ75..SA |
1 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-60050 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48412-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48433-60020 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48434-60020 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-60020 |
FZJ75,HZJ75..SA |
1 | ||
| 48475-60020 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48505 - SEAT, FRONT SPRING, RH | ||||
| 48048-60021 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48048-60021 |
FZJ75,HZJ75..SA |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-14038 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 L=210,W(PNC 48475) |
2 | ||
| 90117-14051 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 L=200 |
4 | ||
| 90117-14038 |
HZJ75;FZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI L=210,W(PNC 48475) |
2 | ||
| 90117-14051 |
FZJ75,HZJ75..HT..ARL;FZJ75,HZJ75..GCC,GEN,SA L=200 |
4 | ||
| 90117-14051 |
HZJ75;FZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI L=200 |
4 | ||
| 90117-14038 |
FZJ75,HZJ75..HT..ARL;FZJ75,HZJ75..GCC,GEN,SA L=210,W(PNC 48475) |
2 | ||
| 90117-14054 |
FZJ75,HZJ75..SA L=220 |
4 | ||
| 90117-14038 |
FZJ75,HZJ75..SA L=210 |
4 | ||
| 48506 - SEAT, FRONT SPRING, LH | ||||
| 48049-60021 |
FZJ75,HZJ75..SA |
1 | ||
| 48049-60021 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-69355 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 MARK 48511-60171 |
1 | ||
| 48511-69355 |
HZJ75;FZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI MARK 48511-60171 |
1 | ||
| 48511-69356 |
FZJ75,HZJ75..SA MARK 48511-60171 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
FZJ75,HZJ75..SA |
4 | ||
| 90948-01031 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
FZJ75,HZJ75..SA |
4 | ||
| 90948-01031 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02114 |
FZJ75,HZJ75..SA |
4 | ||
| 90948-02114 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02114 |
FZJ75,HZJ75..SA |
4 | ||
| 90948-02114 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90948-02017 |
FZJ75,HZJ75..SA |
2 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 90948-03011 |
FZJ75,HZJ75..SA |
2 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90385-19003 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
4 | ||
| 90385-19003 |
FZJ75,HZJ75..SA |
4 | ||
| 48510H - BUSH(FOR FRONT SHOCK ABSORBER) | ||||
| 90385-19003 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
4 | ||
| 90385-19003 |
FZJ75,HZJ75..SA |
4 | ||
| 48512A - BRACKET, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48513 - BRACKET, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48502-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-69355 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75 MARK 48511-60171 |
1 | ||
| 48511-69355 |
HZJ75;FZJ75..CBU;FZJ75..LHD..IV;FZJ75..IV..EFI MARK 48511-60171 |
1 | ||
| 48511-69356 |
FZJ75,HZJ75..SA MARK 48511-60171 |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94130-61430 | ||||
| 94184-01001 | ||||
| 94184-61000 | ||||
