FZJ75RP-MRU (1992)

Toyota Land Cruiser

Production Jan 1992 - Aug 1999
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )1FZF

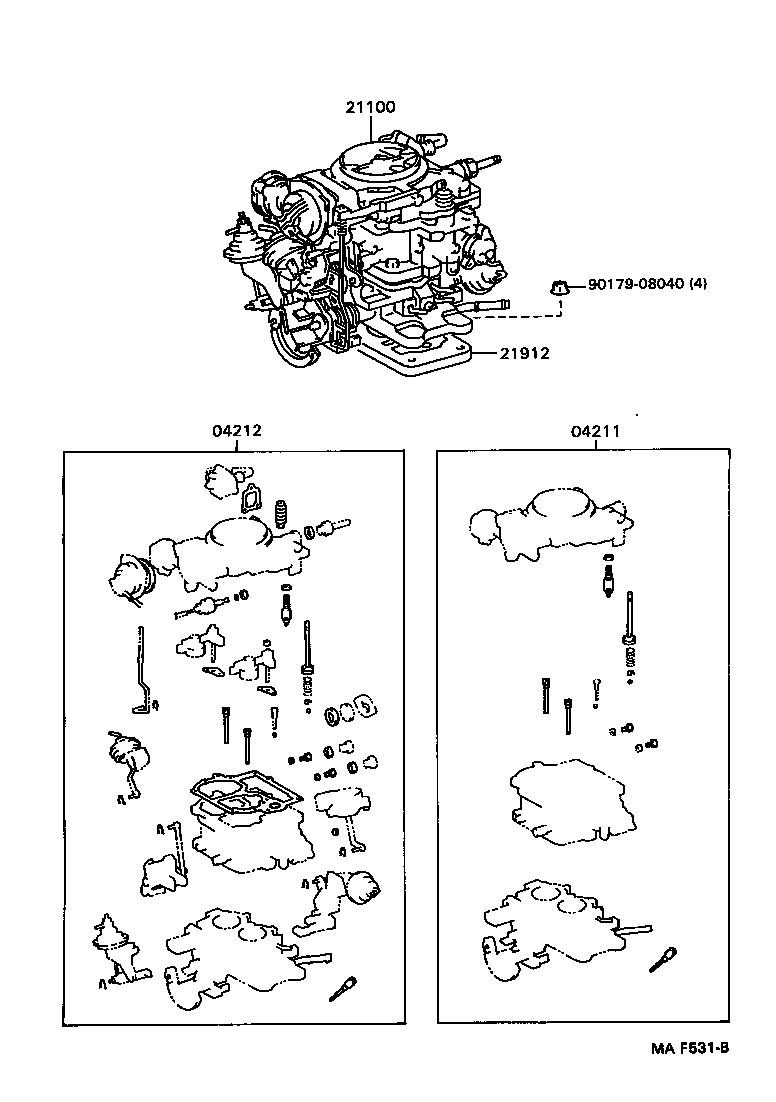

Click highlighted areas on diagram

diagram 04211 04212 21100 21912 9017908040
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-66030

1FZF..FZJ7#..GEN

 1
04211-66030

1FZF..FZJ7#..GEN

 1
04211-66031

1FZF..FZJ7#..GEN

 1
04212 - GASKET KIT, CARBURETOR
04212-66010

1FZF..FZJ7#

 1
04212-66010

1FZF..FZJ7#

 1
21100 - CARBURETOR ASSY
21100-66030

1FZF..FZJ7#..GEN

 1
21100-66030

1FZF..FZJ7#..GEN

 1
21100-66031

1FZF..FZJ7#..GEN

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-66010

1FZF..FZJ7#

 1
Common parts
90179-08040
