FZJ75LP-MRU3 (1992)

Toyota Land Cruiser

Production Jan 1992 - Aug 1999
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )1FZF

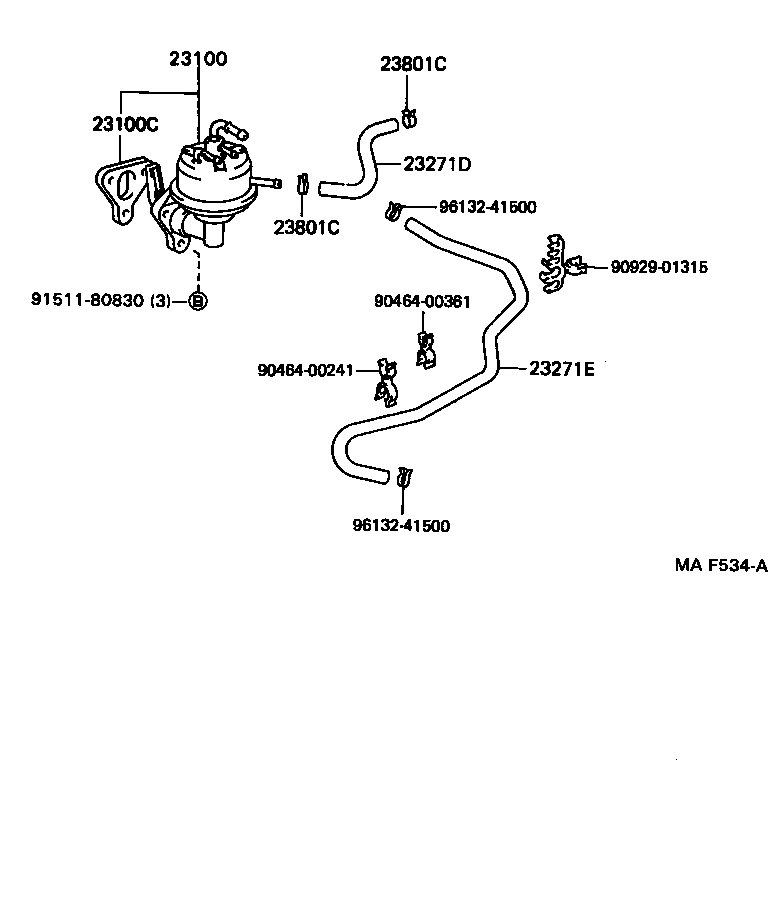

Click highlighted areas on diagram

diagram 23100 23100C 23271D 23271E 23801C 23801C 9046400241 9046400361 9092901315 9151180830 9613241500 9613241500
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-69085

1FZF..FZJ7#

 1
23100-69085

1FZF..FZJ7#

 1
23100C - INSULATOR, FUEL PUMP
90923-06016

1FZF..FZJ7#

 1
23271D - HOSE, FUEL, NO.1
23271-66010

1FZF..FZJ7#

 1
23271E - HOSE, FUEL, NO.2
23271-66020

1FZF..FZJ7#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-31000

1FZF..FZJ7#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-31000

1FZF..FZJ7#

 2
Common parts
90464-00241
90464-00361
90929-01315
91511-80830
96132-41500
