FZJ75LP-MRU (1992)

Toyota Land Cruiser

Production Jan 1992 - Aug 1999
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )1FZ#..FZJ70,73,75

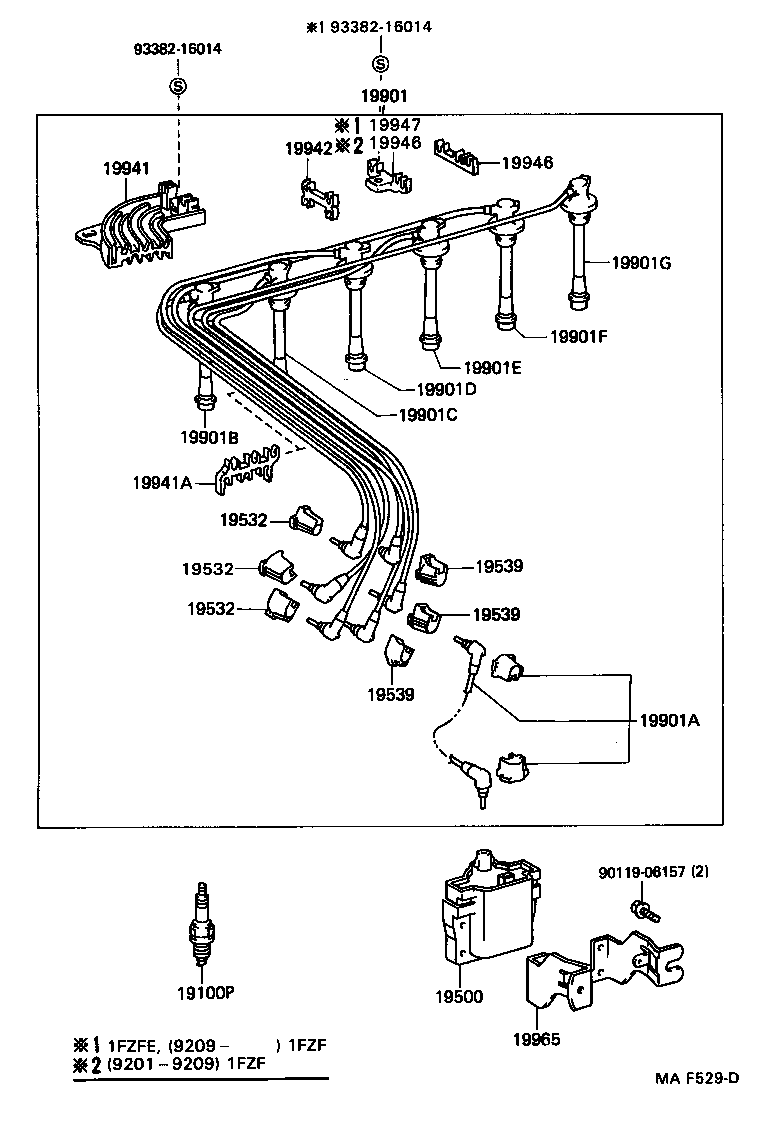

Click highlighted areas on diagram

diagram 19100P 19500 19532 19532 19532 19539 19539 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19941A 19942 19946 19946 19947 19965 9011906157 9338216014 9338216014
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01176

1FZ#..FZJ7#

K16R-U

 6
19500 - COIL ASSY, IGNITION
90919-02197

1FZ#..FZJ7#

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZ#..FZJ7#

 3
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZ#..FZJ7#

 3
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZ#..FZJ7#

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-46010

1FZ#..FZJ7#

MARK A

 2
19539-50010

1FZ#..FZJ7#

MARK C

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-46010

1FZ#..FZJ7#

MARK A

 2
19539-50010

1FZ#..FZJ7#

MARK C

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-46010

1FZ#..FZJ7#

MARK A

 2
19539-50010

1FZ#..FZJ7#

MARK C

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21547

1FZF..FZJ7#

 1
19901A - CORD, COIL RESISTIVE
90919-13427

1FZ#..FZJ7#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15298

1FZF..FZJ7#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15299

1FZF..FZJ7#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15300

1FZF..FZJ7#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15301

1FZF..FZJ7#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-15302

1FZF..FZJ7#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-15303

1FZF..FZJ7#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-66010

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90929-01278

1FZ#..FZJ7#

 2
19942 - CLAMP, RESISTIVE CORD, NO.2
19942-66010

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
19946-66010

1FZF..FZJ7#

 1
19946-66010

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
19946-66010

1FZF..FZJ7#

 2
19946 - CLAMP, RESISTIVE CORD, NO.3
19946-66010

1FZF..FZJ7#

 1
19946-66010

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
19946-66010

1FZF..FZJ7#

 2
19947 - CLAMP, RESISTIVE CORD, NO.4
19947-66010

1FZF..FZJ70,73,75;1FZFE..FZJ70,75..ARL;1FZFE..FZJ71,74,78,79

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03122

1FZF..FZJ7#

 1
Common parts
90119-06157
93382-16014
