FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

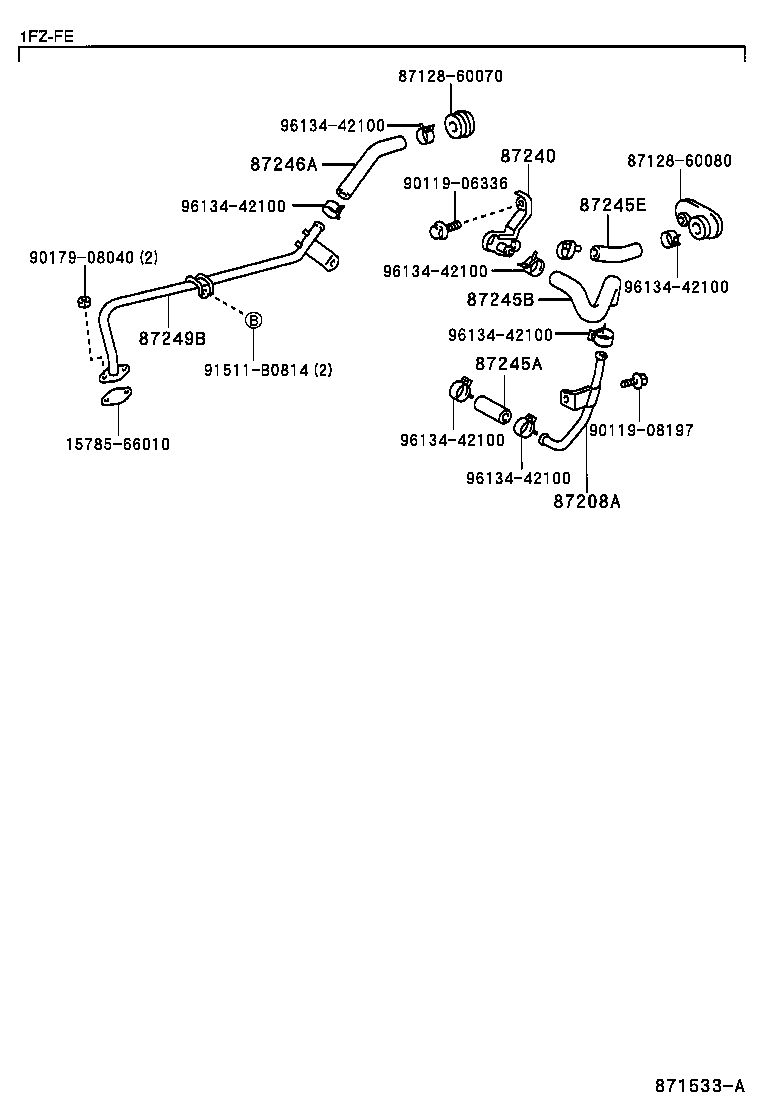

ILLUST NO. 1 OF 2(9709-9908)GEN..EFI

Click highlighted areas on diagram

FRONT

diagram 1578566010 8712860070 8712860080 87208A 87240 87245A 87245B 87245E 87246A 87249B 9011906336 9011908197 9017908040 91511B0814 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60510

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
87240 - VALVE ASSY, HEATER WATER
87240-90K01

FJ7#;FZJ70..RHD;FZJ7#..GCC,SA;FZJ7#..LHD..(PIC,SOT)..GEN

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30100

FZJ73,75..(PIC,SOT)..GEN..EFI

*H,L=55

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60680

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60290

HZJ75;FZJ70..LHD..GEN;FZJ73,75,HZJ70,73,PZJ7#..ARL,GEN

 1
Common parts
15785-66010
87128-60070
87128-60080
90119-06336
90119-08197
90179-08040
91511-B0814
96134-42100

ILLUST NO. 1 OF 2(9908- )EFI

Click highlighted areas on diagram

FRONT

diagram 1578566010 1578566010 8712860070 8712860070 8712860080 8712860080 87240 87240 87245A 87245A 87245B 87245B 87245C 87245E 87245E 87246A 87246A 87246E 87248A 87248A 87249A 87249B 87249B 87265B 9011906336 9011906336 9017908040 9017908040 91511B0814 91511B0814 9165160816 9165160816 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613452100 9613452100
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-90K01

FJ7#;FZJ70..RHD;FZJ7#..GCC,SA;FZJ7#..LHD..(PIC,SOT)..GEN

 1
87240 - VALVE ASSY, HEATER WATER
87240-90K01

FJ7#;FZJ70..RHD;FZJ7#..GCC,SA;FZJ7#..LHD..(PIC,SOT)..GEN

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30100

FZJ73,75..(PIC,SOT)..GEN..EFI

*H,L=55

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30100

FZJ73,75..(PIC,SOT)..GEN..EFI

*H,L=55

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60680

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
87245B - HOSE, HEATER WATER, INLET B
87245-60680

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60290

HZJ75;FZJ70..LHD..GEN;FZJ73,75,HZJ70,73,PZJ7#..ARL,GEN

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60290

HZJ75;FZJ70..LHD..GEN;FZJ73,75,HZJ70,73,PZJ7#..ARL,GEN

 1
Common parts
15785-66010
87128-60070
87128-60080
90119-06336
90179-08040
91511-B0814
91651-60816
96134-42100
96134-52100

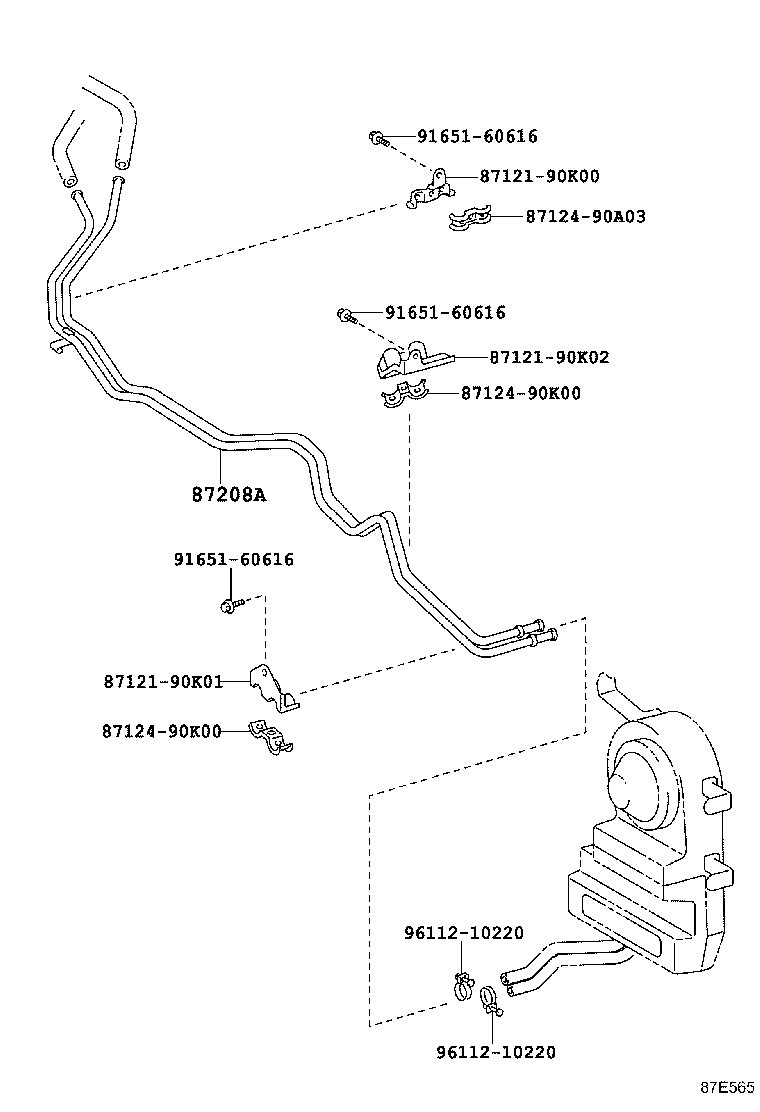

ILLUST NO. 2 OF 2(9001- )FJ75,FZJ75

Click highlighted areas on diagram

REAR

diagram 8712190K00 8712190K01 8712190K02 8712490A03 8712490K00 8712490K00 87208A 9165160616 9165160616 9165160616 9611210220 9611210220
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60510

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
Common parts
87121-90K00
87121-90K01
87121-90K02
87124-90A03
87124-90K00
91651-60616
96112-10220

ILLUST NO. 1 OF 2(0701-0907)FZJ7#

Click highlighted areas on diagram

FRONT

diagram 1104 1106 1578566010 8712 8712 8712860070 8712860080 87240 87245A 87245B 87245E 87246A 87248A 87249B 9011906336 9017908040 91511B0814 9165160816 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
Common parts
15785-66010
87128-60070
87128-60080
90119-06336
90179-08040
91511-B0814
91651-60816
96134-42100
96136-42501
Linked diagrams
1104
1106
8712
