FZJ75LP-MRK3 (1997)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(9001- )
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-89110 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-90K01 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87107-90K01 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 87107-90K01 |
FZJ73,75 |
1 | ||
| 87107-60220 |
FZJ75..IV VENEZUELA SPEC |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87126-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLOWER |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87126-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLOWER |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12050 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# HEATER RADIATOR |
2 | ||
| 87126-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLOWER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-60290 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-60240 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75..LHD MARK=87150-60240 |
1 | ||
| 87150-60240 |
FZJ73,75..(PIC,SOT)..GEN..EFI MARK=87150-60240 |
1 | ||
| 87150-60240 |
FZJ73,75 MARK=87150-60240 |
1 | ||
| 87150-60521 |
FZJ75..IV VENEZUELA SPEC,MARK=87150-60521 |
1 | ||
| 87201D - DUCT SUB-ASSY, AIR | ||||
| 87201-60030 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87248E - PIPE, HEATER WATER INLET, E | ||||
| 87248-90K02 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 87248-90K02 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 87248-60580 |
FZJ75..IV VENEZUELA SPEC |
1 | ||
| 87248-90K02 |
FZJ73,75 |
1 | ||
| 87249E - PIPE, HEATER WATER OUTLET, E (FOR HEATER UNIT) | ||||
| 87248-90K05 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75..LHD |
1 | ||
| 87248-90K05 |
FZJ73,75 |
1 | ||
| 87248-90K05 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 87248-60610 |
FZJ75..IV VENEZUELA SPEC |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||
ILLUST NO. 1 OF 3(9001- )
BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-60060 |
FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||

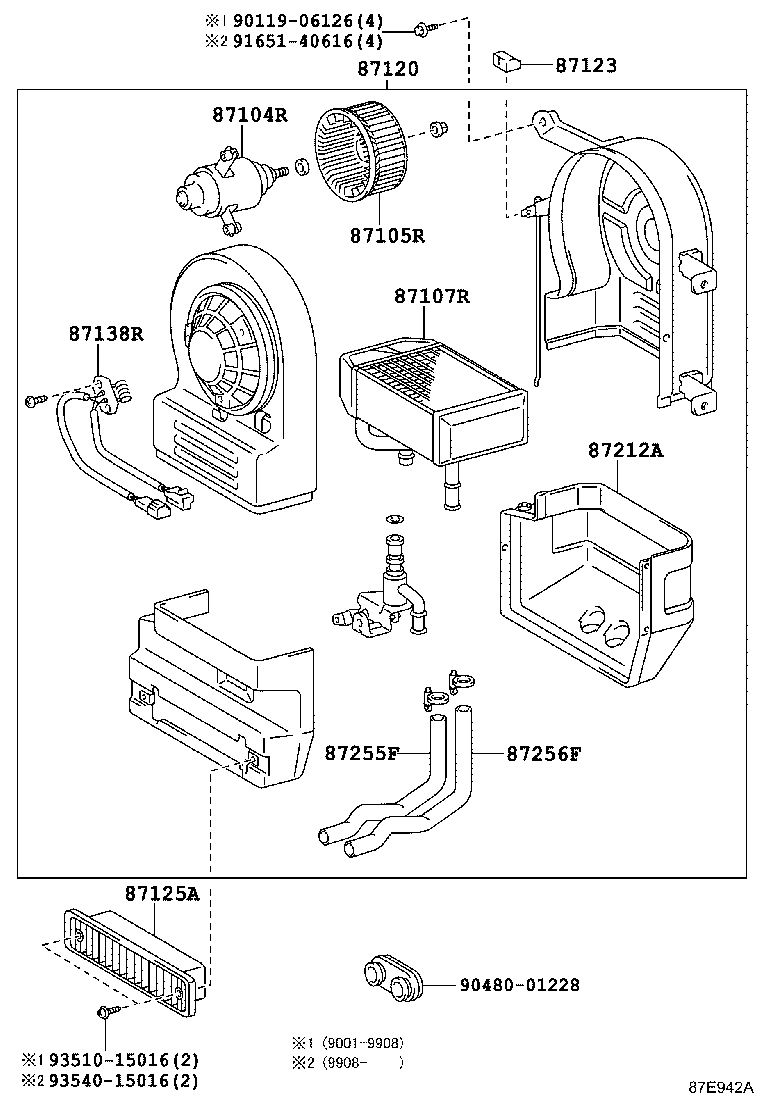

ILLUST NO. 3 OF 3(9001-9908)FJ75,FZJ75,HZJ75,PZJ75 ; (9908- )FZJ78,HZJ78
REAR HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06126 | ||||
| 90480-01228 | ||||
| 91651-40616 | ||||
| 93510-15016 | ||||
| 93540-15016 | ||||
ILLUST NO. 1 OF 3(0701-0907)FZJ7#,HZJ7#
BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||
ILLUST NO. 2 OF 3(0701-0907)LHD
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06373 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8714 | ||||
