FZJ75LP-MRK3 (1997)
Toyota Land Cruiser
ILLUST NO. 2 OF 7(9001-0808)FJ7#,FZJ7#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-10001 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# 30A,PINK |
1 | ||
| 90982-09002 |
HZJ75..RHD;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;FJ7#,FZJ70,73,75,HDJ7#,HJ75,HZJ73,LJ7#,PZJ7#,RJ7#..CBR,DSL,TD,TDEFI 10A |
1 | ||
| 90982-09005 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# 7.5A |
1 | ||
| 90080-82013 |
HZJ75..RHD;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;FZJ79,HZJ79..RHD..GEN;FJ7#,FZJ70,73,75,HJ75,HZJ73,LJ7#,PZJ7#,RJ7#..CBR,DSL,TD 15A,BLUE,(L) |
1 | ||
| 90080-82014 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# 20A,YELLOW |
1 | ||
| 90982-09002 |
FZJ73,75 10A |
1 | ||
| 90982-09003 |
FZJ73,75..(PIC,SOT)..GEN..EFI 15A |
1 | ||
| 90982-09004 |
FZJ73,75..(PIC,SOT)..GEN..EFI 20A,YELLOW |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90K01 |
HZJ79..GCC;LJ7#,PZJ70,75;HZJ70,73..ARL;HZJ75..LHD..CBU;FZJ78,79..LHD..GEN..CBU;HZJ71,75,78,79,PZJ73..RHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60170 |
FJ7#,HZJ75,PZJ70,75..LHD |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60170 |
FJ7#,HZJ75,PZJ70,75..LHD |
1 | ||
| 89426A - BRACKET, VACUUM SENSOR | ||||
| 89426-60010 |
FZJ75..IV |
1 | ||
| 89426-60010 |
HZJ70,75..GEN |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60010 |
FJ7#,FZJ7# |
1 | ||
| 89593-60010 |
FZJ75..IV |
1 | ||
| Common parts | ||||
| 90119-06157 | ||||
| 90119-08699 | ||||
| 90179-05003 | ||||
| 90179-06158 | ||||
| 90179-08066 | ||||
| 90179-08204 | ||||
| 91611-60616 | ||||
| 91621-40812 | ||||
| 91621-B0816 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91656-40818 | ||||
| 93313-16016 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 93383-A5025 | ||||
| 93385-15020 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 3802 | ||||
ILLUST NO. 5 OF 7(9001-0808)
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69355 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,75..LHD..(HT,PIC)..CBR;FJ7#,FZJ71,73,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69355 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,75..LHD..(HT,PIC)..CBR;FJ7#,FZJ71,73,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69105 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69105 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60561 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,75..LHD..(HT,PIC)..CBR;FJ7#,FZJ71,73,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84310-60571 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,75..LHD..(HT,PIC)..CBR;FJ7#,FZJ71,73,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC) W(INTERMITTENT WIPER) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60561 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,75..LHD..(HT,PIC)..CBR;FJ7#,FZJ71,73,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84310-60571 |
HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,75..LHD..(HT,PIC)..CBR;FJ7#,FZJ71,73,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC) W(INTERMITTENT WIPER) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69115 |
FZJ74,HZJ75..LHD..CBU;FZJ70,75..LHD..(HT,PIC)..CBR;FJ7#,FZJ71,73,78,79,HZJ71,78,79,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84332-69115 |
FZJ75..IV |
1 | ||
| 84332-69115 |
FZJ75 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69115 |
FZJ74,HZJ75..LHD..CBU;FZJ70,75..LHD..(HT,PIC)..CBR;FJ7#,FZJ71,73,78,79,HZJ71,78,79,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC) |
1 | ||
| 84332-69115 |
FZJ75..IV |
1 | ||
| 84332-69115 |
FZJ75 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60120 |
FJ75,FZJ75..PIC..GEN;FJ70,73,FZJ70,73,LJ70,77,RJ7#..LX..GEN W(TILT STEERING) |
1 | ||
| 84450-60140 |
FJ7#,FZJ7#,LJ70,77,RJ7#..GEN |
1 | ||
| 84450-60250 |
FZJ73,75..(PIC,SOT)..GEN..EFI W(TILT STEERING) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69445 |
FJ70,75,HZJ75,LJ70,PZJ70,75,RJ70..LHD..(HT,PIC) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69445 |
FJ70,75,HZJ75,LJ70,PZJ70,75,RJ70..LHD..(HT,PIC) |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 82711-16110 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-10001 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# 30A,PINK |
1 | ||
| 90982-09002 |
HZJ75..RHD;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;FJ7#,FZJ70,73,75,HDJ7#,HJ75,HZJ73,LJ7#,PZJ7#,RJ7#..CBR,DSL,TD,TDEFI 10A |
1 | ||
| 90982-09005 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# 7.5A |
1 | ||
| 90080-82013 |
HZJ75..RHD;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;FZJ79,HZJ79..RHD..GEN;FJ7#,FZJ70,73,75,HJ75,HZJ73,LJ7#,PZJ7#,RJ7#..CBR,DSL,TD 15A,BLUE,(L) |
1 | ||
| 90080-82014 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# 20A,YELLOW |
1 | ||
| 90982-09002 |
FZJ73,75 10A |
1 | ||
| 90982-09003 |
FZJ73,75..(PIC,SOT)..GEN..EFI 15A |
1 | ||
| 90982-09004 |
FZJ73,75..(PIC,SOT)..GEN..EFI 20A,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-60071 |
FZJ73,75..PIC,SOT |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
FZJ79;HZJ75..RHD;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;FZJ71,74,78..ARL,GEN;FJ7#,FZJ70,73,75,HJ75,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..CBR,DSL,TD 30A,PINK |
1 | ||
| 90982-10001 |
FZJ73,75..PIC,SOT 30A,PINK |
1 | ||
| 85940A - RELAY, WINDSHIELD WIPER SWITCH | ||||
| 28380-20010 |
HZJ75..RHD..PIC..GEN;HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FJ70,75,FZJ70,74,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 91512-60614 | ||||
| 91651-40616 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2 | ||||
| 89533-60020 |
FJ7#,HZJ75,PZJ70,75..LHD |
1 | ||
| Common parts | ||||
| 91512-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91652-60616 | ||||
| 93319-15010 | ||||
| 93560-55016 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||
ILLUST NO. 3 OF 7(9001-0808)LHD
INSTRUMENT PANEL SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-90K01 |
HZJ78..GEN;HZJ75..RHD..GEN;HZJ75..LHD..CBU;FZJ71,74,78,79..GCC,GEN;FJ7#,FZJ70,73,75,HZJ71,79,LJ7#,PZJ7#,RJ7#..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 84660E - KNOB, COOLER SWITCH | ||||
| 84731-12032 |
HZJ70,75..GEN |
1 | ||
| 84731-12032 |
FZJ73,75..(PIC,SOT)..EFI |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-90K01 |
FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(AIR CONDITIONER) |
1 | ||
| 84732-90K01 |
FZJ70..GCC;FZJ70..SOT;FJ7#,FZJ73,75,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 84660-90K01 |
FZJ73,75..(PIC,SOT)..EFI W(AIR CONDITIONER) |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-20030 |
FZJ73,75..(PIC,SOT)..EFI W(AIR CONDITIONER) |
1 | ||
| 84731-20030 |
HZJ70,75..GEN W(AIR CONDITIONER) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30360 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90164-50025 | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
ILLUST NO. 6 OF 7(9001-0808)
DOOR,FLOOR SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-90K04 |
FJ70,73,FZJ70,73,HZJ70,73,PZJ70,73..HT;FJ73,75,FZJ75,HZJ75,PZJ75..(PIC,SOT)..(ARL,GEN) |
1 | ||
| 83482-90K01 |
FJ70,73,FZJ70,73,PZJ70..HT..(GCC,GEN);FJ73,75,FZJ75,HZJ75,PZJ75..(PIC,SOT)..GEN W(WINCH) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28010 |
FJ75,FZJ75,HZJ75,PZJ75;FJ70,FZJ70,HJ75,LJ72,PZJ70,RJ70..PIC,SOT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28010 |
FJ75,FZJ75,HZJ75,PZJ75;FJ70,FZJ70,HJ75,LJ72,PZJ70,RJ70..PIC,SOT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28010 |
FJ75,FZJ75,HZJ75,PZJ75;FJ70,FZJ70,HJ75,LJ72,PZJ70,RJ70..PIC,SOT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28010 |
FJ75,FZJ75,HZJ75,PZJ75;FJ70,FZJ70,HJ75,LJ72,PZJ70,RJ70..PIC,SOT |
2 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84650-90K00 |
HZJ75..RHD..PIC..GEN;HZJ75..LHD..PIC..CBU;FZJ75..PIC..(GCC,GEN)..CBR;FJ73,FZJ73,HZJ73,PZJ73..CBR,DSL;FJ70,75,FZJ70,74,HZJ71,LJ72,PZJ70,75,RJ70..(PIC,SOT)..(GCC,GEN) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-42010 |
FZJ73,75 TYPE C:REFER ILLUST. |
1 | ||
| 84340-32090 |
FZJ73,75..PIC,SOT TYPE C:REFER ILLUST. |
1 | ||
| 84340-32090 |
HZJ70,75 TYPE B:REFER ILLUST. |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91621-40612 | ||||
| 91626-40818 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93313-14012 | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 1 OF 7(9001-0907)FJ7#,FZJ7#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
FJ70,PZJ70..ARL;FJ70,75,PZJ70,RJ7#..LX;FJ75,HZJ75,LJ72..ARL,GEN;FJ73,HZJ70,73,LJ70,77,79,PZJ73,75..HT,PIC |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
FZJ75..SA;FJ70..MTM..(GCC,GEN);FJ73,75,HJ75,HZJ7#..MTM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-69145 |
FZJ73,75..(PIC,SOT)..GEN..EFI TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-69145 |
FZJ73,75..(PIC,SOT)..GEN..EFI TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-69145 |
FZJ73,75..(PIC,SOT)..GEN..EFI TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
FZJ70,73,75..GEN..EFI |
1 | ||
| 89466-20020 |
FZJ73,75 |
1 | ||
| 89466-20020 |
FZJ73,75 |
1 | ||
| 89466-20020 |
FZJ73,75 |
1 | ||
| 89466-20020 |
FZJ73,75..PIC,SOT |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
FZJ70,73,75..GEN..EFI |
1 | ||
| 89466-20020 |
FZJ73,75 |
1 | ||
| 89466-20020 |
FZJ73,75 |
1 | ||
| 89466-20020 |
FZJ73,75 |
1 | ||
| 89466-20020 |
FZJ73,75..PIC,SOT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-60010 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
2 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-60010 | ||||
| 82711-60020 | ||||
| 82715-60010 | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 90461-08312 | ||||
| 91651-40825 | ||||
| 91651-60614 | ||||

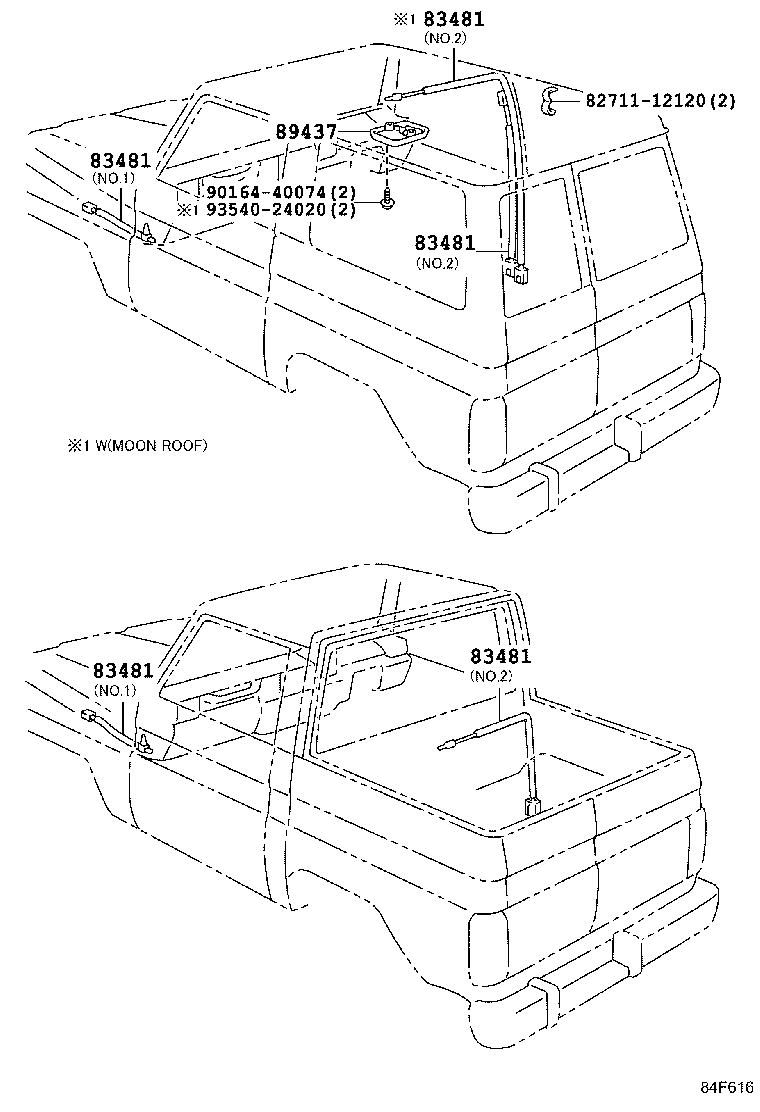

ILLUST NO. 7 OF 7(9001-9908)
AMBIENT SENSOR & COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) NO.2 |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) NO.2 |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
ILLUST NO. 1 OF 7(0701- )FZJ7#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-60010 | ||||
| 82715-60A40 | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||
| 91673-80820 | ||||
ILLUST NO. 2 OF 7(0701-0907)FZJ7#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91673-80816 | ||||
ILLUST NO. 4 OF 7(0701-0907)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91673-80614 | ||||
ILLUST NO. 5 OF 7(0701-0907)LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 6 OF 7(0701-0907)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14550 | ||||
| 82715-6A070 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(0701- )LHD
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 90159-60081 | ||||
| 90189-06018 | ||||
| 90189-06043 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91553-80814 | ||||
| 91621-61020 | ||||
| 91626-40818 | ||||
| 91651-40614 | ||||
| 91671-80612 | ||||
| 93313-14012 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||
ILLUST NO. 3 OF 7(0701-0907)FZJ7#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-60D20 | ||||
| 82715-60D30 | ||||
| 91651-40612 | ||||
| 91673-80614 | ||||
| 93313-15016 | ||||
| 93313-16016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
