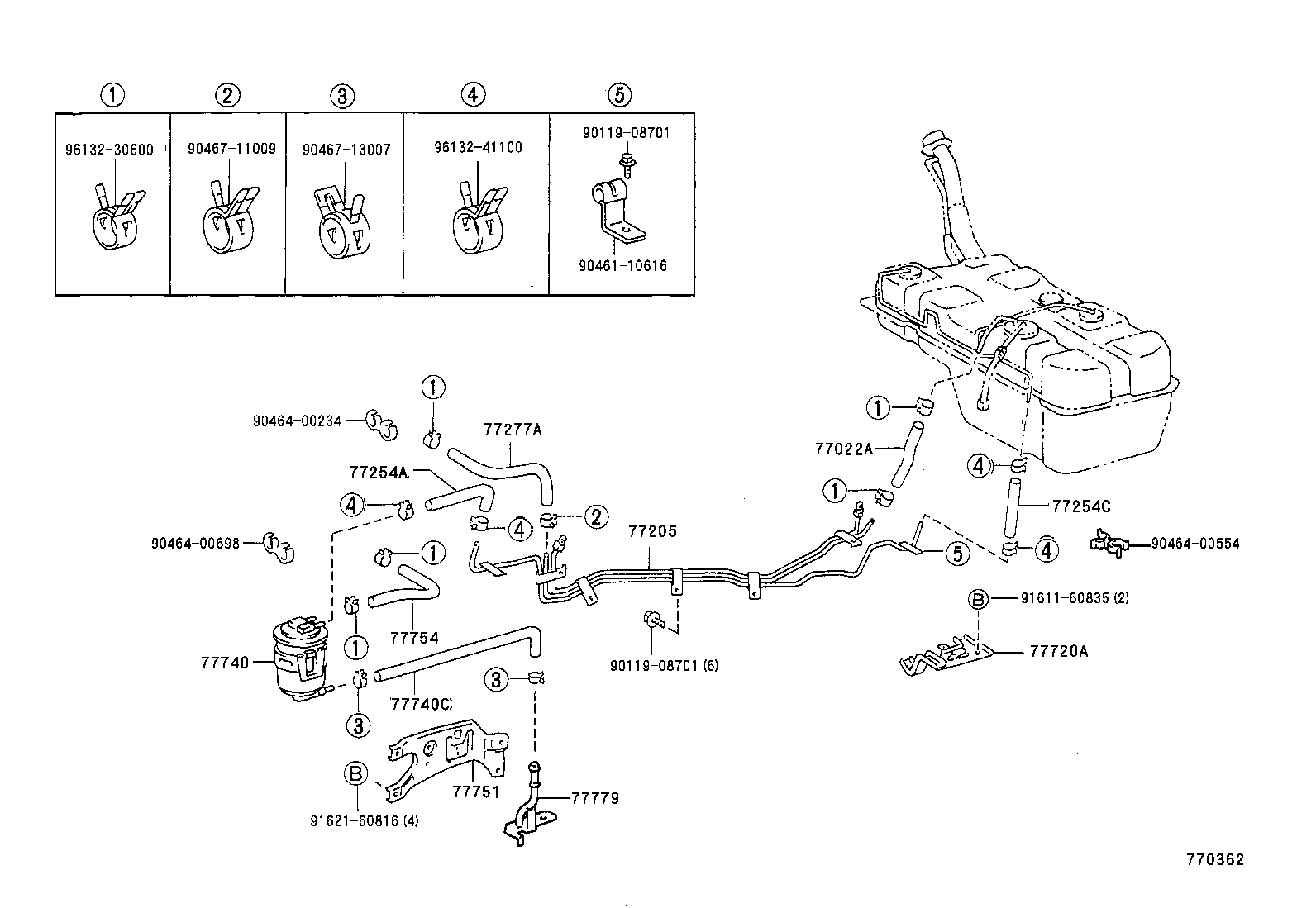

Toyota Land cruiser FZJ75 FUEL TANK & TUBE

Part #	Description	Period	Qty
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06040	FJ75,PZJ75..PIC..GEN;FZJ75,HZJ75..PIC..(ARL,GCC,GEN) *H,L=380,W(FUEL SUB TANK)	01/1990 - 02/1993	1
95333-06020	FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN *H,L=190,W(FUEL SUB TANK)	01/1990 - 02/1993	1
90447-12106	FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=670,W(FUEL SUB TANK)	01/1990 - 05/1993	1
90447-12105	FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=450,W(FUEL SUB TANK)	01/1990 - 05/1993	1
90447-12104	FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN L=540,W(FUEL SUB TANK)	01/1990 - 05/1993	1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-6A050	FZJ75..GEN..IV..EFI	09/1997 - 05/2004	1
77254C - HOSE, FUEL, NO.3 (FOR EMISSION TUBE, NO.1)
90445-12229	FZJ75..GEN..IV..EFI L=360	09/1997 - 05/2004	1
77740 - CANISTER ASSY, CHARCOAL
77740-60380	FZJ73,75..(PIC,SOT)..GEN..EFI	09/1997 - 05/2004	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95333-08030	FZJ73,75..(PIC,SOT)..GEN..EFI *H,L=240	09/1997 - 05/2004	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60170	FZJ73,75	06/2001 - 05/2004	1
77751-60170	FZJ70,73,75	10/2000 - 06/2001	1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-60030	FZJ73,75..(PIC,SOT)..GEN..EFI	09/1997 - 05/2004	1
Common parts
90119-08701
90461-10616
90464-00234
90464-00554
90464-00698
90467-11009
90467-13007
91611-60835
91621-60816
96132-30600
96132-41100

FZJ75LP-MRK3 (1997)

Part #	Description	Period	Qty
77110 - TANK ASSY, AUXILIARY FUEL
77110-60011	FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN W(AUXILIARY FUEL TANK 3 PIECE)	01/1990 - 05/1993	3
Common parts
90119-08277
90202-11006
90950-01088
90950-01555
