FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

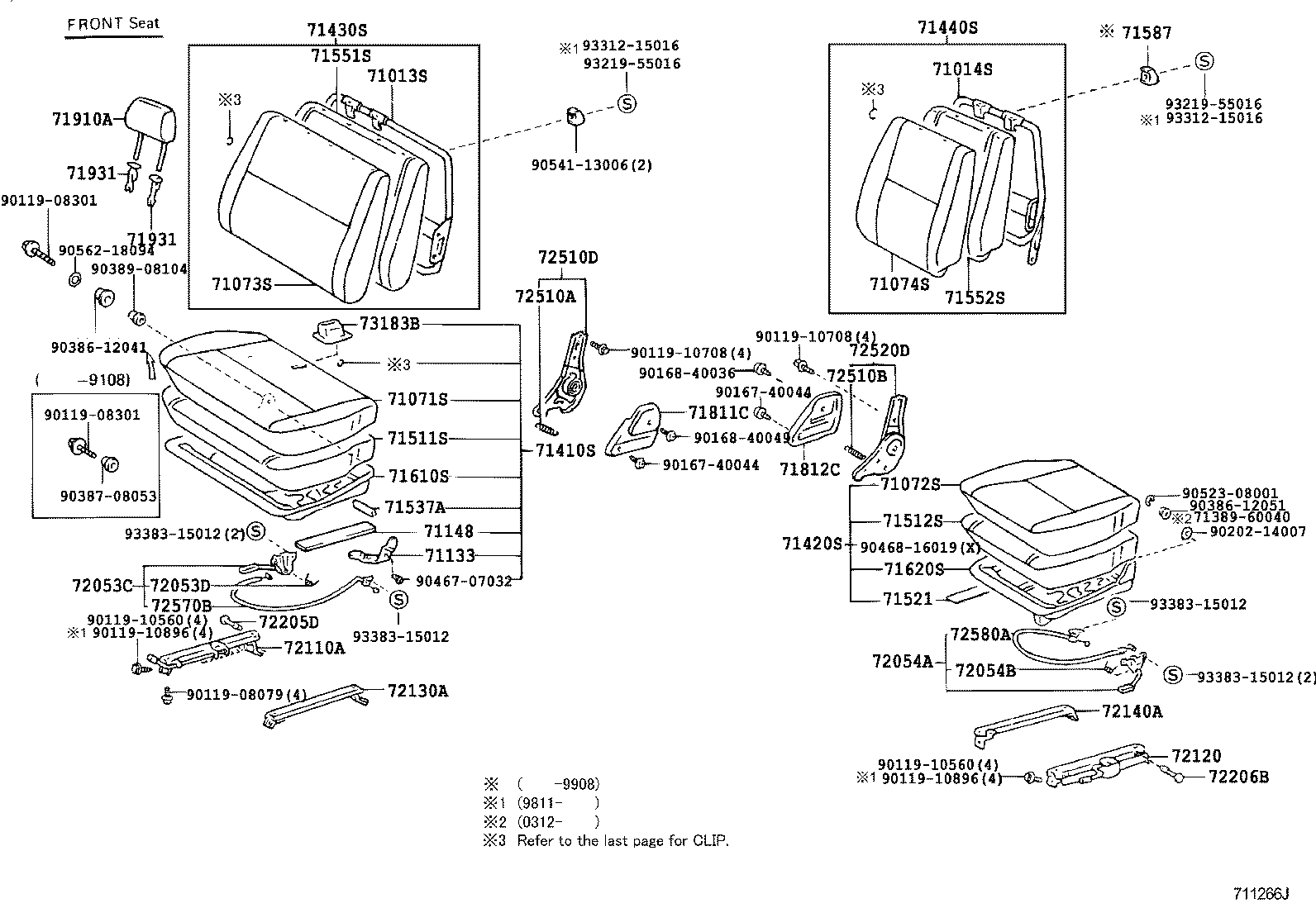

ILLUST NO. 1 OF 3(9001-0701)LHD..PIC ; (0701-0808)FZJ79

Click highlighted areas on diagram

BENCH

diagram 71013S 71014S 71071S 71072S 71073S 71074S 71133 71148 7138960040 71410S 71420S 71430S 71440S 71511S 71512S 71521 71537A 71551S 71552S 71587 71610S 71620S 71811C 71812C 71910A 71931 71931 72053C 72053D 72054A 72054B 72110A 72120 72130A 72140A 72205D 72206B 72510A 72510B 72510D 72520D 72570B 72580A 73183B 9011908079 9011908301 9011908301 9011910560 9011910560 9011910708 9011910708 9011910896 9011910896 9016740044 9016740044 9016840036 9016840049 9020214007 9038612041 9038612051 9038708053 9038908104 9046707032 9046816019 9052308001 9054113006 9056218094 9321955016 9321955016 9331215016 9331215016 9338315012 9338315012 9338315012 9338315012
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-90K07

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-60120

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-6028003

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

W(BENCH SEAT & FRONT SEAT BELT),BLUISH GRAY,TRIM1#

 1
71071-6028006

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

W(BENCH SEAT & FRONT SEAT BELT),SABLE,TRIM4#

 1
71071-6041003

FJ7#,FZJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD..GEN

BLUISH GRAY,TRIM1#

 1
71071-6041006

FJ7#,FZJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD..GEN

SABLE,TRIM4#

 1
71071-60281B0

FZJ75..GEN..IV..EFI

BLUISH GRAY,TRIM1#

 1
71071-60281E0

FZJ75..GEN..IV..EFI

OAK,TRIM4#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-6034003

FJ7#,FZJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD..GEN

BLUISH GRAY,TRIM1#

 1
71072-6034006

FJ7#,FZJ7#,HZJ75,LJ72,79,PZJ70,75,RJ7#..LHD..STD..GEN

SABLE,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-6030006

LJ79,RJ77..LHD..STD;FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

SABLE,TRIM4#

 1
71073-6030003

LJ79,RJ77..LHD..STD;FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-6022003

LJ79,RJ77..LHD..STD;FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

BLUISH GRAY,TRIM1#

 1
71074-6022006

LJ79,RJ77..LHD..STD;FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

SABLE,TRIM4#

 1
71133 - PLATE, FRONT SEAT CUSHION, NO.3
71132-90K00

FJ73,FZJ73,HZJ75..LHD..STD;FZJ75,HZJ75..LX..(DSL,EFI);FJ70,75,FZJ70,75,LJ7#,PZJ70,75,RJ7#..LHD

 1
71148 - SILENCER, FRONT SEAT CUSHION
71148-90304

LJ70,RJ70..GEN;FJ73,FZJ73,PZJ73..STD;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77

 2
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-6042003

FJ75,FZJ75,HZJ75,PZJ75..LHD..GEN

BLUISH GRAY,TRIM1#

 1
71410-6042006

FJ75,FZJ75,HZJ75,PZJ75..LHD..GEN

SABLE,TRIM4#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-6066003

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

BLUISH GRAY,TRIM1#

 1
71420-6066006

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

SABLE,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-6045003

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

BLUISH GRAY,TRIM1#

 1
71430-6045006

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

SABLE,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-6028003

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

BLUISH GRAY,TRIM1#

 1
71440-6028006

FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC..GEN

SABLE,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-90K01

RJ77..GCC;FJ75,FZJ75,HZJ75..LHD;FJ70,73,FZJ70,73,LJ72,79,PZJ70,75,RJ7#..LHD..STD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-60040

LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-90K00

LJ70,RJ70..GEN;FJ73,FZJ73,PZJ73..STD;FJ70,75,FZJ70,75,HJ75,HZJ70,75,LJ72,77,79,PZJ70,75,RJ77

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71505-90K03

RJ77..GCC;FJ75,FZJ75,HZJ75..LHD;FJ70,73,FZJ70,73,LJ72,79,PZJ70,75,RJ7#..LHD..STD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71506-60010

LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-90K04

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-60100

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-6002003

RJ70..LHD..STD;FJ73,LJ70,RJ70..RHD;FJ75,FZJ75,HZJ73,75,LJ77,79,PZJ73,RJ77;FJ70,73,FZJ70,73,HJ75,HZJ70,LJ72,PZJ70,75..STD

BLUISH GRAY,TRIM1#

 1
71811-60020E0

FZJ75..IV

OAK,TRIM4#

 1
71811-6002003

FZJ75..IV

BLUISH GRAY,TRIM1#

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-6002003

HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ73,FZJ75,LJ70,PZJ73,RJ70..GCC,GEN,SA;FJ70,75,FZJ70,73,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77

BLUISH GRAY,TRIM1#

 1
71812-6002006

HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ73,FZJ75,LJ70,PZJ73,RJ70..GCC,GEN,SA;FJ70,75,FZJ70,73,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77

SABLE,TRIM4#

 1
71812-6002003

FZJ73,75..(PIC,SOT)..EFI

BLUISH GRAY,TRIM1#

 1
71812-60020E0

FZJ75..IV

OAK,TRIM4#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-90K0213

FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC

BLUISH GRAY,TRIM1#

 2
71910-90K0216

FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC

SABLE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040L2

FZJ75..GEN..IV..EFI

W/O(LOCK),OAK,TRIM4#

 2
71930-44010E1

FZJ75..GEN..IV..EFI

W(LOCK),OAK,TRIM4#

 2
71930-44010B0

FZJ73,75..(PIC,SOT)..GEN..EFI

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

FZJ73,75..(PIC,SOT)..GEN..EFI

W/O(LOCK),BLUE GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-12040L2

FZJ75..GEN..IV..EFI

W/O(LOCK),OAK,TRIM4#

 2
71930-44010E1

FZJ75..GEN..IV..EFI

W(LOCK),OAK,TRIM4#

 2
71930-44010B0

FZJ73,75..(PIC,SOT)..GEN..EFI

W(LOCK),BLUE GRAY,TRIM1#

 2
71931-12040P6

FZJ73,75..(PIC,SOT)..GEN..EFI

W/O(LOCK),BLUE GRAY,TRIM1#

 2
72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH
72053-90K0116

RJ77..GCC;FJ75,FZJ75,HZJ75..LHD;FJ70,73,FZJ70,73,LJ72,79,PZJ70,75,RJ7#..LHD..STD

SABLE,TRIM4#

 1
72053-90K0113

FJ73,FZJ73..STD;FJ70,75,FZJ70,75,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD

W(BENCH SEAT),BLUISH GRAY,TRIM1#

 1
72053D - SPRING(FOR RECLINING REMOTE CONTROL LEVER RH)
90508-16079

RJ70..LHD;FZJ7#,HZJ70,75,LJ77..5F;LJ72,79,PZJ7#,RJ77..GCC,GEN

 1
72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
72054-90K0016

LJ79,RJ7#..LHD..STD;FJ70,75,FZJ7#,HZJ75,LJ72,PZJ70,75..LHD;FJ73,HZJ73,LJ70,77,79,PZJ73,RJ7#..4FC,5F

SABLE,TRIM4#

 1
72054-90K0013

RJ70;PZJ70..HT..GEN;FJ75,FZJ75,HZJ75,PZJ75..LHD;FJ73,HZJ73,LJ70,PZJ73..4FC,5F;FJ70,FZJ70,73,LJ72,77,79,RJ77..GCC,GEN

W(SEPARATE SEAT),BLUISH GRAY,TRIM1#

 1
72054B - SPRING(FOR RECLINING REMOTE CONTROL LEVER LH)
90508-16080

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-90K21

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-90K17

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-90K07

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-90K06

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
72205D - PIN SUB-ASSY, SEAT TRACK OPEN LEVER, RH
72205-90K00

FJ75,FZJ75,HZJ75,LJ77,79,RJ77..LHD;FJ70,73,FZJ70,73,LJ72,PZJ70,75,RJ70..LHD..STD

 1
72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH
72520-90K02

FZJ75,HZJ75,PZJ73,RJ70..RHD..STD;FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC;FJ70,75,FZJ70,HJ75,HZJ70,LJ72,77,79,PZJ70,75,RJ77..RHD

W(BENCH SEAT)

 1
72570B - CABLE ASSY, RECLINING ADJUSTING, RH
72570-90K01

FJ73,FZJ74..STD;FZJ73..STD..CBR;HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,75..LHD..CBR;FJ70,75,FZJ71,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD

W(BENCH SEAT)

 1
73183B - GUIDE, FRONT SEAT LAP BELT, INNER
73183-20020

FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC..(GCC,GEN,SA)

 1
Common parts
71389-60040
90119-08079
90119-08301
90119-10560
90119-10708
90119-10896
90167-40044
90168-40036
90168-40049
90202-14007
90386-12041
90386-12051
90387-08053
90389-08104
90467-07032
90468-16019
90523-08001
90541-13006
90562-18094
93219-55016
93312-15016
93383-15012

ILLUST NO. 2 OF 3(9001-0701)PIC ; (0701-0808)FZJ79

Click highlighted areas on diagram

diagram 71033B 71034A 71034B 71065 71066 71067 71068 71085B 71086B 71088B 71089B 71398A 71398B 71700 71704 71704B 71721 71722 71761A 71761B 71800 79929 79929 7997760040 7997760040 9011908258 9011908300 9011908653 9017908143 9018308003 9018308003 9020208039 9020208039 9020208039 9020208039 9024908141 9024908141 9038708052 9054009060 9331116010 9331116010 9331116010 9453101200 9461310800 9461410800 9616000600 9616000600
Part # Description Qty Price
Common parts
79977-60040
90119-08258
90119-08300
90119-08653
90179-08143
90183-08003
90202-08039
90249-08141
90387-08052
90540-09060
93311-16010
94531-01200
94613-10800
94614-10800
96160-00600

(9001- )

Click highlighted areas on diagram

CLIP

diagram 9046814018 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-14018
90468-16019
90468-18008

(0701- )LHD

Click highlighted areas on diagram

FRONT SEPARATE SEAT

diagram 71013S 71014S 71071S 71072S 71073S 71074S 71389C 71389C 71396A 71511S 71512S 71521 71521 71521A 71551S 71552S 71587 71587 71610S 71620S 71811C 71812C 71910A 71931 71931 72053C 72054A 72110A 72120 72130A 72137A 72137A 72137A 72137A 72137B 72140A 72157A 72158 72158B 72510D 72520D 74841B 74842B 74843A 74844A 9011908079 9011908079 9011910708 9011910708 9011910921 9011910921 9015940269 9015940269 9016740044 9016740044 9016840011 9016840049 9016840049 9020214007 9020214007 9046804006 9046804006 9046818071 9052308001 9052308001 9321955016 9321955016 9338315012 9338315012 9338315012 9338315012
Part # Description Qty Price
Common parts
90119-08079
90119-10708
90119-10921
90159-40269
90167-40044
90168-40011
90168-40049
90202-14007
90468-04006
90468-18071
90523-08001
93219-55016
93383-15012

(0701- )

Click highlighted areas on diagram

CLIP

diagram 9046814018 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-14018
90468-16019
90468-18008
