FZJ75LP-MRK3 (1997)
Toyota Land Cruiser

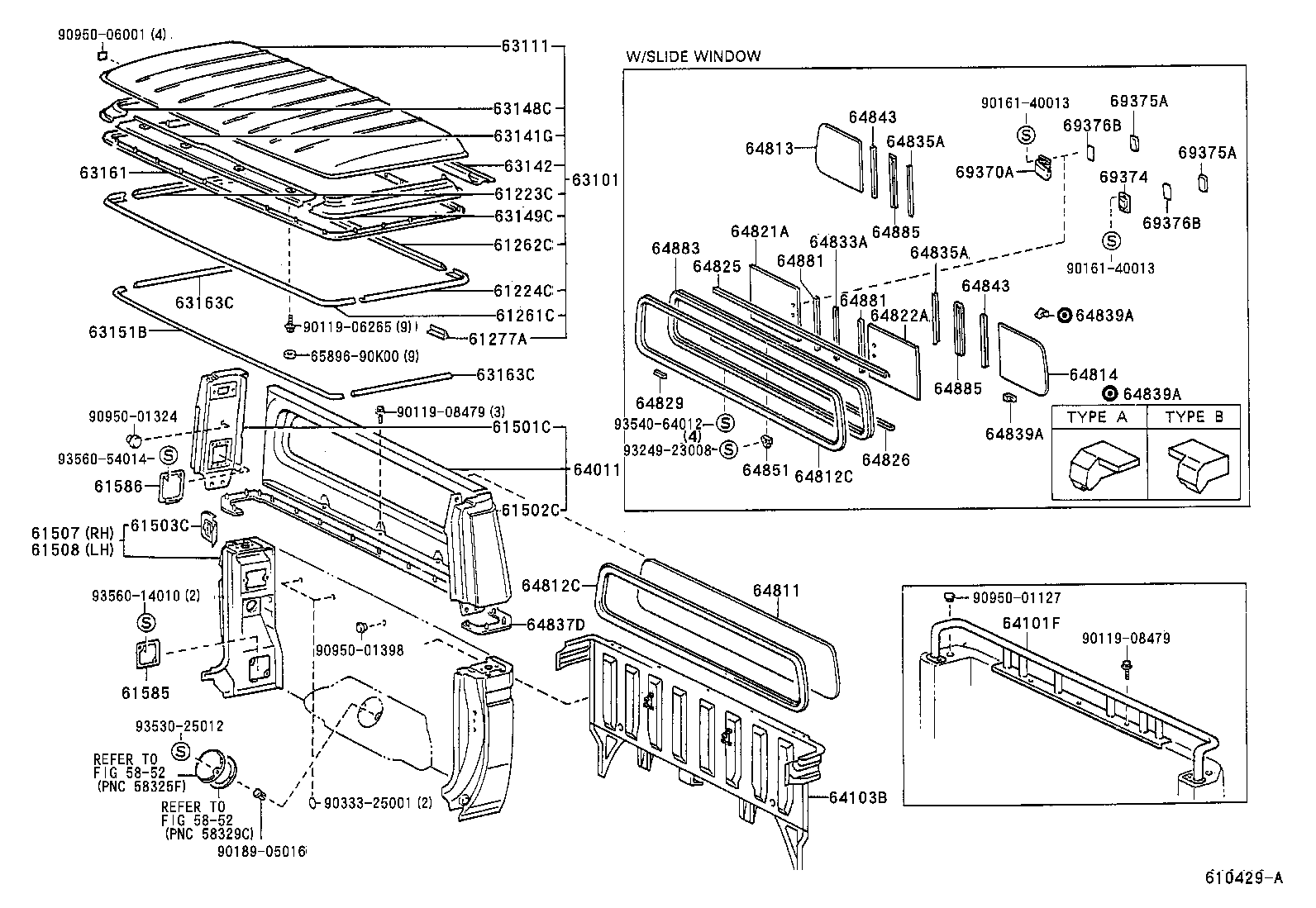

(9001-0405)FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61223C - CHANNEL, ROOF DRIP SIDE, RH | ||||
| 61223-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 61224C - CHANNEL, ROOF DRIP SIDE, LH | ||||
| 61224-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 61261C - CHANNEL, ROOF DRIP, FRONT | ||||
| 61261-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 61262C - CHANNEL, ROOF DRIP, REAR | ||||
| 61262-90K01 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 61277A - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC..STD |
4 | ||
| 61277-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..STD..(GCC,GEN) CHROME PACKAGE |
2 | ||
| 61501C - PILLAR SUB-ASSY, CAB REAR, UPPER RH | ||||
| 61501-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC |
1 | ||
| 61502C - PILLAR SUB-ASSY, CAB REAR, UPPER LH | ||||
| 61502-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC |
1 | ||
| 61503C - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-60030 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
2 | ||
| 61508 - PILLAR SUB-ASSY, CAB REAR, LOWER LH | ||||
| 61508-60020 |
FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC |
1 | ||
| 61585 - LID, QUARTER HOLE, NO.1 | ||||
| 61585-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 61586 - LID, QUARTER HOLE, NO.2 | ||||
| 61586-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(GCC,GEN) |
2 | ||
| 63101 - PANEL SUB-ASSY, ROOF | ||||
| 63101-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC..STD |
1 | ||
| 63101-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..STD..(GCC,GEN) CHROME PACKAGE |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K02 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-90K02 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 63148C - REINFORCEMENT, ROOF PANEL SIDE, RH | ||||
| 63148-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 63149C - REINFORCEMENT, ROOF PANEL SIDE, LH | ||||
| 63149-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 63151B - SEAL, ROOF PANEL REINFORCEMENT | ||||
| 63151-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 63161 - WEATHERSTRIP, ROOF | ||||
| 63161-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 63163C - SEAL, ROOF PANEL REINFORCEMENT, SIDE | ||||
| 63163-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
2 | ||
| 63163C - SEAL, ROOF PANEL REINFORCEMENT, SIDE | ||||
| 63163-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
2 | ||
| 64011 - PANEL, UPPER BACK, OUTER | ||||
| 64011-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..LHD..PIC |
1 | ||
| 64101F - RAILING SUB-ASSY, CAB REAR | ||||
| 64101-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(GCC,GEN) |
1 | ||
| 64103B - PANEL SUB-ASSY, CAB BACK, LOWER | ||||
| 64103-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC..STD *TEM,T=3.5 |
1 | ||
| 64812C - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 64812C - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64812-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 64813 - GLASS, BACK WINDOW CORNER, RH | ||||
| 64813-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..STD..(ARL,GCC,GEN) *TEM,T=3.5 |
1 | ||
| 64814 - GLASS, BACK WINDOW CORNER, LH | ||||
| 64814-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..STD..(ARL,GCC,GEN) *TEM,T=3.5 |
1 | ||
| 64821A - GLASS, BACK WINDOW SLIDE, RH | ||||
| 64821-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..STD..(ARL,GCC,GEN) *TEM,T=3.5 |
1 | ||
| 64822A - GLASS, BACK WINDOW SLIDE, LH | ||||
| 64822-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..STD..(ARL,GCC,GEN) *TEM,T=3.5 |
1 | ||
| 64825 - RUN, BACK WINDOW CHANNEL, UPPER | ||||
| 64825-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 64826 - RUN, BACK WINDOW CHANNEL, LOWER | ||||
| 64826-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 64829 - FILM, BACK WINDOW FRAME | ||||
| 64829-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
8 | ||
| 64833A - WEATHERSTRIP, BACK WINDOW CENTER CHANNEL | ||||
| 64833-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 64835A - WEATHERSTRIP, BACK WINDOW GLASS, CENTER | ||||
| 64835-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 64835A - WEATHERSTRIP, BACK WINDOW GLASS, CENTER | ||||
| 64835-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 64837D - WEATHERSTRIP, CAB BACK PANEL, CENTER | ||||
| 64837-90K00 |
FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC |
1 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) LWR |
2 | ||
| 64839-89104 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) UPR,TYPE B |
1 | ||
| 64839-89103 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) UPR,TYPE A |
1 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) LWR |
2 | ||
| 64839-89104 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) UPR,TYPE B |
1 | ||
| 64839-89103 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) UPR,TYPE A |
1 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) LWR |
2 | ||
| 64839-89104 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) UPR,TYPE B |
1 | ||
| 64839-89103 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) UPR,TYPE A |
1 | ||
| 64843 - WEATHERSTRIP, BACK WINDOW CHANNEL | ||||
| 64843-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 64843 - WEATHERSTRIP, BACK WINDOW CHANNEL | ||||
| 64843-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 64851 - STOP, BACK WINDOW SLIDE GLASS | ||||
| 64851-95400 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 64881 - CHANNEL, BACK WINDOW GLASS | ||||
| 64881-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) RH |
1 | ||
| 64881-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) LH |
1 | ||
| 64881 - CHANNEL, BACK WINDOW GLASS | ||||
| 64881-90K01 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) RH |
1 | ||
| 64881-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) LH |
1 | ||
| 64883 - FRAME, BACK WINDOW | ||||
| 64883-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 64885 - FRAME, BACK WINDOW VERTICAL | ||||
| 64885-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 64885 - FRAME, BACK WINDOW VERTICAL | ||||
| 64885-90K00 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 69370A - LOCK ASSY, BACK WINDOW | ||||
| 69370-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 69374 - CATCH, BACK WINDOW LOCK | ||||
| 69374-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
1 | ||
| 69375A - RETAINER, BACK WINDOW LOCK | ||||
| 69375-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 69375A - RETAINER, BACK WINDOW LOCK | ||||
| 69375-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 69376B - PACKING, BACK WINDOW LOCK | ||||
| 69376-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| 69376B - PACKING, BACK WINDOW LOCK | ||||
| 69376-89102 |
FJ75,FZJ75,HZJ75,PZJ75..PIC..(ARL,GCC,GEN) |
2 | ||
| Common parts | ||||
| 65896-90K00 | ||||
| 90119-06265 | ||||
| 90119-08479 | ||||
| 90161-40013 | ||||
| 90189-05016 | ||||
| 90333-25001 | ||||
| 90950-01127 | ||||
| 90950-01324 | ||||
| 90950-01398 | ||||
| 90950-06001 | ||||
| 93249-23008 | ||||
| 93530-25012 | ||||
| 93540-64012 | ||||
| 93560-14010 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 5852 | ||||
