FZJ75LP-MRK3 (1997)
Toyota Land Cruiser
(9001-9908)LHD ; (9908-0405)FZJ70,73,75..EFI

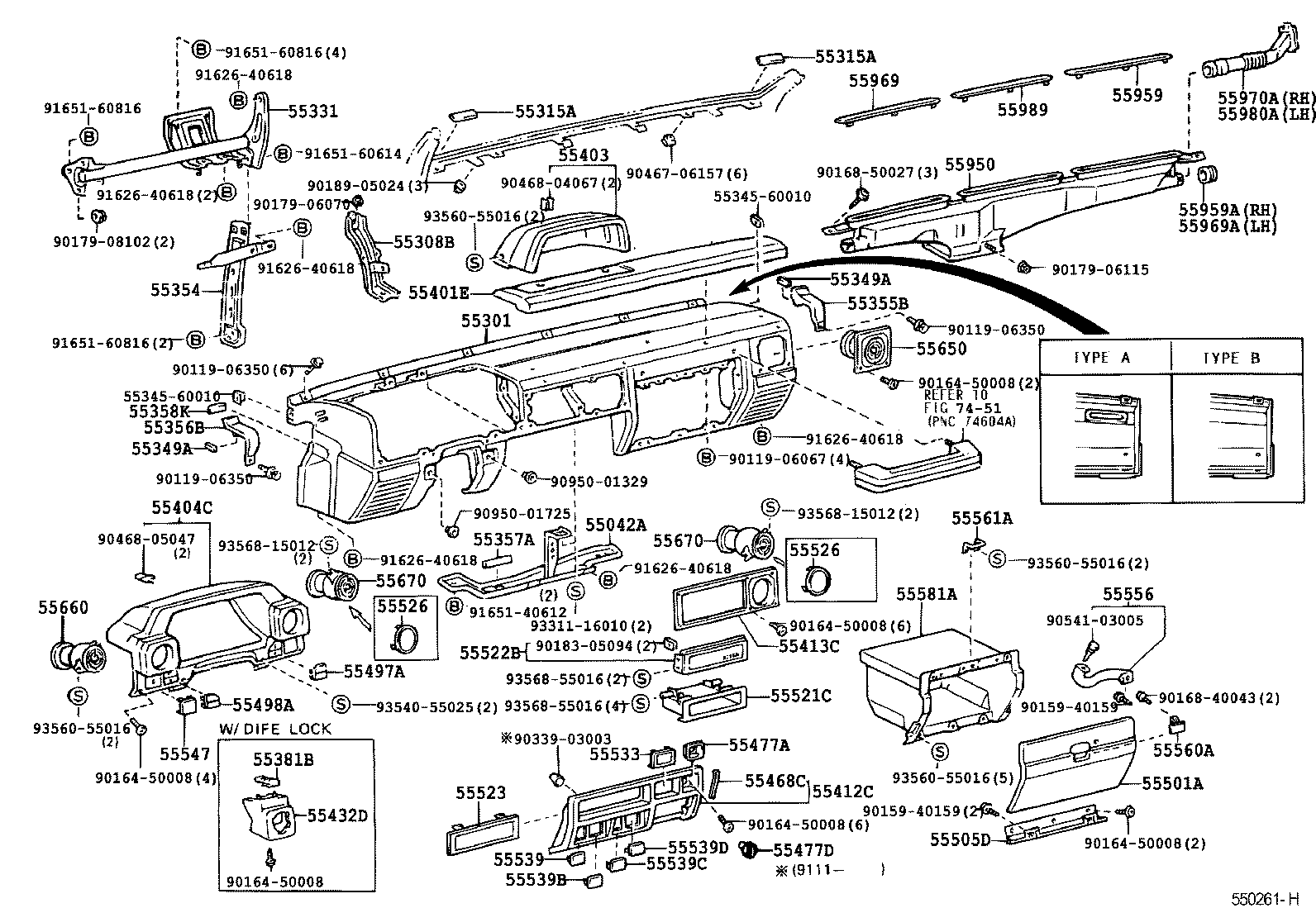

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55042A - REINFORCEMENT SUB-ASSY, CLUSTER FINISH PANEL | ||||
| 55042-90K0113 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 55042-90K0106 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD LIGHT SABLE,TRIM4# |
1 | ||
| 55042-90K01E0 |
FZJ75..IV LT.OAK,TRIM4# |
1 | ||
| 55042-90K0010 |
HZJ70,75..GEN SLATE GRAY,TRIM1# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-6022003 |
FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT GRAY,TRIM1# |
1 | ||
| 55301-6015003 |
FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(DIFFERENTIAL LOCK),LIGHT GRAY,TRIM1# |
1 | ||
| 55301-90K2206 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD LIGHT SABLE,TRIM4# |
1 | ||
| 55301-6022006 |
FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(DIFFERENTIAL LOCK & ACCESSORY METER),LIGHT SABLE,TRIM4# |
1 | ||
| 55301-90K2413 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(ACCESSORY METER),LIGHT GRAY,TRIM1# |
1 | ||
| 55301-90K2406 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(ACCESSORY METER),LIGHT SABLE,TRIM4# |
1 | ||
| 55301-90K2213 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 55301-6015006 |
FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(DIFFERENTIAL LOCK),LIGHT SABLE,TRIM4# |
1 | ||
| 55301-60301B0 |
FZJ73,75..(PIC,SOT)..GEN..EFI LIGHT GRAY,TRIM1# |
1 | ||
| 55301-60301E1 |
FZJ75..GEN..IV..EFI LT.OAK,TRIM4# |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-90K0106 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD LIGHT SABLE,TRIM4# |
1 | ||
| 55308-90K0113 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 55308-60030 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 55308-60030 |
FZJ73,75..PIC,SOT |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-60050 |
HZJ70,75 |
2 | ||
| 55315-60050 |
FZJ73,75..PIC,SOT |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-60050 |
HZJ70,75 |
2 | ||
| 55315-60050 |
FZJ73,75..PIC,SOT |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-90K00 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 55354 - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-90K0011 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD BLACK,TRIM4# |
1 | ||
| 55355B - PLATE, INSTRUMENT PANEL, RH | ||||
| 55355-90K0106 |
FJ73,FZJ73,HZJ73,PZJ73;FJ70,75,FZJ70,75,HJ75,HZJ75,LJ72,PZJ70,75,RJ70..PIC,SOT LIGHT SABLE,TRIM4# |
1 | ||
| 55355-90K0113 |
FJ73,FZJ73,HZJ73,PZJ73;FJ70,75,FZJ70,75,HJ75,HZJ75,LJ72,PZJ70,75,RJ70..PIC,SOT LIGHT GRAY,TRIM1# |
1 | ||
| 55355-90K01E0 |
HZJ70,75 LT.OAK,TRIM4# |
1 | ||
| 55355-90K01B0 |
FZJ73,75,HZJ70,75..PIC,SOT SLATE GRAY,TRIM1# |
1 | ||
| 55355-90K01B0 |
FZJ73,75..PIC,SOT SLATE GRAY,TRIM1# |
1 | ||
| 55355-90K01B0 |
HZJ70,75 SLATE GRAY,TRIM1# |
1 | ||
| 55355-90K01E0 |
FZJ75..IV LT.OAK,TRIM4# |
1 | ||
| 55356B - PLATE, INSTRUMENT PANEL, LH | ||||
| 55356-90K0106 |
FJ73,FZJ73,HZJ73,PZJ73;FJ70,75,FZJ70,75,HJ75,HZJ75,LJ72,PZJ70,75,RJ70..PIC,SOT LIGHT SABLE,TRIM4# |
1 | ||
| 55356-90K0113 |
FJ73,FZJ73,HZJ73,PZJ73;FJ70,75,FZJ70,75,HJ75,HZJ75,LJ72,PZJ70,75,RJ70..PIC,SOT LIGHT GRAY,TRIM1# |
1 | ||
| 55356-90K01B0 |
HZJ70,75 SLATE GRAY,TRIM1# |
1 | ||
| 55356-90K01E0 |
HZJ70,75 LT.OAK,TRIM4# |
1 | ||
| 55356-90K01B0 |
FZJ73,75,HZJ70,75..PIC,SOT SLATE GRAY,TRIM1# |
1 | ||
| 55356-90K01E0 |
FZJ75..IV LT.OAK,TRIM4# |
1 | ||
| 55356-90K01B0 |
FZJ73,75..PIC,SOT SLATE GRAY,TRIM1# |
1 | ||
| 55357A - PROTECTOR, EDGE, NO.1 | ||||
| 55357-90A00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-60010 |
FZJ73,75..PIC,SOT |
2 | ||
| 55358-60010 |
HZJ70,75 |
2 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-90K0116 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD SABLE,TRIM4# |
1 | ||
| 55401-90K0313 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(ACCESSORY METER),BLUISH GRAY,TRIM1# |
1 | ||
| 55401-90K0316 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD W(ACCESSORY METER),SABLE,TRIM4# |
1 | ||
| 55401-90K0113 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD BLUISH GRAY,TRIM1# |
1 | ||
| 55401-90K00B0 |
HZJ70,75..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-90K0013 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 55403-90K0016 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN SABLE,TRIM4# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-90K0113 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55404-90K0116 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# SABLE,TRIM4# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-90K0406 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD LIGHT SABLE,TRIM4# |
1 | ||
| 55412-90K0413 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD LIGHT GRAY,TRIM1# |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60090S7 |
HZJ70,75..GEN SLATE GRAY,TRIM1# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-90K0111 |
PZJ75..LHD..CBU;FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,RJ7#..LHD BLACK,TRIM1#,4# |
1 | ||
| 55498A - REFLECTOR, WARNING LAMP, LH | ||||
| 55498-90K09 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-90K0006 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,PIC LIGHT SABLE,TRIM4# |
1 | ||
| 55501-90K0013 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,PIC LIGHT GRAY,TRIM1# |
1 | ||
| 55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
LJ79,RJ77..RHD;LJ79,RJ77..LHD..STD;FJ7#,FZJ7#,HJ75,HZJ70,75,LJ72,PZJ7#,RJ70..STD |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-90A00 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ72,79,PZJ7#,RJ7#..STD..(GEN,SA) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
FZJ75..CBR;HZJ75..LX..GCC;FZJ75,HZJ75..STD..(DSL,EFI);FJ7#,FZJ70,73,HJ75,HZJ70,73,LJ7#,PZJ7#,RJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ75 BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ75..GEN..IV..EFI BLACK,TRIM1#,4# |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-3201011 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA BLACK,TRIM1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
FJ75,FZJ75,HZJ75;FJ70,73,FZJ70,73,HJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ75 BLACK,TRIM1#,4# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-3201011 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLACK,TRIM1#,4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-90K01 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-90K0011 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,PIC BLACK,TRIM1#,4# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-90K00 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-90K0011 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLACK,TRIM1#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-90K0011 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLACK,TRIM1#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-90K0001 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLACK,TRIM1#,4# |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-90K0001 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLACK,TRIM1#,4# |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-90K0111 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD BLACK,TRIM1#,4# |
1 | ||
| 55970A - DUCT ASSY, SIDE DEFROSTER, RH | ||||
| 55970-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 55980A - DUCT ASSY, SIDE DEFROSTER, LH | ||||
| 55970-90K00 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 55345-60010 | ||||
| 90119-06067 | ||||
| 90119-06350 | ||||
| 90159-40159 | ||||
| 90164-50008 | ||||
| 90168-40043 | ||||
| 90168-50027 | ||||
| 90179-06070 | ||||
| 90179-06115 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90189-05024 | ||||
| 90339-03003 | ||||
| 90467-06157 | ||||
| 90468-04067 | ||||
| 90468-05047 | ||||
| 90541-03005 | ||||
| 90950-01329 | ||||
| 90950-01725 | ||||
| 91626-40618 | ||||
| 91651-40612 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| 93311-16010 | ||||
| 93540-55025 | ||||
| 93560-55016 | ||||
| 93568-15012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7451 | ||||
(0701-0907)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 55345-60010 | ||||
| 90119-06350 | ||||
| 90159-40159 | ||||
| 90164-50008 | ||||
| 90168-40043 | ||||
| 90168-50027 | ||||
| 90179-06115 | ||||
| 90179-08102 | ||||
| 90189-05024 | ||||
| 90339-03003 | ||||
| 90467-06157 | ||||
| 90468-04147 | ||||
| 90468-05047 | ||||
| 90541-03005 | ||||
| 90950-01329 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91626-40618 | ||||
| 91651-60816 | ||||
| 93540-55025 | ||||
| 93560-55016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7451 | ||||
