FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )FJ75,FZJ75,HJ75,HZJ75,PZJ75

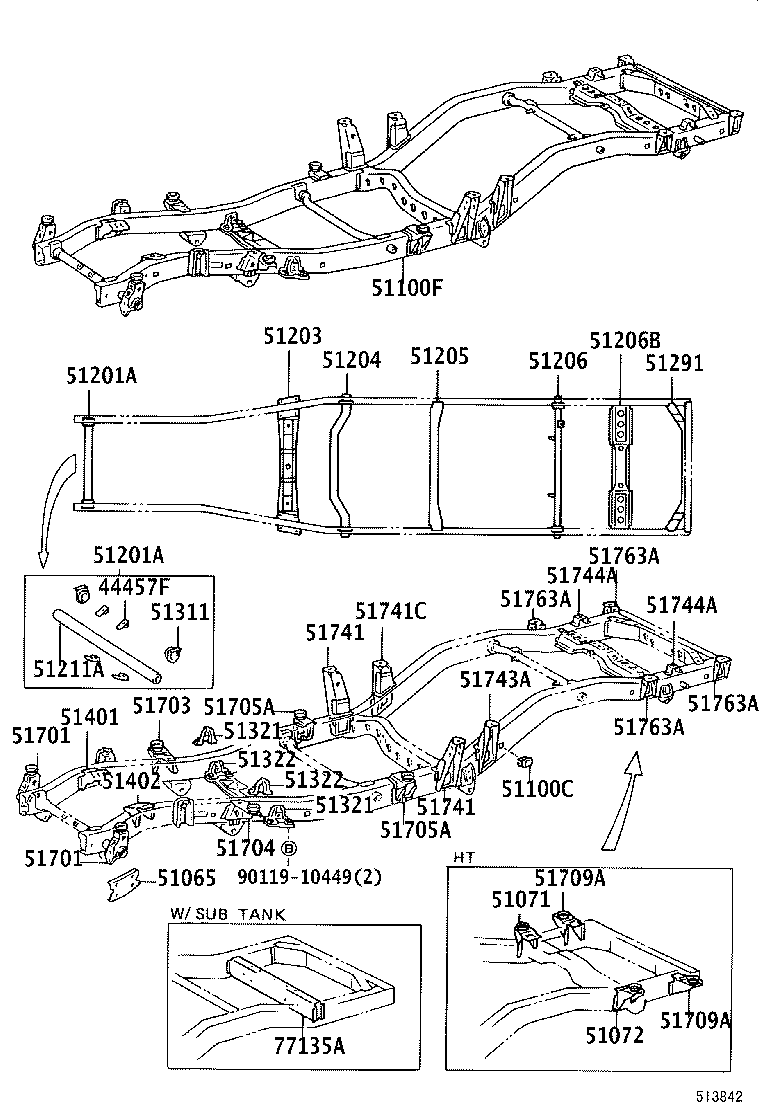

Click highlighted areas on diagram

diagram 44457F 51065 51071 51072 51100C 51100F 51201A 51201A 51203 51204 51205 51206 51206B 51211A 51291 51311 51321 51321 51322 51322 51401 51402 51701 51701 51703 51704 51705A 51705A 51709A 51709A 51741 51741 51741C 51743A 51744A 51744A 51763A 51763A 51763A 51763A 77135A 9011910449
Part # Description Qty Price
51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX
51065-60061

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
51100C - PLUG, HOLE(FOR FRAME)
90950-01463

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

BLACK

 6
90950-01754

FJ7#,FZJ7#,HJ75,HZJ7#

BLUE

 4
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-60101

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-60101

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-60061

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-60021

FZJ75;FJ7#,FZJ70,73,HJ75,HZJ7#,PZJ7#..CBR,DSL

 1
51205-60051

FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN

W(FUEL SUB TANK)

 1
51250-60050

HZJ70,75

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-60140

FJ75,FZJ75,HJ75,HZJ75,PZJ75..PIC

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60031

FJ7#,HJ75,HZJ73,75

 2
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-60031

FJ7#,HJ75,HZJ73,75

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60070

HZJ70,75

LH

 1
51322-60040

FJ7#,FZJ7#,HJ75,HZJ7#

 2
51322 - GUSSET, CROSSMEMBER, NO.2 LH
51322-60070

HZJ70,75

LH

 1
51322-60040

FJ7#,FZJ7#,HJ75,HZJ7#

 2
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-60130

HJ75,HZJ73,75

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60070

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 2
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-60070

FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#

 2
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-60030

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-60020

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60091

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 2
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-60091

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-60060

FJ75,FZJ75,HZJ75,PZJ75..LHD

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-60060

FJ75,FZJ75,HZJ75,PZJ75..LHD

 2
51741C - BRACKET, REAR BODY MOUNTING, NO.2 RH
51742-60050

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-60020

FJ75,FZJ75,HZJ75,PZJ75..LHD

 1
77135A - PROTECTOR, FUEL TANK SIDE
77135-60020

FJ75,FZJ75,HZJ75,PZJ75..ARL,GCC,GEN

 1
Common parts
90119-10449

ILLUST NO. 1 OF 2(0701- )PIC

Click highlighted areas on diagram

diagram 1702 1702 1702 44457F 44457F 44457F 4804 4804 4804 4804 51100F 51203 51204 51205 51206 51206 51206B 51211A 51231E 51232C 51291 51291 51311 51311 51313 51314 51321 51322 51401 51402 51505E 51506E 51508A 51509A 51537 51537 51538 51538 51701 51702 51703 51704 51705B 51706B 51741 51741 51741C 51743A 51744A 51744A 51763A 51763B 77135A 9011910951
Part # Description Qty Price
Common parts
90119-10951
Linked diagrams
1702
4804

ILLUST NO. 2 OF 2(0701- )

Click highlighted areas on diagram

diagram 38307A 38308A 51491A 51491A 9011912357 91674E1235 9413001202 9461211200
Part # Description Qty Price
Common parts
90119-12357
91674-E1235
94130-01202
94612-11200
