FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

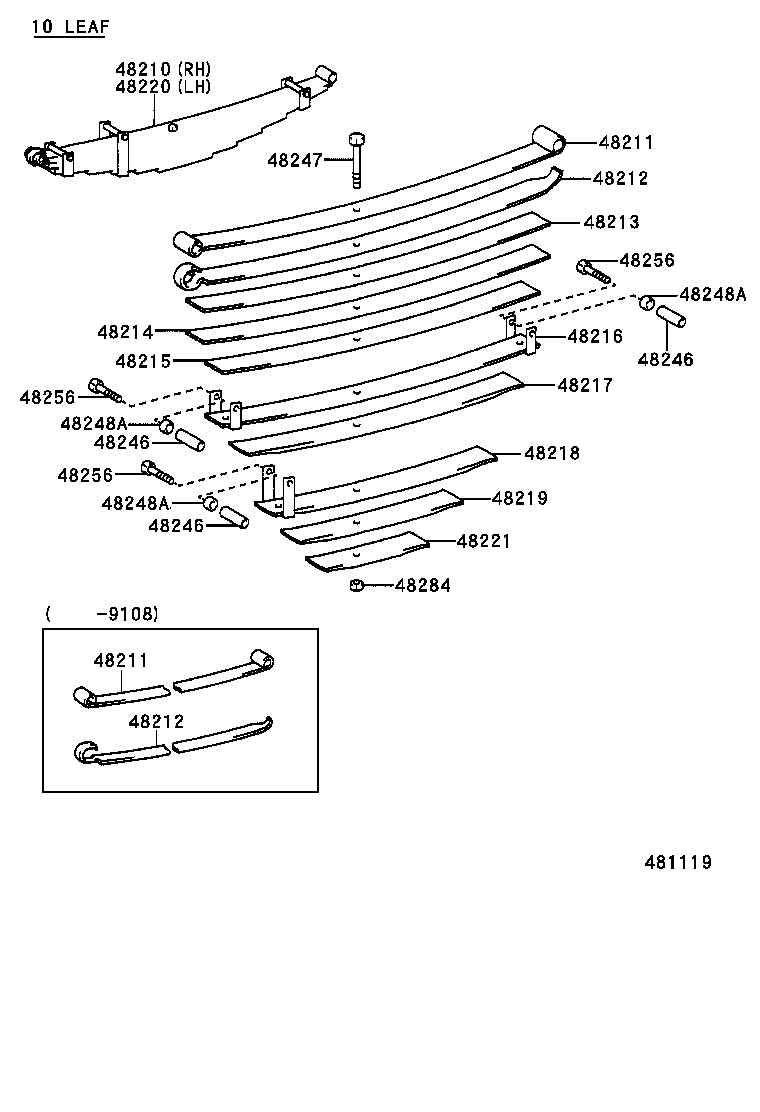

ILLUST NO. 2 OF 3(9001- )FZJ75 ; (9001- )FZJ70..ARL ; (9001- )FJ7#,FZJ70,73,HZJ70,73,75,PZJ

Click highlighted areas on diagram

HARD SUSPENSION

diagram 48210 48211 48211 48212 48212 48213 48214 48215 48216 48217 48218 48219 48220 48221 48246 48246 48246 48247 48248A 48248A 48248A 48256 48256 48256 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-60742

FZJ75..GEN..IV..EFI

10-LEAF

 1
48211 - LEAF, REAR SPRING, NO.1
48211-60742

FZJ75..GEN..IV..EFI

 2
48211 - LEAF, REAR SPRING, NO.1
48211-60742

FZJ75..GEN..IV..EFI

 2
48212 - LEAF, REAR SPRING, NO.2
48212-60742

FZJ75..GEN..IV..EFI

 2
48212 - LEAF, REAR SPRING, NO.2
48212-60742

FZJ75..GEN..IV..EFI

 2
48213 - LEAF, REAR SPRING, NO.3
48213-60742

FZJ75..GEN..IV..EFI

 2
48214 - LEAF, REAR SPRING, NO.4
48214-60742

FZJ75..GEN..IV..EFI

 2
48215 - LEAF, REAR SPRING, NO.5
48215-60742

FZJ75..GEN..IV..EFI

 2
48216 - LEAF, REAR SPRING, NO.6
48202-60742

FZJ75..GEN..IV..EFI

 2
48217 - LEAF, REAR SPRING, NO.7
48217-60742

FZJ75..GEN..IV..EFI

 2
48218 - LEAF, REAR SPRING, NO.8
48203-60742

FZJ75..GEN..IV..EFI

 2
48220 - SPRING ASSY, REAR LH
48210-60742

FZJ75..GEN..IV..EFI

10-LEAF

 1
48221 - LEAF, REAR SPRING, NO.10
48221-60740

HZJ75..RHD..GEN;HZJ75..LHD..PIC;FJ75,FZJ75,PZJ75..PIC..(GCC,GEN)

 2
48246 - CASE, REAR SPRING CLIP BOLT
48146-60100

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 6
48146-60742

FZJ75..GEN..IV..EFI

 6
48246 - CASE, REAR SPRING CLIP BOLT
48146-60100

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 6
48146-60742

FZJ75..GEN..IV..EFI

 6
48246 - CASE, REAR SPRING CLIP BOLT
48146-60100

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 6
48146-60742

FZJ75..GEN..IV..EFI

 6
48247 - BOLT, REAR SPRING, CENTER
48247-36500

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 2
48247-60740

FZJ75..GEN..IV..EFI

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 6
48156-60742

FZJ75..GEN..IV..EFI

 6
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 6
48156-60742

FZJ75..GEN..IV..EFI

 6
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

FJ75,FZJ75,HJ75,HZJ75,PZJ75

 6
48156-60742

FZJ75..GEN..IV..EFI

 6

ILLUST NO. 3 OF 3(0701- )

Click highlighted areas on diagram

W(STABILIZER)

diagram 48802 48812 48815R 48817R 48817R 48817S 48817S 48817V 48824R 48825A 48826B 9010110172 9011908701 9011908834 9017908062 9038511021 9056010275 9111261045 9418561000
Part # Description Qty Price
Common parts
90101-10172
90119-08701
90119-08834
90179-08062
90385-11021
90560-10275
91112-61045
94185-61000

ILLUST NO. 1 OF 3(0701-0907) ; (0907- )VDJ76,78..ARL

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48047 48210B 48210B 48210Q 48210Q 48210Q 48210Q 48306 48404A 48407 48416A 48417A 48475R 48530 48530A 48530A 48530A 48530A 48530B 48530B 48540 9011908686 9011908834 9011912088 9011912088 9017014012 9017014012 9017814009 9017814017 9017814017 9020114006 9020114006 9020115012 9413001432
Part # Description Qty Price
Common parts
90119-08686
90119-08834
90119-12088
90170-14012
90178-14009
90178-14017
90201-14006
90201-15012
94130-01432
