FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9709-0405)FZJ70,73,75..GEN..EFI

Click highlighted areas on diagram

diagram 44610 44696 44730 44730F 44758 44773F 44785 9017908038 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-60490

HZJ75,PZJ70,75..LHD..STD..GEN

 1
44610-60540

HZJ75,LJ72,PZJ70,75..LHD..STD..GEN

W(FR DISC BRAKE)

 1
44610-60860

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

RJ7#..LHD;FJ7#,FZJ7#

 1
44730-14050

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

RJ7#;FZJ70,75..EFI

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-60060

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-60150

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

FZJ73,75

 1
Common parts
90179-08038
96133-41500

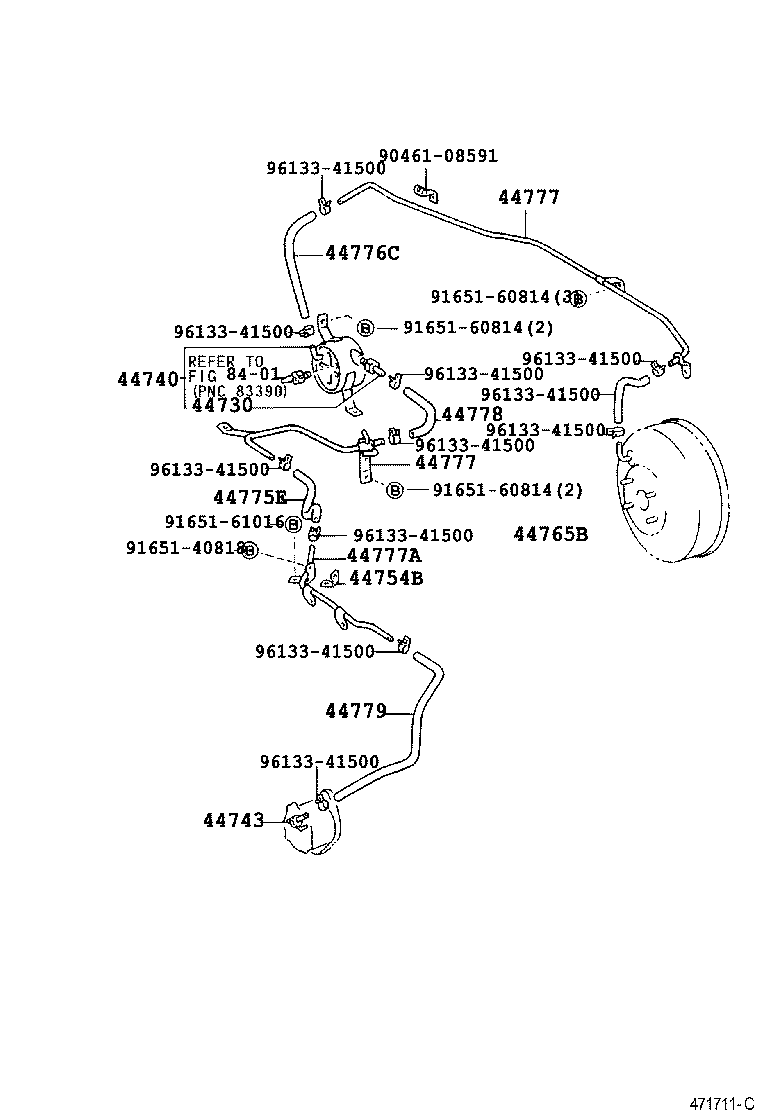

ILLUST NO. 2 OF 2(9001-0405)HZJ70,75,PZJ70,75..LHD

Click highlighted areas on diagram

diagram 44730 44740 44743 44754B 44765B 44775E 44776C 44777 44777 44777A 44778 44779 8401 9046108591 9165140818 9165160814 9165160814 9165160814 9165161016 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20060

RJ7#..LHD;FJ7#,FZJ7#

 1
44730-14050

FZJ73,75..(PIC,SOT)..GEN..EFI

 1
44765B - HOSE, CONNECTOR TO BRAKE BOOSTER
44778-60040

HZJ75,LJ7#,PZJ70,75..LHD

 1
44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR
95441-09190

HZJ75,LJ7#,PZJ70,75..LHD

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60200

HZJ75,PZJ70,75..LHD

EPRON SIDE

 1
44777-60020

PZJ70,75..LHD

W(*CLB),DASH SIDE

 1
44799-60080

HZJ75,PZJ70,75..LHD

W(*CLB),EPRON SIDE

 1
44777-60020

HZJ75,LJ7#,PZJ70,75..LHD

DASH PANEL SIDE

 1
44799-60070

HZJ75,PZJ70,75..LHD

W(*CLB & *ELC),EPRON SIDE

 1
44799-60090

HZJ75,PZJ70,75..LHD

W(*ELC),EPRON SIDE

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60200

HZJ75,PZJ70,75..LHD

EPRON SIDE

 1
44777-60020

PZJ70,75..LHD

W(*CLB),DASH SIDE

 1
44799-60080

HZJ75,PZJ70,75..LHD

W(*CLB),EPRON SIDE

 1
44777-60020

HZJ75,LJ7#,PZJ70,75..LHD

DASH PANEL SIDE

 1
44799-60070

HZJ75,PZJ70,75..LHD

W(*CLB & *ELC),EPRON SIDE

 1
44799-60090

HZJ75,PZJ70,75..LHD

W(*ELC),EPRON SIDE

 1
Common parts
90461-08591
91651-40818
91651-60814
91651-61016
96133-41500
Linked diagrams
8401

(0701- )FZJ7#,GRJ7#..LHD

Click highlighted areas on diagram

diagram 44610 44696 44730 44730F 44731C 44735C 44773F 44773F 44785 44785 9017908057 9046716014 9046716014 9613341500 9613341500
Part # Description Qty Price
Common parts
90179-08057
90467-16014
96133-41500
