Toyota Land cruiser FZJ75 STEERING COLUMN & SHAFT

Manufacturers Home
Toyota
GR
LAND CRUISER
FZJ75LP-MRK3 (1997)
4501 - STEERING COLUMN & SHAFT

FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004

Engine 1FZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9001-0907)

Click highlighted areas on diagram

TILT STEERING

Part #	Description	Period	Qty
45081 - SUPPORT SUB-ASSY, TILT STEERING
45081-22020	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45081A - SPRING, TENSION(FOR TILT STEERING)
90506-23009	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	2
45081B - CORD(FOR TILT STEERING)
90945-02034	FZJ73,75..(PIC,SOT)..GEN..EFI L=107.5	11/1997 - 05/2004	2
90945-02038	FZJ73,75..(PIC,SOT)..GEN..EFI L=105.5	11/1997 - 05/2004	2
45286 - COVER, STEERING COLUMN
45286-6092613	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC)..GEN BLUISH GRAY,TRIM1#	01/1990 - 05/1993	1
45286-6092813	PZJ75..LHD..PIC..CBU;FJ75,FZJ75,HZJ75..LHD..PIC..GEN;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LHD..LX..GEN W(TILT STEERING),BLUISH GRAY,TRIM1#	01/1990 - 05/1993	1
45286-6092616	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD..(HT,PIC)..GEN SABLE,TRIM4#	01/1990 - 05/1993	1
45286-6092816	PZJ75..LHD..PIC..CBU;FJ75,FZJ75,HZJ75..LHD..PIC..GEN;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LHD..LX..GEN W(TILT STEERING),SABLE,TRIM4#	01/1990 - 05/1993	1
45289A - SUPPORT, STEERING COLUMN COVER
45289-22020	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45804 - LEVER SUB-ASSY, STEERING TILT
45804-22010	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT
45807-60060	HZJ75..SA;HZJ75..GEN..IV;PZJ75..RHD..PIC;FJ75,FZJ75,HJ75..PIC..(GEN,SA);HZJ75,PZJ75..LHD..PIC..GEN..CBU	01/1990 - 05/1993	1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-22010	FZJ73,75..(PIC,SOT)..GEN..EFI OD=17.996-18.003	11/1997 - 05/2004	1
45813-22030	FZJ73,75..(PIC,SOT)..GEN..EFI OD=18.010-18.017	11/1997 - 05/2004	1
45813-22020	FZJ73,75..(PIC,SOT)..GEN..EFI OD=18.003-18.010	11/1997 - 05/2004	1
45813-22040	FZJ73,75..(PIC,SOT)..GEN..EFI OD=18.017-18.024	11/1997 - 05/2004	1
45813-22050	FZJ73,75..(PIC,SOT)..GEN..EFI OD=17.989-17.996	11/1997 - 05/2004	1
45814 - COLLAR, TILT STEERING SUPPORT, NO.2
45814-22020	FZJ73,75..(PIC,SOT)..GEN..EFI OD=18.000-18.018	11/1997 - 05/2004	1
45814-22010	FZJ73,75..(PIC,SOT)..GEN..EFI OD=17.982-18.000	11/1997 - 05/2004	1
45815 - SHIM, TILT STEERING SUPPORT
45815-22100	FZJ73,75..(PIC,SOT)..GEN..EFI T=1.8	11/1997 - 05/2004	1
45815-22070	FZJ73,75..(PIC,SOT)..GEN..EFI T=0.5	11/1997 - 05/2004	1
45815-22080	FZJ73,75..(PIC,SOT)..GEN..EFI T=0.8	11/1997 - 05/2004	1
45815-22090	FZJ73,75..(PIC,SOT)..GEN..EFI T=1.4	11/1997 - 05/2004	1
45815-22060	FZJ73,75..(PIC,SOT)..GEN..EFI T=0.2	11/1997 - 05/2004	1
45819 - RETAINER, TILT LEVER
45819-22011	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45819A - COLLAR(FOR TILT LEVER RETAINER)
90387-08002	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45821B - REINFORCE, TILT STEERING SUPPORT, NO.1
45821-22010	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45826A - SPRING, TENSION(FOR STEERING TILT LEVER)
90507-14001	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45826B - PIN(FOR STEERING TILT LEVER)
90241-06039	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45890A - PAWL ASSY, TILT STEERING
45890-22050	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45898B - BOLT, TILT STEERING SUPPORT STOPPER
45898-22010	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45899A - COVER, TILT STEERING SUPPORT STOPPER
45899-22020	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
Common parts
90109-08112
90114-08002
90119-06029
90119-08165
90164-50048
90179-10178
90201-06204
90201-08065
90980-07195
91611-60840
91651-60616
93315-14010
94130-00802
94182-10800
94183-60601
94531-00800
94612-11001

ILLUST NO. 1 OF 2(9001-0907)

Click highlighted areas on diagram

TILT STEERING(COLLAPSIBLE)

Part #	Description	Period	Qty
45025 - COVER, STEERING INTERMEDIATE SHAFT
45025-60050	FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GEN,SA	01/1990 - 05/1993	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN T=1.20,W(TILT STEERING)	01/1990 - 05/1993	1
90520-17042	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN T=1.20	01/1990 - 05/1993	2
90520-17042	FZJ73,75..(PIC,SOT)..GEN..EFI T=1.20,W(TILT STEERING)	11/1997 - 05/2004	1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-45011	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-60120	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN W(TILT STEERING(NON-COLLAPSIBLE))	01/1990 - 05/1993	1
45205-60110	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN	01/1990 - 05/1993	1
45210 - SHAFT ASSY, STEERING MAIN
45210-60060	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN W(TILT STEERING)	01/1990 - 05/1993	1
45210-60070	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN	01/1990 - 05/1993	1
45210-60061	FZJ73,75 W(TILT STEERING)	03/2004 - 04/2004	1
45210-60060	FZJ73,75..(PIC,SOT)..EFI W(TILT STEERING)	08/1999 - 03/2004	1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-22011	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60090	HZJ75..SA;HZJ75..GEN..IV;PZJ75..RHD..PIC;FJ75,FZJ75,HJ75..PIC..(GEN,SA);HZJ75,PZJ75..LHD..PIC..GEN..CBU	01/1990 - 05/1993	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-60090	FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#	01/1990 - 05/1993	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-60201	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN W(TILT STEERING)	01/1990 - 05/1993	1
45280-60191	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN	01/1990 - 05/1993	1
45280-60380	HZJ75..RHD..PIC..GEN..CBU;FZJ73,75..(PIC,SOT)..GEN..EFI W(TILT STEERING)	11/1997 - 07/2000	1
45280-60281	FZJ73,75..PIC,SOT	08/2000 - 05/2004	1
45291 - SEAL, MAIN SHAFT UPPER DUST
45282-60010	HZJ75..SA;HZJ75..GEN..IV;PZJ75..RHD..PIC;FJ75,FZJ75,HJ75..PIC..(GEN,SA);HZJ75,PZJ75..LHD..PIC..GEN..CBU	01/1990 - 05/1993	1
45291B - RING, O(FOR STEERING COLUMN TUBE SUPPORT)
90301-61002	FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GEN,SA	01/1990 - 05/1993	1
45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR
45635-60060	HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,PZJ70,75..LHD	01/1990 - 05/1993	1
45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR
45635-60060	HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,PZJ70,75..LHD	01/1990 - 05/1993	1
45636B - PROTECTOR, INTERMEDIATE LINK JOINT
45636-60061	HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD	01/1990 - 05/1993	1
45897 - BOLT, STEERING LOCK SET
45897-12030	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN	01/1990 - 05/1993	1
45897-14010	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN W(POWER STEERING)	01/1990 - 05/1993	1
45897-14010	FZJ73,75..(PIC,SOT)..GEN..EFI W(TILT STEERING)	11/1997 - 05/2004	1
Common parts
90119-08042
90119-08560
91611-60618
91611-B0816
91651-60616
91651-60818
91651-60825
91651-B0820
91651-B0822
93319-14012

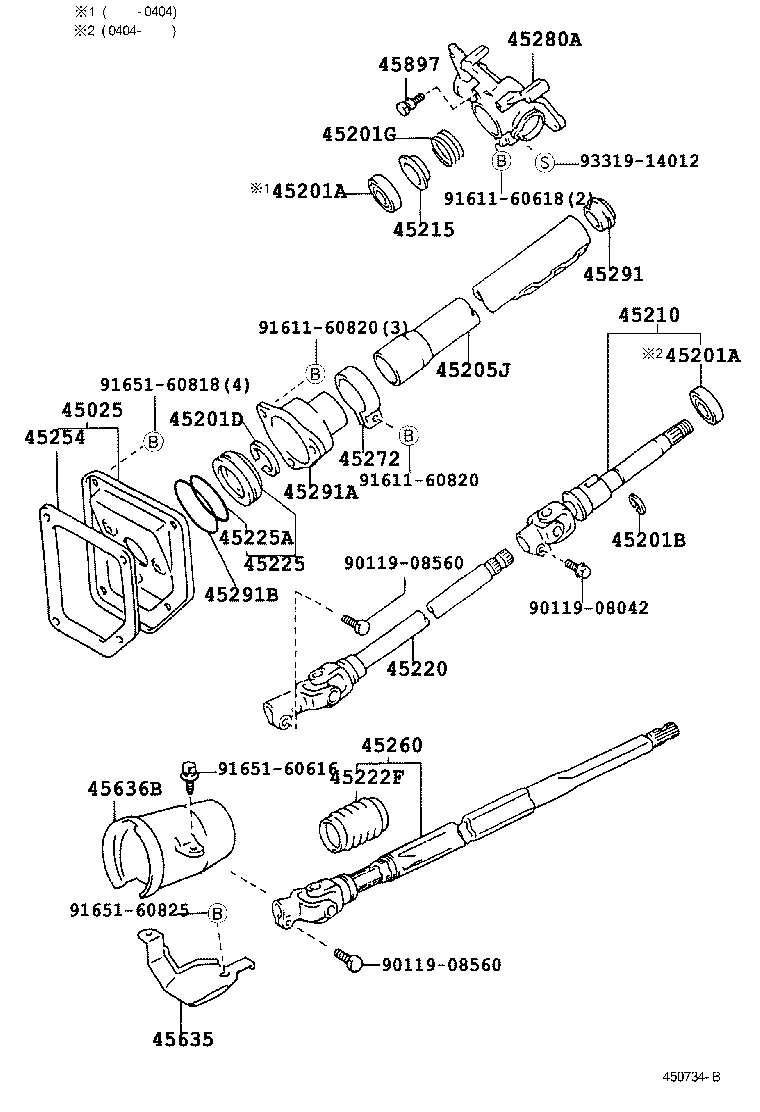

ILLUST NO. 1 OF 2(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#

Click highlighted areas on diagram

TILT STEERING(NON-COLLAPSIBLE)

Part #	Description	Period	Qty
45025 - COVER, STEERING INTERMEDIATE SHAFT
45025-60050	FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GEN,SA	01/1990 - 05/1993	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN T=1.20,W(TILT STEERING)	01/1990 - 05/1993	1
90520-17042	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN T=1.20	01/1990 - 05/1993	2
90520-17042	FZJ73,75..(PIC,SOT)..GEN..EFI T=1.20,W(TILT STEERING)	11/1997 - 05/2004	1
45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
90501-45011	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER
45205-60120	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN W(TILT STEERING(NON-COLLAPSIBLE))	01/1990 - 05/1993	1
45205-60110	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN	01/1990 - 05/1993	1
45210 - SHAFT ASSY, STEERING MAIN
45210-60060	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN W(TILT STEERING)	01/1990 - 05/1993	1
45210-60070	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN	01/1990 - 05/1993	1
45210-60061	FZJ73,75 W(TILT STEERING)	03/2004 - 04/2004	1
45210-60060	FZJ73,75..(PIC,SOT)..EFI W(TILT STEERING)	08/1999 - 03/2004	1
45215 - COLLAR, MAIN SHAFT BEARING THRUST
45215-22011	FZJ73,75..(PIC,SOT)..GEN..EFI	11/1997 - 05/2004	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-60090	HZJ75..SA;HZJ75..GEN..IV;PZJ75..RHD..PIC;FJ75,FZJ75,HJ75..PIC..(GEN,SA);HZJ75,PZJ75..LHD..PIC..GEN..CBU	01/1990 - 05/1993	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-60090	FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7#	01/1990 - 05/1993	1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-35020	FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GEN,SA	01/1990 - 05/1993	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-60201	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN W(TILT STEERING)	01/1990 - 05/1993	1
45280-60191	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN	01/1990 - 05/1993	1
45280-60380	HZJ75..RHD..PIC..GEN..CBU;FZJ73,75..(PIC,SOT)..GEN..EFI W(TILT STEERING)	11/1997 - 07/2000	1
45280-60281	FZJ73,75..PIC,SOT	08/2000 - 05/2004	1
45291 - SEAL, MAIN SHAFT UPPER DUST
45282-60010	HZJ75..SA;HZJ75..GEN..IV;PZJ75..RHD..PIC;FJ75,FZJ75,HJ75..PIC..(GEN,SA);HZJ75,PZJ75..LHD..PIC..GEN..CBU	01/1990 - 05/1993	1
45291A - SUPPORT, STEERING COLUMN TUBE
45291-60041	FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GEN,SA	01/1990 - 05/1993	1
45291B - RING, O(FOR STEERING COLUMN TUBE SUPPORT)
90301-61002	FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GEN,SA	01/1990 - 05/1993	1
45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR
45635-60060	HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,PZJ70,75..LHD	01/1990 - 05/1993	1
45636B - PROTECTOR, INTERMEDIATE LINK JOINT
45636-60061	HZJ75..LHD..CBU;HZJ78..LHD..GEN;FZJ70,73,75..LHD..CBR;FJ7#,FZJ71,74,78,79,HZJ71,79,LJ7#,PZJ70,75,RJ7#..LHD	01/1990 - 05/1993	1
45897 - BOLT, STEERING LOCK SET
45897-12030	FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..GEN	01/1990 - 05/1993	1
45897-14010	HZJ75..GEN..IV;PZJ75..RHD..PIC;HZJ75..PIC..4F..CBU;FJ75,FZJ75..PIC..GEN;HZJ75,PZJ75..LHD..PIC..GEN..CBU;FJ70,73,FZJ70,73,LJ7#,PZJ70,RJ7#..LX..GEN W(POWER STEERING)	01/1990 - 05/1993	1
45897-14010	FZJ73,75..(PIC,SOT)..GEN..EFI W(TILT STEERING)	11/1997 - 05/2004	1
Common parts
90119-08042
90119-08560
91611-60618
91611-60820
91651-60616
91651-60818
91651-60825
93319-14012

ILLUST NO. 2 OF 2(0701-0907)

Click highlighted areas on diagram

TILT STEERING

Part #	Description	Period	Qty	Price
Common parts
90109-08112
90114-08002
90119-06029
90119-08165
90164-50048
90179-10178
90201-06204
90201-08065
90980-07195
91611-60840
91651-60616
93315-14010
94130-00802
94182-10800
94183-60601
94531-00800
94612-11001

ILLUST NO. 1 OF 2(0701-0907)

Click highlighted areas on diagram

TILT STEERING(COLLAPSIBLE)

Part #	Description	Period	Qty	Price
Common parts
90119-08042
90119-08560
91611-60618
91611-B0816
91651-60616
91651-B0820
91651-B0822
93319-14012
