FZJ75LP-MRK3 (1997)
Toyota Land Cruiser
(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,PZJ7#

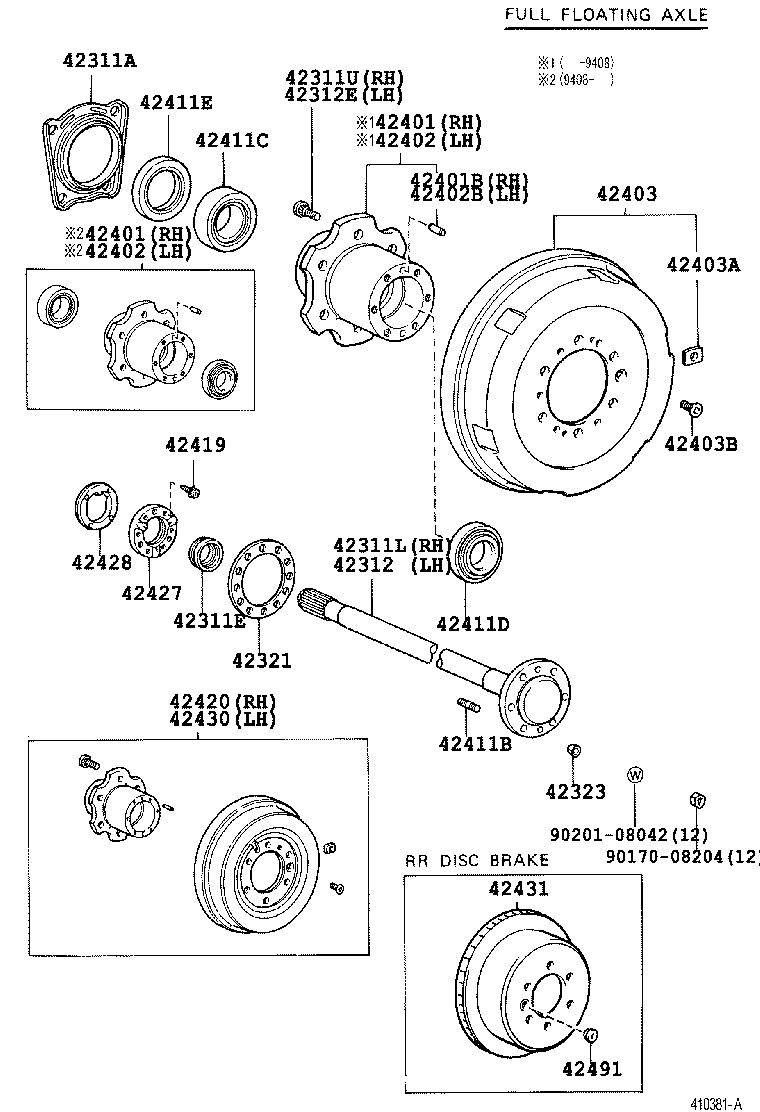

W(FULL FLOATING AXLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60052 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA W(FULL FLOATING AXLE) |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
6 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
6 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 43422-60040 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
12 | ||
| 42401 - HUB, REAR AXLE, RH | ||||
| 42401-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 42401 - HUB, REAR AXLE, RH | ||||
| 42401-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-07057 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42402 - HUB, REAR AXLE, LH | ||||
| 42401-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 42402 - HUB, REAR AXLE, LH | ||||
| 42401-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-07057 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-60150 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA W(FULL FLOATING AXLE) |
2 | ||
| 42431-60070 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA |
2 | ||
| 42431-60050 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01195 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 40G |
1 | ||
| 90937-01197 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 60G |
1 | ||
| 90937-01196 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 50G |
1 | ||
| 90937-01410 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 40G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01408 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 20G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01409 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 30G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01412 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 60G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01411 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 50G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01414 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 80G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01413 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 70G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01418 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 120G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01419 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 10G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01416 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 100G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01417 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 110G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01415 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 90G,W(FULL FLOATING AXLE) |
1 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10003 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-08325 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-49084 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-45087 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42411E - SEAL, OIL (FOR REAR AXLE HUB) | ||||
| 90311-62001 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-60140 |
HZJ70,75..GEN |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-60011 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42420-60140 |
HZJ70,75..GEN |
1 | ||
| Common parts | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,PZJ7#

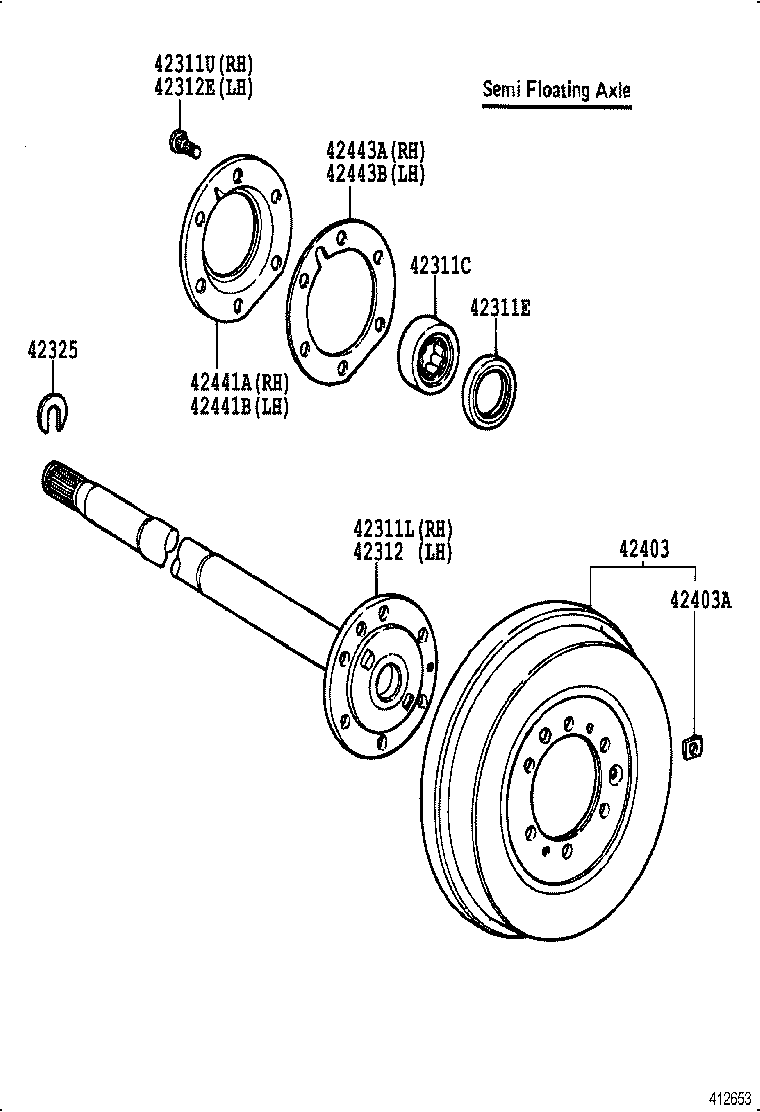

W(SEMI FLOATING AXLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60052 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA W(FULL FLOATING AXLE) |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
6 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-60150 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA W(FULL FLOATING AXLE) |
2 | ||
| 42431-60070 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA |
2 | ||
| 42431-60050 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01195 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 40G |
1 | ||
| 90937-01197 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 60G |
1 | ||
| 90937-01196 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 50G |
1 | ||
| 90937-01410 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 40G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01408 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 20G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01409 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 30G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01412 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 60G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01411 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 50G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01414 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 80G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01413 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 70G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01418 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 120G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01419 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 10G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01416 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 100G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01417 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 110G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01415 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA 90G,W(FULL FLOATING AXLE) |
1 | ||
(0701- )
DRUM BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-10039 | ||||
| 90201-10075 | ||||
