FZJ75LP-MRK3 (1997)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60100 |
PZJ70,73..GEN;FJ7#,FZJ7#,HZJ7# |
1 | ||
| 41101-60180 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-60410 |
FZJ75,HZJ75;PZJ70,73..GEN;FJ7#,FZJ70,73,HZJ70,73..ARL,GCC,GEN *FGR=37:9=4.111 |
1 | ||
| 41110-60411 |
FZJ73,75 *FGR=37:9=4.111 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69355 |
FZJ75,HZJ75;PZJ70,73..GEN;FJ7#,FZJ70,73,HZJ70,73..ARL,GCC,GEN *FGR=37:9=4.111 |
1 | ||
| 41201-69356 |
FZJ73,75 *FGR=37:9=4.111 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40059 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 90366-40088 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30038 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 90366-30071 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38035 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 90311-41009 |
FZJ73,75 |
1 | ||
| 90311-38066 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-40556 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.30 |
1 | ||
| 90201-40561 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.55 |
1 | ||
| 90201-40558 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.40 |
1 | ||
| 90201-40552 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.10 |
1 | ||
| 90201-40557 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.35 |
1 | ||
| 90201-40555 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.25 |
1 | ||
| 90201-40559 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.45 |
1 | ||
| 90201-40554 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.20 |
1 | ||
| 90201-40560 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.50 |
1 | ||
| 90201-40553 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.15 |
1 | ||
| 90201-40551 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.05 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 41204-35100 |
FZJ73,75 |
1 | ||
| 41204-60050 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-22011 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 90179-22016 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-22007 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
FZJ73,75 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35010 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 41252-35040 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 41252-35041 |
FZJ73,75 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50024 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 90366-50054 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50024 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 90366-50054 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
2 | ||
| 41311J - CASE, REAR DIFFERENTIAL | ||||
| 41311-60070 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41317-30010 |
FZJ73,75..(PIC,SOT)..GEN..EFI DOUBLE TYPE |
2 | ||
| 41316-30010 |
FZJ73,75..(PIC,SOT)..GEN..EFI SINGLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41317-30010 |
FZJ73,75..(PIC,SOT)..GEN..EFI DOUBLE TYPE |
2 | ||
| 41316-30010 |
FZJ73,75..(PIC,SOT)..GEN..EFI SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-25010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-25010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-55010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.90 |
2 | ||
| 41361-60020 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.75 |
2 | ||
| 41361-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.60 |
2 | ||
| 41361-60040 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=2.05 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.90 |
2 | ||
| 41361-60020 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.75 |
2 | ||
| 41361-60010 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=1.60 |
2 | ||
| 41361-60040 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# T=2.05 |
2 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91611-60814 | ||||
| 94512-00800 | ||||

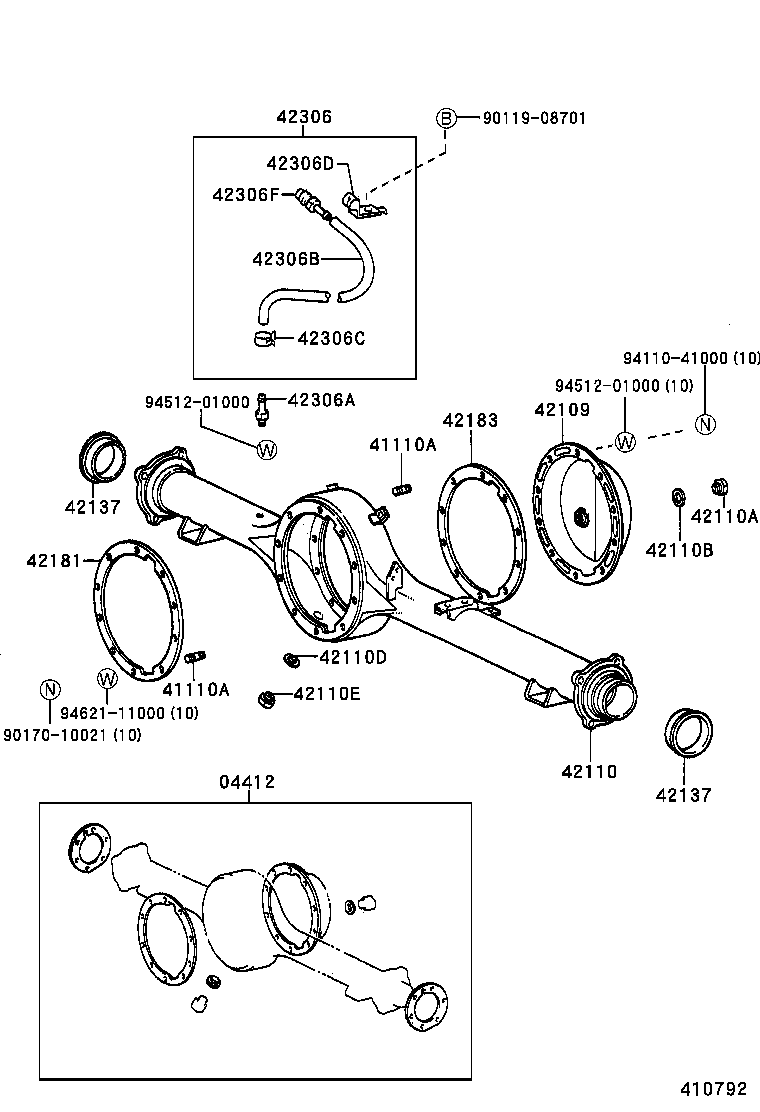

ILLUST NO. 2 OF 2(9001-0007)FJ7#,FZJ70,73,75,HJ75,HZJ70,75,PZJ7#..GCC,GEN,SA
W(SEMI FLOATING AXLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-60070 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA W(FULL FLOATING AXLE) |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60262 |
FJ7#,FZJ7#,HJ75,HZJ75,PZJ7#..GCC,GEN,SA W(FULL FLOATING AXLE) |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90170-10021 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94621-11000 | ||||
ILLUST NO. 2 OF 2(0701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08701 | ||||
| 90170-10021 | ||||
| 91611-B0812 | ||||
| 94621-11000 | ||||
