FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9001- )GCC,GEN

Click highlighted areas on diagram

ELECTRICAL WINCH

diagram 38101 38103 38104 38105 38106A 38107 38108 38109 38119A 38121 38137 38151 38152 38172 38177 38178A 38185A 38186 38187A 38187A 38188A 38202A 38203 38203 38203 38203 38203 38204A 38205A 38207A 38211C 38213B 38216 38217 38217 38217 38217 38217 38222B 38223B 38224 38225 38228A 38231 38231 38233B 38236A 38236B 38237A 38311 38312 38313A 38315A 38317B 38341 38342 38343 9411050800 9615001500
Part # Description Qty Price
38106A - CASE, WINCH BRAKE
38201-60220

FJ7#,FZJ7#,HZJ75,PZJ7#..GCC,GEN

 1
Common parts
94110-50800
96150-01500

(9001-0701)FJ7#,HZJ70,75,PZJ7#..MTM..GCC,GEN

Click highlighted areas on diagram

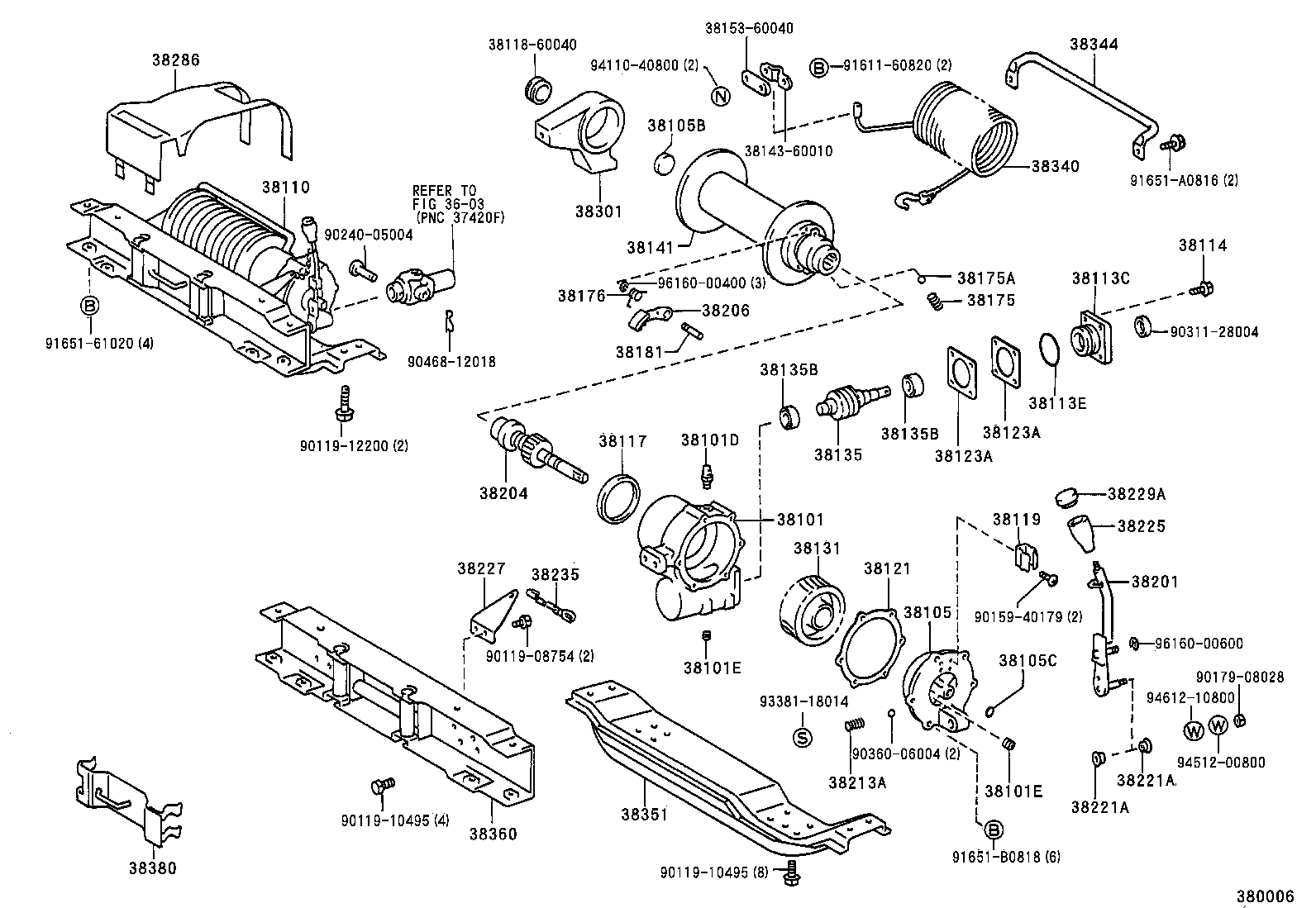

MECHANICAL WINCH

diagram 3603 38101 38101D 38101E 38101E 38105 38105B 38105C 38110 38113C 38113E 38114 38117 3811860040 38119 38121 38123A 38123A 38131 38135 38135B 38135B 38141 3814360010 3815360040 38175 38175A 38176 38181 38201 38204 38206 38213A 38221A 38221A 38225 38227 38229A 38235 38286 38301 38340 38344 38351 38360 38380 9011908754 9011910495 9011910495 9011912200 9015940179 9017908028 9024005004 9031128004 9036006004 9046812018 9161160820 9165161020 91651A0816 91651B0818 9338118014 9411040800 9451200800 9461210800 9616000400 9616000600
Part # Description Qty Price
38286 - COVER, WINCH
38286-60110

FJ70,73..4FC;FZJ7#,LJ70,77..GCC,GEN

 1
Common parts
38118-60040
38143-60010
38153-60040
90119-08754
90119-10495
90119-12200
90159-40179
90179-08028
90240-05004
90311-28004
90360-06004
90468-12018
91611-60820
91651-61020
91651-A0816
91651-B0818
93381-18014
94110-40800
94512-00800
94612-10800
96160-00400
96160-00600
Linked diagrams
3603

ILLUST NO. 1 OF 3(9001- )FJ7#,FZJ7#,HZJ70,71,75,78,79,PZJ7#..GCC,GEN

Click highlighted areas on diagram

ELECTRICAL WINCH

diagram 38110 38182B 38182B 38182B 38182B 38183A 38191 38192 38193 38286 38331 38332 38333 38360 38380 38600A 38600B 38630 38640 38659 8401 8401 9011912200 9017908146 9017908204 9017908204 9165161020 9461110800 9461110800
Part # Description Qty Price
38286 - COVER, WINCH
38286-60110

FJ70,73..4FC;FZJ7#,LJ70,77..GCC,GEN

 1
Common parts
90119-12200
90179-08146
90179-08204
91651-61020
94611-10800
Linked diagrams
8401

ILLUST NO. 2 OF 3(9001- )FJ7#,FZJ7#,HZJ70,71,75,78,79,PZJ7#..GCC,GEN

Click highlighted areas on diagram

ELECTRICAL WINCH

diagram 28123A 28123A 28123A 28123A 28199B 38600A 38601A 38603A 38603B 38603C 38604A 38610A 38611B 38611B 38612A 38613A 38613B 38614A 38618 38621B 38623 38623 38625 38626 38627 38628 38629 38639 9009300811 9009300811 9009300811 9009400606 9009900221 9009900222 9009904584 9009908016 9321914008 9331116014 9331513010 9331513010 9338115010 9338516016 9338516016 9412040800 9412040800 9412040800 9451100400 9451100800 9451100800 9451100800 9461240601
Part # Description Qty Price
38610A - MOTOR ASSY, WINCH
38610-60050

FJ7#,FZJ7#,HZJ75,PZJ7#..GCC,GEN

 1
38618 - FRAME, WINCH MOTOR COMMUTATOR END
38618-60050

FJ7#,FZJ7#,HZJ75,PZJ7#..GCC,GEN

 1
Common parts
90093-00811
90094-00606
90099-00221
90099-00222
90099-04584
90099-08016
93219-14008
93311-16014
93315-13010
93381-15010
93385-16016
94120-40800
94511-00400
94511-00800
94612-40601
