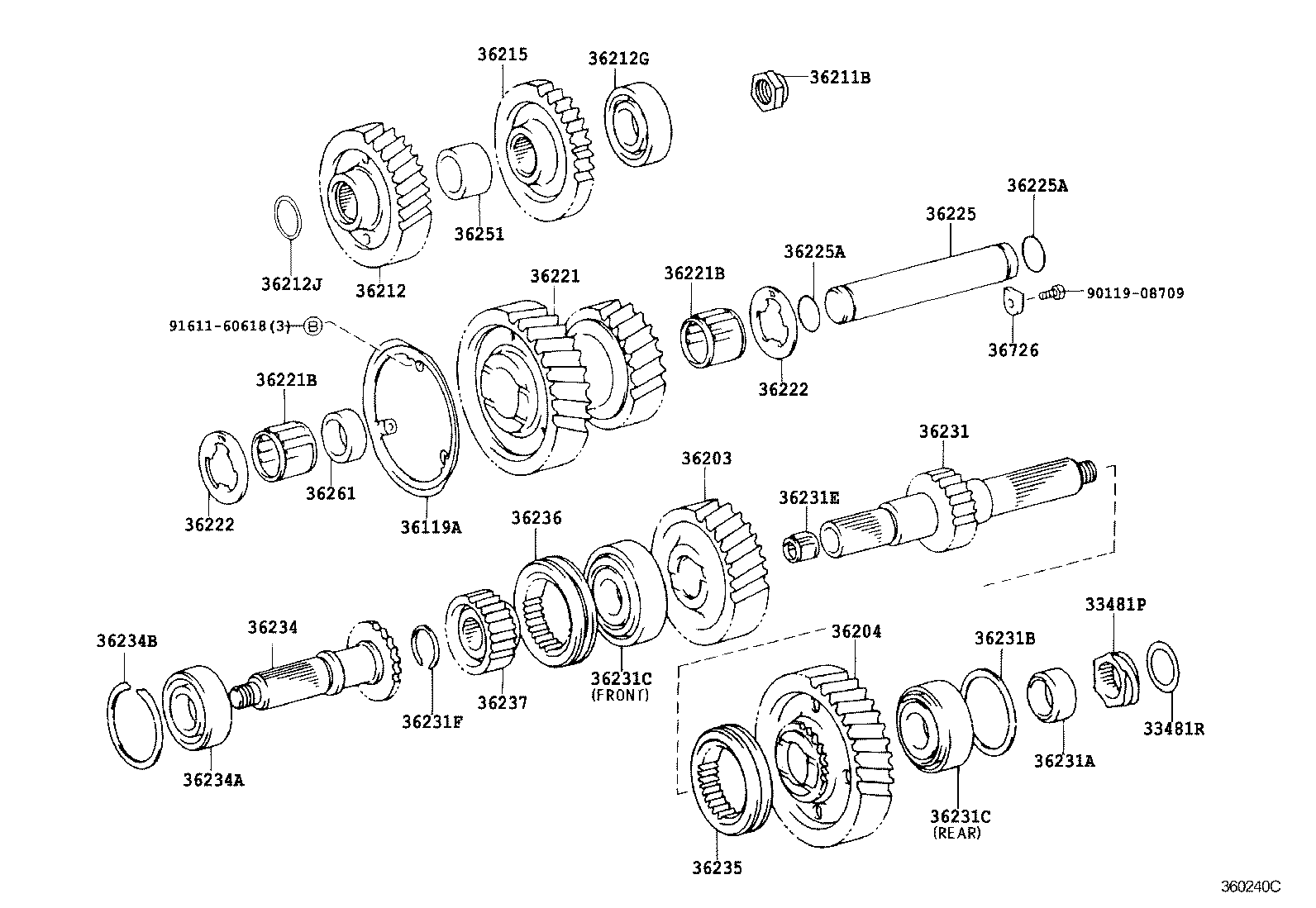

FZJ75LP-MRK3 (1997)
Toyota Land Cruiser
(9001-0405)FJ7#,HJ75,HZJ70,73,75..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481R - WASHER, PLATE (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90201-35002 |
HZJ70,75..GEN |
1 | ||
| 90201-35006 |
HZJ70,75..GEN |
1 | ||
| 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) | ||||
| 36119-60040 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60090 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36211B - NUT (FOR TRANSFER INPUT SHAFT) | ||||
| 90179-26002 |
HZJ70,75..GEN |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60120 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36212G - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT REAR) | ||||
| 90363-35013 |
HZJ70,75..GEN |
1 | ||
| 36212J - RING, O (FOR TRANSFER INPUT GEAR) | ||||
| 90301-34005 |
HZJ70,75..GEN |
1 | ||
| 36215 - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-60030 |
HZJ70,75..GEN |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36205-60010 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
HZJ70,75..GEN |
2 | ||
| 36221B - BEARING (FOR TRANSFER IDLER GEAR) | ||||
| 90364-38012 |
HZJ70,75..GEN |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
HZJ70,75..GEN |
2 | ||
| 36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST | ||||
| 36222-60020 |
HZJ70,75..GEN |
2 | ||
| 36225 - SHAFT, TRANSFER IDLER GEAR | ||||
| 36225-60050 |
HZJ70,75..GEN |
1 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
HZJ70,75..GEN |
2 | ||
| 36225A - RING, O (FOR TRANSFER IDLER SHAFT) | ||||
| 90301-34004 |
HZJ70,75..GEN |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36231-60021 |
HZJ70,75..GEN |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90560-35008 |
HZJ70,75..GEN T=17.5 |
1 | ||
| 36231B - SHIM (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90564-70003 |
HZJ70,75..GEN T=0.50 |
1 | ||
| 90564-70004 |
HZJ70,75..GEN T=0.60 |
1 | ||
| 90564-70002 |
HZJ70,75..GEN T=0.40 |
1 | ||
| 90564-70007 |
HZJ70,75..GEN T=0.90 |
1 | ||
| 90564-70001 |
HZJ70,75..GEN T=0.15 |
1 | ||
| 90564-70009 |
HZJ70,75..GEN T=1.10 |
1 | ||
| 90564-70005 |
HZJ70,75..GEN T=0.70 |
1 | ||
| 90564-70008 |
HZJ70,75..GEN T=1.00 |
1 | ||
| 90564-70010 |
HZJ70,75..GEN T=1.20 |
1 | ||
| 90564-70012 |
HZJ70,75..GEN T=1.40 |
1 | ||
| 90564-70011 |
HZJ70,75..GEN T=1.30 |
1 | ||
| 90564-70006 |
HZJ70,75..GEN T=0.80 |
1 | ||
| 90564-70013 |
HZJ70,75..GEN T=1.50 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-17010 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36234 - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36234-60040 |
HZJ70,75..GEN |
1 | ||
| 36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT) | ||||
| 90363-35013 |
HZJ70,75..GEN |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60050 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36251 - SPACER, TRANSFER INPUT SHAFT | ||||
| 36251-60030 |
HZJ70,75..GEN |
1 | ||
| 36261 - SPACER, TRANSFER IDLER GEAR | ||||
| 90560-38003 |
HZJ70,75..GEN |
1 | ||
| 36726 - PLATE, LOCK (FOR TRANSFER GEAR) | ||||
| 36726-60020 |
HZJ70,75..GEN |
1 | ||
| Common parts | ||||
| 90119-08709 | ||||
| 91611-60618 | ||||
(9801- )FZJ7#..GCC,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33391D - SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER) | ||||
| 33371-37030 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
2 | ||
| 33391D - SPRING, SYNCHROMESH SHIFTING KEY, NO.2(FOR TRANSFER) | ||||
| 33371-37030 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
2 | ||
| 36119A - RECEIVER, TRANSFER OIL (FOR TRANSFER IDLER GEAR) | ||||
| 36119-60040 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-60020 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36202C - WASHER, PLATE(FOR TRANSFER OUTPUT REAR SHAFT) | ||||
| 90201-35006 |
FZJ73,75..(PIC,SOT)..EFI |
2 | ||
| 36202C - WASHER, PLATE(FOR TRANSFER OUTPUT REAR SHAFT) | ||||
| 90201-35006 |
FZJ73,75..(PIC,SOT)..EFI |
2 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60090 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60120 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36212L - RING, SHAFT SNAP | ||||
| 90520-46005 |
FZJ73,75..(PIC,SOT)..GEN..EFI T=2.95-3.00,MARK B |
1 | ||
| 90520-46006 |
FZJ73,75..(PIC,SOT)..GEN..EFI T=3.00-3.05,MARK C |
1 | ||
| 90520-46009 |
FZJ73,75..(PIC,SOT)..GEN..EFI T=3.15-3.20,MARK F |
1 | ||
| 90520-46007 |
FZJ73,75..(PIC,SOT)..GEN..EFI T=3.05-3.10,MARK D |
1 | ||
| 90520-46004 |
FZJ73,75..(PIC,SOT)..GEN..EFI T=2.90-2.95,MARK A |
1 | ||
| 90520-46008 |
FZJ73,75..(PIC,SOT)..GEN..EFI T=3.10-3.15,MARK E |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36205-60010 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-17010 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-17010 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-17010 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60050 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36242 - GEAR, TRANSFER LOW | ||||
| 36242-60160 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-60030 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-60021 |
FZJ73,75..(PIC,SOT)..EFI NO.2 |
1 | ||
| 36255-60020 |
FZJ70,73,75..GEN..EFI NO.2 |
1 | ||
| 36255-60030 |
FZJ73,75..(PIC,SOT)..GEN..EFI NO.1 |
1 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-60021 |
FZJ73,75..(PIC,SOT)..EFI NO.2 |
1 | ||
| 36255-60020 |
FZJ70,73,75..GEN..EFI NO.2 |
1 | ||
| 36255-60030 |
FZJ73,75..(PIC,SOT)..GEN..EFI NO.1 |
1 | ||
| Common parts | ||||
| 90179-22019 | ||||
| 90301-28006 | ||||
| 91611-60618 | ||||
(0701- )FZJ7#,GRJ7#,VDJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-22019 | ||||
| 90301-28006 | ||||
| 91611-60618 | ||||
