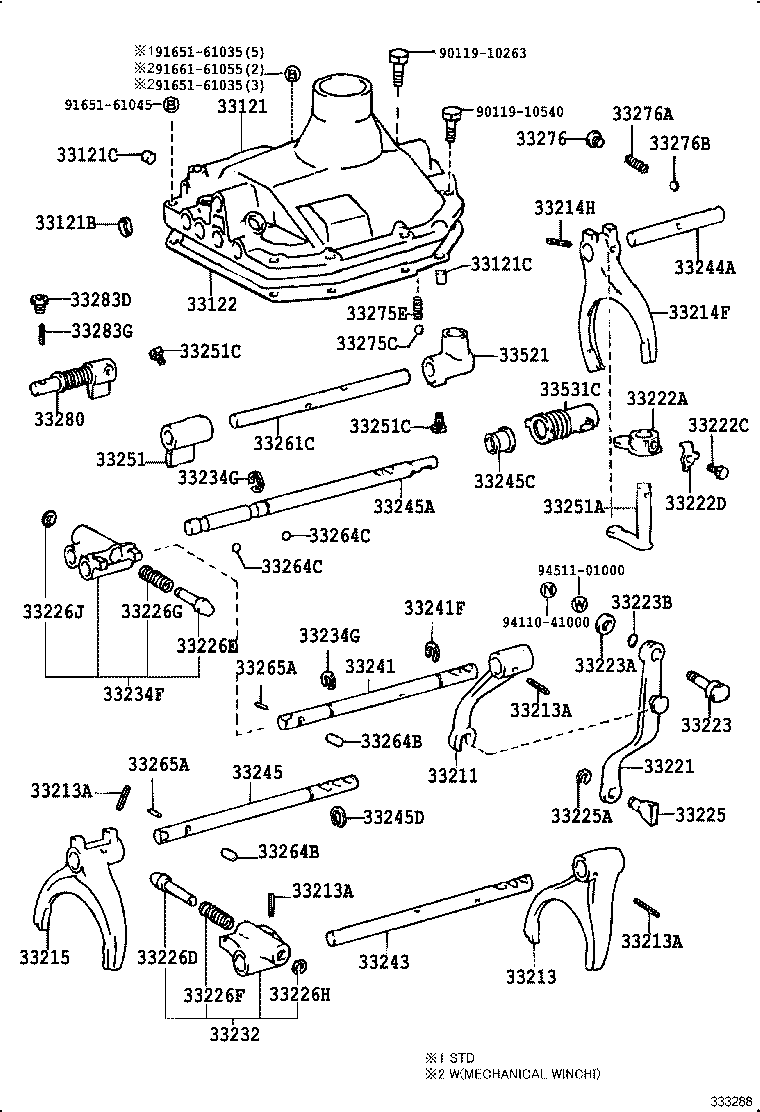

FZJ75LP-MRK3 (1997)
Toyota Land Cruiser
(9001-0701)FJ7#,HZJ70,73,75..5F
H55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33102-60080 |
HZJ70,75..GEN |
1 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10215 |
HZJ70,75..GEN L=9,OD=9 |
1 | ||
| 90250-10214 |
HZJ70,75..GEN L=14,OD=10 |
2 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10215 |
HZJ70,75..GEN L=9,OD=9 |
1 | ||
| 90250-10214 |
HZJ70,75..GEN L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-60010 |
HZJ70,75..GEN |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33215-37021 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-36020 |
HZJ70,75..GEN |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
HZJ70,75..GEN |
4 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
HZJ70,75..GEN |
4 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
HZJ70,75..GEN |
4 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05016 |
HZJ70,75..GEN |
4 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-60021 |
HZJ70,75..GEN |
1 | ||
| 33214H - PIN, SLOTTED(FOR SHIFT FORK) | ||||
| 90254-05016 |
HZJ70,75..GEN |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-60051 |
HZJ70,75..GEN |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-36030 |
HZJ70,75..GEN |
1 | ||
| 33222A - ARM, 5TH SHIFT | ||||
| 33222-36030 |
HZJ70,75..GEN |
1 | ||
| 33222C - BOLT(FOR 5TH SHIFT ARM) | ||||
| 90113-08001 |
HZJ70,75..GEN |
1 | ||
| 33222D - WASHER(FOR 5TH SHIFT ARM) | ||||
| 90215-09003 |
HZJ70,75..GEN |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-36020 |
HZJ70,75..GEN |
1 | ||
| 33223A - WASHER(FOR SHIFT ARM PIVOT) | ||||
| 90201-10092 |
HZJ70,75..GEN |
1 | ||
| 33223B - RING, O(FOR SHIFT ARM PIVOT) | ||||
| 96711-19010 |
HZJ70,75..GEN |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-36030 |
HZJ70,75..GEN |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 90520-08098 |
HZJ70,75..GEN |
1 | ||
| 33226D - PLUNGER, 1ST & 2ND SHIFT RETURN | ||||
| 33226-60010 |
HZJ70,75..GEN |
1 | ||
| 33226E - PLUNGER, REVERSE & 5TH SHIFT RETURN | ||||
| 33226-60010 |
HZJ70,75..GEN |
1 | ||
| 33226F - SPRING, COMPRESSION(FOR 1ST & 2ND SHIFT RETURN PLUNGER) | ||||
| 90501-14076 |
HZJ70,75..GEN |
1 | ||
| 33226G - SPRING, COMPRESSION(FOR REVERSE & 5TH SHIFT RETURN PLUN | ||||
| 90501-14069 |
HZJ70,75..GEN |
1 | ||
| 33226H - RING, SHAFT SNAP(FOR 1ST & 2ND SHIFT RETURN PLUNGER) | ||||
| 90520-07001 |
HZJ70,75..GEN |
1 | ||
| 33226J - RING, SHAFT SNAP(FOR REVERSE & 5TH SHIFT RETURN PLUNGER | ||||
| 90520-07001 |
HZJ70,75..GEN |
1 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33203-60010 |
HZJ70,75..GEN |
1 | ||
| 33234F - HEAD, REVERSE & 5TH SHIFT | ||||
| 33202-60031 |
HZJ70,75..GEN |
1 | ||
| 33234G - RING, E (FOR REVERSE & 5TH SHIFT HEAD) | ||||
| 90523-15025 |
HZJ70,75..GEN |
2 | ||
| 33234G - RING, E (FOR REVERSE & 5TH SHIFT HEAD) | ||||
| 90523-15025 |
HZJ70,75..GEN |
2 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-60050 |
HZJ70,75..GEN |
1 | ||
| 33241F - RING, E(FOR REVERSE SHIFT FORK SHAFT) | ||||
| 90523-15025 |
HZJ70,75..GEN |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-60030 |
HZJ70,75..GEN |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33244-60011 |
HZJ70,75..GEN |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-60071 |
HZJ70,75..GEN |
1 | ||
| 33245A - SHAFT, 5TH SHIFT ARM | ||||
| 33245-60032 |
HZJ70,75..GEN |
1 | ||
| 33245C - SEAL, OIL (FOR 5TH SHIFT ARM SHAFT) | ||||
| 90311-16002 |
HZJ70,75..GEN |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-60032 |
HZJ70,75..GEN |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-60022 |
HZJ70,75..GEN |
1 | ||
| 33251C - BOLT, SET (FOR SHIFT & SELECT LEVER) | ||||
| 90105-08142 |
HZJ70,75..GEN |
2 | ||
| 33251C - BOLT, SET (FOR SHIFT & SELECT LEVER) | ||||
| 90105-08142 |
HZJ70,75..GEN |
2 | ||
| 33265A - ROLLER, NO.2 (FOR INTER LOCK) | ||||
| 90361-05001 |
HZJ70,75..GEN |
2 | ||
| 33265A - ROLLER, NO.2 (FOR INTER LOCK) | ||||
| 90361-05001 |
HZJ70,75..GEN |
2 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-10003 |
HZJ70,75..GEN |
4 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-13011 |
HZJ70,75..GEN |
4 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-10004 |
HZJ70,75..GEN |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-10067 |
HZJ70,75..GEN |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-08009 |
HZJ70,75..GEN |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60031 |
FZJ73,75..(PIC,SOT)..GEN..EFI LH |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-60130 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33531C - BOOT, DUST (FOR 5TH SHIFT ARM SHAFT) | ||||
| 33531-36040 |
HZJ70,75..GEN |
1 | ||
| Common parts | ||||
| 90119-10263 | ||||
| 90119-10540 | ||||
| 91651-61035 | ||||
| 91651-61045 | ||||
| 91661-61055 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
(9801- )FZJ7#,HDJ7#
H150,H151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33019 - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-60020 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33215-37021 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33230-60011 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33230-60010 |
FZJ7# |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-60030 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-60070 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-60110 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-60070 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
FZJ75 L=29.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
FZJ75 L=29.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
FZJ75 L=29.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14155 |
FZJ75 L=29.3 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ75 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ75 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ75 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ75 |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ75 |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ75 |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ75 |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ75 |
4 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60031 |
FZJ73,75..(PIC,SOT)..GEN..EFI LH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60031 |
FZJ73,75..(PIC,SOT)..GEN..EFI LH |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-60130 |
FZJ73,75..(PIC,SOT)..GEN..EFI |
1 | ||
| Common parts | ||||
| 90461-10101 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 3609 | ||||
(0701- )FZJ7#,GRJ7#,VDJ7#
H150,H151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-10101 | ||||
| 91551-80825 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 3609 | ||||
