FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

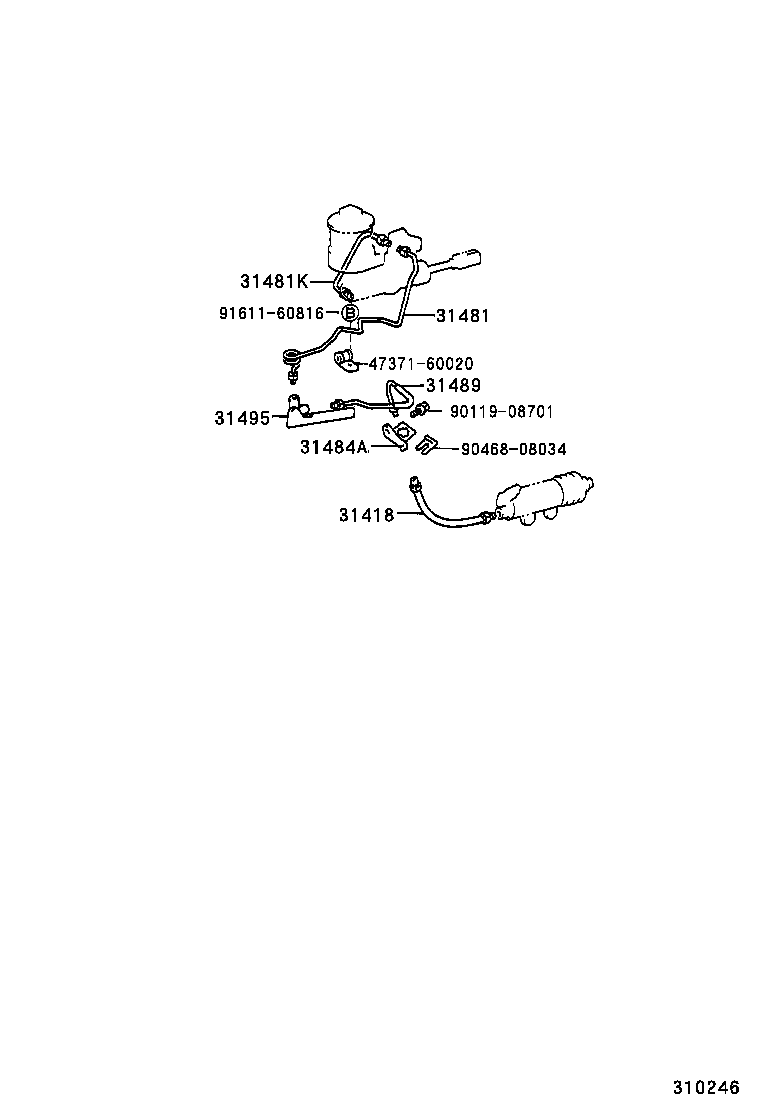

ILLUST NO. 2 OF 2(9001-0007)HZJ70,75,PZJ70,75..LHD

Click highlighted areas on diagram

diagram 31418 31481 31481K 31484A 31489 31495 4737160020 9011908701 9046808034 9161160816
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60441

FZJ7#,HZJ75,PZJ70,75..LHD

 1
31481-60421

HZJ75,PZJ70,75..LHD

W(*CLB)

 1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-60510

HZJ75,PZJ70,75..LHD

 1
31495 - WAY, CLUTCH TUBE
31495-60040

FZJ7#,HZJ7#,PZJ7#..MTM

 1
Common parts
47371-60020
90119-08701
90468-08034
91611-60816

ILLUST NO. 1 OF 2(9001-0007)FJ7#,HJ75,HZJ70,73,75,LJ7#,PZJ7#,RJ7#..MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9011908681 9017908038 9046816142 9165160816 9166560835 9411041000 9412040800 9451201000 9461110800 9462210800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60101

FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
91131-50828

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51070

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08018

FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM

L=29.5

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-90K01

FJ7#,HZJ75,LJ7#,PZJ70,75,RJ7#..LHD..MTM

 1
Common parts
90119-08681
90179-08038
90468-16142
91651-60816
91665-60835
94110-41000
94120-40800
94512-01000
94611-10800
94622-10800

ILLUST NO. 1 OF 2(0701- )FZJ7#,HZJ7#,VDJ7#..LHD

Click highlighted areas on diagram

diagram 3103 3103 3103 3103 31301 31301A 31301B 31301C 31301C 31301F 31301J 31301P 31301R 31321 31324A 31331B 31332 31353 31453A 31453B 31481J 55107A 9010510524 9015950360 9017910088 9020608001 9046816142 9056109018 9165140865 9165160816 9415180800 9616000600 9616000800
Part # Description Qty Price
Common parts
90105-10524
90159-50360
90179-10088
90206-08001
90468-16142
90561-09018
91651-40865
91651-60816
94151-80800
96160-00600
96160-00800
Linked diagrams
3103

ILLUST NO. 2 OF 2(0701- )FZJ7#..LHD

Click highlighted areas on diagram

diagram 3103 3105 31331B 31332 31418 31481 31481M 31481M 31481M 31482 31484 9046808035 9046808035 9046808044 9046808044
Part # Description Qty Price
Common parts
90468-08035
90468-08044
Linked diagrams
3103
3105
