FZJ75LP-MRK3 (1997)

Toyota Land Cruiser

Production Sep 1997 - May 2004
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1FZ#,3F

Click highlighted areas on diagram

diagram
Part # Description Qty Price

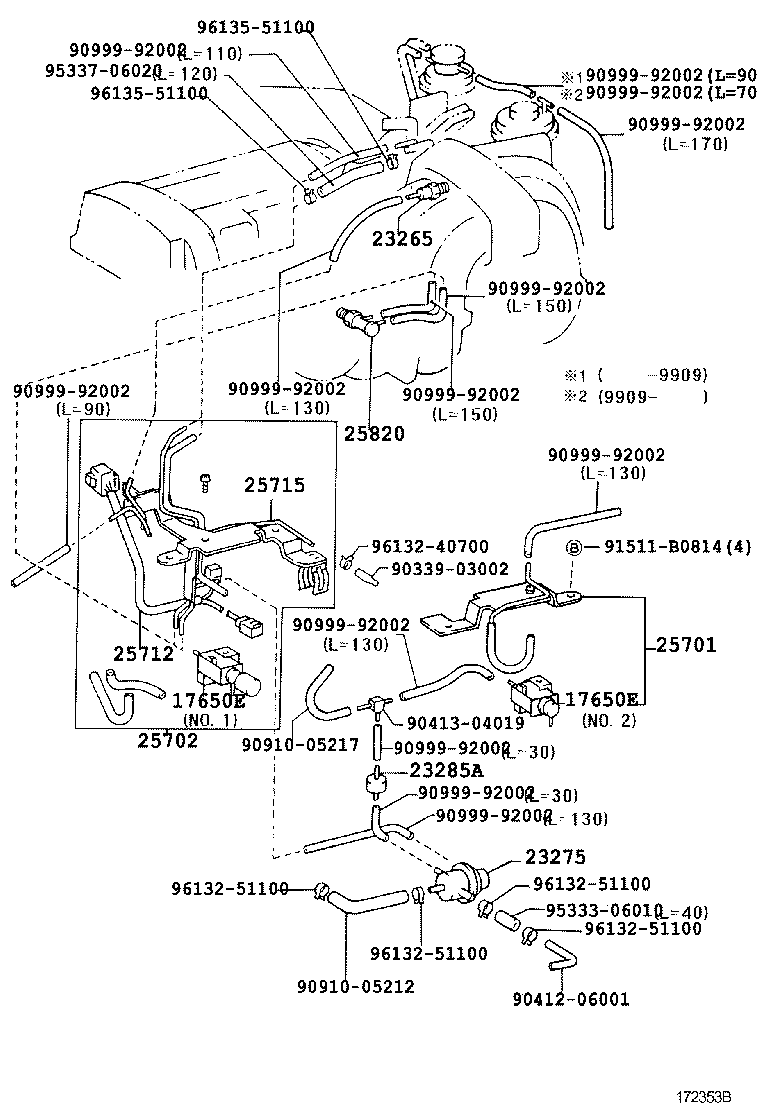

(9709- )1FZFE..FZJ70,73,75..GEN

Click highlighted areas on diagram

diagram 17650E 17650E 23265 23275 23285A 25701 25702 25712 25715 25820 9033903002 9041206001 9041304019 9091005212 9091005217 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 91511B0814 9533306010 9533706020 9613240700 9613251100 9613251100 9613251100 9613251100 9613551100 9613551100
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12043

1FZFE..FZJ73,75..(PIC,SOT)..GEN

NO.1

 1
90910-12079

1FZFE..FZJ73,75..(PIC,SOT)..GEN

NO.2

 1
17650E - VALVE, VACUUM SWITCHING
90910-12043

1FZFE..FZJ73,75..(PIC,SOT)..GEN

NO.1

 1
90910-12079

1FZFE..FZJ73,75..(PIC,SOT)..GEN

NO.2

 1
23265 - FILTER, GAS, NO.1
90917-11037

1FZFE..FZJ73,75..(PIC,SOT)..GEN

 1
25701 - VALVE SET, EMISSION CONTROL
25701-66011

1FZFE..FZJ73,75..(PIC,SOT)..GEN

 1
25702 - VALVE SET, EMISSION CONTROL, NO.2
25702-66021

1FZFE..FZJ73,75..(PIC,SOT)..GEN

 1
25712 - WIRE, EMISSION CONTROL VALVE
25712-66021

1FZFE..FZJ73,75..(PIC,SOT)..GEN

 1
Common parts
90339-03002
90412-06001
90413-04019
90910-05212
90910-05217
90999-92002
91511-B0814
95333-06010
95337-06020
96132-40700
96132-51100
96135-51100

ILLUST NO. 1 OF 2(0701- )1FZFE

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(0701- )1FZFE

Click highlighted areas on diagram

diagram 23265 9046400020 9099992002
Part # Description Qty Price
Common parts
90464-00020
90999-92002
