FZJ75LP-MNUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Aug 1999
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )1FZF

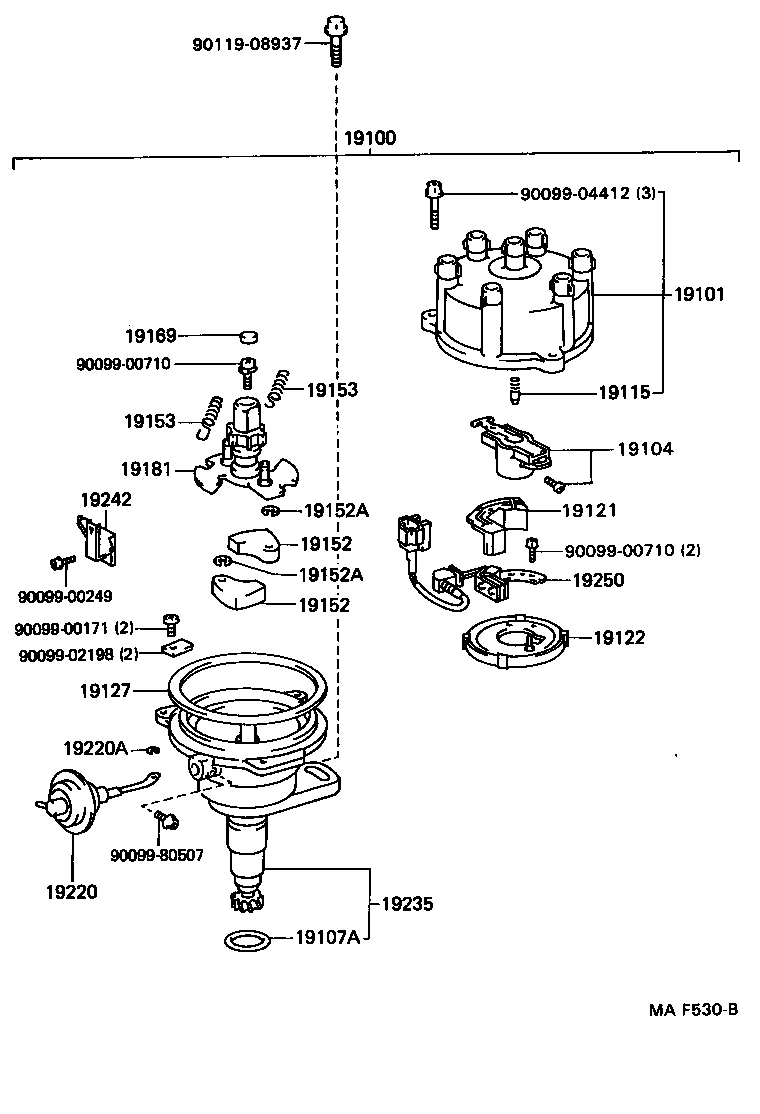

Click highlighted areas on diagram

diagram 19100 19101 19104 19107A 19115 19121 19122 19127 19152 19152 19152A 19152A 19153 19153 19169 19181 19220 19220A 19235 19242 19250 9009900171 9009900249 9009900710 9009900710 9009902198 9009904412 9009980507 9011908937
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-66010

1FZF..FZJ7#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-66010

1FZ#..FZJ7#

 1
19104 - ROTOR KIT
19104-66010

1FZF..FZJ7#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14118

1FZ#..FZJ7#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-88280

1FZ#..FZJ7#

 1
19121 - COVER, DUST PROOF
19121-15021

1FZF..FZJ7#

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-15010

1FZF..FZJ7#

 1
19127 - PACKING, DUST PROOF
19127-66010

1FZF..FZJ7#

 1
19152 - WEIGHT, GOVERNOR
19152-15160

1FZF..FZJ7#

 2
19152 - WEIGHT, GOVERNOR
19152-15160

1FZF..FZJ7#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

1FZF,3F..FJ7#,FZJ7#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07122

1FZF,3F..FJ7#,FZJ7#

 2
19153 - SPRING, GOVERNOR, A
19153-66010

1FZF..FZJ7#

 2
19153 - SPRING, GOVERNOR, A
19153-66010

1FZF..FZJ7#

 2
19169 - STOPPER, CAM GREASE
19169-63011

1FZF,3F..FJ7#,FZJ7#

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-66010

1FZF..FZJ7#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-66010

1FZF..FZJ7#

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

1FZF..FZJ7#

 1
19235 - HOUSING, DISTRIBUTOR
19235-66010

1FZF..FZJ7#

 1
19242 - CLAMP, CORD
19242-66010

1FZF..FZJ7#

 1
19250 - GENERATOR ASSY, SIGNAL
19250-66010

1FZF..FZJ7#

 1
Common parts
90099-00171
90099-00249
90099-00710
90099-02198
90099-04412
90099-80507
90119-08937
