FZJ73LV-MNU (1992)

Toyota Land Cruiser

Production Jan 1992 - Aug 1999
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

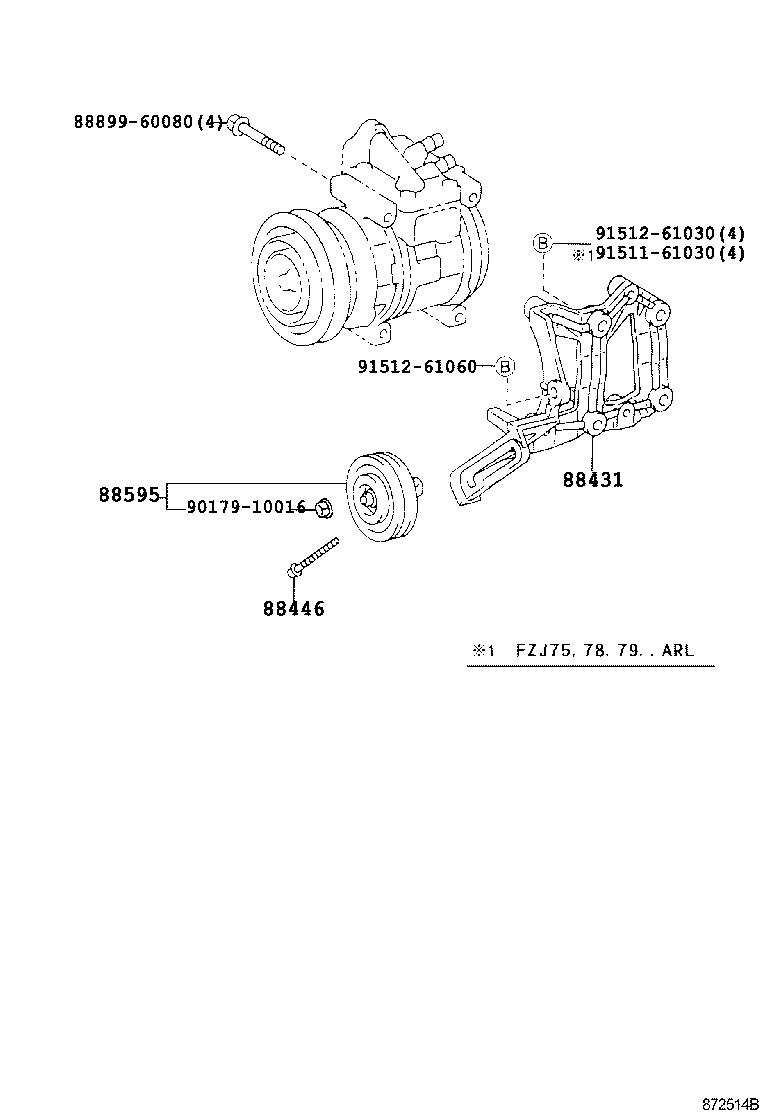

ILLUST NO. 2 OF 3(9201- )FZJ7#

Click highlighted areas on diagram

diagram 88431 88446 88595 8889960080 9017910016 9151161030 9151261030 9151261060
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60200

FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU

 1
88446 - BOLT, IDLE PULLEY
88446-60030

HZJ7#..ARL,GCC,GEN;FJ70,73,FZJ7#,PZJ7#..GEN;FJ75,LJ72,79..STD..GEN..CBU

 1
88446-60030

LJ72,79..STD;HZJ7#,PZJ70,73;FJ75..ARL..CBU;FJ7#,PZJ75..GCC,GEN

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12160

FZJ7#..GEN

W(POWER STEERING)

 1
88440-12160

FJ70,73;FJ75..ARL;FJ75..GEN..CBU

 1
88440-26090

FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU

 1
Common parts
88899-60080
90179-10016
91511-61030
91512-61030
91512-61060

(0701-0907)FZJ7#..GEN

Click highlighted areas on diagram

diagram 8271560C70 88320 88335 88410 88431 88446 88595 88648F 88688K 9009904349 9009907065 9009907114 9011908B42 9151261030 9151261060 9331915008
Part # Description Qty Price
Common parts
82715-60C70
90099-04349
90099-07065
90099-07114
90119-08B42
91512-61030
91512-61060
93319-15008
