FZJ73L-MRU (1992)
Toyota Land Cruiser
(9001-0701)FJ7#,HZJ70,73,75..5F
H55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33102-60080 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
2 | ||
| 96411-41800 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35030 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33215-37021 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33211-60041 |
FZJ7# |
1 | ||
| 33211-60040 |
FZJ7# |
1 | ||
| 33211-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-35032 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
PZJ70,73;PZJ75..4F;RJ70..SOT |
2 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-60021 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
1 | ||
| 33214H - PIN, SLOTTED(FOR SHIFT FORK) | ||||
| 90254-05016 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-35040 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-35030 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35040 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35040 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-35031 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-35071 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-60040 |
FZJ7# |
1 | ||
| 33261-35100 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33261-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33261-60041 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
FZJ70,75..ARL;FZJ70,73,75..CBR;FZJ71,74,78,79,LJ72,79,RJ7# L=13.6,OD=9.5 |
1 | ||
| 90361-10003 |
PZJ70,73;PZJ75..4F L=13.6,OD=9.5 |
2 | ||
| 90361-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=13.6,OD=9.5 |
1 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
FZJ70,75..ARL;FZJ70,73,75..CBR;FZJ71,74,78,79,LJ72,79,RJ7# L=13.6,OD=9.5 |
1 | ||
| 90361-10003 |
PZJ70,73;PZJ75..4F L=13.6,OD=9.5 |
2 | ||
| 90361-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=13.6,OD=9.5 |
1 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
PZJ70,73;PZJ75..4F |
2 | ||
| 90360-10003 |
HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FZJ73,75,PZJ7#..CBR,DSL;FJ7#,FZJ70,71,74,78,79,HZJ73,LJ7#,RJ7#..5F |
2 | ||
| 90360-10003 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
PZJ70,73;PZJ75..4F |
2 | ||
| 90360-10003 |
HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FZJ73,75,PZJ7#..CBR,DSL;FJ7#,FZJ70,71,74,78,79,HZJ73,LJ7#,RJ7#..5F |
2 | ||
| 90360-10003 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-10061 |
PZJ70,73;PZJ75..4F;RJ70..SOT L=22.1 |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60020 |
FZJ7# RH |
1 | ||
| 33280-35070 |
PZJ70,73;PZJ75..4F LH |
1 | ||
| 33280-60030 |
FZJ7# LH |
1 | ||
| 33280-35060 |
PZJ70,73;PZJ75..4F RH |
1 | ||
| 33280-60020 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI RH |
1 | ||
| 33280-60021 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR RH |
1 | ||
| 33280-60030 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV LH |
1 | ||
| 33280-60031 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR LH |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-12008 |
HZJ70..ARL;HZJ75..RHD..5F;HZJ75..LHD..5F..CBU;FJ7#,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..5F |
1 | ||
| 96411-41200 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
FZJ73,75..CBR;HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FJ7#,FZJ70,71,74,78,79,HZJ73..5F |
1 | ||
| 90254-05016 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-60070 |
FZJ7# |
1 | ||
| 33521-35131 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33521-60130 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33521-60070 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| Common parts | ||||
| 90119-10263 | ||||
| 90119-10540 | ||||
| 91651-61035 | ||||
| 91651-61045 | ||||
| 91661-61055 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
(9201-9801)FZJ7#
H150,H151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

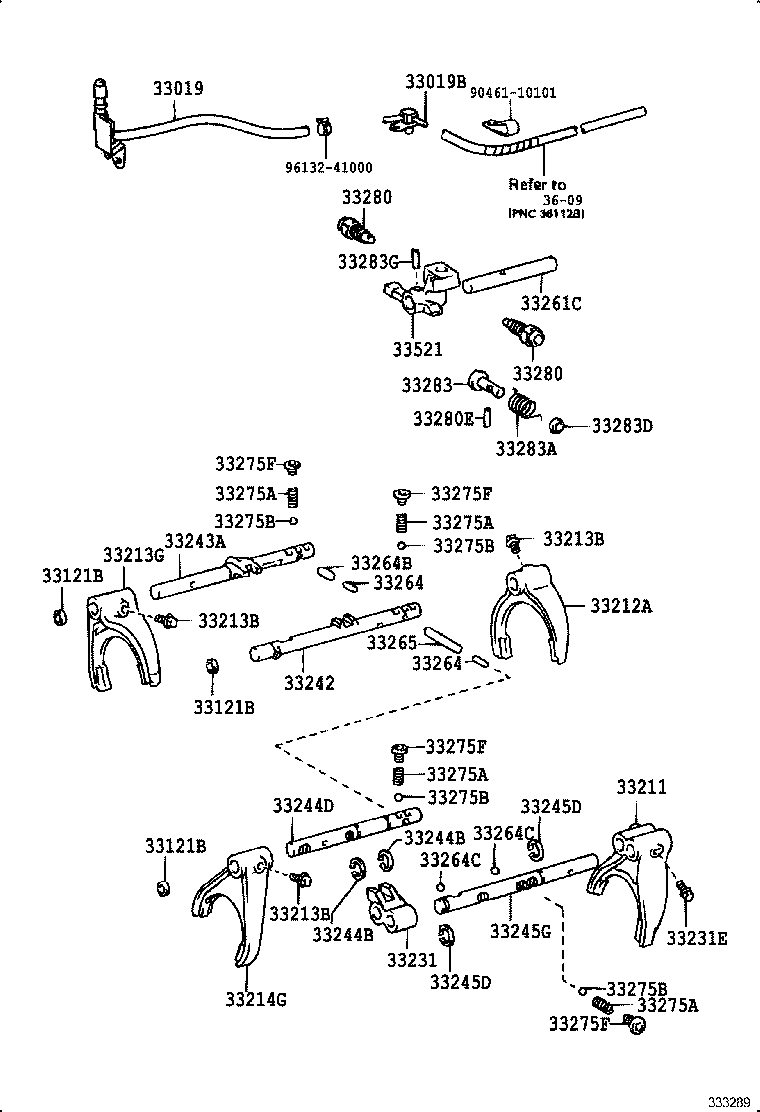

| 33019 - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-60020 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33019B - WAY(FOR TRANSMISSION BREATHER HOSE) | ||||
| 90413-06011 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
2 | ||
| 96411-41800 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
2 | ||
| 96411-41800 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
2 | ||
| 96411-41800 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35030 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33215-37021 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33211-60041 |
FZJ7# |
1 | ||
| 33211-60040 |
FZJ7# |
1 | ||
| 33211-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-60040 |
FZJ7# |
1 | ||
| 33212-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33212-60050 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-60060 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-60040 |
FZJ7# |
1 | ||
| 33214-60041 |
FZJ7# |
1 | ||
| 33230-60010 |
FZJ7# |
1 | ||
| 33230-60011 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33214-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-60020 |
FZJ7# |
1 | ||
| 33231-35061 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33231-60030 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33231-60020 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| 33231E - BOLT(FOR REVERSE SHIFT HEAD) | ||||
| 90105-07001 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33242-60040 |
FZJ7# |
1 | ||
| 33242-60070 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33242-60080 |
FZJ7# |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-60081 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33243-60080 |
FZJ7# |
1 | ||
| 33243-60100 |
FZJ7# |
1 | ||
| 33243-60110 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33243-60080 |
FZJ7# |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-16003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-16003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-60030 |
FZJ7# |
1 | ||
| 33244-60030 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33244-60050 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-60040 |
FZJ7# |
1 | ||
| 33245-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33245-60070 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33245-60060 |
FZJ7# |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-60040 |
FZJ7# |
1 | ||
| 33261-35100 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33261-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33261-60041 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=15.45 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=15.45 |
2 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
FZJ70,75..ARL;FZJ70,73,75..CBR;FZJ71,74,78,79,LJ72,79,RJ7# L=13.6,OD=9.5 |
1 | ||
| 90361-10003 |
PZJ70,73;PZJ75..4F L=13.6,OD=9.5 |
2 | ||
| 90361-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=13.6,OD=9.5 |
1 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
PZJ70,73;PZJ75..4F |
2 | ||
| 90360-10003 |
HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FZJ73,75,PZJ7#..CBR,DSL;FJ7#,FZJ70,71,74,78,79,HZJ73,LJ7#,RJ7#..5F |
2 | ||
| 90360-10003 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
PZJ70,73;PZJ75..4F |
2 | ||
| 90360-10003 |
HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FZJ73,75,PZJ7#..CBR,DSL;FJ7#,FZJ70,71,74,78,79,HZJ73,LJ7#,RJ7#..5F |
2 | ||
| 90360-10003 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05029 |
PZJ70,73;PZJ75..4F L=11.5,OD=4.8 |
2 | ||
| 90250-10024 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=56.95,OD=9.53 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FZJ7# L=26.3 |
4 | ||
| 90501-14155 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR L=29.3 |
4 | ||
| 90501-14124 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FZJ7# L=26.3 |
4 | ||
| 90501-14155 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR L=29.3 |
4 | ||
| 90501-14124 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FZJ7# L=26.3 |
4 | ||
| 90501-14155 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR L=29.3 |
4 | ||
| 90501-14124 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FZJ7# L=26.3 |
4 | ||
| 90501-14155 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR L=29.3 |
4 | ||
| 90501-14124 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI L=26.3 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ7# |
4 | ||
| 90360-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ7# |
4 | ||
| 90360-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ7# |
4 | ||
| 90360-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ7# |
4 | ||
| 90360-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ70,75..ARL;FZJ71,74,78,79;LJ72,79,PZJ70,75,RJ7#..4F;FZJ70,73,75,PZJ73..(GCC,GEN,SA)..(CBR,DSL) |
4 | ||
| 90341-12008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ70,75..ARL;FZJ71,74,78,79;LJ72,79,PZJ70,75,RJ7#..4F;FZJ70,73,75,PZJ73..(GCC,GEN,SA)..(CBR,DSL) |
4 | ||
| 90341-12008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ70,75..ARL;FZJ71,74,78,79;LJ72,79,PZJ70,75,RJ7#..4F;FZJ70,73,75,PZJ73..(GCC,GEN,SA)..(CBR,DSL) |
4 | ||
| 90341-12008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ70,75..ARL;FZJ71,74,78,79;LJ72,79,PZJ70,75,RJ7#..4F;FZJ70,73,75,PZJ73..(GCC,GEN,SA)..(CBR,DSL) |
4 | ||
| 90341-12008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60020 |
FZJ7# RH |
1 | ||
| 33280-35070 |
PZJ70,73;PZJ75..4F LH |
1 | ||
| 33280-60030 |
FZJ7# LH |
1 | ||
| 33280-35060 |
PZJ70,73;PZJ75..4F RH |
1 | ||
| 33280-60020 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI RH |
1 | ||
| 33280-60021 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR RH |
1 | ||
| 33280-60030 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV LH |
1 | ||
| 33280-60031 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR LH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60020 |
FZJ7# RH |
1 | ||
| 33280-35070 |
PZJ70,73;PZJ75..4F LH |
1 | ||
| 33280-60030 |
FZJ7# LH |
1 | ||
| 33280-35060 |
PZJ70,73;PZJ75..4F RH |
1 | ||
| 33280-60020 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI RH |
1 | ||
| 33280-60021 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR RH |
1 | ||
| 33280-60030 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV LH |
1 | ||
| 33280-60031 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR LH |
1 | ||
| 33280E - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-60030 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90508-10064 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-12008 |
HZJ70..ARL;HZJ75..RHD..5F;HZJ75..LHD..5F..CBU;FJ7#,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..5F |
1 | ||
| 96411-41200 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
FZJ73,75..CBR;HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FJ7#,FZJ70,71,74,78,79,HZJ73..5F |
1 | ||
| 90254-05016 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-60070 |
FZJ7# |
1 | ||
| 33521-35131 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33521-60130 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33521-60070 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| Common parts | ||||
| 90461-10101 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 3609 | ||||
(9801- )FZJ7#,HDJ7#
H150,H151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33019 - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-60020 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33019B - WAY(FOR TRANSMISSION BREATHER HOSE) | ||||
| 90413-06011 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
2 | ||
| 96411-41800 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
2 | ||
| 96411-41800 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
HZJ75..5F;FJ7#,HZJ70,73..5F..(ARL,GEN,SA) |
2 | ||
| 96411-41800 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35030 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33215-37021 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33211-60041 |
FZJ7# |
1 | ||
| 33211-60040 |
FZJ7# |
1 | ||
| 33211-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-60040 |
FZJ7# |
1 | ||
| 33212-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33212-60050 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-60060 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-60040 |
FZJ7# |
1 | ||
| 33214-60041 |
FZJ7# |
1 | ||
| 33230-60010 |
FZJ7# |
1 | ||
| 33230-60011 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33214-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-60020 |
FZJ7# |
1 | ||
| 33231-35061 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33231-60030 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33231-60020 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| 33231E - BOLT(FOR REVERSE SHIFT HEAD) | ||||
| 90105-07001 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33242-60040 |
FZJ7# |
1 | ||
| 33242-60070 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33242-60080 |
FZJ7# |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-60081 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33243-60080 |
FZJ7# |
1 | ||
| 33243-60100 |
FZJ7# |
1 | ||
| 33243-60110 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33243-60080 |
FZJ7# |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-16003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-16003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-60030 |
FZJ7# |
1 | ||
| 33244-60030 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33244-60050 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-60040 |
FZJ7# |
1 | ||
| 33245-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33245-60070 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33245-60060 |
FZJ7# |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-60040 |
FZJ7# |
1 | ||
| 33261-35100 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33261-60040 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI |
1 | ||
| 33261-60041 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=15.45 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=15.45 |
2 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
FZJ70,75..ARL;FZJ70,73,75..CBR;FZJ71,74,78,79,LJ72,79,RJ7# L=13.6,OD=9.5 |
1 | ||
| 90361-10003 |
PZJ70,73;PZJ75..4F L=13.6,OD=9.5 |
2 | ||
| 90361-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=13.6,OD=9.5 |
1 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
PZJ70,73;PZJ75..4F |
2 | ||
| 90360-10003 |
HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FZJ73,75,PZJ7#..CBR,DSL;FJ7#,FZJ70,71,74,78,79,HZJ73,LJ7#,RJ7#..5F |
2 | ||
| 90360-10003 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
PZJ70,73;PZJ75..4F |
2 | ||
| 90360-10003 |
HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FZJ73,75,PZJ7#..CBR,DSL;FJ7#,FZJ70,71,74,78,79,HZJ73,LJ7#,RJ7#..5F |
2 | ||
| 90360-10003 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05029 |
PZJ70,73;PZJ75..4F L=11.5,OD=4.8 |
2 | ||
| 90250-10024 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU L=56.95,OD=9.53 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FZJ7# L=26.3 |
4 | ||
| 90501-14155 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR L=29.3 |
4 | ||
| 90501-14124 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FZJ7# L=26.3 |
4 | ||
| 90501-14155 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR L=29.3 |
4 | ||
| 90501-14124 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FZJ7# L=26.3 |
4 | ||
| 90501-14155 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR L=29.3 |
4 | ||
| 90501-14124 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FZJ7# L=26.3 |
4 | ||
| 90501-14155 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR L=29.3 |
4 | ||
| 90501-14124 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI L=26.3 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ7# |
4 | ||
| 90360-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ7# |
4 | ||
| 90360-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ7# |
4 | ||
| 90360-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FZJ7# |
4 | ||
| 90360-10003 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ70,75..ARL;FZJ71,74,78,79;LJ72,79,PZJ70,75,RJ7#..4F;FZJ70,73,75,PZJ73..(GCC,GEN,SA)..(CBR,DSL) |
4 | ||
| 90341-12008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ70,75..ARL;FZJ71,74,78,79;LJ72,79,PZJ70,75,RJ7#..4F;FZJ70,73,75,PZJ73..(GCC,GEN,SA)..(CBR,DSL) |
4 | ||
| 90341-12008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ70,75..ARL;FZJ71,74,78,79;LJ72,79,PZJ70,75,RJ7#..4F;FZJ70,73,75,PZJ73..(GCC,GEN,SA)..(CBR,DSL) |
4 | ||
| 90341-12008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FZJ70,75..ARL;FZJ71,74,78,79;LJ72,79,PZJ70,75,RJ7#..4F;FZJ70,73,75,PZJ73..(GCC,GEN,SA)..(CBR,DSL) |
4 | ||
| 90341-12008 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
4 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60020 |
FZJ7# RH |
1 | ||
| 33280-35070 |
PZJ70,73;PZJ75..4F LH |
1 | ||
| 33280-60030 |
FZJ7# LH |
1 | ||
| 33280-35060 |
PZJ70,73;PZJ75..4F RH |
1 | ||
| 33280-60020 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI RH |
1 | ||
| 33280-60021 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR RH |
1 | ||
| 33280-60030 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV LH |
1 | ||
| 33280-60031 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR LH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60020 |
FZJ7# RH |
1 | ||
| 33280-35070 |
PZJ70,73;PZJ75..4F LH |
1 | ||
| 33280-60030 |
FZJ7# LH |
1 | ||
| 33280-35060 |
PZJ70,73;PZJ75..4F RH |
1 | ||
| 33280-60020 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..IV..EFI RH |
1 | ||
| 33280-60021 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR RH |
1 | ||
| 33280-60030 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV LH |
1 | ||
| 33280-60031 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR LH |
1 | ||
| 33280E - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-60030 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90508-10064 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-12008 |
HZJ70..ARL;HZJ75..RHD..5F;HZJ75..LHD..5F..CBU;FJ7#,HZJ71,73,78,79,LJ7#,PZJ7#,RJ7#..5F |
1 | ||
| 96411-41200 |
FZJ73..CBR;FZJ70..HT..CBR;FZJ75..ARL..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
FZJ73,75..CBR;HZJ75..RHD..5F;FZJ75,HZJ70..ARL;HZJ75..LHD..5F..CBU;FJ7#,FZJ70,71,74,78,79,HZJ73..5F |
1 | ||
| 90254-05016 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,GEN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT)..(GCC,GEN)..(CBR,DSL) |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-60070 |
FZJ7# |
1 | ||
| 33521-35131 |
PZJ70,73;PZJ75..4F |
1 | ||
| 33521-60130 |
FZJ75..ARL;FZJ7#..(GCC,GEN)..CBR |
1 | ||
| 33521-60070 |
FZJ73,75..CBU;FZJ70..HT..CBR;FZJ75..LHD..IV;FZJ75..ARL..IV |
1 | ||
| Common parts | ||||
| 90461-10101 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 3609 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
