FZJ71R-RJMRK (1999)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(9001-0701)FJ75,FZJ70,71,74,75,78,HDJ78,HZJ70,75,78,PZJ75..HT,SOT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH | ||||
| 71033-60140 |
HZJ71;FZJ71..GCC;FZJ71..RHD |
1 | ||
| 71034A - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH | ||||
| 71034-60070 |
HZJ71;FZJ71..GCC;FZJ71..RHD |
1 | ||
| 71085B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71085-60141B1 |
FZJ71,HZJ71..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71085-60141E3 |
FZJ71,HZJ71..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71086B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71086-60141E2 |
FZJ71,HZJ71..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71086-60141B0 |
FZJ71,HZJ71..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71088B - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-60201B0 |
HZJ71;FZJ71..RHD SLATE GRAY,TRIM1# |
1 | ||
| 71088-60201E2 |
HZJ71;FZJ71..RHD MD.OAK,TRIM4# |
1 | ||
| 71089B - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-60131B0 |
HZJ71;FZJ71..RHD SLATE GRAY,TRIM1# |
1 | ||
| 71089-60131E1 |
HZJ71;FZJ71..RHD MD.OAK,TRIM4# |
1 | ||
| 71700 - SEAT ASSY, REAR SIDE, RH | ||||
| 71700-60521E2 |
FZJ71,HZJ71..STD..GEN ***,OAK,TRIM4# |
1 | ||
| 71700-60521B1 |
FZJ71,HZJ71..STD..GEN ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-90K02B0 |
HZJ71;FZJ71..GCC;FZJ71..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 71704-90K02E0 |
HZJ71;FZJ71..GCC;FZJ71..RHD OAK,TRIM4# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-90K02B0 |
HZJ71;FZJ71..GCC;FZJ71..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 71704-90K02E0 |
HZJ71;FZJ71..GCC;FZJ71..RHD OAK,TRIM4# |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-60070 |
FZJ71,HZJ71..STD |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-60070 |
FZJ71,HZJ71..STD |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ70,FZJ70,73,75,PZJ70..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL);FJ73,75,FZJ71,74,78,HDJ78,HZJ71,75,LJ72,PZJ73,75,RJ70..(HT,SOT)..STD |
1 | ||
| 71721-90K02 |
FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,HDJ78,HZJ71,78..STD |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ70,FZJ70,73,75,PZJ70..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL);FJ73,75,FZJ71,74,78,HDJ78,HZJ71,75,LJ72,PZJ73,75,RJ70..(HT,SOT)..STD |
1 | ||
| 71721-90K02 |
FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,HDJ78,HZJ71,78..STD |
1 | ||
| 71761A - PAD, REAR SIDE SEAT BACK, RH | ||||
| 71761-90K02 |
FZJ70,73..STD..CBR;FJ70,73,FZJ71,74,HZJ71,LJ72,PZJ70,73,RJ70..STD..(GCC,GEN) |
1 | ||
| 71761-90K02 |
FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71..STD |
1 | ||
| 71761B - PAD, REAR SIDE SEAT BACK, LH | ||||
| 71761-90K02 |
FZJ70,73..STD..CBR;FJ70,73,FZJ71,74,HZJ71,LJ72,PZJ70,73,RJ70..STD..(GCC,GEN) |
1 | ||
| 71761-90K02 |
FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71..STD |
1 | ||
| 71800 - SEAT ASSY, REAR SIDE, LH | ||||
| 71800-60461E2 |
FZJ71,HZJ71..STD..GEN ***,OAK,TRIM4# |
1 | ||
| 71800-60461B1 |
FZJ71,HZJ71..STD..GEN ***,BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||

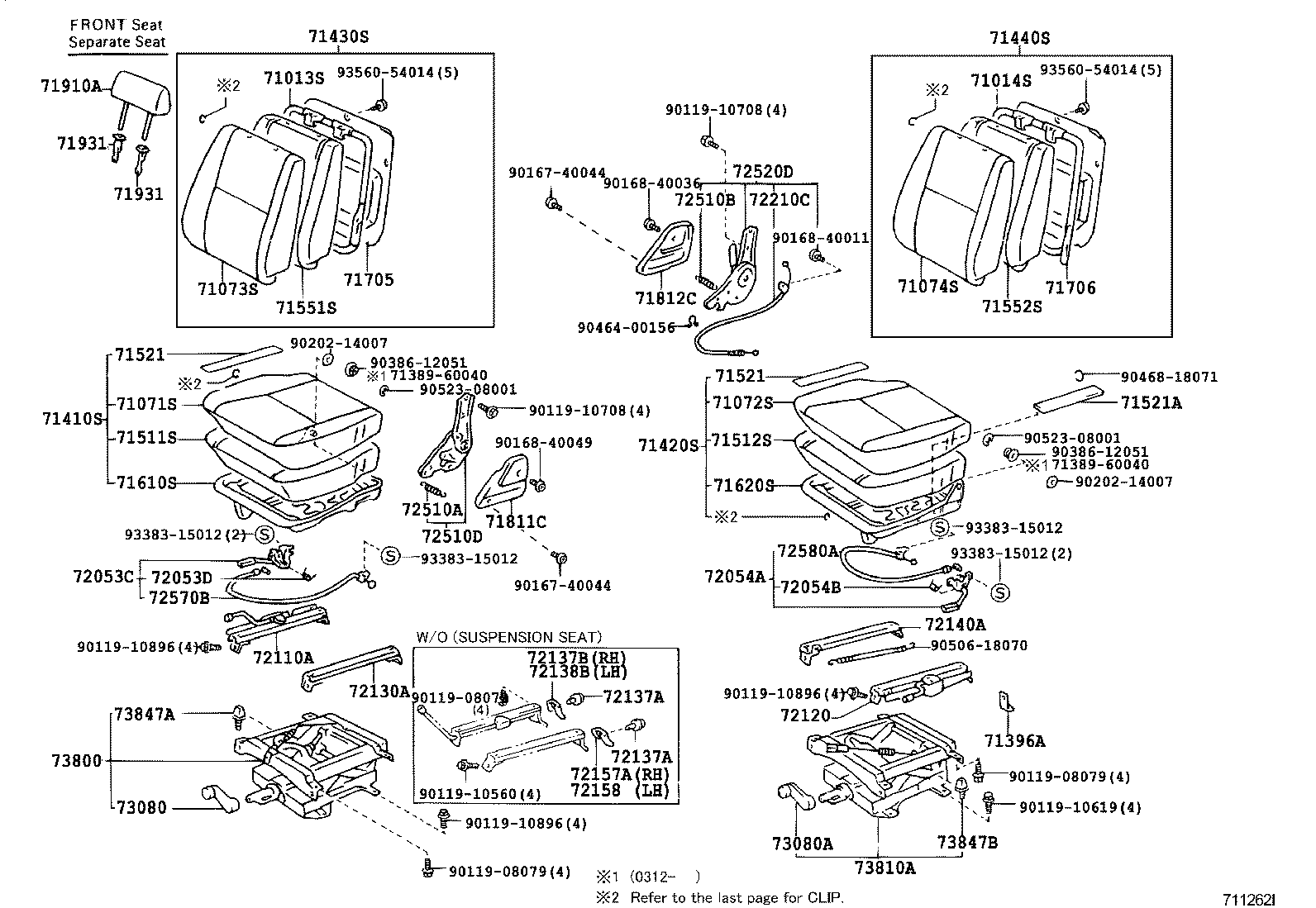

ILLUST NO. 1 OF 3(9001-0701)RHD..HT ; (0111-0701)HDJ79..LX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-60122 |
FZJ74..LX;FZJ78..RHD..GEN;HZJ78..RHD..STD;FZJ71,HDJ78,HZJ71..STD..(ARL,GEN) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-60171 |
FZJ78..RHD..GEN;FZJ71,HDJ78,HZJ71,78..RHD..STD W(BENCH SEAT) |
1 | ||
| 71014-60112 |
HZJ71..HT;FZJ71..RHD;FZJ71,78..GCC;FZJ74,HZJ78..LHD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60402B2 |
HZJ79..ARL..IV;FZJ79,HZJ79..GCC;FZJ71,HZJ71..STD..GEN;FZJ78,79,HZJ78,79..RHD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71071-60402E1 |
HZJ79..ARL..IV;FZJ79,HZJ79..GCC;FZJ71,HZJ71..STD..GEN;FZJ78,79,HZJ78,79..RHD..GEN MD.OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60252B1 |
FZJ71,78,79,HZJ71,78,79..RHD..STD SEAT = TYPE B-*104 & W(BENCH SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71072-60262B1 |
FZJ71,74..STD..GEN;FZJ78,HZJ78..LHD..GEN;FZJ79,HZJ71,79..(HT,PIC)..(GCC,GEN) SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71072-60252E1 |
FZJ71,78,79,HZJ71,78,79..RHD..STD SEAT = TYPE B-*104 & W(BENCH SEAT),MD.OAK,TRIM4# |
1 | ||
| 71072-60262E1 |
FZJ71,74..STD..GEN;FZJ78,HZJ78..LHD..GEN;FZJ79,HZJ71,79..(HT,PIC)..(GCC,GEN) SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71072-60342B1 |
FZJ71..RHD;HZJ78..LHD;FZJ74,79..(PIC,SOT)..CBU;HZJ71,79..(HT,PIC)..(GCC,GEN) SEAT = TYPE B-*104 & W(SEPARATE SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71072-60342E1 |
FZJ71..RHD;HZJ78..LHD;FZJ74,79..(PIC,SOT)..CBU;HZJ71,79..(HT,PIC)..(GCC,GEN) SEAT = TYPE B-*104 & W(SEPARATE SEAT),MD.OAK,TRIM4# |
1 | ||
| 71072-60382E1 |
HZJ79..ARL..IV;FZJ71,78,79,HZJ71,78,79..RHD..GEN MD.OAK,TRIM4# |
1 | ||
| 71072-60382B1 |
HZJ79..ARL..IV;FZJ71,78,79,HZJ71,78,79..RHD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-60202B1 |
FZJ78..RHD..GEN;FZJ71,HDJ78,HZJ71,78..RHD..STD SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71073-60202E1 |
FZJ78..RHD..GEN;FZJ71,HDJ78,HZJ71,78..RHD..STD SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71073-60591E1 |
FZJ78..RHD..GEN;HZJ78..RHD..STD;FZJ71,HDJ78,HZJ71..HT..STD..(ARL,GEN) SEAT = TYPE B-*104 & W(TRANSVERSE REAR SEAT),MD.OAK,TRIM4# |
1 | ||
| 71073-60591B1 |
FZJ78..RHD..GEN;HZJ78..RHD..STD;FZJ71,HDJ78,HZJ71..HT..STD..(ARL,GEN) SEAT = TYPE B-*104 & W(TRANSVERSE REAR SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-60212B1 |
FZJ78..RHD..GEN;FZJ71,HDJ78,HZJ71,78..RHD..STD SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71074-60212E1 |
FZJ78..RHD..GEN;FZJ71,HDJ78,HZJ71,78..RHD..STD SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71074-60541E1 |
FZJ78,HZJ78..LHD..GEN;FZJ71,HZJ71..HT..STD..GEN SEAT = TYPE B-*104 & W(TRANSVERSE REAR SEAT),MD.OAK,TRIM4# |
1 | ||
| 71074-60531E1 |
FZJ78..RHD..GEN;FZJ71,HDJ78,HZJ71,78..RHD..HT..STD SEAT = TYPE B-*104;WALK-IN TYPE,MD.OAK,TRIM4# |
1 | ||
| 71074-60541B1 |
FZJ78,HZJ78..LHD..GEN;FZJ71,HZJ71..HT..STD..GEN SEAT = TYPE B-*104 & W(TRANSVERSE REAR SEAT),SLATE GRAY,TRIM1# |
1 | ||
| 71074-60531B1 |
FZJ78..RHD..GEN;FZJ71,HDJ78,HZJ71,78..RHD..HT..STD SEAT = TYPE B-*104;WALK-IN TYPE,SLATE GRAY,TRIM1# |
1 | ||
| 71396A - PLATE, REAR SEAT BAND HOOK | ||||
| 71396-90K00 |
FZJ70..LX..CBR;FJ70,FZJ70..SOT;FZJ71,HZJ71..HT..GEN;FJ70,73,FZJ73,74,HDJ78,HZJ73,LJ70,72,PZJ70,73,RJ70..LX |
1 | ||
| 71396-90K01 |
FZJ71,HZJ71..HT;FZJ78,HZJ78..STD..(ARL,GEN) W(FRONT BENCH SEAT) |
1 | ||
| 71396-90K00 |
FZJ74,HZJ71..HT;FZJ71..STD..GEN |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-60612B1 |
FZJ71,HZJ71..RHD ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-60612E1 |
FZJ71,HZJ71..RHD ***,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-60732B1 |
FZJ71,HZJ71..RHD..HT ***,SEAT = TYPE B-*104 & W(BENCH SEAT & WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60752E1 |
FZJ71,HZJ71..RHD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71420-60752B1 |
FZJ71,HZJ71..RHD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60542E1 |
FZJ71,HZJ71..RHD..HT ***,SEAT = TYPE B-*104 & W(WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71420-60542B1 |
FZJ71,HZJ71..RHD..HT ***,SEAT = TYPE B-*104 & W(WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-60732E1 |
FZJ71,HZJ71..RHD..HT ***,SEAT = TYPE B-*104 & W(BENCH SEAT & WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-60470E0 |
FZJ71,78,HZJ71,78..RHD..GEN ***,SEAT = TYPE B-*104,OAK,TRIM4# |
1 | ||
| 71040-60470B0 |
FZJ71,78,HZJ71,78..RHD..GEN ***,SEAT = TYPE B-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60282B1 |
FZJ71,HZJ71..HT..STD..GEN;FZJ78,HDJ78,HZJ78..RHD..STD ***,SEAT = TYPE B-*104 & W(WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-60282E1 |
FZJ71,HZJ71..HT..STD..GEN;FZJ78,HDJ78,HZJ78..RHD..STD ***,SEAT = TYPE B-*104 & W(WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71070-60170B0 |
FZJ78,HZJ78..LHD..GEN;FZJ71,HZJ71..HT..STD..GEN ***,SEAT = TYPE B-*104 & W(WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71070-60170E0 |
FZJ78,HZJ78..LHD..GEN;FZJ71,HZJ71..HT..STD..GEN ***,SEAT = TYPE B-*104 & W(WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71440-60302B1 |
FZJ71,78,HDJ78,HZJ71,78..RHD..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60292B1 |
FZJ71,78,HDJ78,HZJ71,78..RHD..HT..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT & WALK-IN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-60302E1 |
FZJ71,78,HDJ78,HZJ71,78..RHD..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 71440-60292E1 |
FZJ71,78,HDJ78,HZJ71,78..RHD..HT..STD ***,SEAT = TYPE B-*104 & W(BENCH SEAT & WALK-IN SEAT),OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60021 |
HZJ79..ARL..IV;HZJ78..RHD..STD;FZJ79,HZJ79..GCC;FZJ74,HDJ7#..HT,PIC;FZJ71,HZJ71..STD..GEN;FZJ78,79,HZJ79..RHD..GEN W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60041 |
HDJ7#..LX;HZJ71..HT;FZJ71..RHD;FZJ71,78..GCC;FZJ79..LHD..CBU;FZJ74,HZJ78,79..LHD |
1 | ||
| 71502-60120 |
HZJ79..ARL..IV;FZJ78,79,HZJ79..RHD..GEN;FZJ71,HDJ7#,HZJ71,78..RHD..STD W(BENCH SEAT) |
1 | ||
| 71521A - PAD,FRONT SEAT CUSHION SILENCER | ||||
| 71521-60020 |
FZJ74,HDJ78..LX;FZJ71,HZJ71..HT..STD..GEN |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60011 |
FZJ74..LX;HZJ79..RHD;HZJ79..GCC;FZJ79..ARL,GCC;FZJ78,79,HZJ78..RHD..CBU;FZJ71,HDJ7#,HZJ71..ARL,GEN |
1 | ||
| 71505-60011 |
FZJ74..LX;HZJ79..ARL..IV;HZJ78..RHD..STD;FZJ78,79,HZJ79..RHD..GEN;FZJ71,HDJ7#,HZJ71..STD..(ARL,GEN) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60011 |
HZJ71..HT;FZJ71..RHD;FZJ71,78..GCC;FZJ79..LHD..CBU;FZJ74,HZJ78,79..LHD |
1 | ||
| 71506-60060 |
HZJ79..ARL..IV;FZJ78,79,HZJ79..RHD..GEN;FZJ71,HDJ7#,HZJ71,78..RHD..STD W(BENCH SEAT) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60091 |
FZJ71,HZJ71..RHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60260 |
FZJ71,HZJ71..RHD W(BENCH SEAT) |
1 | ||
| 79170-60010 |
FZJ71,HZJ71..RHD..HT W(BENCH SEAT & WALK-IN SEAT) |
1 | ||
| 71620-60111 |
FZJ71,HZJ71..RHD..HT |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-60020E1 |
HZJ78..STD;HDJ7#,HZJ71;FZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ74,79..(PIC,SOT)..CBU SANDAL WOOD,TRIM4# |
1 | ||
| 71811-60020B0 |
HZJ78..STD;HDJ7#,HZJ71;FZJ71,78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ74,79..(PIC,SOT)..CBU SHADOW GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-60040E1 |
FZJ78..RHD..GEN;HZJ78..RHD..STD;FZJ71,HDJ78,HZJ71..RHD..HT W(WALK-IN SEAT),SANDAL WOOD,TRIM4# |
1 | ||
| 71812-60040B0 |
FZJ78..RHD..GEN;HZJ78..RHD..STD;FZJ71,HDJ78,HZJ71..RHD..HT W(WALK-IN SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71812-60020B0 |
FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;HDJ78,HZJ78..STD;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71..CBU;FZJ71,HDJ79..ARL,GCC SHADOW GRAY,TRIM1# |
1 | ||
| 71812-60020E1 |
FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;HDJ78,HZJ78..STD;FZJ71,78..RHD..GEN;FZJ74,79,HZJ71..CBU;FZJ71,HDJ79..ARL,GCC SANDAL WOOD,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-6016003 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..(HT,SOT)..(GCC,GEN) BLUISH GRAY,TRIM1# |
2 | ||
| 71910-6016006 |
FJ7#,FZJ7#,HZJ75,LJ7#,PZJ7#,RJ7#..(HT,SOT)..(GCC,GEN) SABLE,TRIM4# |
2 | ||
| 71910-60041E3 |
FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,HZJ71,78..GCC,GEN OAK,TRIM4# |
2 | ||
| 71910-6004112 |
FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,HZJ71,78..GCC,GEN BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040E1 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040B0 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040E1 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040B0 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU W/O(LOCK),OAK,TRIM4# |
2 | ||
| 72053D - SPRING(FOR RECLINING REMOTE CONTROL LEVER RH) | ||||
| 90508-16079 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 90508-16079 |
RJ70..LHD;FZJ7#,HZJ70,75,LJ77..5F;LJ72,79,PZJ7#,RJ77..GCC,GEN |
1 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K00E0 |
HZJ78..LHD;FZJ71..RHD;FZJ74,79..CBU;FZJ71,78..GCC;HZJ71,79..(HT,PIC)..(GCC,GEN) W(SEPARATE SEAT),OAK,TRIM4# |
1 | ||
| 72054-90K00 |
HDJ7#..LX;HZJ71..HT;HZJ78..LHD;FZJ71..RHD;FZJ74..STD..GCC;FZJ71,78,79,HZJ79..GCC W(SEPARATE SEAT) |
1 | ||
| 72054-90K01B0 |
HZJ79..ARL..IV;FZJ78,79,HZJ79..RHD..GEN;FZJ71,HDJ7#,HZJ71,78..RHD..STD W(BENCH SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K00B0 |
HZJ78..LHD;FZJ71..RHD;FZJ74,79..CBU;FZJ71,78..GCC;HZJ71,79..(HT,PIC)..(GCC,GEN) W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72054-90K01E0 |
HZJ79..ARL..IV;FZJ78,79,HZJ79..RHD..GEN;FZJ71,HDJ7#,HZJ71,78..RHD..STD W(BENCH SEAT),OAK,TRIM4# |
1 | ||
| 72054-90K01E0 |
FZJ78,79..RHD..GEN;FZJ71,HDJ7#,HZJ7#..RHD..STD OAK,TRIM4# |
1 | ||
| 72054-90K01B0 |
FZJ78,79..RHD..GEN;FZJ71,HDJ7#,HZJ7#..RHD..STD BLUISH GRAY,TRIM1# |
1 | ||
| 72054B - SPRING(FOR RECLINING REMOTE CONTROL LEVER LH) | ||||
| 90508-16080 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90508-16080 |
HDJ7#..LX;HZJ78..LHD;FZJ71..RHD;FZJ71,78..GCC;FZJ74,79..CBU;HZJ71,79..(HT,PIC)..(GCC,GEN) |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-60230 |
FZJ71,HZJ71..RHD |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-60260 |
FZJ71,HZJ71..RHD |
1 | ||
| 72120-60260 |
FZJ71,HZJ71..RHD |
1 | ||
| 72120-60270 |
FZJ71,HZJ71..RHD..HT W(SEPARATE SEAT) |
1 | ||
| 72120-90K02 |
FZJ71,HZJ71..RHD..HT W(WALK-IN) |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-90K00 |
LJ77;HZJ70..ARL;LJ79,RJ77..LHD..LX..GEN;FJ70,73,FZJ70,71,HZJ71,73,LJ70,72,79,PZJ70,73,RJ7#..RHD |
1 | ||
| 72130-90K00 |
FZJ71,HZJ71..RHD |
1 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ74..LX;FZJ71,HZJ71..HT..STD BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ74..LX;FZJ71,HZJ71..HT..STD OAK,TRIM4# |
4 | ||
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-05090B0 |
FZJ74..LX;FZJ71,HZJ71..HT..STD BLUISH GRAY,TRIM1# |
4 | ||
| 90467-05090E1 |
FZJ74..LX;FZJ71,HZJ71..HT..STD OAK,TRIM4# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-90K02B0 |
FZJ71,HZJ71..HT BLUISH GRAY,TRIM1# |
1 | ||
| 72137-60020B0 |
FZJ74,HZJ71..HT;FZJ71..STD..GEN W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72137-90K02E0 |
FZJ71,HZJ71..HT OAK,TRIM4# |
1 | ||
| 72137-60020E0 |
FZJ74,HZJ71..HT;FZJ71..STD..GEN W(SEPARATE SEAT),OAK,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-90K02B0 |
FZJ71,HZJ71..RHD..HT BLUISH GRAY,TRIM1# |
1 | ||
| 72137-90K0101 |
FZJ71,HZJ71..RHD..HT BLACK,TRIM1#,4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-60170 |
FZJ71,HZJ71..RHD..HT W(SEPARATE SEAT) |
1 | ||
| 72140-90K01 |
FZJ71,HZJ71..RHD..HT |
1 | ||
| 72140-90K05 |
FZJ71,HZJ71..RHD W(BENCH SEAT) |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-60110B0 |
FZJ74,HZJ71..HT;FZJ71..STD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 72157-90K00B0 |
FZJ71,HZJ71..HT W(WALK-IN),BLUISH GRAY,TRIM1# |
1 | ||
| 72157-60110E0 |
FZJ74,HZJ71..HT;FZJ71..STD..GEN OAK,TRIM4# |
1 | ||
| 72157-90K00E0 |
FZJ71,HZJ71..HT W(WALK-IN),OAK,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-90K00E0 |
FZJ74..LX;FZJ71,HZJ71..HT..STD OAK,TRIM4# |
1 | ||
| 72157-90K00B0 |
FZJ74..LX;FZJ71,HZJ71..HT..STD BLUISH GRAY,TRIM1# |
1 | ||
| 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH | ||||
| 72210-90K03 |
FZJ71,78,HZJ71,78,LJ72..RHD..HT;FJ70,FZJ70,PZJ70,RJ70..RHD..HT..GEN W(WALK-IN) |
1 | ||
| 72210-90K01 |
FJ70,FZJ70,PZJ70..RHD..HT..GEN;FJ73,FZJ71,HZJ71,73,LJ70,72,PZJ73,RJ70..RHD..HT |
1 | ||
| 72210-90K01 |
FZJ71,HZJ71..RHD..HT |
1 | ||
| 72210-90K03 |
HZJ78..RHD..STD;FZJ71,78,HZJ71..RHD..HT..GEN W(WALK-IN) |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-90K00 |
HZJ70..ARL;FJ7#,FZJ70,71,75,78,HDJ78,HZJ71,73,75,78,LJ70,72,PZJ7#,RJ70..RHD..(HT,SOT) |
1 | ||
| 72510-90K00 |
FZJ71,78,HDJ78,HZJ71,78..RHD |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-90K02 |
FZJ79..CBU;HZJ79..GCC,GEN;FZJ78..RHD..GEN;HDJ79,HZJ79..ARL..IV;FZJ71,HDJ78,HZJ71,78..RHD..STD W(BENCH SEAT) |
1 | ||
| 72520-60080 |
FZJ71,HZJ71..RHD..HT W(SEPARATE SEAT) |
1 | ||
| 72520-60090 |
FZJ78..RHD..GEN;FZJ71,HDJ78,HZJ71,78..RHD..HT..STD W(WALK-IN) |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72570-90K00 |
FZJ74..LX;HZJ79..ARL..IV;HZJ78..RHD..STD;FZJ79,HZJ79..GCC;FZJ71,HZJ71..STD..GEN;FZJ78,79,HZJ79..RHD..GEN W(SEPARATE SEAT) |
1 | ||
| 72580A - CABLE ASSY, RECLINING ADJUSTING, LH | ||||
| 72580-90K00 |
RJ70;FZJ75..LHD..CBR;HZJ75..LHD..CBU;HZJ78..LHD..GEN;FJ75,FZJ78,PZJ75..LHD;FJ73,FZJ71,74,HZJ73,LJ70,PZJ73..4FC,5F;FZJ79,HZJ71,PZJ70..(HT,PIC)..(GCC,GEN);FJ70,FZJ70,73,HZJ79,LJ72,77,79,RJ77..(GCC,GEN)..(CBR,DSL,TD) W(SEPARATE SEAT) |
1 | ||
| 72580-90K01 |
FZJ71,HZJ7#..RHD;FZJ78,79..RHD..GEN W(BENCH SEAT) |
1 | ||
| 72580-90K00 |
HZJ78..LHD;FZJ71..RHD;FZJ74,79..CBU;FZJ71,78..GCC;HZJ71,79..(HT,PIC)..(GCC,GEN) W(SEPARATE SEAT) |
1 | ||
| Common parts | ||||
| 71389-60040 | ||||
| 90119-08079 | ||||
| 90119-10560 | ||||
| 90119-10619 | ||||
| 90119-10708 | ||||
| 90119-10896 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12051 | ||||
| 90464-00156 | ||||
| 90468-18071 | ||||
| 90506-18070 | ||||
| 90523-08001 | ||||
| 93383-15012 | ||||
| 93560-54014 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58048A - HOOK SUB-ASSY, ROPE, NO.1 | ||||
| 58048-90K00 |
FZJ74..LX;FZJ71,HZJ71..HT..STD RH |
1 | ||
| 66046-60010 |
FZJ74..LX;FZJ71,HZJ71..HT..STD LH |
1 | ||
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-90K00 |
FZJ71,HZJ71..HT..STD |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-60212 |
FZJ74..LX;FZJ71,HZJ71..HT..STD |
1 | ||
| 71033 - LEG SUB-ASSY, REAR SEAT CUSHION | ||||
| 71033-60090 |
FZJ74..LX;FZJ71,HZJ71..HT..STD W(REAR SEAT BELT) |
1 | ||
| 71033-60100 |
FZJ71,74,HZJ71..HT..GEN |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-60352B1 |
FZJ71,HZJ71..HT..STD..GEN GRAY,TRIM1# |
1 | ||
| 71075-60352E1 |
FZJ71,HZJ71..HT..STD..GEN OAK,TRIM4# |
1 | ||
| 71075-60352B1 |
FZJ71,HZJ71..HT..STD..GEN GRAY,TRIM10 |
1 | ||
| 71075-60352E1 |
FZJ71,HZJ71..HT..STD..GEN OAK,TRIM40 |
1 | ||
| 71075-60352B2 |
FZJ71,HZJ71..HT..STD..GEN SLATE GRAY,TRIM10 |
1 | ||
| 71075-60352E2 |
FZJ71,HZJ71..HT..STD..GEN MD.OAK,TRIM40 |
1 | ||
| 71075-60352E2 |
FZJ71,HZJ71..HT..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71075-60352B2 |
FZJ71,HZJ71..HT..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-60262E1 |
FZJ71,HZJ71..HT..STD..GEN SEAT = TYPE B-*104,OAK,TRIM40 |
1 | ||
| 71077-60262B1 |
FZJ71,HZJ71..HT..STD..GEN SEAT = TYPE B-*104,GRAY,TRIM10 |
1 | ||
| 71077-6A380E0 |
FZJ71,HZJ71..HT..STD..GEN W(REAR HEADREST),OAK,TRIM40 |
1 | ||
| 71077-6A380B0 |
FZJ71,HZJ71..HT..STD..GEN W(REAR HEADREST),GRAY,TRIM10 |
1 | ||
| 71077-60262E2 |
FZJ71,HZJ71..HT..STD..GEN SEAT = TYPE B-*104,MD.OAK,TRIM4# |
1 | ||
| 71077-60262B2 |
FZJ71,HZJ71..HT..STD..GEN SEAT = TYPE B-*104,SLATE GRAY,TRIM1# |
1 | ||
| 71077-6A380E1 |
FZJ71,HZJ71..HT..STD..GEN W(REAR HEADREST),MD.OAK,TRIM4# |
1 | ||
| 71077-6A380B1 |
FZJ71,HZJ71..HT..STD..GEN W(REAR HEADREST),SLATE GRAY,TRIM1# |
1 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-90K00 |
FZJ74..LX;FZJ71,HZJ71..HT..STD |
2 | ||
| 71382A - BRACKET, REAR SEAT CUSHION SET, LH | ||||
| 71308-90K00 |
FZJ71,HZJ71..HT..STD |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-90K03 |
FZJ71,HZJ71..HT..STD |
1 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71651-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
2 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-60011 |
FZJ71,74,HZJ71..HT |
1 | ||
| 71507-60011 |
FZJ74..LX;FZJ71,HZJ71..HT..STD |
1 | ||
| 71663 - PAD, REAR SEAT BACK, LOWER | ||||
| 71663-60070 |
FZJ71,74,78,HZJ71,78..HT..GEN T=4.5 |
2 | ||
| 71663-60060 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W(LOCK),OAK,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040B0 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71931-28050E1 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-28050B0 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W/O(LOCK),BLUE GRAY,TRIM1# |
2 | ||
| 71930-28040E1 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W(LOCK),OAK,TRIM4# |
2 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-60030 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
4 | ||
| 71955A - SUPPORT, REAR SEAT HEADREST | ||||
| 71955-60030 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
4 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-60010 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-60010 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
1 | ||
| 72607 - STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK | ||||
| 72607-90K00 |
FJ70..LX..GCC;FZJ78,HZJ78..ARL,GEN;FZJ71,74,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL W(REAR SEAT BELT) |
2 | ||
| 72691-90K01 |
FJ70..LX..GCC;FJ70,FZJ70..GEN..CBR;FJ73,FZJ73,PZJ75..LHD..HT;FZJ75,LJ79,RJ77..HT..STD..GEN..(CBR,DSL);FJ75,FZJ71,74,78,HZJ71,75,78,LJ70,72,PZJ70,RJ70..HT..GEN |
1 | ||
| 72607-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W(REAR SEAT BELT) |
2 | ||
| 72691-90K01 |
FZJ71,74,78,HZJ71,78..HT..GEN |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
FZJ70..LX..CBR;FZJ78,HZJ78..ARL,GEN;FZJ71,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL;FJ70,73,FZJ73,74,LJ70,72,PZJ70,RJ70..LHD..LX W(REAR SEAT BELT) |
2 | ||
| 72660-90K01 |
FJ70..LX..GCC;FJ73,FZJ73..LHD..LX;FJ70,FZJ70,75..(HT,SOT)..GEN..CBR;FJ75,FZJ71,74,78,HZJ71,75,78,LJ70,72,PZJ70,75,RJ70..HT..GEN |
1 | ||
| 72660-90K01 |
FZJ71,74,78,HZJ71,78..HT..GEN |
1 | ||
| 72660-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W(REAR SEAT BELT) |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-90K00 |
FZJ70..LX..CBR;FZJ78,HZJ78..ARL,GEN;FZJ71,HDJ78,HZJ71..HT;FJ75,FZJ75,HZJ75..HT..STD..ARL;FJ70,73,FZJ73,74,LJ70,72,PZJ70,RJ70..LHD..LX W(REAR SEAT BELT) |
2 | ||
| 72660-90K01 |
FJ70..LX..GCC;FJ73,FZJ73..LHD..LX;FJ70,FZJ70,75..(HT,SOT)..GEN..CBR;FJ75,FZJ71,74,78,HZJ71,75,78,LJ70,72,PZJ70,75,RJ70..HT..GEN |
1 | ||
| 72660-90K01 |
FZJ71,74,78,HZJ71,78..HT..GEN |
1 | ||
| 72660-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD W(REAR SEAT BELT) |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
1 | ||
| 72690A - STRAP ASSY, REAR SEAT LOCK RELEASE | ||||
| 72690-60010B0 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD BLUISH GRAY,TRIM1# |
1 | ||
| 72690-60010E0 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD OAK,TRIM4# |
1 | ||
| 72694 - COVER, REAR SEAT CUSHION LOCK | ||||
| 72694-90K00 |
FZJ74..LX;FZJ71,HZJ71..HT..STD |
2 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-90K00 |
FZJ74..LX;FZJ71,HZJ71..HT..STD |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78920-90K00 |
FJ70..LX..GCC;FZJ71,74,HZJ71..HT W(REAR SEAT BELT) |
1 | ||
| 78920-90K01 |
FJ70..LX..GCC;FJ73,FZJ73..LHD..LX;FJ70,FZJ70..GEN..CBR;FZJ71,74,HZJ71,LJ70,72,PZJ70,RJ70..HT..GEN |
1 | ||
| 78920-90K01 |
FZJ71,74,HZJ71..HT..GEN |
1 | ||
| 78920-90K00 |
FZJ74..LX;FZJ71,HZJ71..HT..STD W(REAR SEAT BELT) |
1 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
2 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
2 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
2 | ||
| 78935 - CUSHION, FOLD SEAT BACK LOCK | ||||
| 78935-90K00 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD |
2 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-90K00E1 |
FZJ78,HZJ78..ARL,GEN;FZJ71,74,HDJ78,HZJ71..HT OAK,TRIM4# |
1 | ||
| 78950-90K00B0 |
FZJ78,HZJ78..ARL,GEN;FZJ71,74,HDJ78,HZJ71..HT BLUISH GRAY,TRIM1# |
1 | ||
| 78950-90K00B0 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD BLUISH GRAY,TRIM1# |
1 | ||
| 78950-90K00E1 |
FZJ78..GEN;FZJ74,HDJ78..HT;FZJ71,HZJ71,78..HT..STD OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 90105-11007 | ||||
| 90119-10035 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90119-10493 | ||||
| 90159-60108 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90249-08141 | ||||
| 90387-10069 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91651-60620 | ||||
| 93313-16014 | ||||
| 93316-16014 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71033B - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 RH | ||||
| 71033-60140 |
HZJ71;FZJ71..GCC;FZJ71..RHD |
1 | ||
| 71034A - LEG SUB-ASSY, REAR SIDE SEAT CUSHION, NO.1 LH | ||||
| 71034-60070 |
HZJ71;FZJ71..GCC;FZJ71..RHD |
1 | ||
| 71085B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH | ||||
| 71085-60141B1 |
FZJ71,HZJ71..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71085-60141E3 |
FZJ71,HZJ71..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71086B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH | ||||
| 71086-60141E2 |
FZJ71,HZJ71..STD..GEN MD.OAK,TRIM4# |
1 | ||
| 71086-60141B0 |
FZJ71,HZJ71..STD..GEN SLATE GRAY,TRIM1# |
1 | ||
| 71088B - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH | ||||
| 71088-60201B0 |
HZJ71;FZJ71..RHD SLATE GRAY,TRIM1# |
1 | ||
| 71088-60201E2 |
HZJ71;FZJ71..RHD MD.OAK,TRIM4# |
1 | ||
| 71089B - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH | ||||
| 71089-60131B0 |
HZJ71;FZJ71..RHD SLATE GRAY,TRIM1# |
1 | ||
| 71089-60131E1 |
HZJ71;FZJ71..RHD MD.OAK,TRIM4# |
1 | ||
| 71700 - SEAT ASSY, REAR SIDE, RH | ||||
| 71700-60521E2 |
FZJ71,HZJ71..STD..GEN ***,OAK,TRIM4# |
1 | ||
| 71700-60521B1 |
FZJ71,HZJ71..STD..GEN ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71704 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71704-90K02B0 |
HZJ71;FZJ71..GCC;FZJ71..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 71704-90K02E0 |
HZJ71;FZJ71..GCC;FZJ71..RHD OAK,TRIM4# |
1 | ||
| 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 | ||||
| 71704-90K02B0 |
HZJ71;FZJ71..GCC;FZJ71..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 71704-90K02E0 |
HZJ71;FZJ71..GCC;FZJ71..RHD OAK,TRIM4# |
1 | ||
| 71710A - FRAME ASSY, REAR SIDE SEAT, RH | ||||
| 71710-60070 |
FZJ71,HZJ71..STD |
1 | ||
| 71720A - FRAME ASSY, REAR SIDE SEAT, LH | ||||
| 71720-60070 |
FZJ71,HZJ71..STD |
1 | ||
| 71721 - PAD, REAR SIDE SEAT CUSHION, RH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ70,FZJ70,73,75,PZJ70..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL);FJ73,75,FZJ71,74,78,HDJ78,HZJ71,75,LJ72,PZJ73,75,RJ70..(HT,SOT)..STD |
1 | ||
| 71721-90K02 |
FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,HDJ78,HZJ71,78..STD |
1 | ||
| 71722 - PAD, REAR SIDE SEAT CUSHION, LH | ||||
| 71721-90K02 |
FZJ75..STD..ARL..CBU;HZJ78..STD..(ARL,GEN);FJ70,FZJ70,73,75,PZJ70..(HT,SOT)..STD..(GCC,GEN)..(CBR,DSL);FJ73,75,FZJ71,74,78,HDJ78,HZJ71,75,LJ72,PZJ73,75,RJ70..(HT,SOT)..STD |
1 | ||
| 71721-90K02 |
FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,HDJ78,HZJ71,78..STD |
1 | ||
| 71761A - PAD, REAR SIDE SEAT BACK, RH | ||||
| 71761-90K02 |
FZJ70,73..STD..CBR;FJ70,73,FZJ71,74,HZJ71,LJ72,PZJ70,73,RJ70..STD..(GCC,GEN) |
1 | ||
| 71761-90K02 |
FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71..STD |
1 | ||
| 71761B - PAD, REAR SIDE SEAT BACK, LH | ||||
| 71761-90K02 |
FZJ70,73..STD..CBR;FJ70,73,FZJ71,74,HZJ71,LJ72,PZJ70,73,RJ70..STD..(GCC,GEN) |
1 | ||
| 71761-90K02 |
FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71..STD |
1 | ||
| 71800 - SEAT ASSY, REAR SIDE, LH | ||||
| 71800-60461E2 |
FZJ71,HZJ71..STD..GEN ***,OAK,TRIM4# |
1 | ||
| 71800-60461B1 |
FZJ71,HZJ71..STD..GEN ***,BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 79977-60040 | ||||
| 90119-08364 | ||||
| 90249-08141 | ||||
| 90508-20072 | ||||
| 96160-00600 | ||||
(9001- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-14018 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(0701- )FZJ71,GRJ71,HZJ71..HT
TRANSVERSE REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71434-95701 | ||||
| 82711-12120 | ||||
| 90105-11007 | ||||
| 90119-10035 | ||||
| 90119-10037 | ||||
| 90119-10101 | ||||
| 90159-60108 | ||||
| 90168-40011 | ||||
| 90183-08003 | ||||
| 90183-08073 | ||||
| 90202-08039 | ||||
| 90204-11042 | ||||
| 90387-10069 | ||||
| 90389-09005 | ||||
| 90467-08053 | ||||
| 91512-G1025 | ||||
| 91553-80820 | ||||
| 91651-60620 | ||||
| 93313-16014 | ||||
| 96160-00600 | ||||
(0701- )FZJ71,GRJ71,HZJ71..STD
PARALLEL REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71434-95701 | ||||
| 79977-60040 | ||||
| 90176-10008 | ||||
| 90508-20072 | ||||
| 91673-80818 | ||||
| 96160-00600 | ||||
(0701- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-14018 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
