FZJ71R-RJMRK (1999)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(9001-0701)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER | ||||
| 53028-60040 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53210-60131 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,79,HDJ7#,HZJ71 *** |
1 | ||
| 53210-60131 |
HDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53210-60131 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,79,HDJ7#,HZJ71 *** |
1 | ||
| 53210-60131 |
HDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53210-60131 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,79,HDJ7#,HZJ71 *** |
1 | ||
| 53210-60131 |
HDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53210-60131 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,79,HDJ7#,HZJ71 *** |
1 | ||
| 53210-60131 |
HDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-60111 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-60111 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-60020 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-60060 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 53217-60060 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH | ||||
| 53292-60010 |
FZJ71,78,79..RHD..GEN |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-60730 |
FZJ71,78,79..RHD..GEN W(CLUTCH BOOSTER) |
1 | ||
| 53701-6A030 |
FZJ71,78,79..RHD..GEN |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-6A150 |
FZJ71,78,79..RHD..GEN W(AIR CONDITIONER) |
1 | ||
| 53702-6A120 |
FZJ71,78,79..RHD..GEN W(WINCH) |
1 | ||
| 53702-6A160 |
FZJ71,78,79..RHD..GEN |
1 | ||
| 53702-6A090 |
FZJ71,78,79..RHD..GEN W(AIR CONDITIONER & WINCH) |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-60090 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-60080 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53825A - PROTECTOR, FRONT FENDER, UPPER RH | ||||
| 53825-60020 |
FJ75..STD;HZJ75..RHD;FZJ73,75..CBR;HZJ75..LHD..CBU;FZJ75,HZJ70..ARL;FJ70,73,FZJ70,71,74,78,79,HJ75,HZJ71,73,78,79,PZJ7# |
1 | ||
| 53825-60020 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 53882-60030 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 53882-60030 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 53882-60030 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 55133A - REINFORCEMENT, DASH TO FLOOR, RH | ||||
| 55133-60020 |
FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 |
1 | ||
| 55134A - REINFORCEMENT, DASH TO FLOOR, LH | ||||
| 55134-60010 |
FZJ71..GCC;FZJ71..RHD;FZJ74,HZJ71 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-60030 |
HZJ70..ARL;FJ7#,FZJ70,71,75,78,79,HJ75,HZJ71,73,75,78,79,LJ7#,PZJ7#,RJ7#..RHD |
1 | ||
| 55210-60030 |
FZJ71,78,79,HZJ71,78,79..RHD..GEN |
1 | ||
| 55210-60110 |
HZJ79..ARL..IV;HZJ78..RHD..STD;FZJ71,HDJ7#,HZJ71..RHD;FZJ78,79,HZJ79..RHD..GEN W(HEATER) |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-60131 |
FZJ71,HDJ7#..RHD;FZJ78,79..RHD..GEN |
1 | ||
| Common parts | ||||
| 90467-07132 | ||||
| 90467-08011 | ||||
| 90467-08030 | ||||
| 90467-08186 | ||||
| 90467-1001601 | ||||
| 90467-13035 | ||||
| 90950-01049 | ||||
| 90950-01448 | ||||
| 91621-40612 | ||||
| 91621-40814 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 91661-40612 | ||||

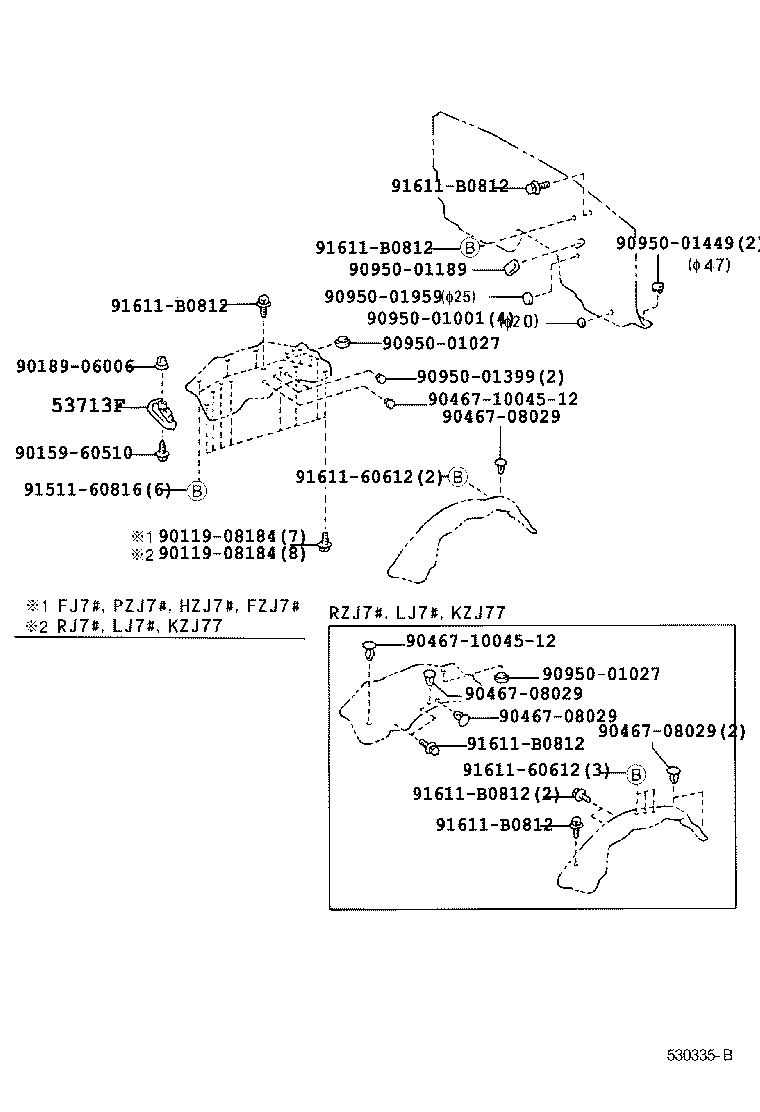

ILLUST NO. 2 OF 2(9001-0701)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53713F - PLATE, FENDER APRON SPLASH, RH | ||||
| 53713-60030 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU |
1 | ||
| 53713-60030 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08184 | ||||
| 90159-60510 | ||||
| 90189-06006 | ||||
| 90467-08029 | ||||
| 90467-1004512 | ||||
| 90950-01001 | ||||
| 90950-01027 | ||||
| 90950-01189 | ||||
| 90950-01399 | ||||
| 90950-01449 | ||||
| 90950-01959 | ||||
| 91511-60816 | ||||
| 91611-60612 | ||||
| 91611-B0812 | ||||
ILLUST NO. 1 OF 2(0701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08190 | ||||
| 90119-08892 | ||||
| 90179-06161 | ||||
| 90179-06178 | ||||
| 90467-08217 | ||||
| 90467-10186 | ||||
| 90467-11122 | ||||
| 90561-09013 | ||||
| 90561-11004 | ||||
| 91511-B0816 | ||||
| 91621-40612 | ||||
| 91621-40814 | ||||
| 91651-60616 | ||||
| 91651-B0822 | ||||
