FZJ71R-RJMRK (1999)
Toyota Land Cruiser
Production
Aug 1999
-
Jan 2007
Engine
1FZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

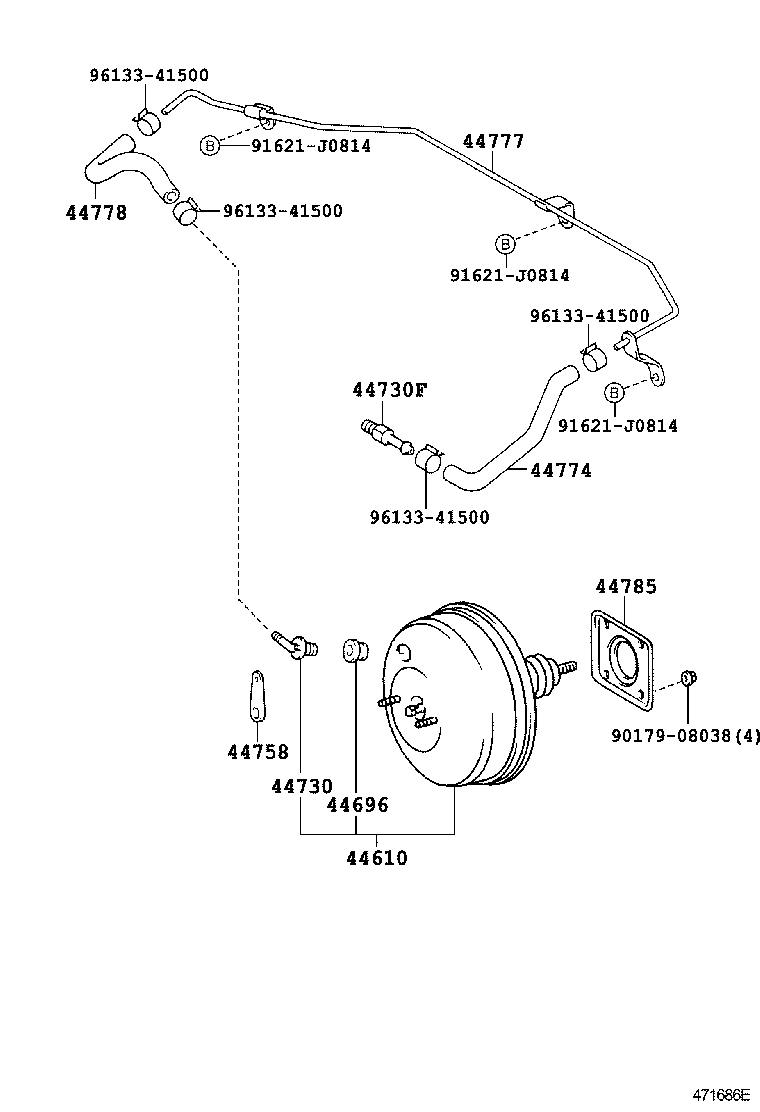

(9908- )FZJ71,78,79..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-6A160 |
FZJ71,78,79..RHD..GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
RJ7#..LHD;FJ7#,FZJ7# |
1 | ||
| 44730-14050 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-60080 |
FZJ74,79..CBU;FZJ71,78..GCC;FZJ71,78..RHD..GEN |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-60220 |
FZJ71,78,79..RHD..GEN |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60280 |
FZJ71,78,79..RHD..GEN |
1 | ||
| 44799-60180 |
FZJ71,78,79..RHD..GEN W(*CLB) |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 95446-09220 |
FZJ71,78,79..RHD..GEN |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
HZJ78..STD;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,74,78,79,HDJ7#,HZJ71 |
1 | ||
| 44785-35030 |
HDJ79,HZJ79;FZJ71,78..GCC;FZJ71,78..RHD..GEN;FZJ74,79,HDJ78,HZJ71,78..CBU |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91621-J0814 | ||||
| 96133-41500 | ||||

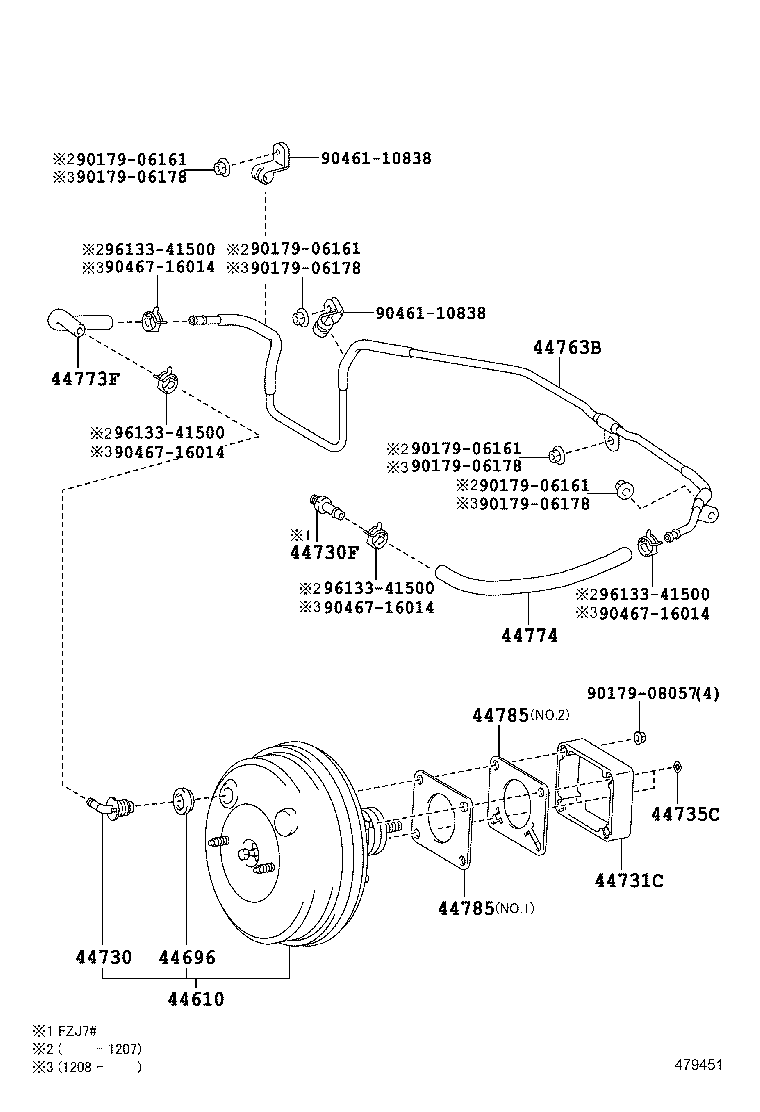

(0701- )FZJ71,78,79,GRJ71,78,79..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90461-10838 | ||||
| 90467-16014 | ||||
| 96133-41500 | ||||
