FZJ71L-RJMNK (1999)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77107A - CARRIER SUB-ASSY, AUXILIARY FUEL TANK | ||||
| 77107-90K00 |
FZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 77107-90K00 |
FZJ71,74,HZJ71 |
1 | ||
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..(ARL,GCC,GEN)..CBU W(AUXILIARY FUEL TANK 5 PIECE) |
5 | ||
| 77110-60011 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;HZJ75..RHD..(ARL,GEN);FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN |
1 | ||
| 77110-60011 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN W(AUXILIARY FUEL TANK 3 PIECE) |
3 | ||
| 77110-60011 |
HZJ78..ARL,GEN;HZJ75..LHD..CBU;FZJ70,75,HZJ70..ARL;HZJ75..RHD..(ARL,GEN);FZJ70,73,75..(GCC,GEN)..CBR;FJ7#,FZJ71,74,78,79,HDJ7#,HZJ71,73,79,LJ7#,PZJ7#,RJ7#..ARL,GCC,GEN W(AUXILIARY FUEL TANK 2 PIECE) |
2 | ||
| 77110-60011 |
FJ7#,FZJ7#,HZJ7#,LJ7#,PZJ7#,RJ7#..(ARL,GCC,GEN)..CBU W(AUXILIARY FUEL TANK 4 PIECE) |
4 | ||
| 77110-60011 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN W(AUXILIARY FUEL TANK 2 PIECE) |
2 | ||
| 77110-60011 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77130 - BRACKET ASSY, AUXILIARY FUEL TANK | ||||
| 77130-60032 |
FZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD) |
1 | ||
| 77130-60032 |
FZJ71..LHD..GEN |
1 | ||
| 77196A - PAD, AUXILIARY FUEL TANK CARRIER | ||||
| 77196-90K01 |
FZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD) |
2 | ||
| 77196-90K01 |
FZJ71,74,HZJ71 |
2 | ||
| 77197B - COVER, AUXILIARY FUEL TANK CARRIER | ||||
| 77197-90K00 |
FZJ71,74,HZJ71 |
2 | ||
| 77197-90K00 |
FZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD) |
2 | ||
| 77197B - COVER, AUXILIARY FUEL TANK CARRIER | ||||
| 77197-90K00 |
FZJ71,74,HZJ71 |
2 | ||
| 77197-90K00 |
FZJ71,74;FJ70,73,FZJ70,73,HZJ71,LJ7#,PZJ70,73,RJ7#..(GCC,GEN)..(CBR,DSL,TD) |
2 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||

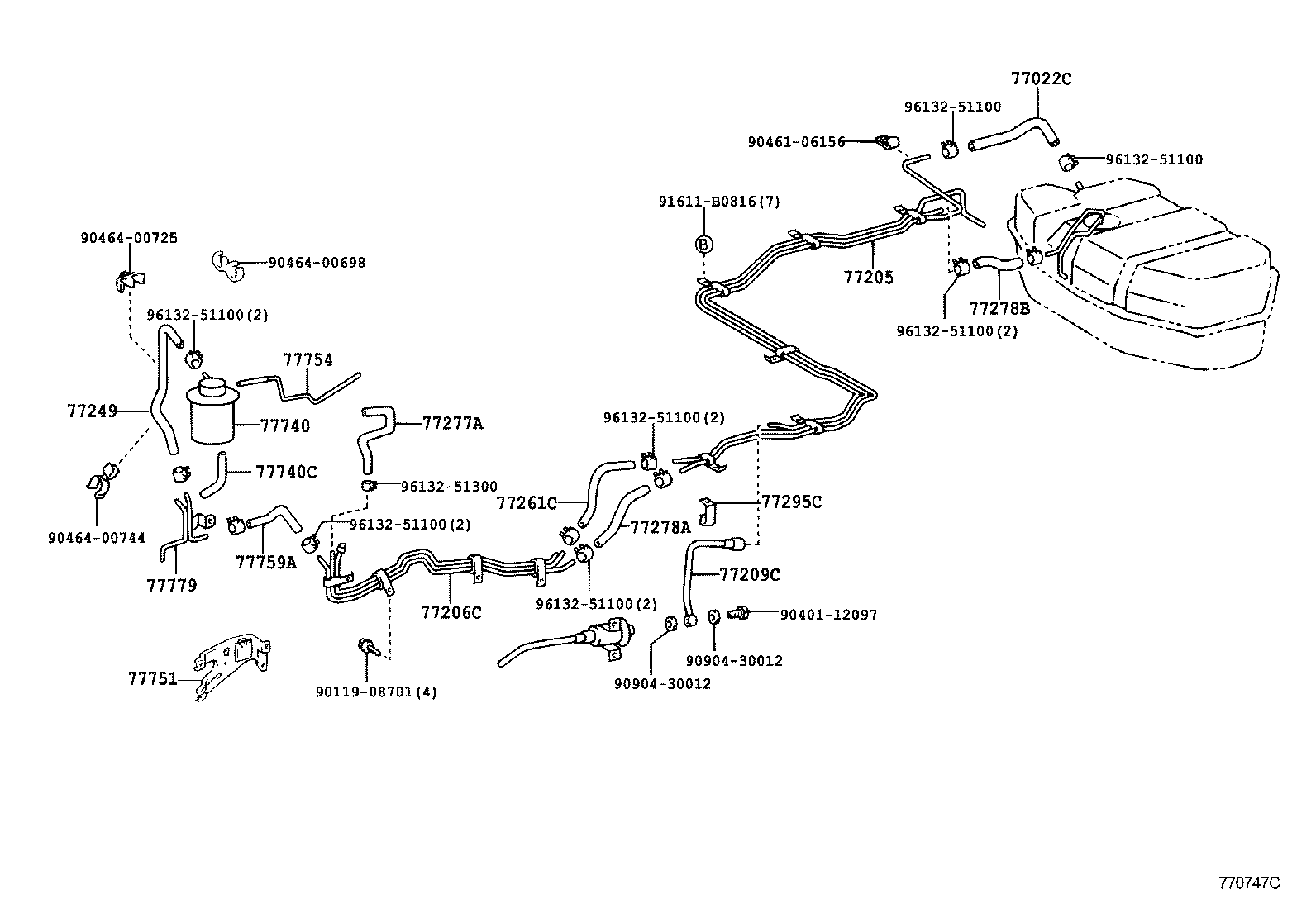

ILLUST NO. 2 OF 3(9908-0808)FZJ71,74..LHD
FUEL TUBE W(CHARCOAL CANISTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-06030 |
FZJ71..LHD..GEN |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-6A240 |
FZJ71..GEN |
1 | ||
| 77205-6A181 |
FZJ71..LHD..GEN VENEZUELA SPEC |
1 | ||
| 77205-6A241 |
FZJ71..GEN |
1 | ||
| 77205-6A240 |
FZJ71..GEN |
1 | ||
| 77205-6A181 |
FZJ71..LHD..GEN VENEZUELA SPEC |
1 | ||
| 77205-6A241 |
FZJ71..LHD..GEN |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60220 |
FZJ71,74..GEN |
1 | ||
| 77206-60111 |
FZJ71..LHD;FZJ74..STD;FZJ74..LX..GCC |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60220 |
FZJ71,74..GEN |
1 | ||
| 77206-60111 |
FZJ71..LHD..GEN |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60250 |
FZJ71,74 |
1 | ||
| 77209-60250 |
FZJ71..LHD..GEN |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60160 |
FZJ79..GEN..IV;FZJ71..LHD..GEN |
1 | ||
| 77261C - HOSE, FUEL, NO.3 (FOR FUEL EMISSION TUBE) | ||||
| 95334-06014 |
FZJ71..LHD..GEN *H,L=140 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
FZJ71,74,HZJ71..GEN *H,L=280 |
1 | ||
| 95334-06014 |
FZJ71,74..GEN;FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU *H,L=140 |
1 | ||
| 95333-06020 |
FZJ71..LHD..GEN *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
FZJ71..LHD..GEN *H,L=180 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-60200 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60410 |
FZJ79..GEN..IV;FZJ71..LHD..GEN |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77795-60040 |
FZJ79..GEN..IV;FZJ71..LHD..GEN |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-60170 |
FZJ79..GEN..IV;FZJ71..LHD..GEN |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-60250 |
FZJ79..GEN..IV;FZJ71..LHD..GEN |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 95333-06020 |
FZJ79..GEN..IV;FZJ71..LHD..GEN |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-60040 |
FZJ79..GEN..IV;FZJ71..LHD..GEN |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90401-12097 | ||||
| 90461-06156 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-B0816 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||

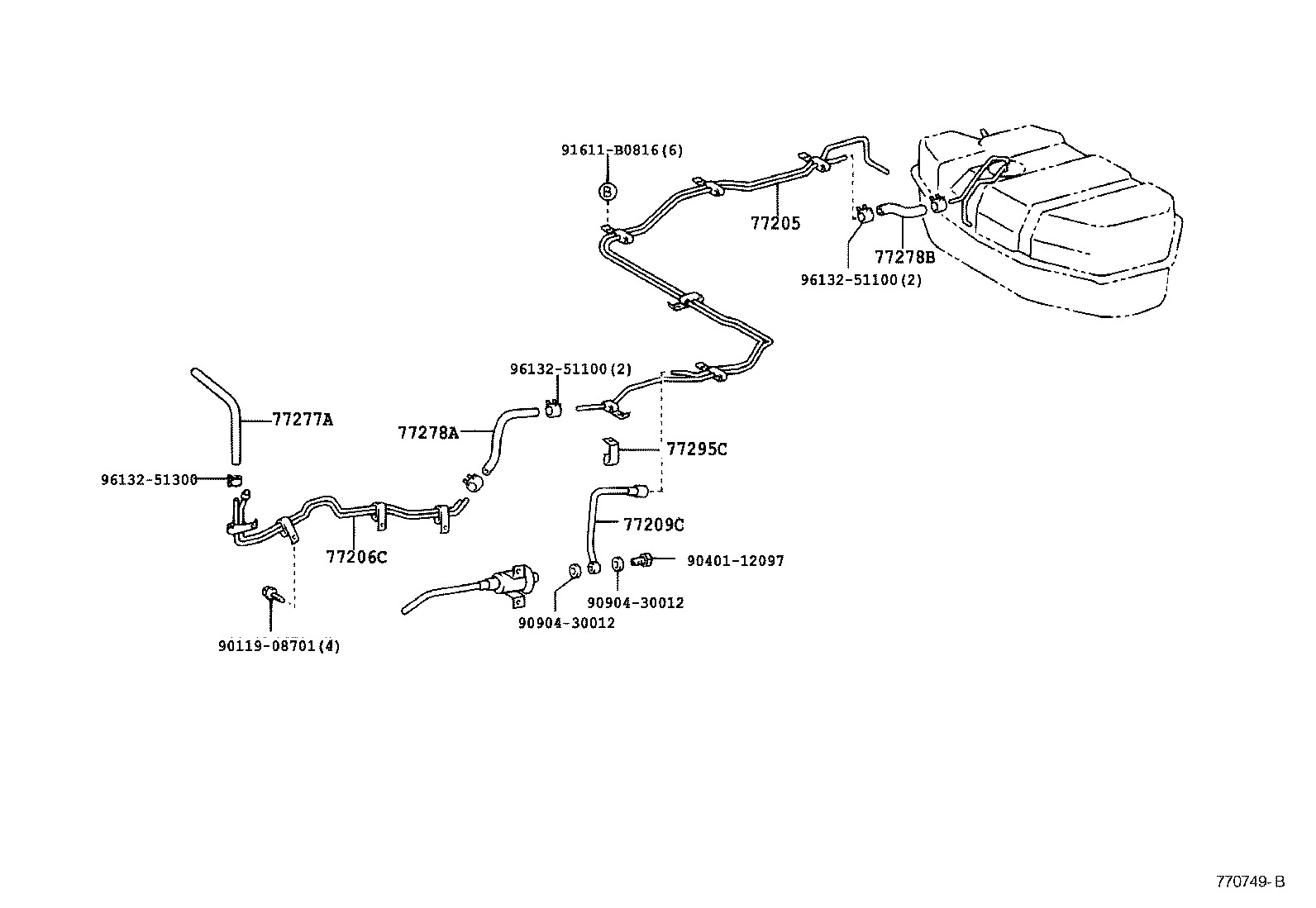

ILLUST NO. 2 OF 3(9908-0808)FZJ71,74..GEN
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-6A240 |
FZJ71..GEN |
1 | ||
| 77205-6A181 |
FZJ71..LHD..GEN VENEZUELA SPEC |
1 | ||
| 77205-6A241 |
FZJ71..GEN |
1 | ||
| 77205-6A240 |
FZJ71..GEN |
1 | ||
| 77205-6A181 |
FZJ71..LHD..GEN VENEZUELA SPEC |
1 | ||
| 77205-6A241 |
FZJ71..LHD..GEN |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60220 |
FZJ71,74..GEN |
1 | ||
| 77206-60111 |
FZJ71..LHD;FZJ74..STD;FZJ74..LX..GCC |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77206-60220 |
FZJ71,74..GEN |
1 | ||
| 77206-60111 |
FZJ71..LHD..GEN |
1 | ||
| 77206-60221 |
FZJ71,74,78,79..GEN W(FUEL SUB TANK) |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60250 |
FZJ71,74 |
1 | ||
| 77209-60250 |
FZJ71..LHD..GEN |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 23273-66040 |
FZJ71,74,78,79 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
FZJ71,74,HZJ71..GEN *H,L=280 |
1 | ||
| 95334-06014 |
FZJ71,74..GEN;FZJ78,79..ARL,GCC;FZJ78,79..LHD..GEN..CBU *H,L=140 |
1 | ||
| 95333-06020 |
FZJ71..LHD..GEN *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
FZJ71..LHD..GEN *H,L=180 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-60200 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90401-12097 | ||||
| 90904-30012 | ||||
| 91611-B0816 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 2(9908- )FZJ71,74,HZJ71
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77011-60120 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77203-60160 |
FZJ71,74 |
1 | ||
| 77203-60160 |
FZJ71,74 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
FZJ71,74,78 |
1 | ||
| 77310-48010 |
FZJ71,78..LHD..GEN |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
HZJ78..ARL,GEN;FZJ71,74,78,HZJ71 MATERIAL OF PNC77031=PLASTIC |
1 | ||
| 77316-16010 |
FZJ71,78..LHD..GEN MATERIAL OF PNC77031=PLASTIC |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-90K01 |
FZJ70..LX..CBR;FJ70,FZJ71,LJ70,72,PZJ70,RJ70..LHD..LX |
1 | ||
| 77035-90K01 |
FZJ71..LX |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
FZJ70..LX..CBR;FJ70,73,FZJ71,73,74,HZJ73,LJ7#,PZJ70,73,RJ7#..LX |
1 | ||
| 77037-90K00 |
FZJ71..LX;FZJ74..GEN;FZJ74..LX..GCC |
1 | ||
| 77037-90K00 |
FZJ71..LX |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60520 |
FZJ71,74 |
1 | ||
| 77001-60520 |
FZJ71,74 |
1 | ||
| 77001-60521 |
FZJ71..LHD..GEN |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 90105-12116 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 90341-20004 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 90430-20007 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 90430-12245 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN W(FUEL SUB TANK) |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# L=220 |
1 | ||
| 90445-22024 |
FZJ71..LHD..GEN L=220 |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,HDJ78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77131-90K00 |
FZJ71..LHD..GEN |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ78..ARL,GEN;FZJ71,74,78,79,HDJ7#,HZJ71,79 |
1 | ||
| 77178-20010 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77178-20010 |
FZJ71,74,78,79,HZJ71,78,79 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60690 |
FZJ71,74,HZJ71 |
1 | ||
| 77201-60770 |
FZJ71..LHD;FZJ74..STD;FZJ74..LX..GCC SAUDI ARABIA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC |
1 | ||
| 77201-60770 |
FZJ71..LHD;FZJ74..GCC SAUDI ARABIA SPEC OR VENEZUELA SPEC OR COLOMBIA SPEC |
1 | ||
| 77201-60690 |
FZJ71,74,HZJ71 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
FZJ71,74 |
1 | ||
| 77169-14010 |
FZJ71,74 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60160 |
FZJ71,74,HZJ71 |
1 | ||
| 77213-60160 |
FZJ71..LHD..GEN |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-90K01 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,HDJ78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77277-90K01 |
FZJ71..LHD..GEN |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95333-06030 |
HDJ7#,HZJ78,79;FZJ71,74,78,79,HZJ71..GEN |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-60030 |
FZJ71..LHD..GEN |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-90K00 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77293-90K00 |
FZJ71..LHD..GEN |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-60200 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77305-90K00 |
FZJ71..LHD..GEN |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 90541-05018 |
FZJ71,78..LHD..GEN |
2 | ||
| 77319 - KNOB, FUEL TANK CAP | ||||
| 77319-90K00 |
FZJ70..LX..CBR;FJ70,73,FZJ71,73,74,HZJ73,LJ7#,PZJ70,73,RJ7#..LX |
1 | ||
| 77319-90K00 |
FZJ71..LX |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-90K01 |
FZJ70..LX..CBR;FJ70,73,FZJ71,73,74,HZJ73,LJ7#,PZJ70,73,RJ7#..LX |
1 | ||
| 77338-90K01 |
FZJ71..LX |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77366-12010 |
FZJ71,78..LHD..GEN |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-90K00 |
FZJ70..LX..CBR;FJ70,73,FZJ71,73,74,HZJ73,LJ7#,PZJ70,73,RJ7#..LX |
1 | ||
| 77378-90K00 |
FZJ71..LX |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
HZJ78..ARL,GEN;FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,78,HDJ78,HZJ71,73,75,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77391-32010 |
FZJ71..LHD..GEN |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77606-60030 |
FZJ71..LHD..GEN |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
FZJ71..LHD..GEN |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
FZJ71..LHD..GEN |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10025 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 90240-10025 |
FZJ71..LHD..GEN |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60050 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ70,72,PZJ70,73,RJ70 |
2 | ||
| 77614-60050 |
FZJ71..LHD..GEN |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77625-60020 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ70,72,PZJ70,73,RJ70 |
2 | ||
| 77625-60020 |
FZJ71..LHD..GEN |
2 | ||
| 77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 | ||||
| 77675-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,HDJ78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77675-90K00 |
FZJ71..LHD..GEN |
1 | ||
| 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-90K00 |
FZJ71..LHD..GEN |
1 | ||
| 77676-90K00 |
FZJ70,75,HZJ70..ARL..CBU;FZJ70,73,75..(HT,SOT)..CBR;FJ7#,FZJ71,74,HDJ78,HZJ71,73,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
HZJ70..ARL;HZJ75..RHD;HZJ75..LHD..STD..CBU;FJ75,HDJ7#,HZJ73,79,LJ70,PZJ70,73;FZJ70,73,75,HZJ78..(ARL,GEN,SA)..(CBR,DSL);FJ70,73,FZJ71,74,78,79,HJ75,HZJ71,LJ72,77,79,PZJ75,RJ7#..GEN,SA |
1 | ||
| 90917-10020 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| Common parts | ||||
| 90080-11405 | ||||
| 90119-06195 | ||||
| 90119-06724 | ||||
| 90119-08511 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90170-11006 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 91611-61020 | ||||
| 91651-61025 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 5(0701- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||
ILLUST NO. 3 OF 5(0701-0907)FZJ71
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08862 | ||||
| 90401-12097 | ||||
| 90461-10651 | ||||
| 90464-00698 | ||||
| 90464-00725 | ||||
| 90464-00744 | ||||
| 90904-30012 | ||||
| 91611-B0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 1 OF 5(0701-0907)FZJ71,76,HZJ71,76,VDJ76
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06724 | ||||
| 90119-08511 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90170-11006 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61025 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 94130-60800 | ||||
| 94612-10800 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
