FZJ71L-RJMNK (1999)
Toyota Land Cruiser

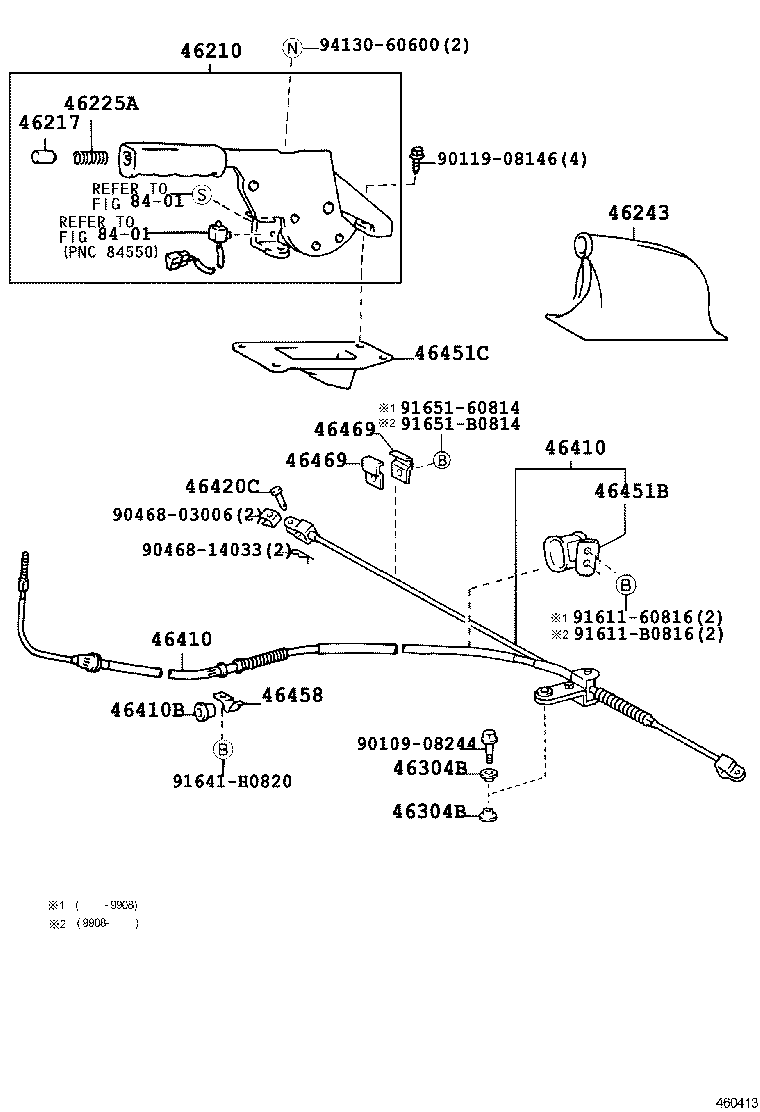

ILLUST NO. 1 OF 2(9001-0701)FJ7#,FZJ70,71,73,74,75,HJ75,HZJ70,71,73,75,KZJ7#,LJ7#,PZJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-60230B0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 46210-60230E0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SANDAL WOOD,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002053 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA BLUISH GRAY,TRIM1# |
1 | ||
| 46217-2002046 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA SABLE,TRIM4# |
1 | ||
| 46217-20020E4 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SANDAL WOOD,TRIM4# |
1 | ||
| 46217-20020B3 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10138 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 90501-10138 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-6006016 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# SABLE,TRIM4# |
1 | ||
| 46243-6006003 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 46243-60060E0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OAK,TRIM4# |
1 | ||
| 46243-60060B0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 46341-35030 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60790 |
FZJ71,HZJ71..LHD |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-17158 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 90480-17158 |
FZJ71..LHD..GEN |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90240-08059 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46443 - CAP, CABLE ADJUSTING | ||||
| 46443-12020 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-60130 |
FZJ71..LHD..GEN |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46452-60080 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46452-60080 |
FJ7#,FZJ7#,HJ75,HZJ7#,PZJ7# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30020 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 46458-30020 |
FZJ71..LHD..GEN |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
FZJ79..GEN..IV;FZJ74..STD..GEN;FZJ71,78..LHD..GEN |
2 | ||
| 46469-60020 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| Common parts | ||||
| 90109-08206 | ||||
| 90109-08244 | ||||
| 90119-08146 | ||||
| 90119-08703 | ||||
| 90179-08141 | ||||
| 90468-03006 | ||||
| 90468-14033 | ||||
| 91611-60816 | ||||
| 91611-G0820 | ||||
| 91651-40820 | ||||
| 91651-60814 | ||||
| 94110-40800 | ||||
| 94120-40600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(0109- )FZJ71..LHD..GEN
VENEZUELA CKD PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-60230B0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 46210-60230E0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SANDAL WOOD,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002053 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA BLUISH GRAY,TRIM1# |
1 | ||
| 46217-2002046 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA SABLE,TRIM4# |
1 | ||
| 46217-20020E4 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SANDAL WOOD,TRIM4# |
1 | ||
| 46217-20020B3 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10138 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 90501-10138 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-6006016 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# SABLE,TRIM4# |
1 | ||
| 46243-6006003 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 46243-60060E0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OAK,TRIM4# |
1 | ||
| 46243-60060B0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60790 |
FZJ71,HZJ71..LHD |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60790 |
FZJ71,HZJ71..LHD |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-17158 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 90480-17158 |
FZJ71..LHD..GEN |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90240-08059 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-60180 |
HDJ7#;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GCC,GEN |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-60130 |
FZJ71..LHD..GEN |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30020 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 46458-30020 |
FZJ71..LHD..GEN |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
FZJ79..GEN..IV;FZJ74..STD..GEN;FZJ71,78..LHD..GEN |
2 | ||
| 46469-60020 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
FZJ79..GEN..IV;FZJ74..STD..GEN;FZJ71,78..LHD..GEN |
2 | ||
| 46469-60020 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| Common parts | ||||
| 90109-08244 | ||||
| 90119-08146 | ||||
| 90468-03006 | ||||
| 90468-14033 | ||||
| 91611-60816 | ||||
| 91611-B0816 | ||||
| 91641-H0820 | ||||
| 91651-60814 | ||||
| 91651-B0814 | ||||
| 94130-60600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9908-0701)FZJ71,74,HZJ71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-60230B0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 46210-60230E0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SANDAL WOOD,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-2002053 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA BLUISH GRAY,TRIM1# |
1 | ||
| 46217-2002046 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA SABLE,TRIM4# |
1 | ||
| 46217-20020E4 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SANDAL WOOD,TRIM4# |
1 | ||
| 46217-20020B3 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10138 |
FJ7#,FZJ7#,HJ75,HZJ75,LJ7#,PZJ7#,RJ7#..GCC,GEN,SA |
1 | ||
| 90501-10138 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-6006016 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# SABLE,TRIM4# |
1 | ||
| 46243-6006003 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 46243-60060E0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN OAK,TRIM4# |
1 | ||
| 46243-60060B0 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN BLUISH GRAY,TRIM1# |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12012 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35030 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 46341-35030 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-60790 |
FZJ71,HZJ71..LHD |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-17158 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 90480-17158 |
FZJ71..LHD..GEN |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08042 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90240-08059 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-60180 |
HDJ7#;HZJ78..STD;HZJ79..ARL..IV;FZJ71,74,78,79,HZJ71,79..GCC,GEN |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-60130 |
FZJ71..LHD..GEN |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-30020 |
FZJ70,73..CBR;FZJ70,HZJ70..ARL;FJ70,73,FZJ71,74,HZJ71,73,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 46458-30020 |
FZJ71..LHD..GEN |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
FZJ79..GEN..IV;FZJ74..STD..GEN;FZJ71,78..LHD..GEN |
2 | ||
| 46469-60020 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-60020 |
FZJ79..GEN..IV;FZJ74..STD..GEN;FZJ71,78..LHD..GEN |
2 | ||
| 46469-60020 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN |
2 | ||
| Common parts | ||||
| 90109-08244 | ||||
| 90119-08146 | ||||
| 90468-03006 | ||||
| 90468-14033 | ||||
| 91611-B0816 | ||||
| 91641-H0820 | ||||
| 91651-B0814 | ||||
| 94130-60600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-12118 | ||||
| 91611-G0820 | ||||
| 94130-60600 | ||||
ILLUST NO. 1 OF 2(0701- )FZJ71,GRJ71,HZJ71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08244 | ||||
| 90119-08146 | ||||
| 90119-08830 | ||||
| 90468-03006 | ||||
| 90468-14033 | ||||
| 91611-B0816 | ||||
| 91641-H0820 | ||||
| 91651-B0814 | ||||
| 94130-00802 | ||||
| 94130-60600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
