FJ80R-GNPNEQ (1990)
Toyota Land Cruiser
ILLUST NO. 2 OF 3(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06027 | ||||
| 90339-03005 | ||||
| 90464-00082 | ||||
| 90464-00607 | ||||
| 90999-92002 | ||||
| 91621-40814 | ||||
| 91661-40614 | ||||
| 96111-10800 | ||||
| 96111-10930 | ||||
ILLUST NO. 1 OF 3(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08171 | ||||
| 90179-08096 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 3 OF 3(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06048 | ||||
| 90119-08518 | ||||
| 90119-08565 | ||||
| 90176-08029 | ||||
| 90179-06014 | ||||
| 90387-10078 | ||||
| 90480-16013 | ||||
| 90950-01286 | ||||
| 91621-40816 | ||||
| 96111-10800 | ||||
ILLUST NO. 1 OF 3(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-61040 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17030 |
3F..FJ80 |
1 | ||
| 17700-61260 |
3FE..FJ80 |
1 | ||
| 17700-61241 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17700-61240 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER | ||||
| 17703-68010 |
3F..FJ80 |
1 | ||
| 17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE) | ||||
| 90430-98001 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-61160 |
3FE..FJ80 |
1 | ||
| 17705-17020 |
3F..FJ80 |
1 | ||
| 17705-61140 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-71010 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
3F..FJ80 NO.2 |
1 | ||
| 17845-61011 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17845-68030 |
3F..FJ80 NO.1 |
1 | ||
| 17845-61011 |
3FE..FJ80 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 3 OF 3(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-17010 |
3F#..FJ80..ARL;1FZF..FZJ80..LUB..STD |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-17010 |
3F#..FJ80..ARL;1FZF..FZJ80..LUB..STD |
1 | ||
| 17764C - CLAMP, HOSE(FOR AIR CLEANER DUCT) | ||||
| 90460-01057 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 90460-01057 |
3F..FJ80..GX,VX;3F..FJ80..STD..(GCC,GEN) |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-60080 |
FJ80 W(PRE CLEANER) & W/O(SNORKEL) |
1 | ||
| 53207-60010 |
FJ80 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-60080 |
FJ80 W(PRE CLEANER) & W/O(SNORKEL) |
1 | ||
| 53207-60010 |
FJ80 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-60080 |
FJ80 W(PRE CLEANER) & W/O(SNORKEL) |
1 | ||
| 53207-60010 |
FJ80 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-60080 |
FJ80 W(PRE CLEANER) & W/O(SNORKEL) |
1 | ||
| 53207-60010 |
FJ80 |
1 | ||
| Common parts | ||||
| 90119-06593 | ||||
| 90119-06594 | ||||
| 90119-08869 | ||||
| 90119-08961 | ||||
| 90179-06158 | ||||
| 90179-06231 | ||||
| 90269-06006 | ||||
| 96111-10880 | ||||

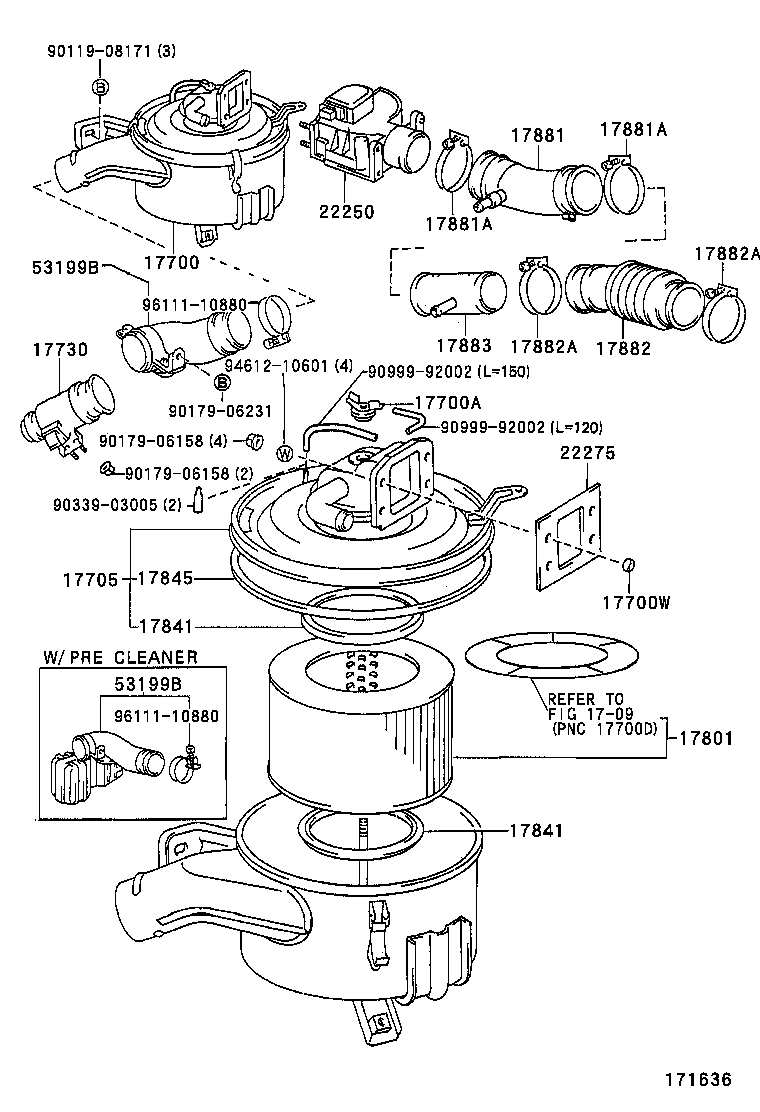

(9001-9208)3FE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17030 |
3F..FJ80 |
1 | ||
| 17700-61260 |
3FE..FJ80 |
1 | ||
| 17700-61241 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17700-61240 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 17700W - SPACER(FOR AIR CLEANER) | ||||
| 90560-06009 |
3FE..FJ80 |
4 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-61160 |
3FE..FJ80 |
1 | ||
| 17705-17020 |
3F..FJ80 |
1 | ||
| 17705-61140 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-17010 |
3F#..FJ80..ARL;1FZF..FZJ80..LUB..STD |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
1FZF,3F#..FJ80,FZJ80 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
1FZF,3F#..FJ80,FZJ80 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
3F..FJ80 NO.2 |
1 | ||
| 17845-61011 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17845-68030 |
3F..FJ80 NO.1 |
1 | ||
| 17845-61011 |
3FE..FJ80 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-61040 |
3F..FJ80 |
1 | ||
| 17881-61110 |
3FE..FJ80 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
3FE..FJ80 |
2 | ||
| 90460-88003 |
3F..FJ80 HOSE SIDE |
1 | ||
| 96111-10800 |
3F..FJ80 CONNECTOR SIDE |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
3FE..FJ80 |
2 | ||
| 90460-88003 |
3F..FJ80 HOSE SIDE |
1 | ||
| 96111-10800 |
3F..FJ80 CONNECTOR SIDE |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-61060 |
3F..FJ80 |
1 | ||
| 17882-61080 |
3FE..FJ80 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10900 |
3FE..FJ80 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10900 |
3FE..FJ80 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-61011 |
3F..FJ80 |
2 | ||
| 17883-61030 |
3FE..FJ80 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-61010 |
3FE..FJ80 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
3FE..FJ80 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-60080 |
FJ80 W(PRE CLEANER) & W/O(SNORKEL) |
1 | ||
| 53207-60010 |
FJ80 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-60080 |
FJ80 W(PRE CLEANER) & W/O(SNORKEL) |
1 | ||
| 53207-60010 |
FJ80 |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06158 | ||||
| 90179-06231 | ||||
| 90339-03005 | ||||
| 90999-92002 | ||||
| 94612-10601 | ||||
| 96111-10880 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 3(9001-9208)3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06222 |
3F..FJ80 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-61030 |
3F..FJ80 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-61020 |
3F..FJ80 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-61040 |
3F..FJ80 |
1 | ||
| 17881-61110 |
3FE..FJ80 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
3FE..FJ80 |
2 | ||
| 90460-88003 |
3F..FJ80 HOSE SIDE |
1 | ||
| 96111-10800 |
3F..FJ80 CONNECTOR SIDE |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
3FE..FJ80 |
2 | ||
| 90460-88003 |
3F..FJ80 HOSE SIDE |
1 | ||
| 96111-10800 |
3F..FJ80 CONNECTOR SIDE |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-61060 |
3F..FJ80 |
1 | ||
| 17882-61080 |
3FE..FJ80 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-61011 |
3F..FJ80 |
2 | ||
| 17883-61030 |
3FE..FJ80 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-88003 |
3F..FJ80 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-88003 |
3F..FJ80 |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17881-61100 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10460 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
2 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10460 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
2 | ||
| 17891 - CLAMP(FOR HOT AIR HOSE) | ||||
| 17891-61010 |
3F..FJ80..GX..ARL NEW ZEALAND SPEC |
1 | ||
| Common parts | ||||
| 90179-06027 | ||||
| 90339-03005 | ||||
| 90464-00082 | ||||
| 90464-00607 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-40814 | ||||
