FJ80R-GNPEEQ (1990)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88467-14050 | ||||
| 88467-22060 | ||||
| 88688-90K01 | ||||
| 88688-90K04 | ||||
| 88688-90K06 | ||||
| 88718-60510 | ||||
| 88718-60520 | ||||
| 88718-90K04 | ||||
| 88718-90K27 | ||||
| 88895-60010 | ||||
| 90091-20618 | ||||
| 90099-01520 | ||||
| 90099-32128 | ||||
| 90119-06100 | ||||
| 90119-06336 | ||||
| 90119-06429 | ||||
| 90179-06032 | ||||
| 90179-06274 | ||||
| 91611-B0835 | ||||
| 91651-40616 | ||||
| 91651-F0610 | ||||
| 91651-F0616 | ||||
ILLUST NO. 2 OF 4(9001- )FJ80..RHD
FRONT PIPING---SINGLE(MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60020 |
FJ80..GX,VX;HDJ80..VX..ARL;HZJ80..RHD..GEN;FJ80..STD..(GCC,GEN) |
1 | ||
| 88645-60020 |
FZJ80;FJ80..EFI;HDJ80..RHD..VX;HZJ80..RHD..GEN |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60060 |
FJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88706-60060 |
FJ80..EFI;FZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60140 |
FJ80..EFI |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60150 |
FJ80..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60030 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60310 |
FZJ80..GX;FJ80..VX..EFI;FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FJ80,HDJ80..RHD..VX;FZJ80,HZJ80..RHD..(GX,VX)..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60790 |
FJ80..EFI DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-60040 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60010 |
FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60090 |
FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..GEN |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88578-60080 | ||||
| 88688-60200 | ||||
| 88688-60210 | ||||
| 88718-32220 | ||||
| 88718-60310 | ||||
| 88718-60330 | ||||
| 88718-60340 | ||||
| 88718-60350 | ||||
| 90119-06003 | ||||
| 90119-06429 | ||||
| 90119-08197 | ||||
| 90119-08258 | ||||
| 90119-08572 | ||||
| 90159-50001 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90950-01022 | ||||
| 91651-60835 | ||||
| 91651-B0835 | ||||
ILLUST NO. 2 OF 4(9001- )FJ80..RHD
FRONT PIPING---SINGLE(DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60020 |
FJ80..GX,VX;HDJ80..VX..ARL;HZJ80..RHD..GEN;FJ80..STD..(GCC,GEN) |
1 | ||
| 88645-60020 |
FZJ80;FJ80..EFI;HDJ80..RHD..VX;HZJ80..RHD..GEN |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60060 |
FJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88706-60060 |
FJ80..EFI;FZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60140 |
FJ80..EFI |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60150 |
FJ80..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60030 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60310 |
FZJ80..GX;FJ80..VX..EFI;FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FJ80,HDJ80..RHD..VX;FZJ80,HZJ80..RHD..(GX,VX)..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60790 |
FJ80..EFI DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-60040 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60010 |
FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60090 |
FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..GEN |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88469-16040 | ||||
| 88578-60080 | ||||
| 88688-60200 | ||||
| 88688-60210 | ||||
| 88718-32220 | ||||
| 88718-60340 | ||||
| 88718-60350 | ||||
| 88718-60500 | ||||
| 90091-20613 | ||||
| 90091-20809 | ||||
| 90093-00809 | ||||
| 90099-04375 | ||||
| 90119-08122 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-60835 | ||||
| 93315-14012 | ||||
| 93385-56025 | ||||
ILLUST NO. 2 OF 4(9001- )FJ80..RHD
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60020 |
FJ80..GX,VX;HDJ80..VX..ARL;HZJ80..RHD..GEN;FJ80..STD..(GCC,GEN) |
1 | ||
| 88645-60020 |
FZJ80;FJ80..EFI;HDJ80..RHD..VX;HZJ80..RHD..GEN |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-60050 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88690-60050 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60060 |
FJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88706-60060 |
FJ80..EFI;FZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60140 |
FJ80..EFI |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60150 |
FJ80..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60030 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60310 |
FZJ80..GX;FJ80..VX..EFI;FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FJ80,HDJ80..RHD..VX;FZJ80,HZJ80..RHD..(GX,VX)..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60790 |
FJ80..EFI DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60030 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60310 |
FZJ80..GX;FJ80..VX..EFI;FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FJ80,HDJ80..RHD..VX;FZJ80,HZJ80..RHD..(GX,VX)..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60790 |
FJ80..EFI DUAL AIR CONDITIONER,NO.1 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-60040 |
FJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60010 |
FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88467-14040 | ||||
| 88578-60080 | ||||
| 88688-60200 | ||||
| 88718-32220 | ||||
| 88718-60340 | ||||
| 88718-60360 | ||||
| 90119-06003 | ||||
| 90119-06429 | ||||
| 90119-08197 | ||||
| 90119-08572 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90950-01022 | ||||
| 91651-B0835 | ||||
| 91651-G0850 | ||||

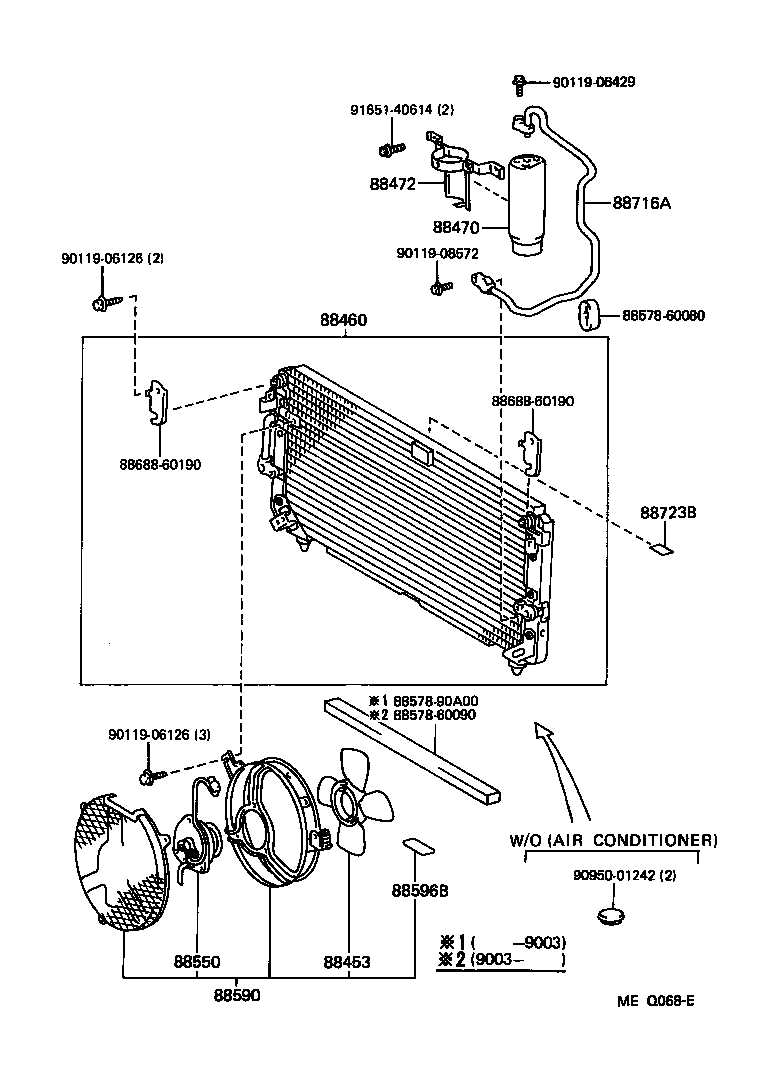

ILLUST NO. 1 OF 4(9001- )GX,VX
CONDENSOR---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88453-20030 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60060 |
FZJ80..GEN;HDJ80,HZJ80;FJ80..STD,VX;FJ80..GX..(ARL,GEN);FZJ80..(STD,VX)..GCC |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-16040 |
FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN;FZJ80,HZJ80..GX..(GCC,GEN);FJ80,HDJ80,HZJ80..LUB..VX..(DSL,EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88471-30350 |
FJ80,HDJ80,HZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88471-30350 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-60071 |
FJ80,HDJ80..VX..(EFI,TD2);FJ80,FZJ80,HZJ80..(GX,VX)..(GCC,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88472-60060 |
FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN;FZJ80,HZJ80..GX..(GCC,GEN);FJ80,HDJ80,HZJ80..LUB..VX..(DSL,EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-60040 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88550-60040 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-60010 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88590-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88596-24010 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60760 |
FJ80..VX..EFI W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88716-60730 |
FJ80,FZJ80,HZJ80..GCC,GEN;FJ80,HDJ80..VX..(EFI,TD2) CONDENSER SIDE |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-26010 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER & W(COOL BOX) |
1 | ||
| 88723-28070 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88723-30030 |
FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN;FZJ80,HZJ80..GX..(GCC,GEN);FJ80,HDJ80,HZJ80..LUB..VX..(DSL,EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88723-30040 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
FJ80,HDJ80..VX..ARL W(DUEL *AAC & COOL BOX) |
1 | ||
| 88723-28080 |
FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER & W(COOL BOX) |
1 | ||
| 88723-30040 |
FZJ80..(GX,VX)..GEN;FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88578-60080 | ||||
| 88578-60090 | ||||
| 88578-90A00 | ||||
| 88688-60190 | ||||
| 90119-06126 | ||||
| 90119-06429 | ||||
| 90119-08572 | ||||
| 90950-01242 | ||||
| 91651-40614 | ||||
ILLUST NO. 3 OF 4(9001-9501)RHD..GX,VX
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60450 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60451 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88716-60451 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60440 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60440 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-60410 |
FJ80..GX,VX |
1 | ||
| 88716-60410 |
FJ80..EFI |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-60410 |
FJ80..GX,VX |
1 | ||
| 88716-60410 |
FJ80..EFI |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-60350 |
FJ80..RHD..LUB |
1 | ||
| 88716-60350 |
FJ80..EFI |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60120 |
FJ80..RHD..LUB |
1 | ||
| 88717-60120 |
FJ80..EFI |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60180 |
FJ80..GX,VX |
1 | ||
| 88717-60180 |
FJ80..EFI |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60180 |
FJ80..GX,VX |
1 | ||
| 88717-60180 |
FJ80..EFI |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-60210 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88717-60210 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-60220 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60221 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88717-60221 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60060 |
FJ80,HDJ80,HZJ80..ARL MAKER OPTION |
1 | ||
| 88899-60050 |
FJ80,HDJ80,HZJ80..LUB..ARL..(DSL,EFI,TD2) DEALER OPTION |
1 | ||
| Common parts | ||||
| 88688-60210 | ||||
| 88718-60350 | ||||
| 88718-60380 | ||||
| 88718-60400 | ||||
| 88718-60410 | ||||
| 88718-60420 | ||||
| 88718-60460 | ||||
| 88718-60470 | ||||
| 88718-60480 | ||||
| 88718-60580 | ||||
| 90119-06003 | ||||
| 90119-06092 | ||||
| 90119-08197 | ||||
| 90119-08258 | ||||
| 90159-50001 | ||||
| 90179-06161 | ||||
ILLUST NO. 4 OF 4(9001-9501)GX,VX
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-60430 |
FJ80..GX,VX |
1 | ||
| 88716-60430 |
FJ80..EFI |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-60430 |
FJ80..GX,VX |
1 | ||
| 88716-60430 |
FJ80..EFI |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-60420 |
FJ80..GX,VX |
1 | ||
| 88716-60420 |
FJ80..EFI |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-60420 |
FJ80..GX,VX |
1 | ||
| 88716-60420 |
FJ80..EFI |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-60190 |
FJ80..GX,VX |
1 | ||
| 88717-60190 |
FJ80..EFI |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-60190 |
FJ80..GX,VX |
1 | ||
| 88717-60190 |
FJ80..EFI |
1 | ||
| 88737B - TUBE, SUCTION, B(FOR COOL BOX) | ||||
| 88717-60200 |
FJ80..GX,VX |
1 | ||
| 88717-60200 |
FJ80..EFI |
1 | ||
| 88737B - TUBE, SUCTION, B(FOR COOL BOX) | ||||
| 88717-60200 |
FJ80..GX,VX |
1 | ||
| 88717-60200 |
FJ80..EFI |
1 | ||
| Common parts | ||||
| 88718-60400 | ||||
| 88718-60410 | ||||
| 88718-60420 | ||||
| 88718-60430 | ||||
| 88718-60450 | ||||
| 90119-06003 | ||||
| 90119-06092 | ||||
| 90179-06161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
