8714 - HEATING & AIR CONDITIONING - COOLER UNIT

FJ80R-GNMNSQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992

Engine 3F

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

FRONT(MAKER OPTION)

Part #	Description	Period	Qty	Price
Common parts
82711-22270
87128-60050
87128-60060
88688-60430
90099-14122
90119-06373
90159-60198
90179-06274
91611-60812
91651-40616

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 3 OF 3(9001-9208)GX,VX

Click highlighted areas on diagram

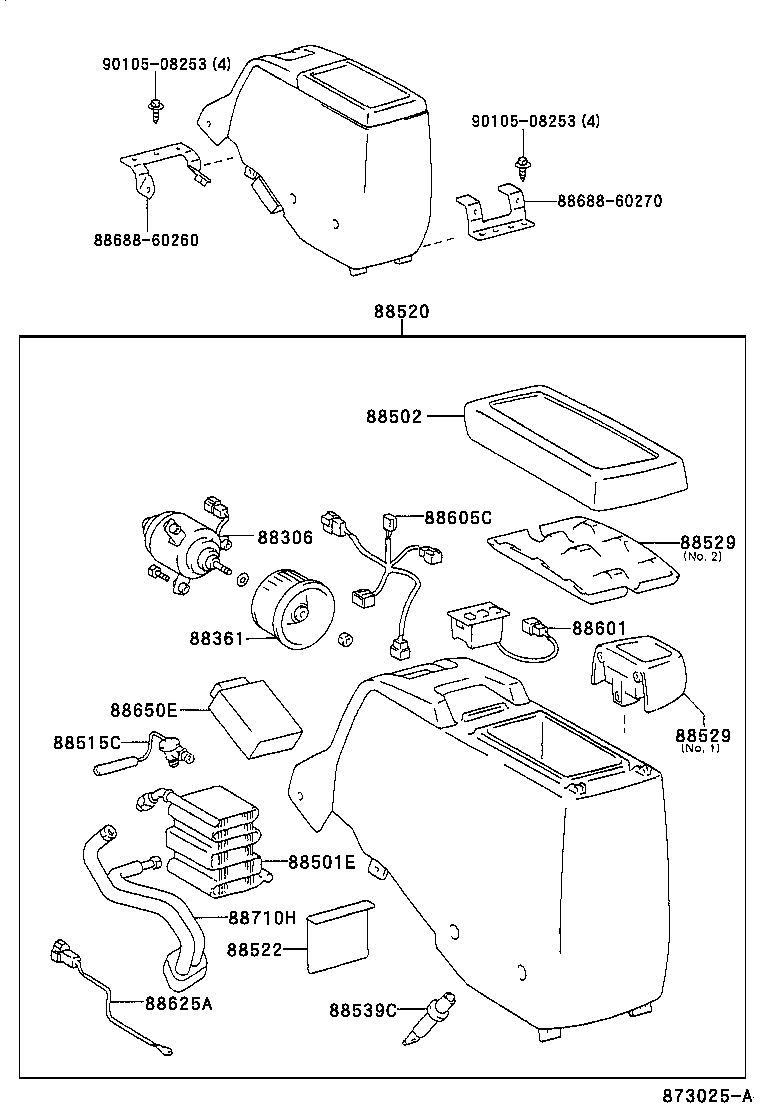

COOL BOX

Part #	Description	Period	Qty
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-60050	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88361 - FAN, COOLER BLOWER, NO.1
87105-87004	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)
88501-60070	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-60040	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88515C - VALVE, COOLING BOX EXPANSION
88515-60010	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88520 - BOX ASSY, COOLING
88520-6001006	FJ80,HDJ80,HZJ80..RHD..(GX,VX) SABLE,TRIM4#	01/1990 - 01/1992	1
88520-6001003	FJ80,HDJ80,HZJ80..RHD..(GX,VX) BLUISH GRAY,TRIM1#	01/1990 - 01/1992	1
88522 - DOOR, COOLING UNIT
88522-60010	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88529 - TRAY, COOLING BOX
88529-6001003	FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1#,NO.1	01/1990 - 01/1992	1
88529-90A00	FJ80,HDJ80,HZJ80..GX,VX NO.2	01/1990 - 01/1992	1
88529-6001006	FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,NO.1	01/1990 - 01/1992	1
88529 - TRAY, COOLING BOX
88529-6001003	FJ80,HDJ80,HZJ80..GX,VX BLUISH GRAY,TRIM1#,NO.1	01/1990 - 01/1992	1
88529-90A00	FJ80,HDJ80,HZJ80..GX,VX NO.2	01/1990 - 01/1992	1
88529-6001006	FJ80,HDJ80,HZJ80..GX,VX SABLE,TRIM4#,NO.1	01/1990 - 01/1992	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-60130	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88601 - SWITCH SUB-ASSY, COOLER CONTROL
88601-60020	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2
88605-60550	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88625A - THERMISTOR, COOLER NO.2
88625-60070	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-90A06	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-60680	FJ80,HDJ80,HZJ80..RHD..(GX,VX)	01/1990 - 01/1992	1
Common parts
88688-60260
88688-60270
90105-08253

ILLUST NO. 2 OF 3(9001-9305)GX,VX

Click highlighted areas on diagram

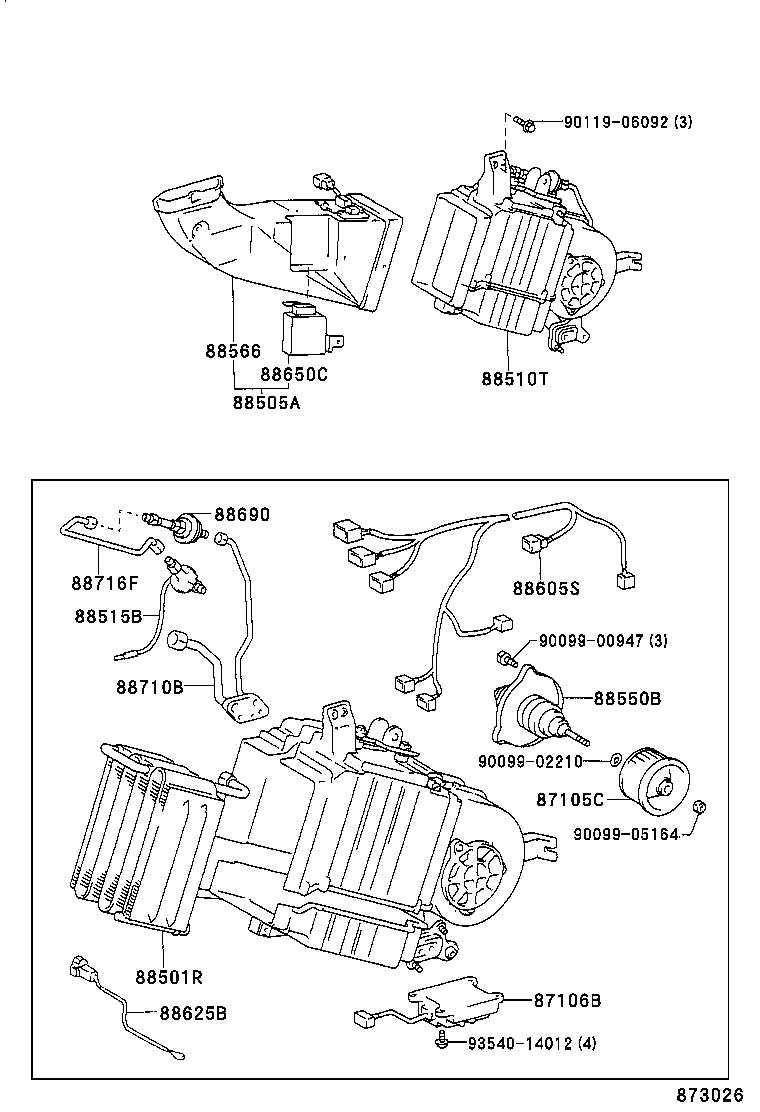

REAR

Part #	Description	Period	Qty
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-60040	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88505A - DUCT SUB-ASSY, AIR CONDITIONER
88505-60020	HDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR	01/1990 - 01/1992	1
88510T - UNIT ASSY, COOLING (REAR)
88510-60280	HDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR	01/1990 - 01/1992	1
88550B - MOTOR ASSY, BLOWER
88550-60060	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88566 - DUCT, COOLER AIR, NO.1
88566-60030	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-60430	HDJ80..GEN;HZJ80..GX,VX;FJ80..GX..GCC;FJ80,HDJ80..GX..(EFI,TD2);FJ80..(GX,VX)..(ARL,GEN)..CBR	01/1990 - 01/1992	1
88710B - TUBE ASSY, AIR CONDITIONER
88710-60470	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-6A100	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
Common parts
90099-00947
90099-02210
90099-05164
90119-06092
93540-14012

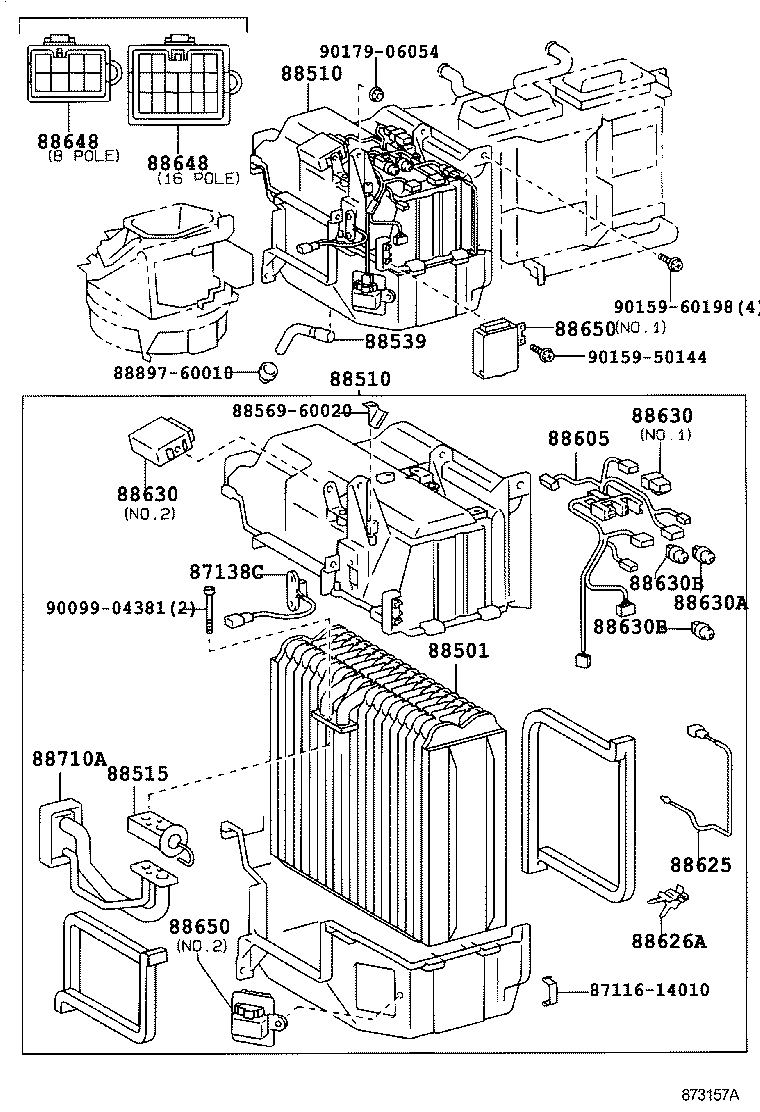

ILLUST NO. 1 OF 3(9001- )RHD

Click highlighted areas on diagram

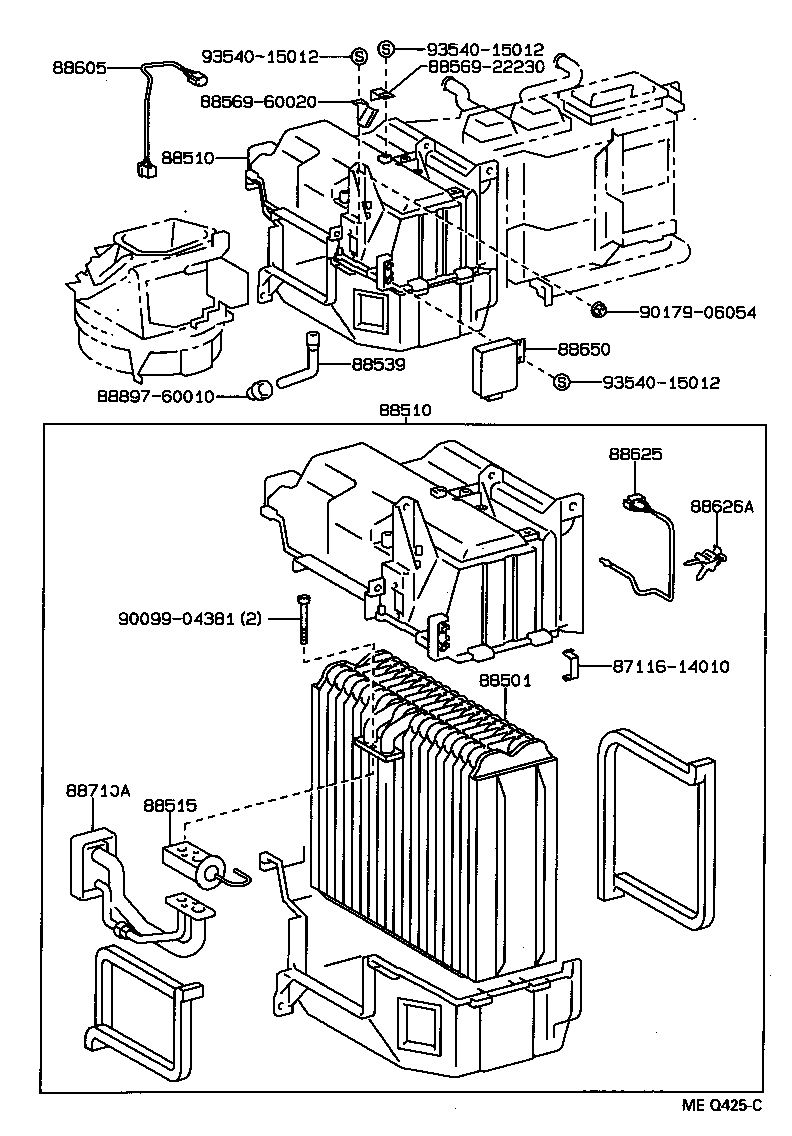

FRONT---MAKER OPT

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-60220	FJ80..STD..GEN;FJ80..(GX,STD)..GCC;HDJ80,HZJ80..GCC,GEN;FJ80..(GX,VX)..(ARL,GEN)..CBR	01/1990 - 01/1992	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60020	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
88510 - UNIT ASSY, COOLER
88510-60140	FJ80..RHD..GX..CBR DUAL AIR CONDITIONER	01/1990 - 01/1992	1
88510-60300	FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT	01/1990 - 01/1992	1
88510-60300	FJ80..CBR;HZJ80..STD..ARL	01/1992 - 08/1992	1
88510 - UNIT ASSY, COOLER
88510-60140	FJ80..RHD..GX..CBR DUAL AIR CONDITIONER	01/1990 - 01/1992	1
88510-60300	FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT	01/1990 - 01/1992	1
88510-60300	FJ80..CBR;HZJ80..STD..ARL	01/1992 - 08/1992	1
88515 - VALVE, COOLER EXPANSION
88515-14062	HDJ80;HZJ80..GX,STD;FJ80,HZJ80..LUB..VX..(DSL,EFI);FJ80,FZJ80..(GX,STD)..(ARL,GCC)	01/1990 - 08/1992	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-60110	FJ80,HZJ80..GX..ARL SINGLE DEALER OPT	01/1990 - 04/1990	1
88539-60100	FJ80..RHD..LUB;HDJ80..VX..ARL;FJ80..RHD..STD..GEN AUTOMATIC AIR CONDITIONER	01/1990 - 04/1990	1
88539-60110	HDJ80..RHD..VX;FZJ80,HZJ80..RHD;FJ80..RHD..(GX,STD)	07/1990 - 08/1992	1
88539-60110	FJ80..ARL..CBR;HZJ80..STD..ARL	04/1990 - 07/1990	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60350	FJ80..GX..ARL..CBR	01/1990 - 01/1992	1
88625 - THERMISTOR, COOLER, NO.1
88625-60050	FJ80,HDJ80,HZJ80..(GX,STD)..ARL W(SINGLE AIR CONDITIONER)	01/1990 - 02/1992	1
88625-60050	FJ80,FZJ80,HDJ80,HZJ80	02/1992 - 08/1992	1
88626-60010	HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,HDJ80..GX,VX;FJ80..STD..(GCC,GEN)	01/1990 - 01/1992	1
88626A - HOLDER, THERMISTOR
88626-28010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
88630 - RELAY ASSY, COOLER
88630-16090	FJ80,HDJ80,HZJ80..GX,VX NO.1	01/1990 - 01/1992	1
88630-60030	FJ80,HDJ80,HZJ80..GX,VX NO.3	01/1990 - 01/1992	1
88630 - RELAY ASSY, COOLER
88630-16090	FJ80,HDJ80,HZJ80..GX,VX NO.1	01/1990 - 01/1992	1
88630-60030	FJ80,HDJ80,HZJ80..GX,VX NO.3	01/1990 - 01/1992	1
88630A - RELAY ASSY, COOLER
90987-02004	FJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-60050	FJ80..GX..ARL..CBR SINGLE DEALER OPT	01/1990 - 01/1992	1
88650-60050	FJ80..CBR	01/1992 - 08/1992	1
88650-60070	FJ80..GX..GCC;FJ80..(GX,VX)..(ARL,GEN)..CBR DUAL AIR CONDITIONER	01/1990 - 01/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-60050	FJ80..GX..ARL..CBR SINGLE DEALER OPT	01/1990 - 01/1992	1
88650-60050	FJ80..CBR	01/1992 - 08/1992	1
88650-60070	FJ80..GX..GCC;FJ80..(GX,VX)..(ARL,GEN)..CBR DUAL AIR CONDITIONER	01/1990 - 01/1992	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-60240	FJ80,HDJ80,HZJ80..(GX,STD)..ARL	01/1990 - 12/1991	1
88710-60240	FJ80,FZJ80,HDJ80,HZJ80..RHD	12/1991 - 08/1992	1
Common parts
87116-14010
88569-60020
88897-60010
90099-04381
90159-50144
90159-60198
90179-06054

ILLUST NO. 1 OF 3(9001- )FJ80,HDJ80,HZJ80..GX,STD..ARL

Click highlighted areas on diagram

FRONT---DEALER OPT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-60020	FJ80,FZJ80,HDJ80,HZJ80..RHD	01/1990 - 08/1992	1
88510 - UNIT ASSY, COOLER
88510-60140	FJ80..RHD..GX..CBR DUAL AIR CONDITIONER	01/1990 - 01/1992	1
88510-60300	FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT	01/1990 - 01/1992	1
88510-60300	FJ80..CBR;HZJ80..STD..ARL	01/1992 - 08/1992	1
88510 - UNIT ASSY, COOLER
88510-60140	FJ80..RHD..GX..CBR DUAL AIR CONDITIONER	01/1990 - 01/1992	1
88510-60300	FJ80,HDJ80,HZJ80..GX..ARL SINGLE DEALER OPT	01/1990 - 01/1992	1
88510-60300	FJ80..CBR;HZJ80..STD..ARL	01/1992 - 08/1992	1
88515 - VALVE, COOLER EXPANSION
88515-14062	HDJ80;HZJ80..GX,STD;FJ80,HZJ80..LUB..VX..(DSL,EFI);FJ80,FZJ80..(GX,STD)..(ARL,GCC)	01/1990 - 08/1992	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-60110	FJ80,HZJ80..GX..ARL SINGLE DEALER OPT	01/1990 - 04/1990	1
88539-60100	FJ80..RHD..LUB;HDJ80..VX..ARL;FJ80..RHD..STD..GEN AUTOMATIC AIR CONDITIONER	01/1990 - 04/1990	1
88539-60110	HDJ80..RHD..VX;FZJ80,HZJ80..RHD;FJ80..RHD..(GX,STD)	07/1990 - 08/1992	1
88539-60110	FJ80..ARL..CBR;HZJ80..STD..ARL	04/1990 - 07/1990	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60350	FJ80..GX..ARL..CBR	01/1990 - 01/1992	1
88625 - THERMISTOR, COOLER, NO.1
88625-60050	FJ80,HDJ80,HZJ80..(GX,STD)..ARL W(SINGLE AIR CONDITIONER)	01/1990 - 02/1992	1
88625-60050	FJ80,FZJ80,HDJ80,HZJ80	02/1992 - 08/1992	1
88626-60010	HZJ80..GCC,GEN;HZJ80..GX..ARL;FJ80,HDJ80..GX,VX;FJ80..STD..(GCC,GEN)	01/1990 - 01/1992	1
88626A - HOLDER, THERMISTOR
88626-28010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-60050	FJ80..GX..ARL..CBR SINGLE DEALER OPT	01/1990 - 01/1992	1
88650-60050	FJ80..CBR	01/1992 - 08/1992	1
88650-60070	FJ80..GX..GCC;FJ80..(GX,VX)..(ARL,GEN)..CBR DUAL AIR CONDITIONER	01/1990 - 01/1992	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-60240	FJ80,HDJ80,HZJ80..(GX,STD)..ARL	01/1990 - 12/1991	1
88710-60240	FJ80,FZJ80,HDJ80,HZJ80..RHD	12/1991 - 08/1992	1
Common parts
87116-14010
88569-22230
88569-60020
88897-60010
90099-04381
90179-06054
93540-15012
