FJ80R-GNMNSQ (1990)
Toyota Land Cruiser
ILLUST NO. 5 OF 7(9001-0808)
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14550 | ||||
| 82711-16110 | ||||
| 90461-08549 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-B0614 | ||||
| 91512-60614 | ||||
| 91651-40616 | ||||
ILLUST NO. 4 OF 7(9001-0808)
COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91512-60614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91652-60616 | ||||
| 93319-15010 | ||||
| 93560-55016 | ||||
| 93568-55014 | ||||
| 94332-15000 | ||||
ILLUST NO. 3 OF 7(9001-0808)RHD
INSTRUMENT PANEL SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90164-50025 | ||||
| 90170-09002 | ||||
| 90170-11206 | ||||
| 90206-11012 | ||||
ILLUST NO. 6 OF 7(9001-0808)
DOOR,FLOOR SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90159-40155 | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91621-40612 | ||||
| 91626-40818 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93313-14012 | ||||
| 93315-14014 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||
| 94120-41000 | ||||
ILLUST NO. 7 OF 7(9001-9908)
AMBIENT SENSOR & COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 90164-40074 | ||||
| 93540-24020 | ||||
ILLUST NO. 3 OF 9(9001- )RHD

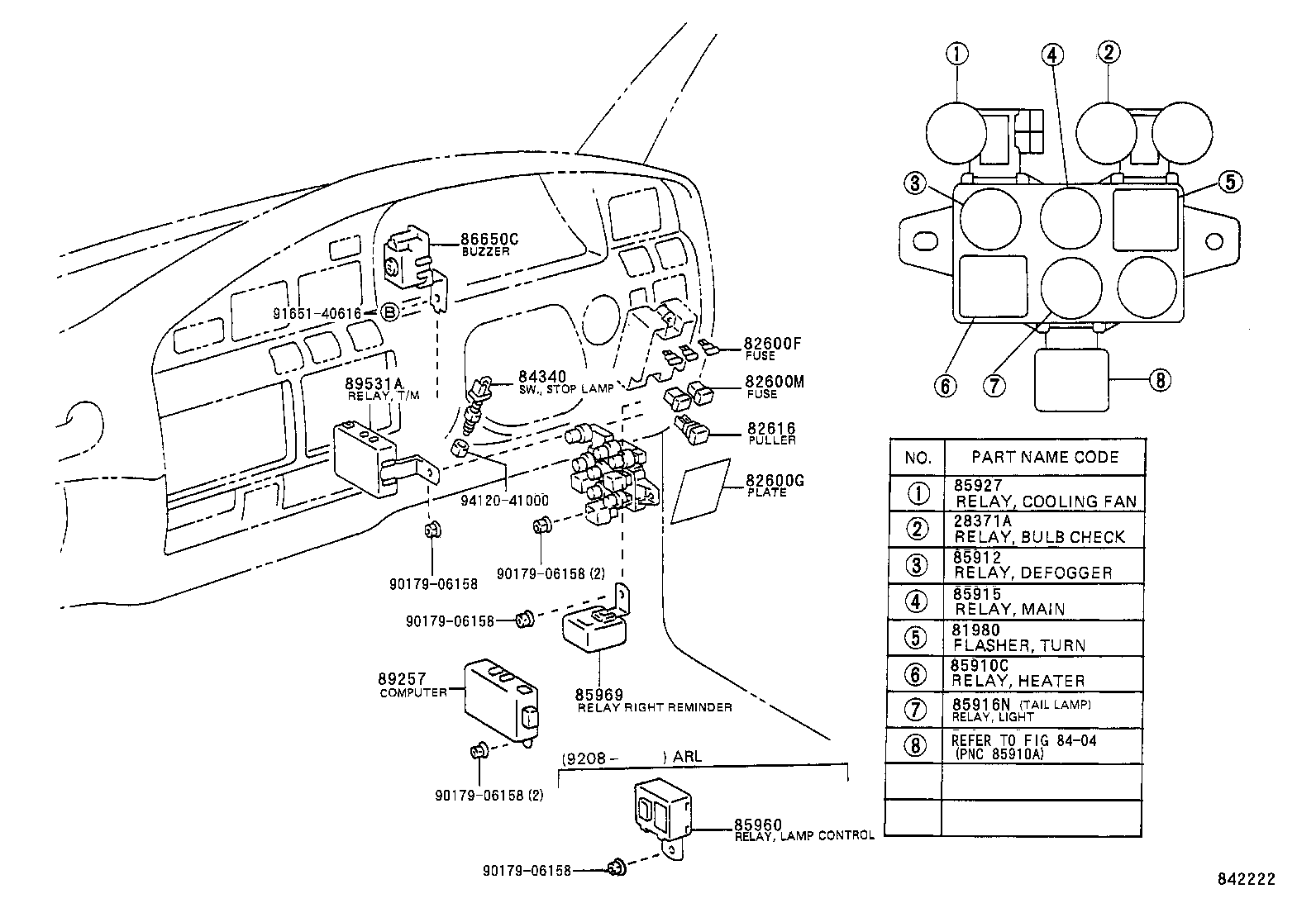

RH COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371A - RELAY, BULB CHECK | ||||
| 90987-02004 |
3F#,1H#..FJ80,HDJ80,HZJ80..ARL |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
HDJ80;HZJ80..VX;FJ80,HZJ80..RHD 15A,COWL RELAY BLOCK |
6 | ||
| 90982-09004 |
FJ80..VX;HDJ80,HZJ80;FJ80..4FC..GX..GCC;FJ80..(GX,STD)..(ARL,GEN) 20A,YELLOW,COWL RELAY BLOCK |
2 | ||
| 90982-09002 |
FJ80,HDJ80,HZJ80 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09002 |
HDJ80..GEN;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2) 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09002 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 10A,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09003 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 15A,E/G ROOM RELAY BLOCK |
3 | ||
| 90982-09004 |
FJ80,HDJ80,HZJ80..ARL 20A,YELLOW,FUSE BLOCK |
1 | ||
| 90982-09005 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 7.5A,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-07011 |
FJ80,FZJ80,HDJ80,HZJ80 30A,GREEN,COWL RELAY BLOCK |
1 | ||
| 90982-09002 |
FZJ80..RHD..VX;FJ80,FZJ80,HDJ80,HZJ80..GX,STD 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09004 |
FJ80;FZJ80..GX,STD;FZJ80..VX..GEN 20A,YELLOW,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09004 |
HDJ80..GX;FJ80,HZJ80..RHD;FZJ80..LHD..VX..GEN;FZJ80..LHD..(GX,STD) 20A,YELLOW |
3 | ||
| 90982-09003 |
FJ80..RHD..CBR 15A |
5 | ||
| 90982-09002 |
FJ80,HDJ80,HZJ80..ARL 10A,FUSE BLOCK |
2 | ||
| 90982-09005 |
FJ80,FZJ80,HDJ80,HZJ80 7.5A,COWL RELAY BLOCK |
3 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-60010 |
FJ80,FZJ80,HDJ80,HZJ80 COWL PANEL SIDE |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
FJ80,FZJ80,HDJ80,HZJ80 30A,PINK |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 84340-30030 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 84340-32090 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90987-04002 |
HDJ80,HZJ80;FJ80..ARL,GEN;FJ80..(GX,STD)..GCC |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
HZJ80..LUB;HZJ80..LHD..STD;FJ80,FZJ80,HDJ80;HZJ80..SOB..(ARL,GCC) |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-01003 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 89531-60010 |
FJ80..STD..ARL;HZJ80..RHD..5F;HZJ80..LHD..(GX,VX);FJ80,FZJ80,HDJ80..GX,VX |
1 | ||
| 89531-60010 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 91651-40616 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 7 OF 9(9001- )
DOOR,ROOF SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-24010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-24010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-32140 |
FJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-60010 |
FJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-60010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-60010 |
FJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,VX) |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-60010 |
HDJ80..ARL;HDJ80..LHD;FZJ80..VX..GCC;FJ80,HZJ80..GX,VX |
1 | ||
| Common parts | ||||
| 90105-06226 | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-60081 | ||||
| 90164-50047 | ||||
| 90167-40012 | ||||
| 90189-04170 | ||||
| 90189-06125 | ||||
| 91611-60612 | ||||
| 93540-14012 | ||||
ILLUST NO. 5 OF 9(9001-9501)RHD

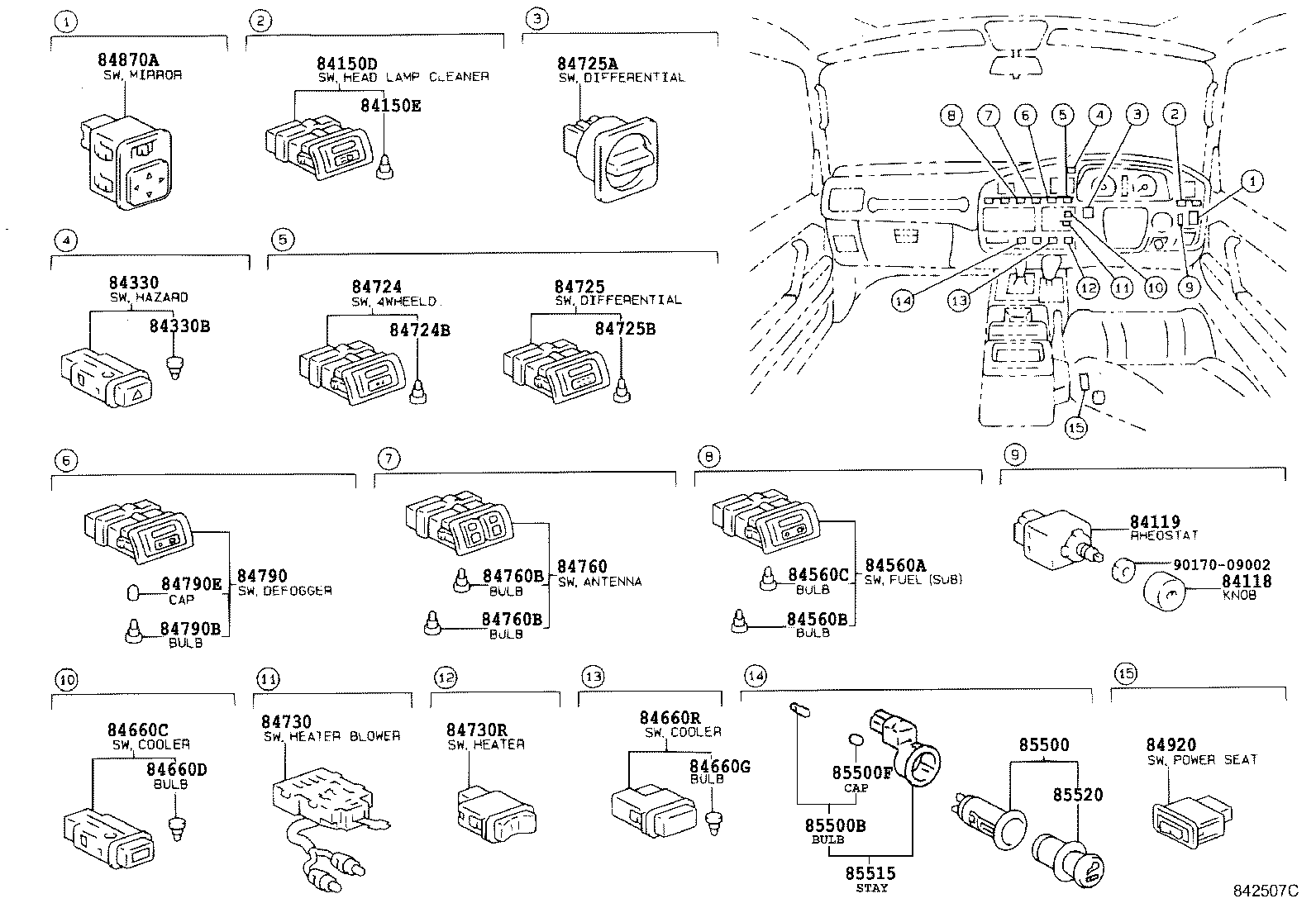

INSTRUMENT PANEL SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-22030 |
HDJ80;FJ80,FZJ80,HZJ80..VX;FJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-60020 |
FJ80,HDJ80,HZJ80..ARL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20260 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 84332-60190 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
FJ80,FZJ80,HDJ80,HZJ80 14V 0.84W |
1 | ||
| 84560A - SWITCH ASSY, FUEL CONTROL | ||||
| 84560-60010 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 84560B - BULB, FUEL CONTROL SWITCH | ||||
| 84999-10320 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-60040 |
FJ80,HZJ80..GX..ARL |
1 | ||
| 84660G - BULB(FOR REAR COOLER SWITCH) | ||||
| 88607-16010 |
FJ80,FZJ80,HDJ80,HZJ80 14V 0.065A |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-60050 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH | ||||
| 84999-10320 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60010 |
FJ80,HDJ80,HZJ80..LUB..ARL |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60020 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80 |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 84999-10320 |
FJ80,FZJ80,HDJ80,HZJ80 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-60030 |
FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-60020 |
FJ80,HDJ80,HZJ80..LUB..ARL |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
FJ80,FZJ80,HDJ80,HZJ80 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30190 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90170-09002 | ||||
ILLUST NO. 8 OF 9(9001- )
FLOOR SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69075 |
FJ80..VX..CBR;FZJ80..VX..GCC;FJ80..4FC..GX..GCC;FZJ80..(GX,VX)..GEN;FJ80..GX..(ARL,GEN)..CBR |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 88630-14010 |
FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN |
1 | ||
| Common parts | ||||
| 77169-32010 | ||||
| 82711-60090 | ||||
| 90119-06092 | ||||
| 90159-40155 | ||||
| 90179-06178 | ||||
| 90179-08059 | ||||
| 90464-00156 | ||||
| 90950-01356 | ||||
| 93315-14014 | ||||
| 93319-13006 | ||||
| 93319-14008 | ||||
| 93383-16016 | ||||
| 93567-55014 | ||||
ILLUST NO. 9 OF 9(9001- )
BACK DOOR SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320A - GAGE ASSY, FUEL SENDER (FOR FUEL SUB-TANK) | ||||
| 83320-69095 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-16020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-16020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60020 |
FJ80,FZJ80,HDJ80,HZJ80..LUB |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 90159-60081 | ||||
| 90189-06125 | ||||
| 90467-09043 | ||||
| 91651-40616 | ||||
| 93319-A4010 | ||||
ILLUST NO. 2 OF 9(9001- )
E/G ROOM RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-13010 |
3F#..FJ80 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
HDJ80;HZJ80..VX;FJ80,HZJ80..RHD 15A,COWL RELAY BLOCK |
6 | ||
| 90982-09004 |
FJ80..VX;HDJ80,HZJ80;FJ80..4FC..GX..GCC;FJ80..(GX,STD)..(ARL,GEN) 20A,YELLOW,COWL RELAY BLOCK |
2 | ||
| 90982-09002 |
FJ80,HDJ80,HZJ80 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09002 |
HDJ80..GEN;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2) 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09002 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 10A,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09003 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 15A,E/G ROOM RELAY BLOCK |
3 | ||
| 90982-09004 |
FJ80,HDJ80,HZJ80..ARL 20A,YELLOW,FUSE BLOCK |
1 | ||
| 90982-09005 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 7.5A,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-07011 |
FJ80,FZJ80,HDJ80,HZJ80 30A,GREEN,COWL RELAY BLOCK |
1 | ||
| 90982-09002 |
FZJ80..RHD..VX;FJ80,FZJ80,HDJ80,HZJ80..GX,STD 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09004 |
FJ80;FZJ80..GX,STD;FZJ80..VX..GEN 20A,YELLOW,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09004 |
HDJ80..GX;FJ80,HZJ80..RHD;FZJ80..LHD..VX..GEN;FZJ80..LHD..(GX,STD) 20A,YELLOW |
3 | ||
| 90982-09003 |
FJ80..RHD..CBR 15A |
5 | ||
| 90982-09002 |
FJ80,HDJ80,HZJ80..ARL 10A,FUSE BLOCK |
2 | ||
| 90982-09005 |
FJ80,FZJ80,HDJ80,HZJ80 7.5A,COWL RELAY BLOCK |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
HDJ80;HZJ80..VX;FJ80,HZJ80..RHD 15A,COWL RELAY BLOCK |
6 | ||
| 90982-09004 |
FJ80..VX;HDJ80,HZJ80;FJ80..4FC..GX..GCC;FJ80..(GX,STD)..(ARL,GEN) 20A,YELLOW,COWL RELAY BLOCK |
2 | ||
| 90982-09002 |
FJ80,HDJ80,HZJ80 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09002 |
HDJ80..GEN;FJ80,HZJ80..CBR,DSL;FJ80,HDJ80..GX..(EFI,TD2) 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09002 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 10A,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09003 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80..CBR,DSL,TD2 15A,E/G ROOM RELAY BLOCK |
3 | ||
| 90982-09004 |
FJ80,HDJ80,HZJ80..ARL 20A,YELLOW,FUSE BLOCK |
1 | ||
| 90982-09005 |
FZJ80..GX,STD;FZJ80..VX..GEN;FJ80,HDJ80,HZJ80 7.5A,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-07011 |
FJ80,FZJ80,HDJ80,HZJ80 30A,GREEN,COWL RELAY BLOCK |
1 | ||
| 90982-09002 |
FZJ80..RHD..VX;FJ80,FZJ80,HDJ80,HZJ80..GX,STD 10A,COWL RELAY BLOCK |
3 | ||
| 90982-09004 |
FJ80;FZJ80..GX,STD;FZJ80..VX..GEN 20A,YELLOW,E/G ROOM RELAY BLOCK |
1 | ||
| 90982-09004 |
HDJ80..GX;FJ80,HZJ80..RHD;FZJ80..LHD..VX..GEN;FZJ80..LHD..(GX,STD) 20A,YELLOW |
3 | ||
| 90982-09003 |
FJ80..RHD..CBR 15A |
5 | ||
| 90982-09002 |
FJ80,HDJ80,HZJ80..ARL 10A,FUSE BLOCK |
2 | ||
| 90982-09005 |
FJ80,FZJ80,HDJ80,HZJ80 7.5A,COWL RELAY BLOCK |
3 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-60060 |
FJ80,HDJ80,HZJ80..ARL |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90K00 |
FJ80,HDJ80,HZJ80..ARL |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-60020 |
FJ80,HDJ80,HZJ80..ARL |
1 | ||
| 82615B - BRACKET, FUSE NO.2 | ||||
| 82615-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 82615B - BRACKET, FUSE NO.2 | ||||
| 82615-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-60010 |
FJ80,FZJ80 UPPER |
1 | ||
| 82663-60010 |
FJ80,FZJ80,HDJ80,HZJ80 LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-60010 |
FJ80,FZJ80 UPPER |
1 | ||
| 82663-60010 |
FJ80,FZJ80,HDJ80,HZJ80 LOWER |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90800 |
FJ80,FZJ80..CBR |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-27060 |
FJ80..ARL..CBR |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-30050 |
FJ80..ARL..CBR |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-01003 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
FJ80..VX;HDJ80..ARL;HZJ80..GX,VX;FJ80..MTM..GX;HDJ80..5F..GEN;FJ80..4FC..GX..(ARL,GCC) |
1 | ||
| Common parts | ||||
| 47383-60020 | ||||
| 90119-06171 | ||||
| 90119-08063 | ||||
| 90119-08197 | ||||
| 90119-08699 | ||||
| 90159-50262 | ||||
| 90179-06158 | ||||
| 90179-06231 | ||||
| 90179-08041 | ||||
| 90179-08146 | ||||
| 90464-00190 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 93316-15016 | ||||
| 93316-16016 | ||||
| 94614-10600 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8302 | ||||
| 8404 | ||||
ILLUST NO. 6 OF 9(9001- )
IGNITION & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69385 |
FJ80,HDJ80,HZJ80..RHD |
1 | ||
| 84112-69385 |
FJ80,FZJ80,HDJ80,HZJ80..RHD..(GX,STD) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-60120 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60860 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL W(*RWD) |
1 | ||
| 84310-60850 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 84450-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60170 |
FJ80,FZJ80,HDJ80,HZJ80..GX,STD |
1 | ||
| 84450-60180 |
FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-60640 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL W(REAR WINDOW WIPER) |
1 | ||
| 84652-60630 |
FJ80,HDJ80,HZJ80..(GX,STD)..ARL |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8408 | ||||
ILLUST NO. 1 OF 9(9001- )FJ80,FZJ80
E/G,T/M,T/F & FR DIFF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83520-60011 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 83520-60011 |
FJ80,HDJ80;FZJ80..LUB;HZJ80..RHD;FZJ80..SOB..(GX,VX);HZJ80..LHD..(GX,VX) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-12010 |
FJ80,HZJ80..STD..ARL;FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 84222-12010 |
FJ80..STD..ARL;HZJ80..RHD..5F;HZJ80..LHD..(GX,VX);FJ80,FZJ80,HDJ80..GX,VX |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80 |
2 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
FZJ80..GX,VX;FZJ80..SOB..STD;FJ80,HDJ80,HZJ80 |
2 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60010 |
FJ80,FZJ80;HZJ80..GX..GCC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-60020 | ||||
| 82715-60010 | ||||
| 90179-04011 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 91651-40825 | ||||
| 93385-15020 | ||||
| 93385-16014 | ||||

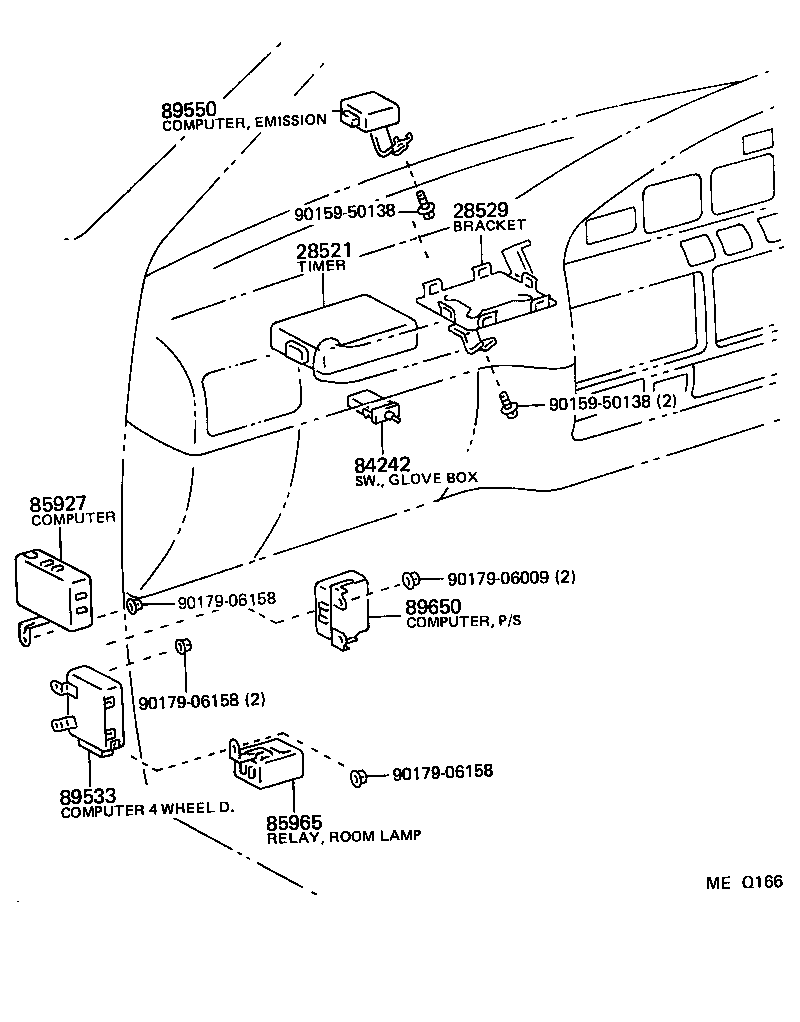

ILLUST NO. 4 OF 9(9001- )RHD
LH COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60020 |
FJ80,FZJ80,HDJ80,HZJ80..RHD |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-60250 |
FJ80..ARL..CBR |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90179-06009 | ||||
| 90179-06158 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
