Toyota Land cruiser FJ80 BACK DOOR PANEL & GLASS

FJ80R-GNMNSQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992

Engine 3F

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
67771-12050
67772-95J01
90189-04014
90189-04042
90189-04088
90467-06020A1
90467-06020B4
90468-05043
93560-24014
93560-54012

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
67867-12150
67868-22020
67869-30020
68555-60010
68618-90K00
90119-08521
90159-60268
90179-06128
90189-04042
90333-30002
90333-40001
90950-01437
90950-01639
90950-06030
91673-A0614
93560-54014

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90950-01011
90950-01056
90950-01352
90950-01398
90950-01435
90950-01438
90950-01639
90950-01866

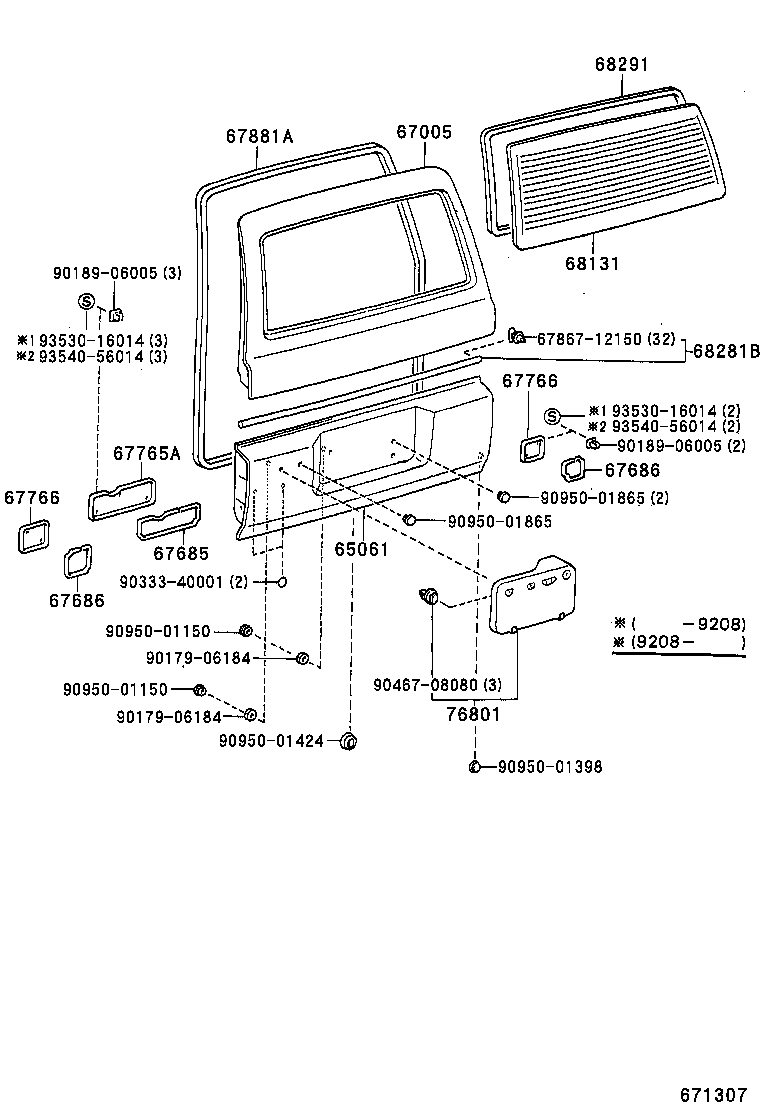

ILLUST NO. 2 OF 2(9001- )LUB

Click highlighted areas on diagram

Part #	Description	Period	Qty
65061 - PANEL SUB-ASSY, TAIL GATE
65061-60060	FJ80,HDJ80,HZJ80..LUB W(SPARE WHEEL CARRIER(BACK DOOR))	01/1990 - 08/1990	1
65061-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-60080	FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,STD)	01/1990 - 08/1992	1
67005-60100	FJ80,HDJ80,HZJ80..LUB..GX W(*RWD)	01/1990 - 08/1990	1
67005-60160	FJ80,HDJ80,HZJ80..LUB W(SPARE WHEEL CARRIER(BACK DOOR) & *RW)	01/1990 - 08/1990	1
67005-60150	FJ80,HDJ80,HZJ80..LUB..GX W(SPARE WHEEL CARRIER(BACK DOOR))	01/1990 - 08/1990	1
67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1
67685-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	1
67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2
67686-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	2
67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2
67686-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	2
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	2
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	2
67881A - WEATHERSTRIP, BACK DOOR
67881-60060	FJ80,FZJ80,HDJ80,HZJ80..LUB	10/1990 - 08/1992	1
67881-60010	FJ80,HDJ80,HZJ80..LUB	01/1990 - 10/1990	1
68131 - GLASS, BACK DOOR
68131-60080	FZJ80..LUB..STD;FJ80,HDJ80,HZJ80..GX..ARL *TEM,T=3.5	01/1990 - 08/1992	1
68131-60090	FJ80,FZJ80,HDJ80,HZJ80..LUB..GX *TT,T=3.5	01/1990 - 08/1992	1
68131-60120	HDJ80;FJ80,HZJ80..GX..ARL;FJ80,FZJ80,HZJ80..LUB..VX *EHTT,T=3.5	01/1990 - 08/1992	1
68131-60110	FZJ80..LUB..STD;FJ80,HDJ80,HZJ80..GX..ARL EHT,T=3.5,W(RWD)	01/1990 - 08/1992	1
68281B - WEATHERSTRIP, LIFT GATE
68281-60010	FJ80,FZJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1992	1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-60040	HDJ80..GEN;FJ80,HDJ80..GX..(EFI,TD2);FJ80,FZJ80,HZJ80..LUB..(GX,VX)..(CBR,DSL)	01/1990 - 08/1992	1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-60010	FJ80,HDJ80,HZJ80..LUB	01/1990 - 08/1990	1
Common parts
67867-12150
90179-06184
90189-06005
90333-40001
90467-08080
90950-01150
90950-01398
90950-01424
90950-01865
93530-16014
93540-56014

ILLUST NO. 1 OF 2(9001- )LUB

Click highlighted areas on diagram

Part #	Description	Period	Qty
64780A - PANEL ASSY, BACK DOOR TRIM
64780-6001003	FJ80,HDJ80,HZJ80..LUB..GX BLUISH GRAY,TRIM1#	01/1990 - 11/1990	1
64780-6001006	FJ80,HDJ80,HZJ80..LUB..GX SABLE,TRIM4#	01/1990 - 11/1990	1
64780-6001106	FJ80,FZJ80,HDJ80,HZJ80..LUB..GX SABLE,TRIM4#	11/1990 - 08/1992	1
64780-6001103	FJ80,FZJ80,HDJ80,HZJ80..LUB..GX BLUISH GRAY,TRIM1#	11/1990 - 08/1992	1
67935B - GARNISH, BACK DOOR
67935-6003006	FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,STD) SABLE,TRIM1#	01/1990 - 08/1992	1
67935-6003003	FJ80,FZJ80,HDJ80,HZJ80..LUB..(GX,STD) BLUISH GRAY,TRIM1#	01/1990 - 08/1992	1
Common parts
67771-12040
67771-12050

FJ80R-GNMNSQ (1990)

ILLUST NO. 1 OF 3(9001- )

ILLUST NO. 2 OF 3(9001- )

ILLUST NO. 3 OF 3(9001- )

ILLUST NO. 2 OF 2(9001- )LUB

ILLUST NO. 1 OF 2(9001- )LUB
