FJ80R-GCMRSQ (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 3(9001-9201)FJ7#..RHD ; (9001-9401)PZJ7#..RHD..CBU ; (9001-9501)PZJ75..5F ; (9001-00

Click highlighted areas on diagram

MAKER OPTION

diagram 88450 88460 88460B 8846714050 8846722060 8846722060 88470 88472 88472 88479 8868890K01 8868890K01 8868890K04 8868890K06 88711 88712 88715A 88716A 88716B 88716E 88717A 88717B 8871860510 8871860520 8871890K04 8871890K27 88723B 88891A 8889560010 8889560010 9009120618 9009901520 9009932128 9011906100 9011906100 9011906336 9011906336 9011906429 9017906032 9017906274 91611B0835 9165140616 9165140616 9165140616 91651F0610 91651F0616
Part # Description Qty Price
Common parts
88467-14050
88467-22060
88688-90K01
88688-90K04
88688-90K06
88718-60510
88718-60520
88718-90K04
88718-90K27
88895-60010
90091-20618
90099-01520
90099-32128
90119-06100
90119-06336
90119-06429
90179-06032
90179-06274
91611-B0835
91651-40616
91651-F0610
91651-F0616

ILLUST NO. 1 OF 4(9001- )GX,STD

Click highlighted areas on diagram

CONDENSOR---SINGLE(MAKER OPT)

diagram 88460 88470 88472 8857860080 8857860090 8857890A00 8868860190 8868860190 88716A 88716A 88716A 88723B 9011906106 9011906126 9011906336 9011906429 9011908572 9017906032 9095001242 91632G0645
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60060

FZJ80..GEN;HDJ80,HZJ80;FJ80..STD,VX;FJ80..GX..(ARL,GEN);FZJ80..(STD,VX)..GCC

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

HZJ80..STD;FJ80..STD..GEN;FJ80..(STD,VX)..(ARL,GCC)..CBR

 1
88471-16040

FJ80..CBR;FZJ80..STD..GEN;FZJ80..(STD,VX)..GCC;HZJ80..SOB..(STD,VX)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290

HDJ80..VX;FJ80,HZJ80..GCC,GEN;FJ80,HZJ80..STD..ARL

RECEIVER SIDE

 1
88716-60290

HDJ80..VX;HZJ80..GCC,GEN;FJ80,FZJ80..CBR;HZJ80..STD..ARL

RECEIVER SIDE

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290

HDJ80..VX;FJ80,HZJ80..GCC,GEN;FJ80,HZJ80..STD..ARL

RECEIVER SIDE

 1
88716-60290

HDJ80..VX;HZJ80..GCC,GEN;FJ80,FZJ80..CBR;HZJ80..STD..ARL

RECEIVER SIDE

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290

HDJ80..VX;FJ80,HZJ80..GCC,GEN;FJ80,HZJ80..STD..ARL

RECEIVER SIDE

 1
88716-60290

HDJ80..VX;HZJ80..GCC,GEN;FJ80,FZJ80..CBR;HZJ80..STD..ARL

RECEIVER SIDE

 1
Common parts
88578-60080
88578-60090
88578-90A00
88688-60190
90119-06106
90119-06126
90119-06336
90119-06429
90119-08572
90179-06032
90950-01242
91632-G0645

ILLUST NO. 2 OF 4(9001- )FJ80..RHD

Click highlighted areas on diagram

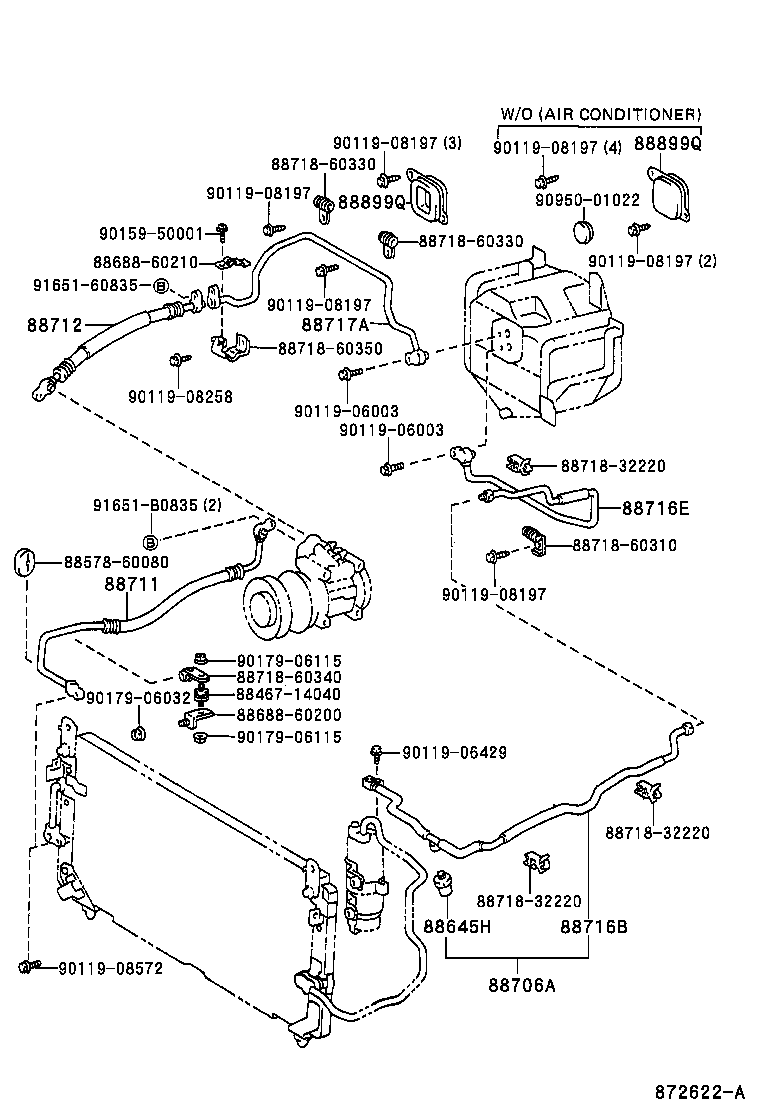

FRONT PIPING---SINGLE(MAKER OPT)

diagram 8846714040 8857860080 88645H 8868860200 8868860210 88706A 88711 88712 88716B 88716E 88717A 8871832220 8871832220 8871832220 8871860310 8871860330 8871860330 8871860340 8871860350 88899Q 88899Q 9011906003 9011906003 9011906429 9011908197 9011908197 9011908197 9011908197 9011908197 9011908197 9011908258 9011908572 9015950001 9017906032 9017906115 9017906115 9095001022 9165160835 91651B0835
Part # Description Qty Price
88706A - TUBE SUB-ASSY, LIQUID, A
88706-60020

FJ80..GX..EFI;FJ80..STD..ARL

SINGLE AIR CONDITIONER

 1
88706-60020

FJ80..GX,STD

SINGLE AIR CONDITIONER

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60120

FJ80..(ARL,GEN)..CBR

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60150

FJ80..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60070

FJ80,HZJ80..STD..ARL

 1
88726-60070

FJ80..CBR;HZJ80..STD..ARL

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60250

FJ80,HDJ80,HZJ80..(GX,STD)..ARL

 1
88899Q - PLATE, COVER
88899-60050

FJ80..CBR;HZJ80..STD..ARL

SINGLE DEALER OPT

 1
88899-60060

FJ80,HDJ80,HZJ80..ARL

MAKER OPTION

 1
88899-60050

FJ80,HZJ80..STD..ARL

SINGLE DEALER OPT

 1
88899Q - PLATE, COVER
88899-60050

FJ80..CBR;HZJ80..STD..ARL

SINGLE DEALER OPT

 1
88899-60060

FJ80,HDJ80,HZJ80..ARL

MAKER OPTION

 1
88899-60050

FJ80,HZJ80..STD..ARL

SINGLE DEALER OPT

 1
Common parts
88467-14040
88578-60080
88688-60200
88688-60210
88718-32220
88718-60310
88718-60330
88718-60340
88718-60350
90119-06003
90119-06429
90119-08197
90119-08258
90119-08572
90159-50001
90179-06032
90179-06115
90950-01022
91651-60835
91651-B0835

ILLUST NO. 2 OF 4(9001- )FJ80..RHD

Click highlighted areas on diagram

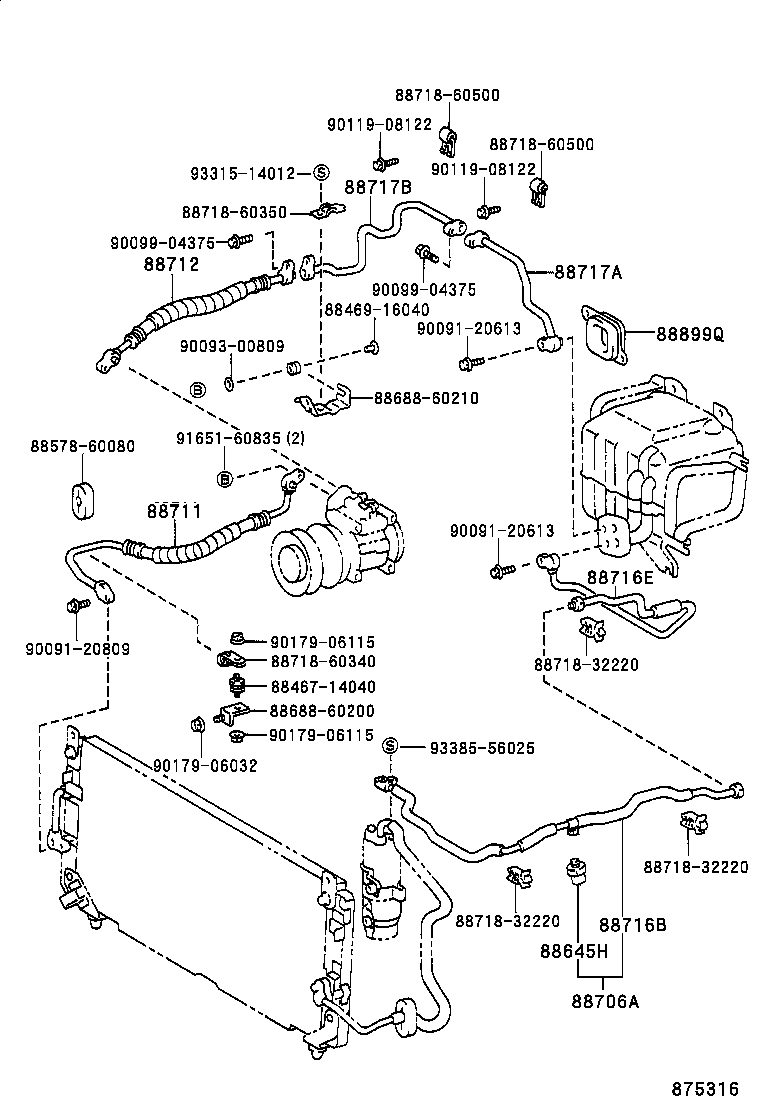

FRONT PIPING---SINGLE(DEALER OPT)

diagram 8846714040 8846916040 8857860080 88645H 8868860200 8868860210 88706A 88711 88712 88716B 88716E 88717A 88717B 8871832220 8871832220 8871832220 8871860340 8871860350 8871860500 8871860500 88899Q 9009120613 9009120613 9009120809 9009300809 9009904375 9009904375 9011908122 9011908122 9017906032 9017906115 9017906115 9165160835 9331514012 9338556025
Part # Description Qty Price
88706A - TUBE SUB-ASSY, LIQUID, A
88706-60020

FJ80..GX..EFI;FJ80..STD..ARL

SINGLE AIR CONDITIONER

 1
88706-60020

FJ80..GX,STD

SINGLE AIR CONDITIONER

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60120

FJ80..(ARL,GEN)..CBR

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60150

FJ80..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60070

FJ80,HZJ80..STD..ARL

 1
88726-60070

FJ80..CBR;HZJ80..STD..ARL

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60250

FJ80,HDJ80,HZJ80..(GX,STD)..ARL

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-60240

FJ80,HDJ80,HZJ80..(GX,STD)..ARL

NO.1

 1
88717-60250

FJ80,HDJ80,HZJ80..(GX,STD)..ARL

NO.2

 1
88899Q - PLATE, COVER
88899-60050

FJ80..CBR;HZJ80..STD..ARL

SINGLE DEALER OPT

 1
88899-60060

FJ80,HDJ80,HZJ80..ARL

MAKER OPTION

 1
88899-60050

FJ80,HZJ80..STD..ARL

SINGLE DEALER OPT

 1
Common parts
88467-14040
88469-16040
88578-60080
88688-60200
88688-60210
88718-32220
88718-60340
88718-60350
88718-60500
90091-20613
90091-20809
90093-00809
90099-04375
90119-08122
90179-06032
90179-06115
91651-60835
93315-14012
93385-56025

ILLUST NO. 2 OF 4(9001- )FJ80..RHD

Click highlighted areas on diagram

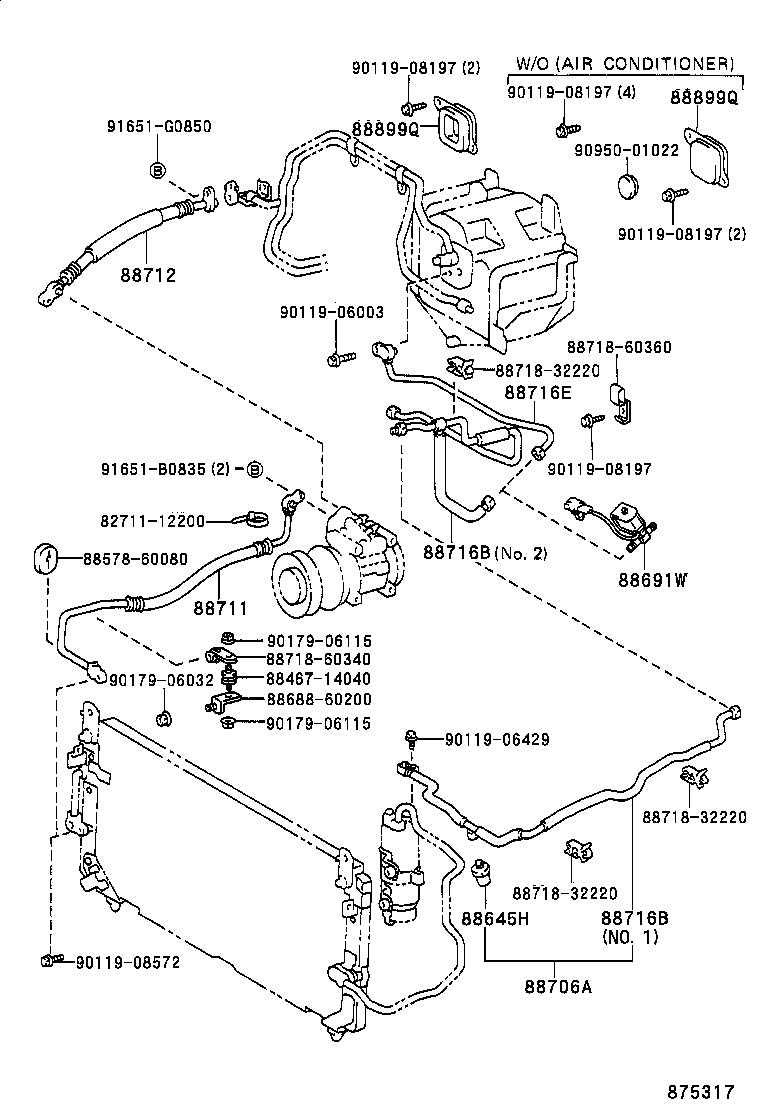

FRONT PIPING---DUAL

diagram 8271112200 8846714040 8857860080 88645H 8868860200 88691W 88706A 88711 88712 88716B 88716B 88716E 8871832220 8871832220 8871832220 8871860340 8871860360 88899Q 88899Q 9011906003 9011906429 9011908197 9011908197 9011908197 9011908197 9011908572 9017906032 9017906115 9017906115 9095001022 91651B0835 91651G0850
Part # Description Qty Price
88706A - TUBE SUB-ASSY, LIQUID, A
88706-60020

FJ80..GX..EFI;FJ80..STD..ARL

SINGLE AIR CONDITIONER

 1
88706-60020

FJ80..GX,STD

SINGLE AIR CONDITIONER

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60120

FJ80..(ARL,GEN)..CBR

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60150

FJ80..RHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60070

FJ80,HZJ80..STD..ARL

 1
88726-60070

FJ80..CBR;HZJ80..STD..ARL

 1
88899Q - PLATE, COVER
88899-60050

FJ80..CBR;HZJ80..STD..ARL

SINGLE DEALER OPT

 1
88899-60060

FJ80,HDJ80,HZJ80..ARL

MAKER OPTION

 1
88899-60050

FJ80,HZJ80..STD..ARL

SINGLE DEALER OPT

 1
88899Q - PLATE, COVER
88899-60050

FJ80..CBR;HZJ80..STD..ARL

SINGLE DEALER OPT

 1
88899-60060

FJ80,HDJ80,HZJ80..ARL

MAKER OPTION

 1
88899-60050

FJ80,HZJ80..STD..ARL

SINGLE DEALER OPT

 1
Common parts
82711-12200
88467-14040
88578-60080
88688-60200
88718-32220
88718-60340
88718-60360
90119-06003
90119-06429
90119-08197
90119-08572
90179-06032
90179-06115
90950-01022
91651-B0835
91651-G0850

ILLUST NO. 1 OF 4(9001- )GX,STD..ARL

Click highlighted areas on diagram

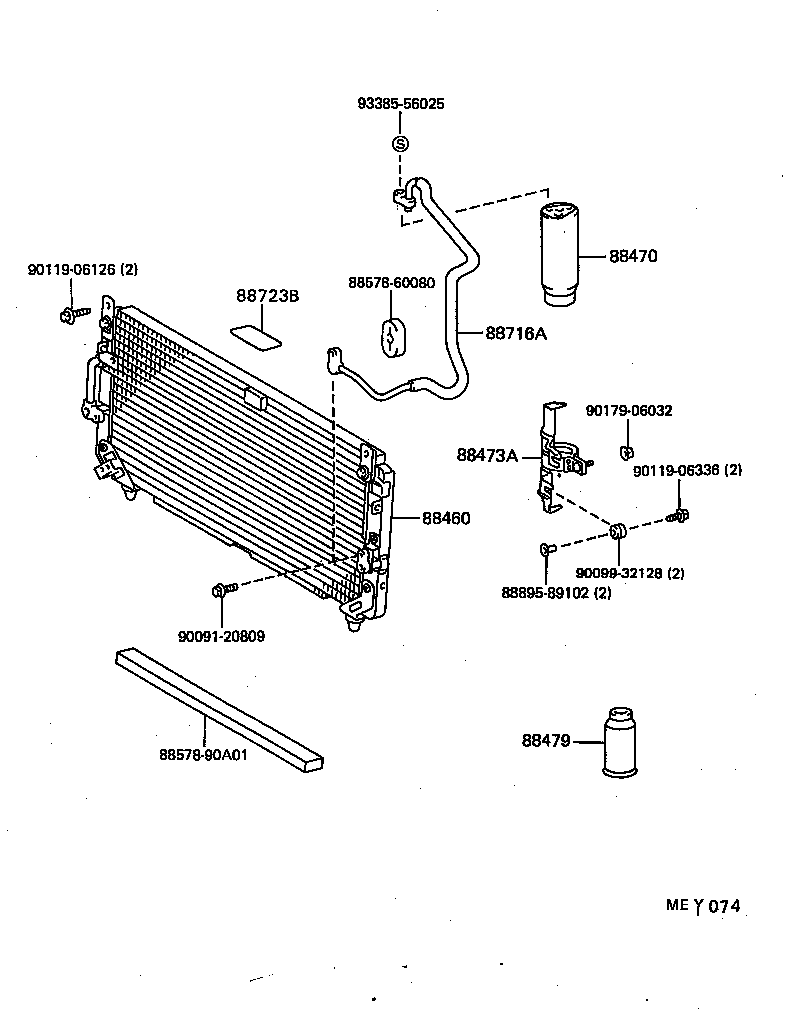

CONDENSOR---SINGLE(DEALER OPT)

diagram 88460 88470 88473A 88479 8857860080 8857890A01 88716A 88723B 8889589102 9009120809 9009932128 9011906126 9011906336 9017906032 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-60060

FZJ80..GEN;HDJ80,HZJ80;FJ80..STD,VX;FJ80..GX..(ARL,GEN);FZJ80..(STD,VX)..GCC

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040

HZJ80..STD;FJ80..STD..GEN;FJ80..(STD,VX)..(ARL,GCC)..CBR

 1
88471-16040

FJ80..CBR;FZJ80..STD..GEN;FZJ80..(STD,VX)..GCC;HZJ80..SOB..(STD,VX)

 1
88473A - HOLDER, RECEIVER
88473-60010

FJ80,HDJ80,HZJ80..(GX,STD)..ARL

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

FJ80,HDJ80,HZJ80..(GX,STD)..ARL

250G

 3
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290

HDJ80..VX;FJ80,HZJ80..GCC,GEN;FJ80,HZJ80..STD..ARL

RECEIVER SIDE

 1
88716-60290

HDJ80..VX;HZJ80..GCC,GEN;FJ80,FZJ80..CBR;HZJ80..STD..ARL

RECEIVER SIDE

 1
Common parts
88578-60080
88578-90A01
88895-89102
90091-20809
90099-32128
90119-06126
90119-06336
90179-06032
93385-56025
