FJ80R-GCMRSQ (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9604)3F
Click highlighted areas on diagram
12V 65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||

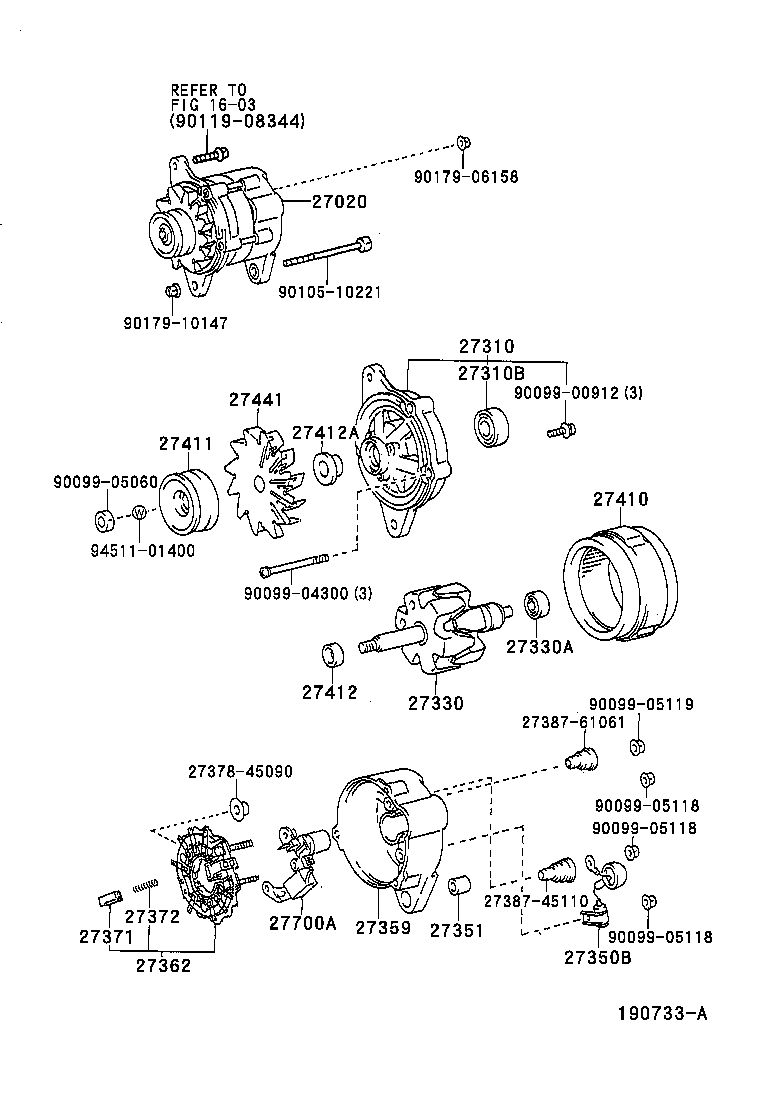

(9001-9201)3F
Click highlighted areas on diagram
12V 65A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ80 12V 65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ80..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ80..ARL |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ80..ARL |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F#..FJ80 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F#..FJ80 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F#..FJ80 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72040 |
3F..FJ80..ARL |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-72080 |
3F..FJ80..ARL |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F#..FJ80 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F#..FJ80 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ80..ARL |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ80..ARL |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-15150 |
3F..FJ80 |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3F..FJ80 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34111 |
3F..FJ80..ARL |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F#..FJ80..ARL |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45110 | ||||
| 27387-61061 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||
| Linked diagrams | ||||
| 1603 | ||||

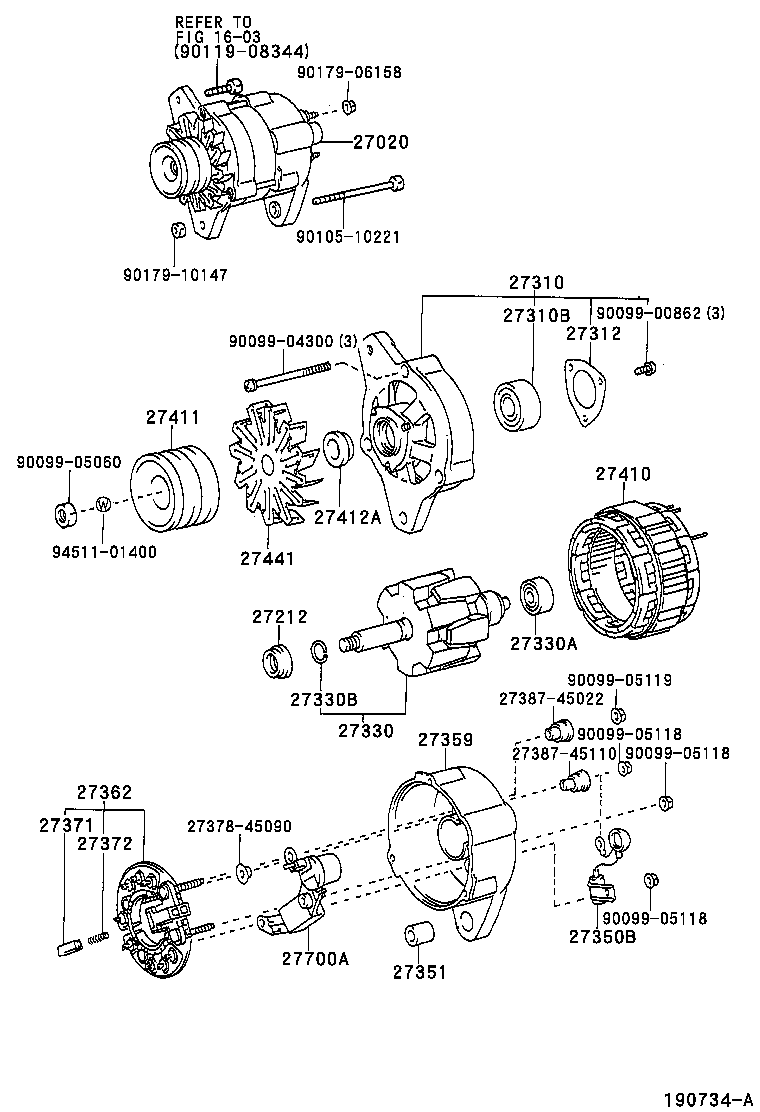

(9001-9208)3F#
Click highlighted areas on diagram
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-61061 |
3F..FJ80 12V 65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
3F..FJ80..ARL |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
3F..FJ80..ARL |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-43040 |
3F..FJ80..ARL |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F#..FJ80 |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
3F#..FJ80 |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
3F#..FJ80 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-72040 |
3F..FJ80..ARL |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-72080 |
3F..FJ80..ARL |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
3F#..FJ80 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
3F#..FJ80 |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-43040 |
3F..FJ80..ARL |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-61190 |
3F..FJ80..ARL |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
3F..FJ80 |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34111 |
3F..FJ80..ARL |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63030 |
3F#..FJ80..ARL |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00862 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90105-10221 | ||||
| 90179-06158 | ||||
| 90179-10147 | ||||
| 94511-01400 | ||||
| Linked diagrams | ||||
| 1603 | ||||
