FJ80L-GNPNS (1990)
Toyota Land Cruiser

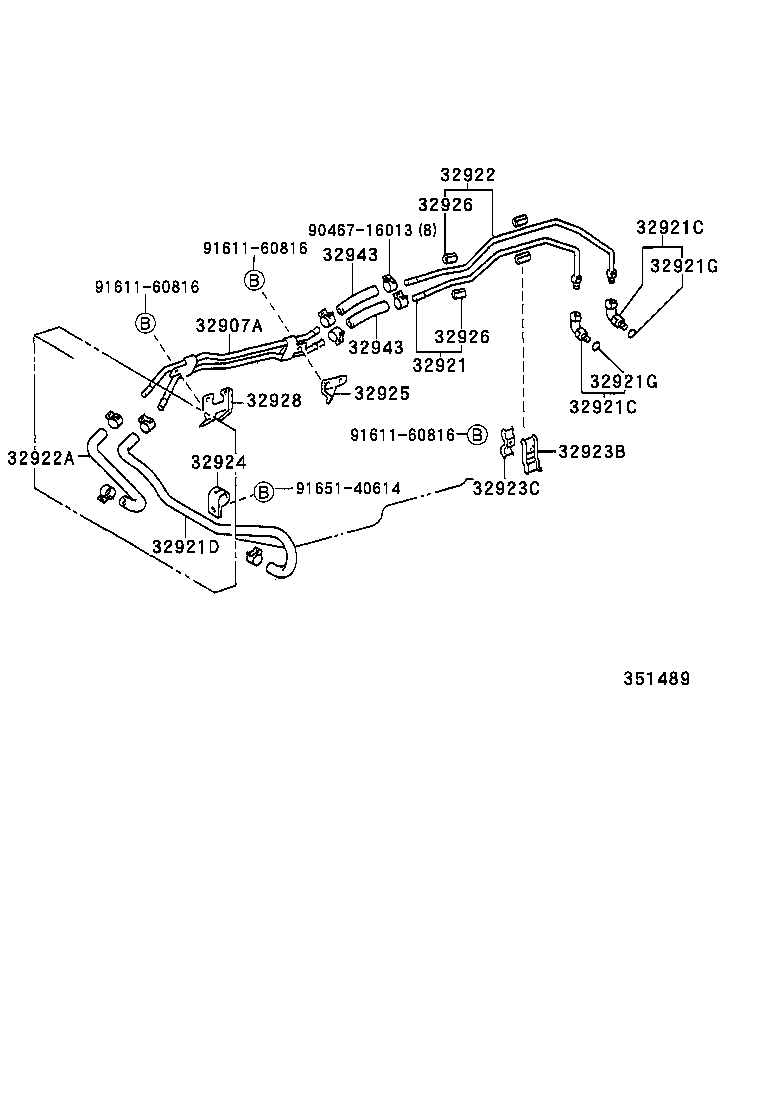

(9001-9208)FJ80..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907A - TUBE, OIL COOLER | ||||
| 32907-60030 |
FJ80..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60050 |
FJ80..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
FJ80,HDJ80,HZJ80..4FC OUTLET |
1 | ||
| 90407-20005 |
FJ80,HDJ80,HZJ80..4FC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
FJ80,HDJ80,HZJ80..4FC OUTLET |
1 | ||
| 90407-20005 |
FJ80,HDJ80,HZJ80..4FC INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32942-60070 |
FJ80..4FC |
1 | ||
| 32942-60080 |
FJ80..4FC AIR COOLING OIL COOLER |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60050 |
FJ80..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-35011 |
FJ80..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60060 |
FJ80..4FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
FJ80..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90461-08594 |
FJ80..4FC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-60060 |
FJ80..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FJ80..4FC L=45,ID=12 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FJ80..4FC L=45,ID=12 |
4 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-60040 |
FJ80..4FC |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-60090 |
FJ80..4FC |
2 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-60090 |
FJ80..4FC |
2 | ||
| Common parts | ||||
| 90467-16013 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||

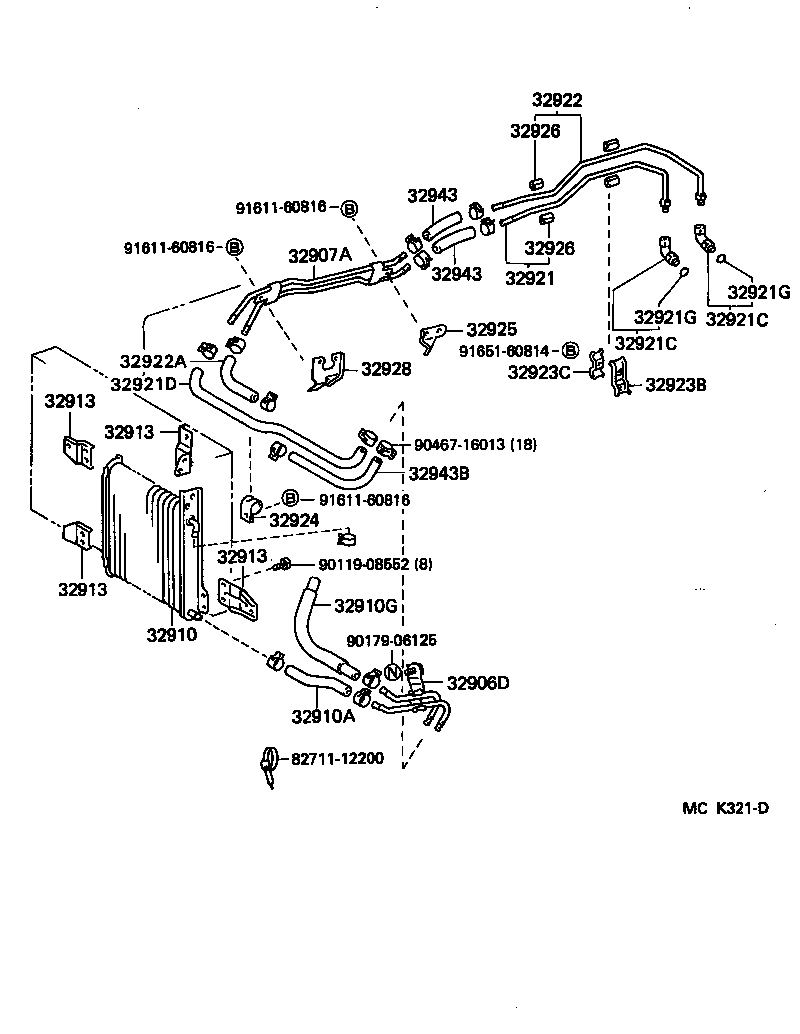

(9001-9208)FJ80..4FC
AIR COOLING OIL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906D - TUBE SUB-ASSY, OIL COOLER, NO.2 | ||||
| 32906-60120 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 32907A - TUBE, OIL COOLER | ||||
| 32907-60030 |
FJ80..4FC |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-60070 |
FJ80,HZJ80..4FC |
1 | ||
| 32910A - HOSE, OIL COOLER WATER OUTLET | ||||
| 90445-17102 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 32910G - HOSE, OIL COOLER OUTLET | ||||
| 32943-60051 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60060 |
FJ80,HDJ80,HZJ80..4FC LH,LWR |
1 | ||
| 32913-60090 |
FJ80,HDJ80,HZJ80..4FC RH,LWR |
1 | ||
| 32913-60070 |
FJ80,HDJ80,HZJ80..4FC LH,UPR |
1 | ||
| 32913-60080 |
FJ80,HDJ80,HZJ80..4FC RH,UPR |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60060 |
FJ80,HDJ80,HZJ80..4FC LH,LWR |
1 | ||
| 32913-60090 |
FJ80,HDJ80,HZJ80..4FC RH,LWR |
1 | ||
| 32913-60070 |
FJ80,HDJ80,HZJ80..4FC LH,UPR |
1 | ||
| 32913-60080 |
FJ80,HDJ80,HZJ80..4FC RH,UPR |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60060 |
FJ80,HDJ80,HZJ80..4FC LH,LWR |
1 | ||
| 32913-60090 |
FJ80,HDJ80,HZJ80..4FC RH,LWR |
1 | ||
| 32913-60070 |
FJ80,HDJ80,HZJ80..4FC LH,UPR |
1 | ||
| 32913-60080 |
FJ80,HDJ80,HZJ80..4FC RH,UPR |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60060 |
FJ80,HDJ80,HZJ80..4FC LH,LWR |
1 | ||
| 32913-60090 |
FJ80,HDJ80,HZJ80..4FC RH,LWR |
1 | ||
| 32913-60070 |
FJ80,HDJ80,HZJ80..4FC LH,UPR |
1 | ||
| 32913-60080 |
FJ80,HDJ80,HZJ80..4FC RH,UPR |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-60050 |
FJ80..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
FJ80,HDJ80,HZJ80..4FC OUTLET |
1 | ||
| 90407-20005 |
FJ80,HDJ80,HZJ80..4FC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-20004 |
FJ80,HDJ80,HZJ80..4FC OUTLET |
1 | ||
| 90407-20005 |
FJ80,HDJ80,HZJ80..4FC INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32942-60070 |
FJ80..4FC |
1 | ||
| 32942-60080 |
FJ80..4FC AIR COOLING OIL COOLER |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ80,HDJ80,HZJ80..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-60050 |
FJ80..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-35011 |
FJ80..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-60060 |
FJ80..4FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12076 |
FJ80..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90461-08594 |
FJ80..4FC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-60060 |
FJ80..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FJ80..4FC L=45,ID=12 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-60010 |
FJ80..4FC L=45,ID=12 |
4 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-60040 |
FJ80..4FC |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-60090 |
FJ80..4FC |
2 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-60090 |
FJ80..4FC |
2 | ||
| 32943B - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-60120 |
FJ80,HDJ80,HZJ80..4FC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08552 | ||||
| 90179-06125 | ||||
| 90467-16013 | ||||
| 91611-60816 | ||||
| 91651-60814 | ||||
