FJ80L-GNPES (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

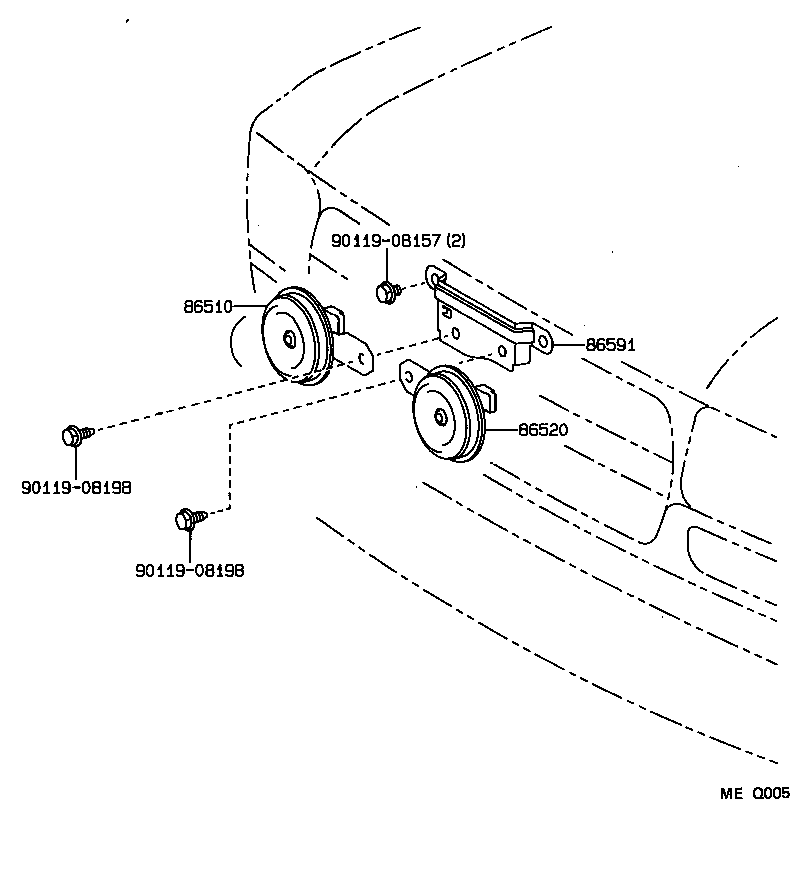

Click highlighted areas on diagram

diagram 86510 86520 86591 9011908157 9011908198 9011908198
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-14240

FZJ80..LUB;FZJ80..SOB..GEN;FZJ80..SOB..(GX,VX)..GCC;FJ80,HDJ80,HZJ80..GCC,GEN

W(SHORT WAVE RADIO)

 1
86510-14210

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
86510-60070

FJ80..LHD..4F;FZJ80..LHD..SOB..GEN;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN

ALGERIA SPEC

 1
86520 - HORN ASSY, LOW PITCHED
86520-14240

FZJ80..LUB;FZJ80..SOB..GEN;FZJ80..SOB..(GX,VX)..GCC;FJ80,HDJ80,HZJ80..GCC,GEN

W(SHORT WAVE RADIO)

 1
86520-60020

FJ80..LHD..4F;FZJ80..LHD..SOB..GEN;FJ80..LHD..5F..STD..GEN;HZJ80..LHD..MTM..(GX,STD)..GEN

ALGERIA SPEC

 1
86520-14210

FJ80,FZJ80,HDJ80,HZJ80..ARL,GEN

 1
86591 - BRACKET, HORN
86591-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90119-08157
90119-08198
