FJ80L-GNPES (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85178 85190 85190 85190 85192 85192 85192 85192 85192 85214A 85214B 85220 85220 85221 85221 85224A 85224B 85224C 85224D 9009900913 9009900913 9011906311 9011906311
Part # Description Qty Price
Common parts
90099-00913
90119-06311

(9001- )

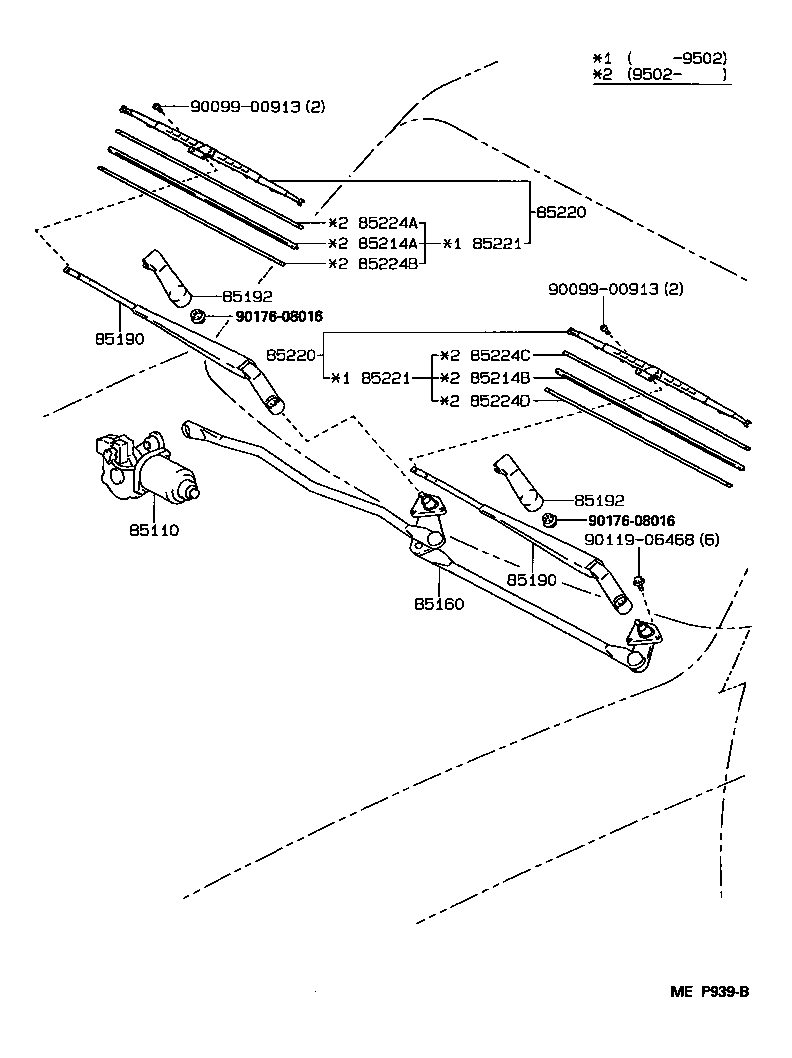

Click highlighted areas on diagram

diagram 85110 85160 85190 85190 85192 85192 85214A 85214B 85220 85220 85221 85221 85224A 85224B 85224C 85224D 9009900913 9009900913 9011906468 9017608016 9017608016
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-60110

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-60100

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85221-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85221-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 2
85192 - COVER, WINDSHIELD WIPER ARM
85261-90K02

FJ80,FZJ80,HDJ80,HZJ80..LHD

 2
85192 - COVER, WINDSHIELD WIPER ARM
85261-90K02

FJ80,FZJ80,HDJ80,HZJ80..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16340

FJ80,FZJ80,HDJ80,HZJ80..LHD

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16340

FJ80,FZJ80,HDJ80,HZJ80..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30100

FJ80,FZJ80,HDJ80,HZJ80..LHD

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30100

FJ80,FZJ80,HDJ80,HZJ80..LHD

 2
Common parts
90099-00913
90119-06468
90176-08016
