FJ80L-GNPES (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1992
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9004- )FZJ70,75..ARL ; (9004- )FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69266B 69803 69803 69804 69804 69905B 69906B 69975A 8511 9010508320 9010508320 9011908892 9016850013 9017908098 9052001274 9153160608 9153160608
Part # Description Qty Price
Common parts
90105-08320
90119-08892
90168-50013
90179-08098
90520-01274
91531-60608
Linked diagrams
8511

(9001- )

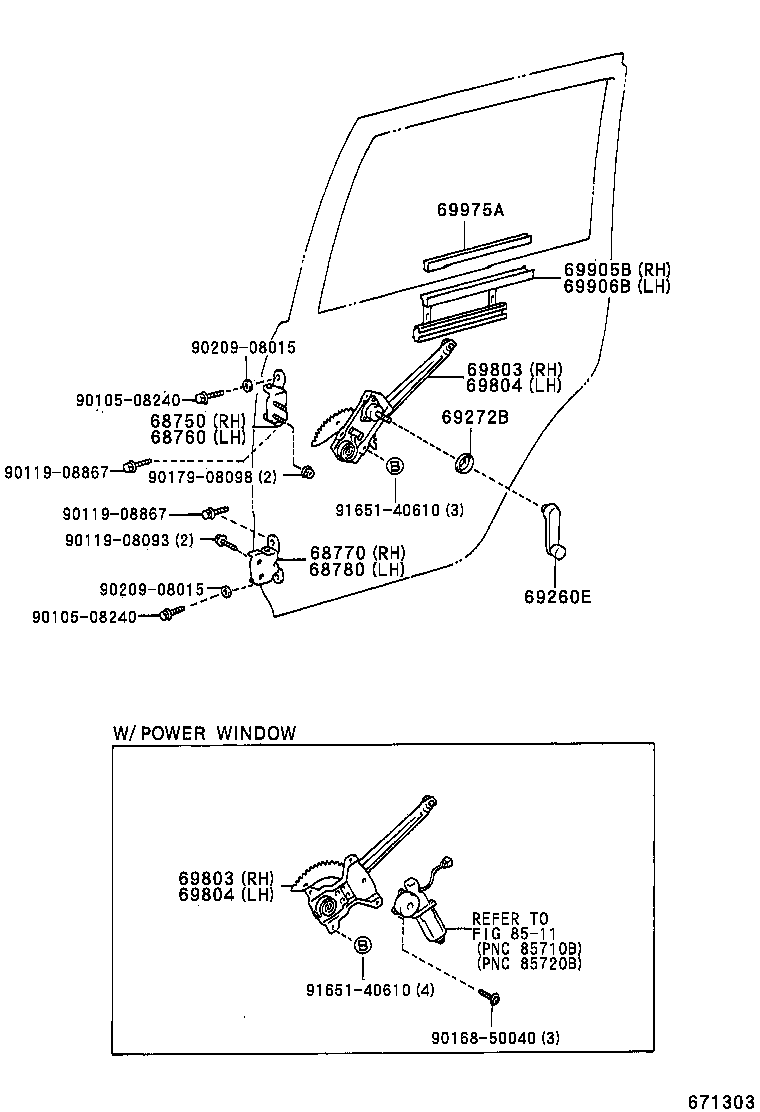

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69272B 69803 69803 69804 69804 69905B 69906B 69975A 8511 9010508240 9010508240 9011908093 9011908867 9011908867 9016850040 9017908098 9020908015 9020908015 9165140610 9165140610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-60010

FJ80,HDJ80,HZJ80

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-60010

FJ80,HDJ80,HZJ80

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20040

FJ80,HDJ80,HZJ80

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20040

FJ80,HDJ80,HZJ80

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-60010

FJ80,FZJ80,HDJ80,HZJ80..VX

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-60010

FJ80,FZJ80,HDJ80,HZJ80..VX

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-60010

FJ80,FZJ80,HDJ80,HZJ80..VX

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-60010

FJ80,FZJ80,HDJ80,HZJ80..VX

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-60010

FJ80,FZJ80,HDJ80,HZJ80

 2
Common parts
90105-08240
90119-08093
90119-08867
90168-50040
90179-08098
90209-08015
91651-40610
Linked diagrams
8511
