FJ80L-GNPES (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
3F
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

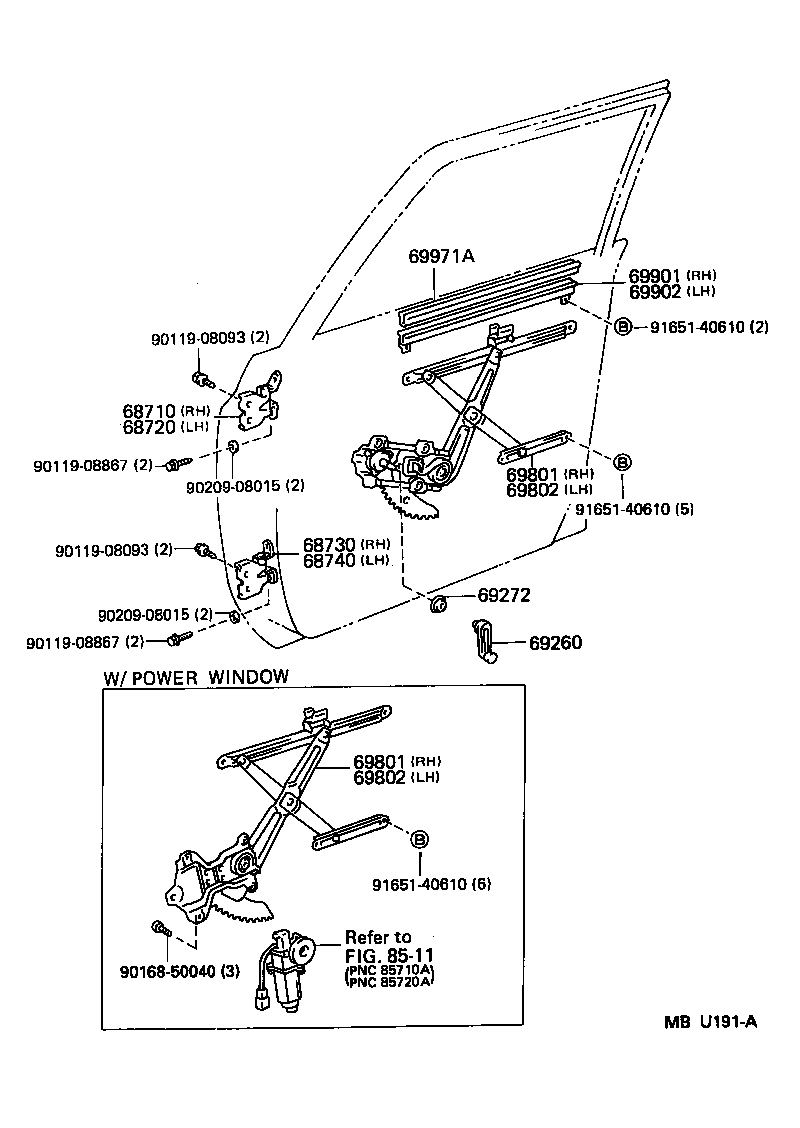

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08291 | ||||
| 90119-08093 | ||||
| 90119-08892 | ||||
| 90168-50013 | ||||
| 90209-08014 | ||||
| 90520-01274 | ||||
| 91531-60608 | ||||
| Linked diagrams | ||||
| 8511 | ||||
(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-12060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-12060 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-60010 |
FJ80,FZJ80,HDJ80,HZJ80..VX |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-60010 |
FJ80,FZJ80,HDJ80,HZJ80..VX |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-60010 |
FJ80,FZJ80,HDJ80,HZJ80..VX |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-60010 |
FJ80,FZJ80,HDJ80,HZJ80..VX |
1 | ||
| 69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH | ||||
| 69901-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH | ||||
| 69902-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 69971A - FILLER, FRONT DOOR GLASS CHANNEL | ||||
| 69971-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 90119-08867 | ||||
| 90168-50040 | ||||
| 90209-08015 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8511 | ||||
