FJ80L-GNPES (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1992
Engine
3F
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9208)FJ80

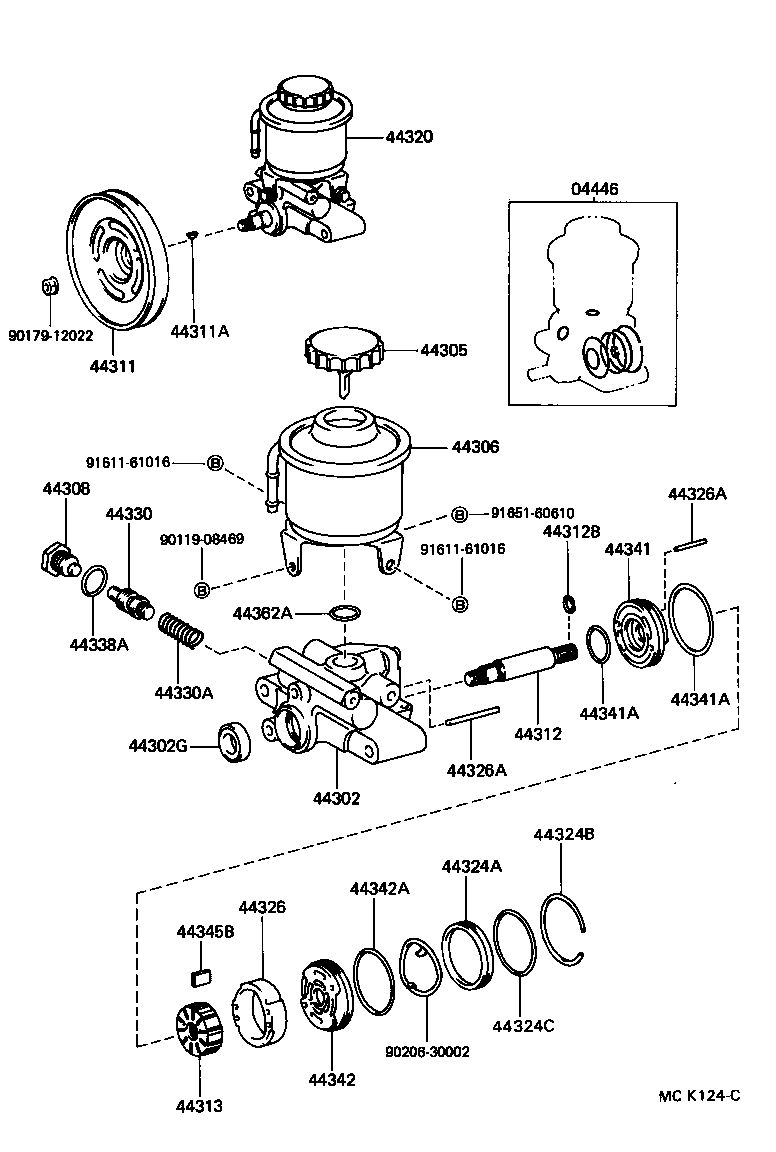

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-60020 |
FJ80 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-60030 |
FJ80 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
FJ80 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 44306 - RESERVOIR SUB-ASSY, VANE PUMP OIL | ||||
| 44306-60170 |
FJ80 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-32050 |
FJ80 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-60060 |
FJ80 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
FJ80,FZJ80 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
FJ80 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
FJ80 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-32050 |
FJ80 MARK 4 |
1 | ||
| 44313-32030 |
FJ80 MARK 2 |
1 | ||
| 44313-32020 |
FJ80 MARK 1 |
1 | ||
| 44313-32040 |
FJ80 MARK 3 |
1 | ||
| 44313-32010 |
FJ80 NO MARK |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-60160 |
FJ80 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
FJ80,FZJ80 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
FJ80,FZJ80 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53004 |
FJ80,FZJ80 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32030 |
FJ80 MARK 2 |
1 | ||
| 44325-32040 |
FJ80 MARK 3 |
1 | ||
| 44325-32010 |
FJ80 NO MARK |
1 | ||
| 44325-32020 |
FJ80 MARK 1 |
1 | ||
| 44325-32050 |
FJ80 MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
FJ80,FZJ80 L=43,OD=4.0 |
1 | ||
| 90250-04047 |
FJ80,FZJ80 L=28,OD=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
FJ80,FZJ80 L=43,OD=4.0 |
1 | ||
| 90250-04047 |
FJ80,FZJ80 L=28,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-20350 |
FJ80 MARK E |
1 | ||
| 44330-20320 |
FJ80 MARK B |
1 | ||
| 44330-20310 |
FJ80 MARK A |
1 | ||
| 44330-20340 |
FJ80 MARK D |
1 | ||
| 44330-20330 |
FJ80 MARK C |
1 | ||
| 44330-20360 |
FJ80 MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
FJ80,FZJ80 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
FJ80,FZJ80 ID=19.5,OD=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-20010 |
FJ80 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-53004 |
FJ80,FZJ80 OUTER |
1 | ||
| 90301-25008 |
FJ80 INNER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-53004 |
FJ80,FZJ80 OUTER |
1 | ||
| 90301-25008 |
FJ80 INNER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-20010 |
FJ80 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53004 |
FJ80,FZJ80 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12020 |
FJ80 L=14.995 |
10 | ||
| 44345-12010 |
FJ80 L=14.997 |
10 | ||
| 44345-12040 |
FJ80 L=14.991 |
10 | ||
| 44345-12050 |
FJ80 L=14.989 |
10 | ||
| 44345-12030 |
FJ80 L=14.993 |
10 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-12003 |
FJ80 |
1 | ||
| Common parts | ||||
| 90119-08469 | ||||
| 90179-12022 | ||||
| 90206-30002 | ||||
| 91611-61016 | ||||
| 91651-60610 | ||||
